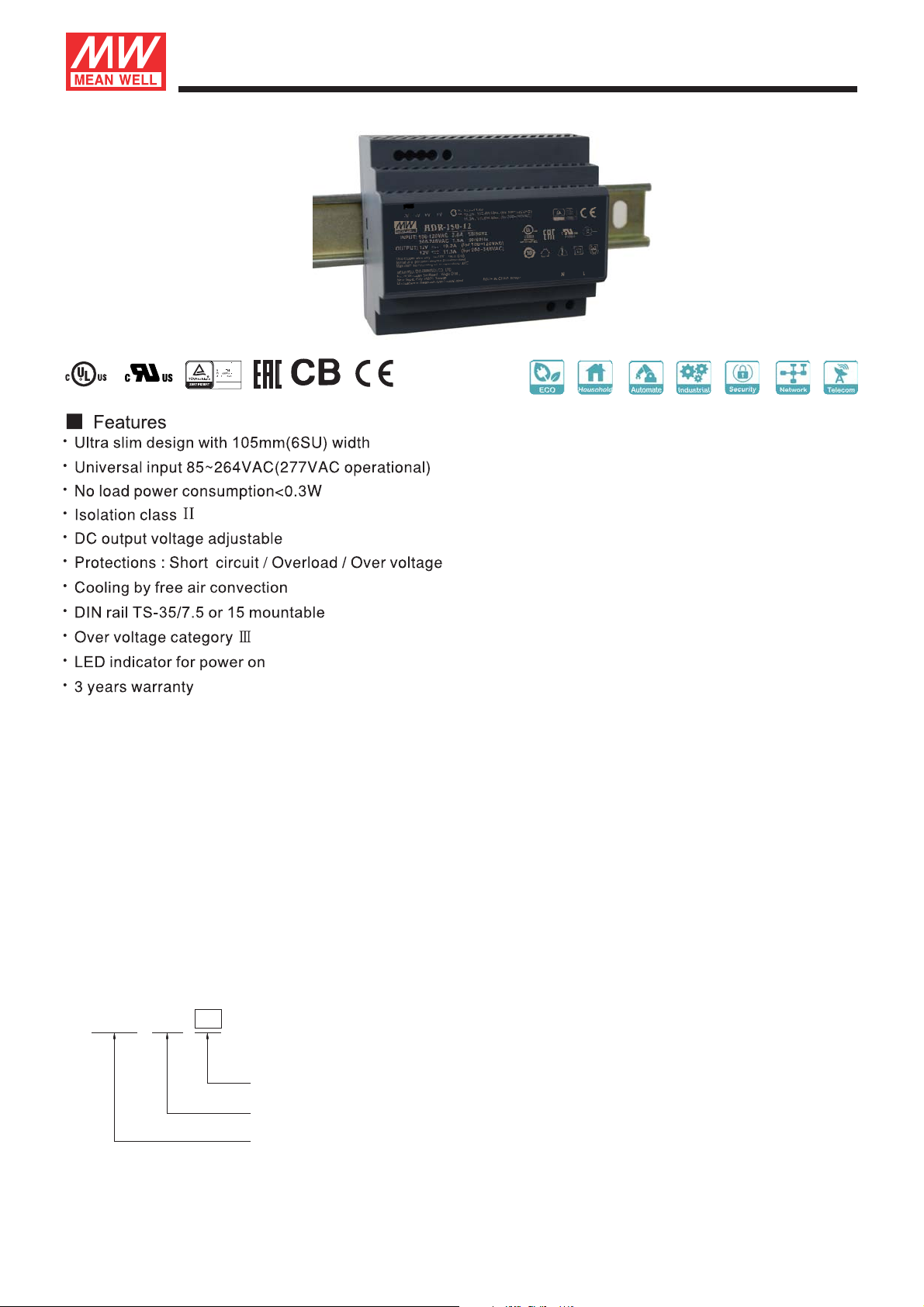

Page 1
UL61010
150 Ultra Slim Step ShapeW DIN Rail
tgepruft
Bauar
Sicherheit
egel gema
od
os
be
wac g
www.
tuv.com
UL62368-1
ID 2000000000
EN61558
IEC62368-1

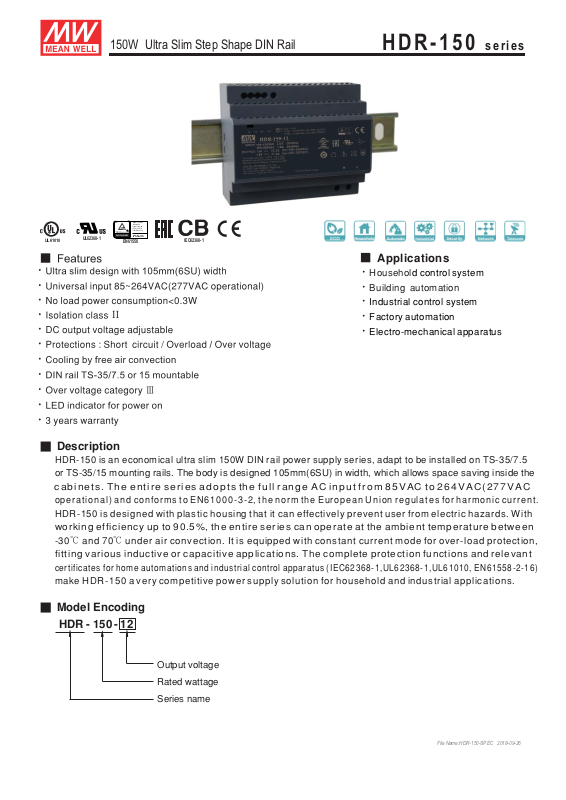

HDR-150 series
■ Applications
Household control system
Building automation
Industrial control system
Factory automation
Electro-mechanical apparatus
■ Description
HDR-150 is an economical ultra slim 150W DIN rail power supply series, adapt to be installed on TS-35/7.5
or TS-35/15 mounting rails. The body is designed 105mm(6SU) in width, which allows space saving inside the
cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC
operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.
HDR-150 is designed with plastic housing that it can effectively prevent user from electric hazards. With
working efficiency up to 90.5%, the entire series can operate at the ambient temperature between
-30 and 70 under air convection. It is equipped with constant current mode for over-load protection, ℃℃
fitting various inductive or capacitive applications. The complete protection functions and relevant
certificates for home automations and industrial control apparatus UL62368-1,UL61010, EN61558-2-16) (-,IEC62368 1
make HDR-150 a very competitive power supply solution for household and industrial applications.
■ Model Encoding
-12HDR - 1 05
Output voltage
Rated wattage
Series name
File Name:HDR- 0-SPEC15 2018-09-26

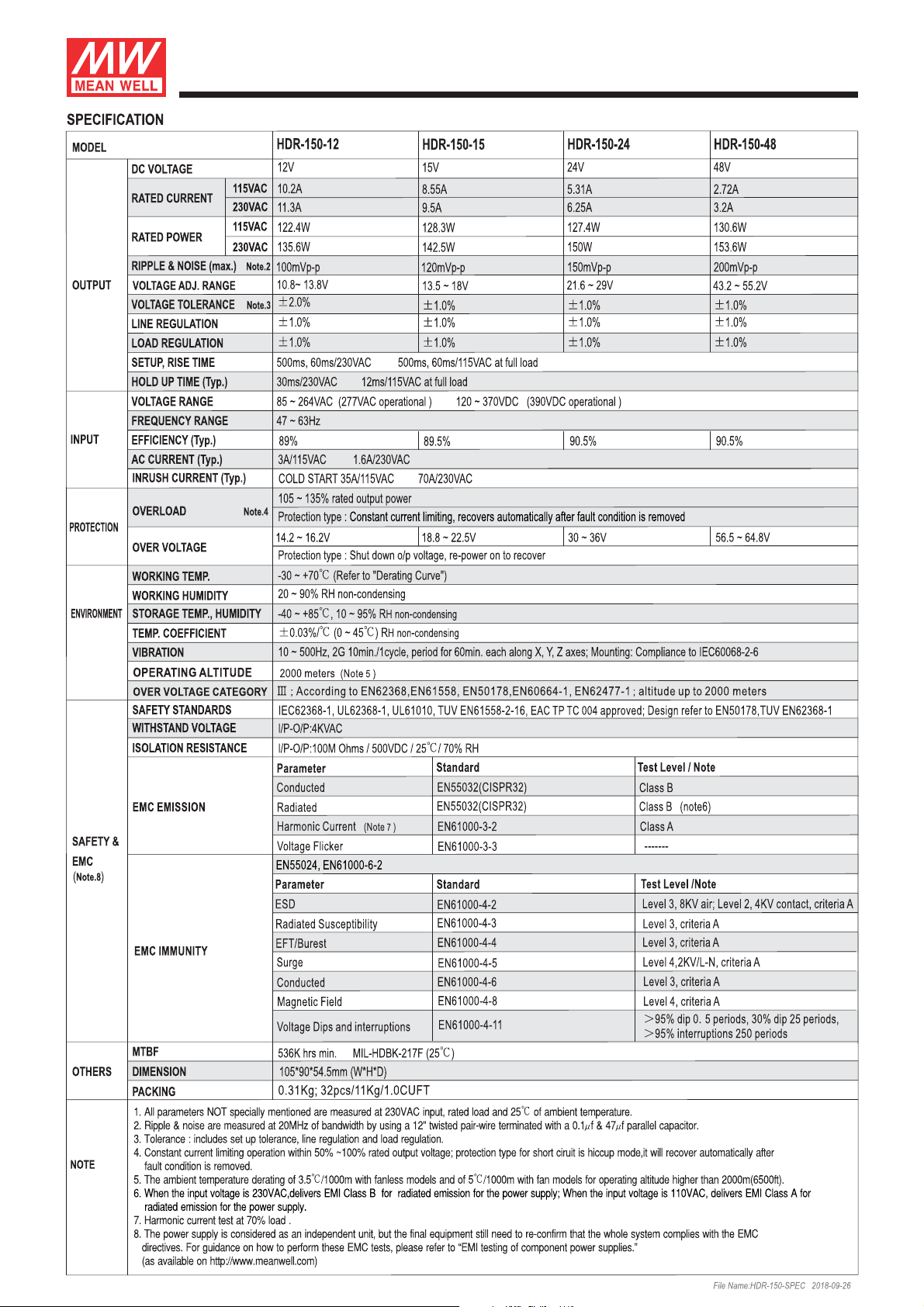

Page 2
150 Ultra Slim Step ShapeW DIN Rail
HDR-150 series
Page 3

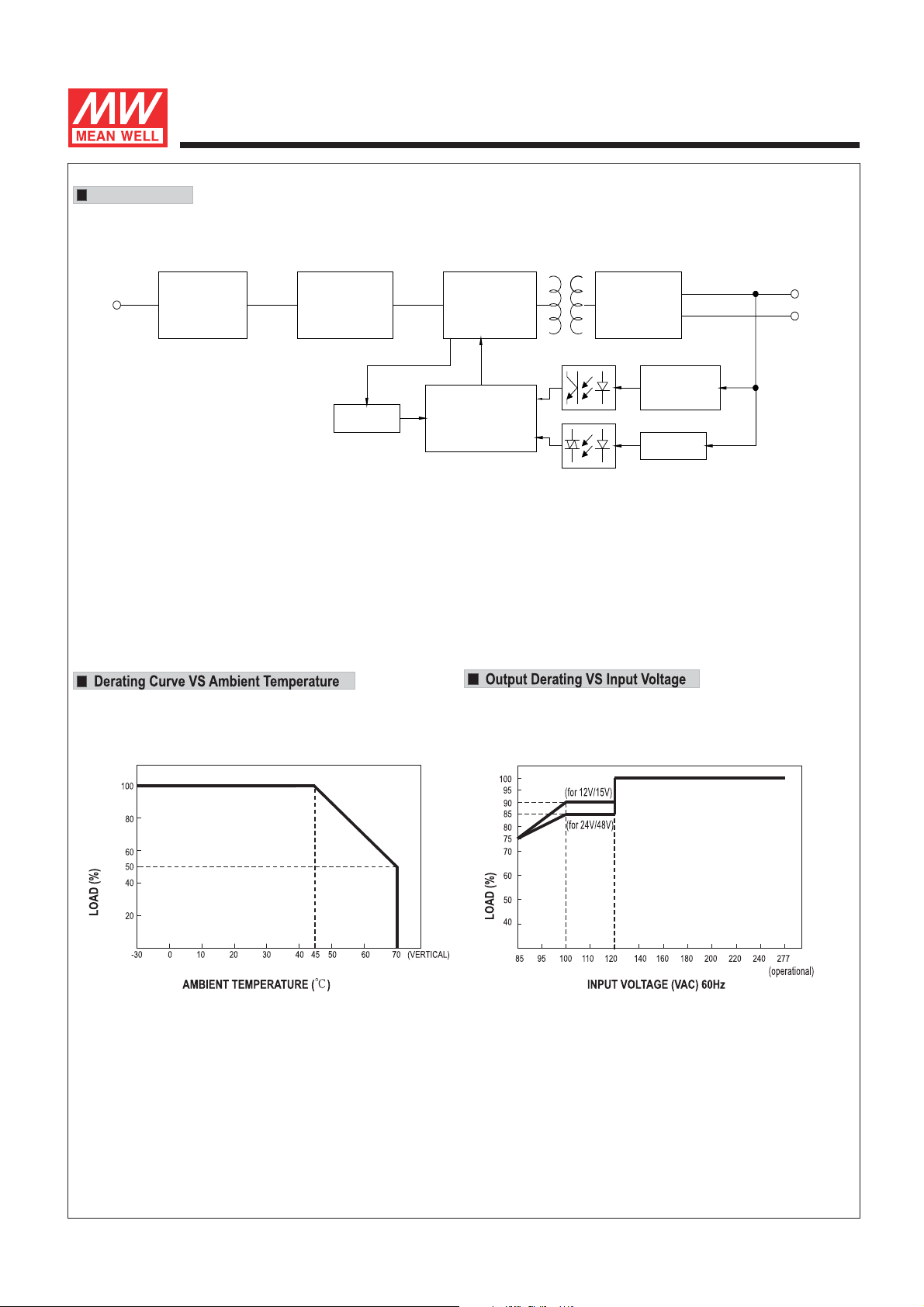

Block Diagram
150 Ultra Slim Step ShapeW DIN Rail
HDR-150 series
I/P
EMI
FILTER
RECTIFIERS
&
FILTER
O.L.P.
POWER
SWITCHING
PWM
CONTROL
RECTIFIERS
&
FILTER
DETECTION
CIRCUIT
O.V.P.
+V
-V
File Name:HDR- 0-SPEC15 2018-09-26
Page 4
150 Ultra Slim Step ShapeW DIN Rail

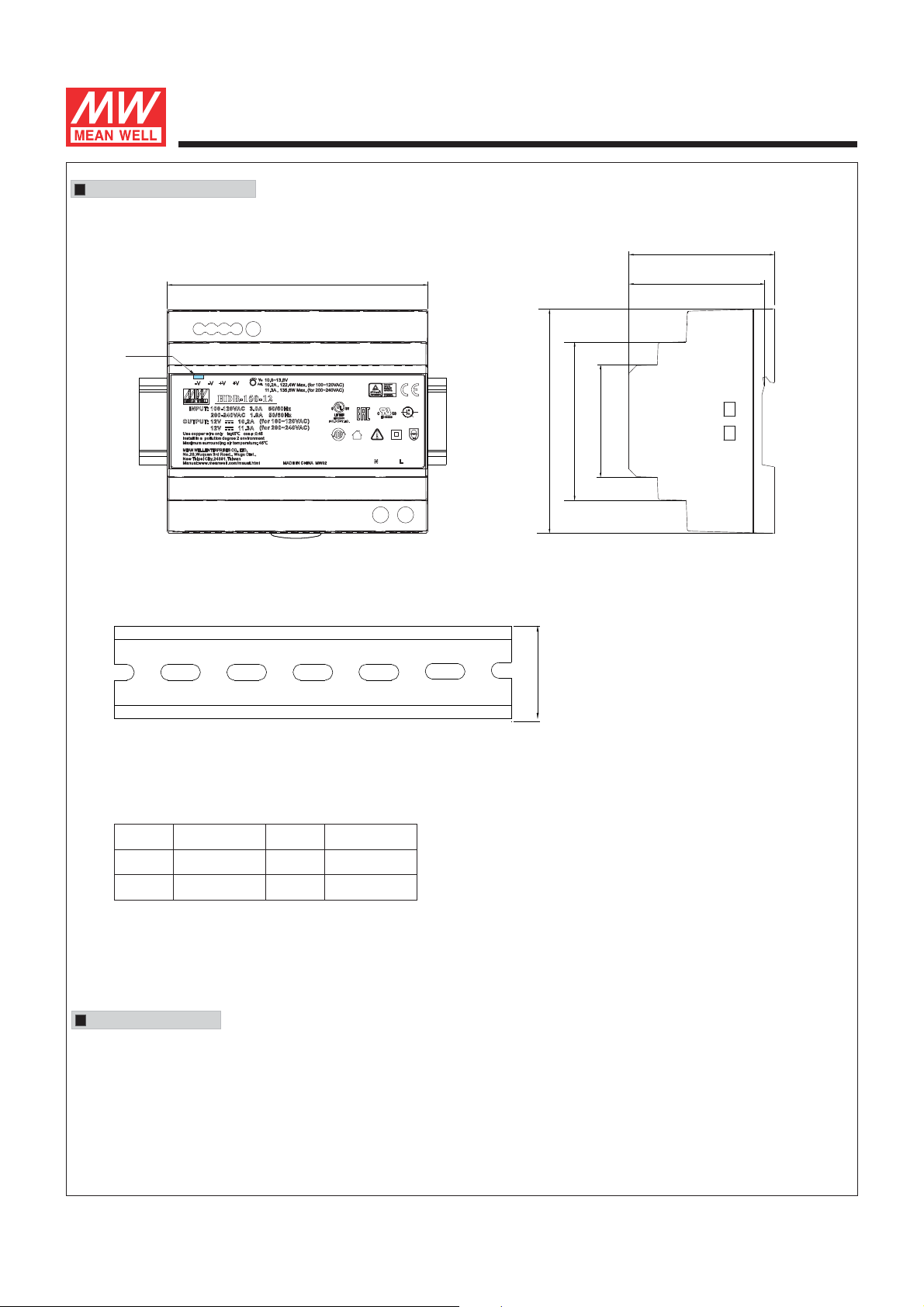

Mechanical Specification
(Unit: mm , tolerance ± 0.5mm)
HDR-150 series
58.4
Power LED
3456
105
5.54
90
2
1
35
6.3 65
45.15
ADMISSIBLE DIN-RAIL:TS35/7.5 OR TS35/15
Terminal Pin No. Assignment
Pin No.
1
2
Assignment
AC/N
AC/L
Pin No.
3,4
5,6
Assignment
-V
+V
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
File Name:HDR- 0-SPEC15 2018-09-26
