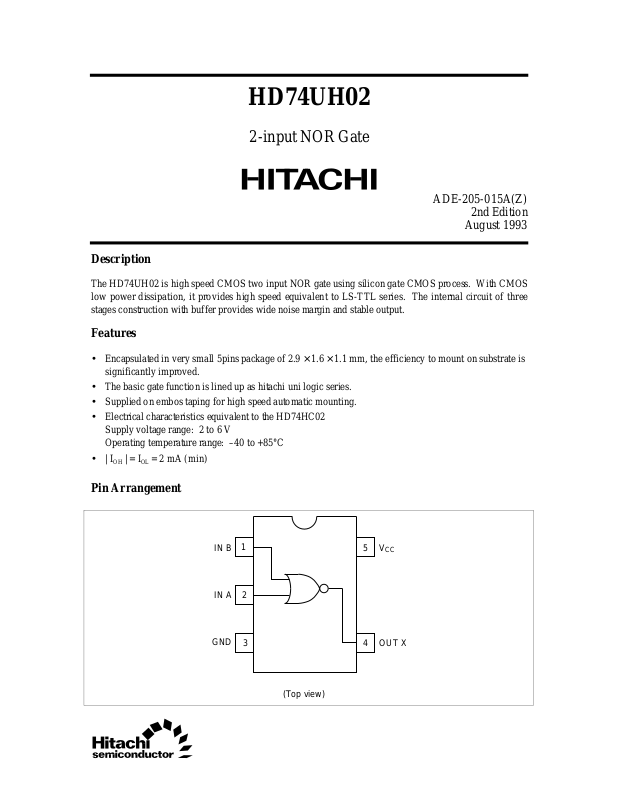

Datasheet HD74UH02 Datasheet (HIT)

HD74UH02

2-input NOR Gate

ADE-205-015A(Z)

2nd Edition

August 1993

Description

The HD74UH02 is high speed CMOS two input NOR gate using silicon gate CMOS process. With CMOS
low power dissipation, it provides high speed equivalent to LS-TTL series. The internal circuit of three
stages construction with buffer provides wide noise margin and stable output.

Features

• Encapsulated in very small 5pins package of 2.9 × 1.6 × 1.1 mm, the efficiency to mount on substrate is

significantly improved.

• The basic gate function is lined up as hitachi uni logic series.

• Supplied on embos taping for high speed automatic mounting.

• Electrical characteristics equivalent to the HD74HC02

Supply voltage range: 2 to 6 V
Operating temperature range: –40 to +85°C

• | IOH | = IOL = 2 mA (min)

Pin Arrangement

IN B

IN A

GND

1

2

3

(Top view)

54V

CC

OUT X

HD74UH02

Article Indication

Type name

Lot number

H 3 A

Absolute Maximum Ratings

Item Symbol Ratings Unit

Supply voltage V
Input voltage V
Output voltage V
Input diode current I
Output diode current I
Output current I
VCC/GND current ICC, I
Power dissipation P

CC

IN

OUT

IK

OK

OUT

GND

T

Strage temperature Tstg –65 to +150 °C

–0.5 to +7.0 V
–0.5 to VCC +0.5 V
–0.5 to VCC +0.5 V

±20 mA
±20 mA
±25 mA
±25 mA

200 mW

Recommended Operating Conditions

Item Symbol Ratings Unit

Supply voltage V
Input voltage V
Output voltage V

CC

IN

OUT

Operating temperature Topr –40 to +85 °C
Input rise/fall time tr, t

f

2

2 to 6 V
0 to V
0 to V

CC

CC

V
V

0 to 1000 (VCC = 2.0 V) ns
0 to 500 (VCC = 4.5 V)
0 to 400 (VCC = 6.0 V)

Electrical Characteristics

Ta = –40 to

Ta = 25°C

Item Symbol Min Typ Max Min Max Unit V

Input voltage V

IH

1.5 — — 1.5 — V 2.0

3.15 — — 3.15 — 4.5

4.2 — — 4.2 — 6.0

V

IL

— — 0.5 — 0.5 V 2.0
— — 1.35 — 1.35 4.5
— — 1.8 — 1.8 6.0

Output voltage V

OH

1.9 2.0 — 1.9 — V 2.0 VIN = V

4.4 4.5 — 4.4 — 4.5

5.9 6.0 — 5.9 — 6.0

4.18 4.31 — 4.31 — 4.5 IOH = –2 mA

5.68 5.80 — 5.63 — 6.0 IOH = –2.6 mA

V

OL

— 0.0 0.1 — 0.1 V 2.0 VIN = VIH or VILIOL = 20 µA
— 0.0 0.1 — 0.1 4.5
— 0.0 0.1 — 0.1 6.0
— 0.17 0.26 — 0.33 4.5 IOL = 2 mA

— 0.18 0.26 — 0.33 6.0 IOL = 2.6 mA
Input current I
Operating current I

IN

CC

——±0.1 — ±1.0 µA 6.0 VIN = VCC or GND

— — 1.0 — 10.0 6.0 VIN = VCC or GND

85°C Test Conditions

HD74UH02

CC

IL

IOH = –20 µA

Switching Characteristics

Ta = 25°C

Item Symbol Min Typ Max Unit Test Conditions

Output rise/fall time t

Propagation delay time t

TLH

t

THL

PLH

t

PHL

(CL = 15 pF, tr = tf = 6 ns, VCC = 5 V)

— 5 10 ns See Test circuit

— 7 15 ns See Test circuit

3

HD74UH02

Ta = –40 to

Ta = 25°C

Item Symbol Min Typ Max Min Max Unit V

Output rise/fall time t

TLH

t

THL

— 50 125 — 155 ns 2.0 See Test circuit
— 14 25 — 31 4.5
— 12 21 — 26 6.0

Propagation delay time t

PLH

t

PHL

— 48 100 — 125 ns 2.0 See Test circuit
— 12 20 — 25 4.5

— 9 17 — 21 6.0
Input capacitance C
Equivalent capacitance C

IN

PD

—5 10—10pF—

—10——— —
(CL = 50 pF, tr = tf = 6 ns)

Note: C

is equivalent capacitance inside of the IC calculated from the operating current without load (see

PD

test circuit). The average operating current without load is calculated according to the expression
below.

I

(opr) = CPD• VCC• fIN + I

CC

CC

Test Circuit

85°C Test Conditions

CC

Pulse

Input

generator

50Ω

Note: Operating current test time, output is open.

V

CC

Output

C

L

4

Waveforms

6 ns 6 ns

90%

90%

HD74UH02

V

CC

Input

Output

50%

10%

50%

t

THL

90%

t

PHL

10%

50%

10%

t

TLH

50%

10%

t

PLH

90%

GND

V

OH

V

OL

5

Unit: mm

0.95

1.9 ± 0.2

5 – 0.4

2.9 ± 0.2

+ 0.1
– 0.05

0.95

0.3

0.6

+ 0.2

– 0.1

1.6

0.6

+ 0.2

– 0.1

1.1

+ 0.2

2.8

– 0.3

0.16

Hitachi Code
JEDEC
EIAJ
Weight

(reference value)

+ 0.1
– 0.05

0 – 0.1

MPAK-5
—
—

0.015 g
