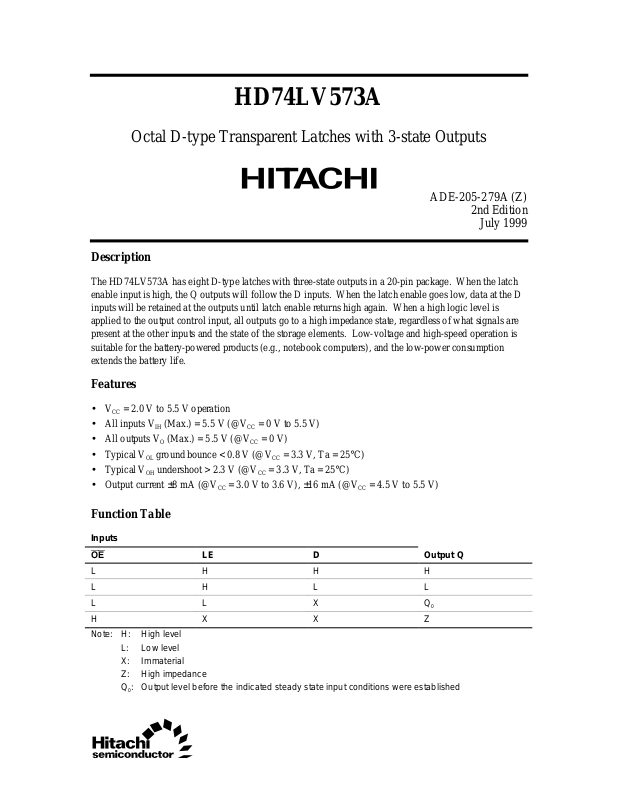

HD74LV573A

Octal D-type Transparent Latches with 3-state Outputs

ADE-205-279A (Z)

2nd Edition

July 1999

Description

The HD74LV573A has eight D-type latches with three-state outputs in a 20-pin package. When the latch enable input is high, the Q outputs will follow the D inputs. When the latch enable goes low, data at the D inputs will be retained at the outputs until latch enable returns high again. When a high logic level is applied to the output control input, all outputs go to a high impedance state, regardless of what signals are present at the other inputs and the state of the storage elements. Low-voltage and high-speed operation is suitable for the battery-powered products (e.g., notebook computers), and the low-power consumption extends the battery life.

Features

• VCC = 2.0 V to 5.5 V operation

• All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)

• All outputs VO (Max.) = 5.5 V (@VCC = 0 V)

• Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)

• Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C)

• Output current ±8 mA (@VCC = 3.0 V to 3.6 V), ±16 mA (@VCC = 4.5 V to 5.5 V)

Function Table

Inputs OE LE D Output Q

LHHH LHLL LLXQ HXXZ

Note: H: High level

L: Low level X: Immaterial Z: High impedance Q

: Output level before the indicated steady state input conditions were established

0

HD74LV573A

Pin Arrangement

OE

V

1

20

CC

1D 2D 3D 4D 5D 6D 7D 8D

GND

10

2 3 4 5

6 7 8 9

(Top view)

19 18 17 16 15 14 13 12 11

1Q 2Q 3Q 4Q 5Q 6Q 7Q 8Q LE

2

HD74LV573A

Absolute Maximum Ratings

Item Symbol Ratings Unit Conditions

Supply voltage range V Input voltage range* Output voltage range*

1

1, 2

Input clamp current I Output clamp current I Continuous output current I Continuous current through

V

or GND

CC

Maximum power dissipation at Ta = 25°C (in still air)*

3

CC

V

I

V

O

IK

OK

O

or I

I

CC

GND

P

T

Storage temperature Tstg –65 to 150 °C Notes: The absolute maximum ratings are values which must not individually be exceeded, and furthermore,

no two of which may be realized at the same time.

1. The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.

2. This value is limited to 5.5 V maximum.

3. The maximum package power dissipation was calculated using a junction temperature of 150°C.

–0.5 to 7.0 V –0.5 to 7.0 V –0.5 to VCC + 0.5 V Output: H or L –0.5 to 7.0 VCC: Z or VCC: OFF –20 mA VI < 0

±50 mA VO < 0 or VO > V ±35 mA VO = 0 to V

CC

±70 mA

835 mW SOP

757 TSSOP

3

HD74LV573A

Recommended Operating Conditions

Item Symbol Min Max Unit Conditions

Supply voltage range V Input voltage range V Output voltage range V

Output current I

CC

I

O

OH

I

OL

Input transition rise or fall rate ∆t/∆v 0 200 ns/V VCC = 2.3 to 2.7 V

Operating free-air temperature Ta –40 85 °C Note: Unused or floating inputs must be held high or low.

2.0 5.5 V 0 5.5 V 0VCCV H or L 0 5.5 Output: Z — –50 µAV —–2 mAV —–8 V

= 2.0 V

CC

= 2.3 to 2.7 V

CC

= 3.0 to 3.6 V

CC

— –16 VCC = 4.5 to 5.5 V —50 µAV

= 2.0 V

CC

— 2 mA VCC = 2.3 to 2.7 V —8 V —16 V

= 3.0 to 3.6 V

CC

= 4.5 to 5.5 V

CC

0 100 VCC = 3.0 to 3.6 V 020 V

= 4.5 to 5.5 V

CC

Logic Diagram

OE

LE

1D

1

11

2

C1

1D

To seven other channels

19

1Q

4

HD74LV573A

DC Electrical Characteristics

• Ta = –40 to 85°C

Item Symbol VCC (V)* Min Typ Max Unit Test Conditions

Input voltage V

Output voltage V

Input current I Off-state

IH

V

IL

OH

V

OL

IN

I

OZ

output current Quiescent

I

CC

supply current Output leakage

I

OFF

current Input

C

IN

capacitance

Note: For conditions shown as Min or Max, use the appropriate values under recommended operating

conditions.

2.0 1.5 — — V

2.3 to 2.7 VCC × 0.7 — —

3.0 to 3.6 VCC × 0.7 — —

4.5 to 5.5 VCC × 0.7 — —

2.0 — — 0.5

2.3 to 2.7 — — VCC × 0.3

3.0 to 3.6 — — VCC × 0.3

4.5 to 5.5 — — VCC × 0.3 Min to

VCC – 0.1 — — V IOH = –50 µA

Max

2.3 2.0 — — IOH = –2 mA

3.0 2.48 — — IOH = –8 mA

4.5 3.8 — — IOH = –16 mA Min to

— — 0.1 IOL = 50 µA

Max

2.3 — — 0.4 IOL = 2 mA

3.0 — — 0.44 IOL = 8 mA

4.5 — — 0.55 IOL = 16 mA 0 to 5.5 — — ±1 µAVI = 5.5 V or GND

5.5 — — ±5 µAVO = VCC or GND

5.5 — — 20 µAVI = VCC or GND, IO = 0

0——5 µAVI or VO = 0 V to 5.5 V

3.3 — 1.8 — pF VI = VCC or GND

5

HD74LV573A

Switching Characteristics

• VCC = 2.5 ± 0.2 V

Ta = 25°C Ta = –40 to 85°C

Item Symbol Min Typ Max Min Max Unit Test Conditions

Propagation delay time

Enable time

Disable time

Setup time

Hold time

Pulse width

t

PLH

t

PHL

— 8.9 15.8 1.0 18.0 ns CL = 15 pF D Q

— 9.6 16.2 1.0 19.0 LE — 10.9 18.7 1.0 21.0 CL = 50 pF D — 11.6 19.1 1.0 23.0 LE

t

ZH

t

ZL

— 9.3 16.2 1.0 19.0 ns CL = 15 pF OE Q

— 11.4 19.0 1.0 22.0 CL = 50 pF

t

HZ

t

LZ

— 6.7 12.6 1.0 15.0 ns CL = 15 pF OE Q

— 8.6 17.3 1.0 19.0 CL = 50 pF

t

su

t

h

t

w

5.0 — — 5.0 — ns Data before LE ↓

2.0 — — 2.0 — ns Data after LE ↓

6.5 — — 6.5 — ns LE “H”

FROM (Input)TO(Output)

6

Switching Characteristics (cont)

• VCC = 3.3 ± 0.3 V

Ta = 25°C Ta = –40 to 85°C

Item Symbol Min Typ Max Min Max Unit Test Conditions

Propagation delay time

Enable time

Disable time

Setup time

Hold time

Pulse width

t

PLH

t

PHL

— 6.2 11.0 1.0 13.0 ns CL = 15 pF D Q

— 6.8 11.9 1.0 14.0 LE — 7.7 14.5 1.0 16.5 CL = 50 pF D — 8.2 15.4 1.0 17.5 LE

t

ZH

t

ZL

— 6.6 11.5 1.0 13.5 ns CL = 15 pF OE Q

— 8.0 15.0 1.0 17.0 CL = 50 pF

t

HZ

t

LZ

— 4.9 11.0 1.0 13.0 ns CL = 15 pF OE Q

— 6.2 14.5 1.0 16.5 CL = 50 pF

t

su

t

h

t

w

3.5 — — 3.5 — ns Data before LE ↓

1.5 — — 1.5 — ns Data after LE ↓

5.0 — — 5.0 — ns LE “H”

HD74LV573A

FROM (Input)TO(Output)

7

HD74LV573A

Switching Characteristics (cont)

• VCC = 5.0 ± 0.5 V

Ta = 25°C Ta = –40 to 85°C

Item Symbol Min Typ Max Min Max Unit Test Conditions

Propagation delay time

Enable time

Disable time

Setup time

Hold time

Pulse width

t

PLH

t

PHL

— 4.3 6.8 1.0 8.0 ns CL = 15 pF D Q

— 4.7 7.7 1.0 9.0 LE — 5.3 8.8 1.0 10.0 CL = 50 pF D — 5.7 9.7 1.0 11.0 LE

t

ZH

t

ZL

— 4.7 7.7 1.0 9.0 ns CL = 15 pF OE Q

— 5.7 9.7 1.0 11.0 CL = 50 pF

t

HZ

t

LZ

— 3.5 7.7 1.0 9.0 ns CL = 15 pF OE Q

— 4.2 9.7 1.0 11.0 CL = 50 pF

t

su

t

h

t

w

3.5 — — 3.5 — ns Data before LE ↓

1.5 — — 1.5 — ns Data after LE ↓

5.0 — — 5.0 — ns LE “H”

FROM (Input)TO(Output)

Output-skew Characteristics

Ta = 25°C Ta = –40 to 85°C

Item Symbol V

Output skew t

sk (O)

Note: Skew between any outputs of the same package switching in the same direction. This parameter is

warranted but not production tested.

8

(V) Min Typ Max Min Max Unit

CC

2.3 to 2.7 — — 2.0 — 2.0 ns

3.0 to 3.6 — — 1.5 — 1.5

4.5 to 5.5 — — 1.0 — 1.0

Operating Characteristics

• CL = 50 pF

Item Symbol V

Power

C

PD

dissipation capacitance

(V) Min Typ Max Unit Test Conditions

CC

3.3 — 16 — pF f = 10 MHz

5.0 — 18 —

Noise Characteristics

• CL = 50 pF

Item Symbol V

Quiet output,

V

OL (P)

maximum dynamic V

Quiet output,

OL

V

OL (V)

minimum dynamic V

Quiet output,

OL

V

OH (V)

minimum dynamic V

High-level

OH

V

IH (D)

dynamic input voltage

Low-level

V

IL (D)

dynamic input voltage

(V) Min Typ Max Unit Test Conditions

CC

3.3 — 0.6 0.8 V

3.3 — –0.5 –0.8

3.3 — 2.9 —

3.3 2.31 — — V

3.3 — — 0.99

HD74LV573A

Ta = 25°C

9

HD74LV573A

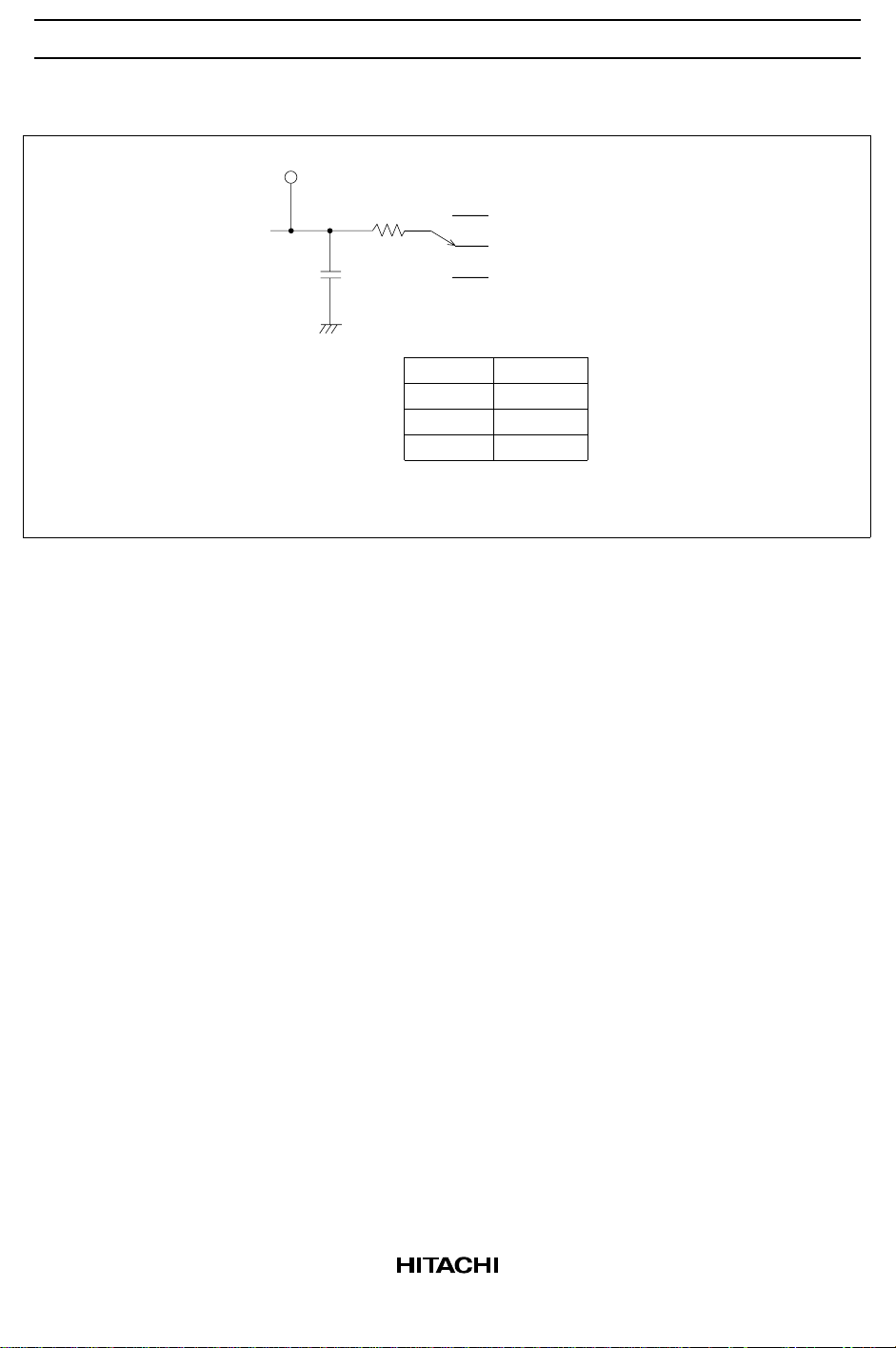

Test Circuit

Output

1 kΩ

S2

OPEN GND

C

L

TEST

t /t

PLH PHL

t /t

ZH HZ

t /t

ZL LZ

Note: C includes the probe and jig capacitance.

L

V

CC

S2

OPEN

GND

V

CC

10

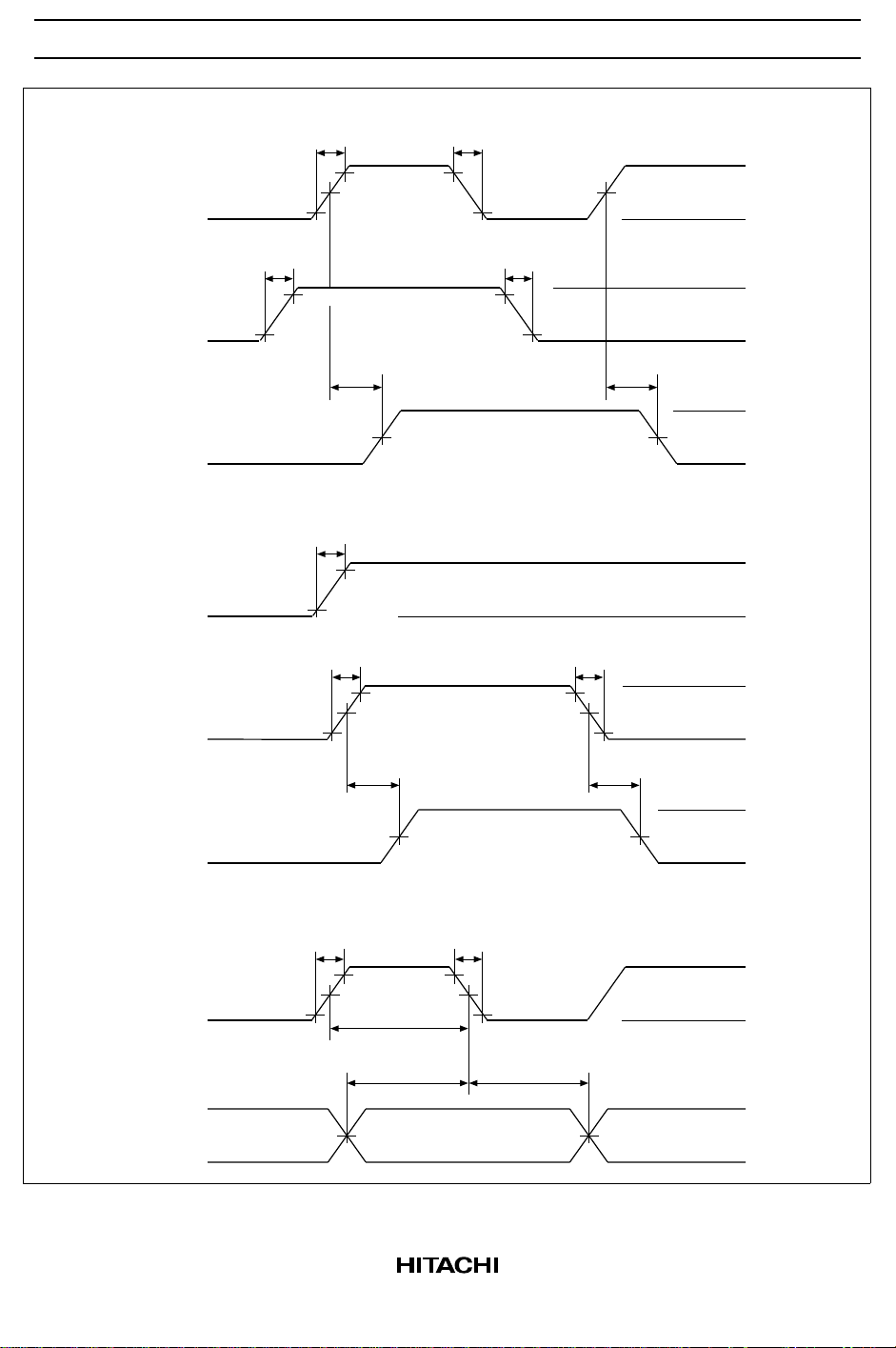

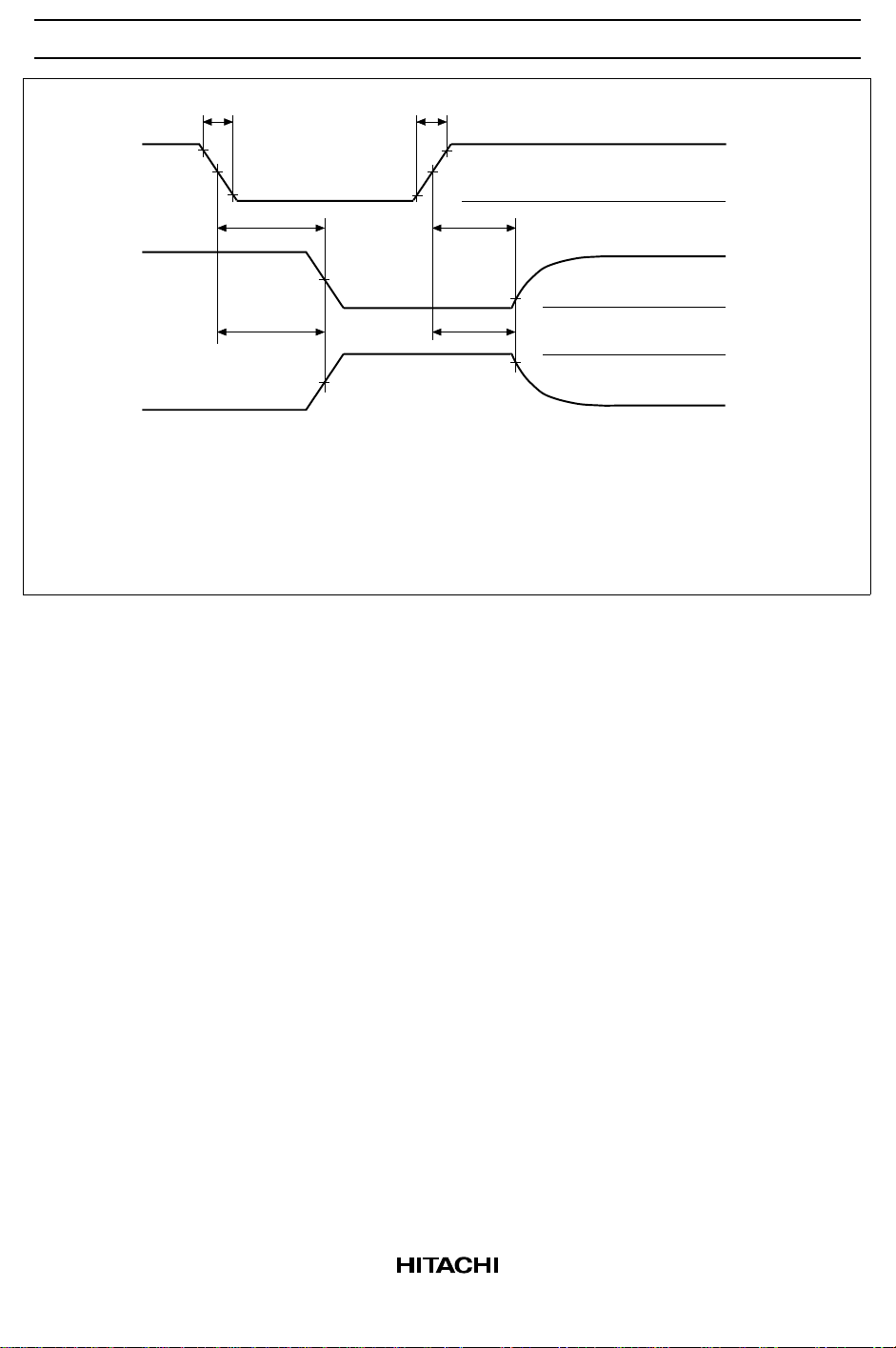

• Waveform – 1

LE

t

r

50% V

10%

90%

CC

90%

10%

HD74LV573A

t

f

V

CC

50% V

CC

0V

D

Q

• Waveform – 2

LE

D

Q

t

r

10%

90%

t

PLH

r

10%

t

90%

r

50% V

t

PLH

90%

50% V

CC

50% V

CC

90%

CC

10%

t

f

90%

50% V

CC

V

CC

0V

t

PHL

V

OH

50% V

CC

V

OL

V

CC

0V

t

f

V

CC

t

PHL

10%

50% V

CC

0V

V

OH

OL

• Waveform – 3

LE

D

10%

50% V

CC

t

r

90%

50% V

CC

t

f

V

90%

CC

50%

V

CC

t

w

t

su

10%

0V

t

h

V

CC

50% V

CC

0V

11

HD74LV573A

• Waveform – 4

OE

Waveform – A

Waveform – B

Notes:

1. Input waveform: PRR ≤ 1 MHz, Zo = 50 Ω, t ≤ 3 ns, t ≤ 3 ns

2. Waveform-A is for an output with internal conditions such that the output is low except when disabled

by the output control.

3. Waveform-B is for an output with internal conditions such that the output is high except when disabled

by the output control.

4. The output is measured one at a time with one transition per measurement.

t

f

t

r

90% 90%

50% V

CC

50% V

10% 10%

t

ZL

50% V

CC

t

ZH

50% V

CC

t

LZ

t

HZ

rf

CC

V + 0.3 V

OL

V – 0.3 V

OH

V

0 V

V

0 V

CC

OL

OH

12

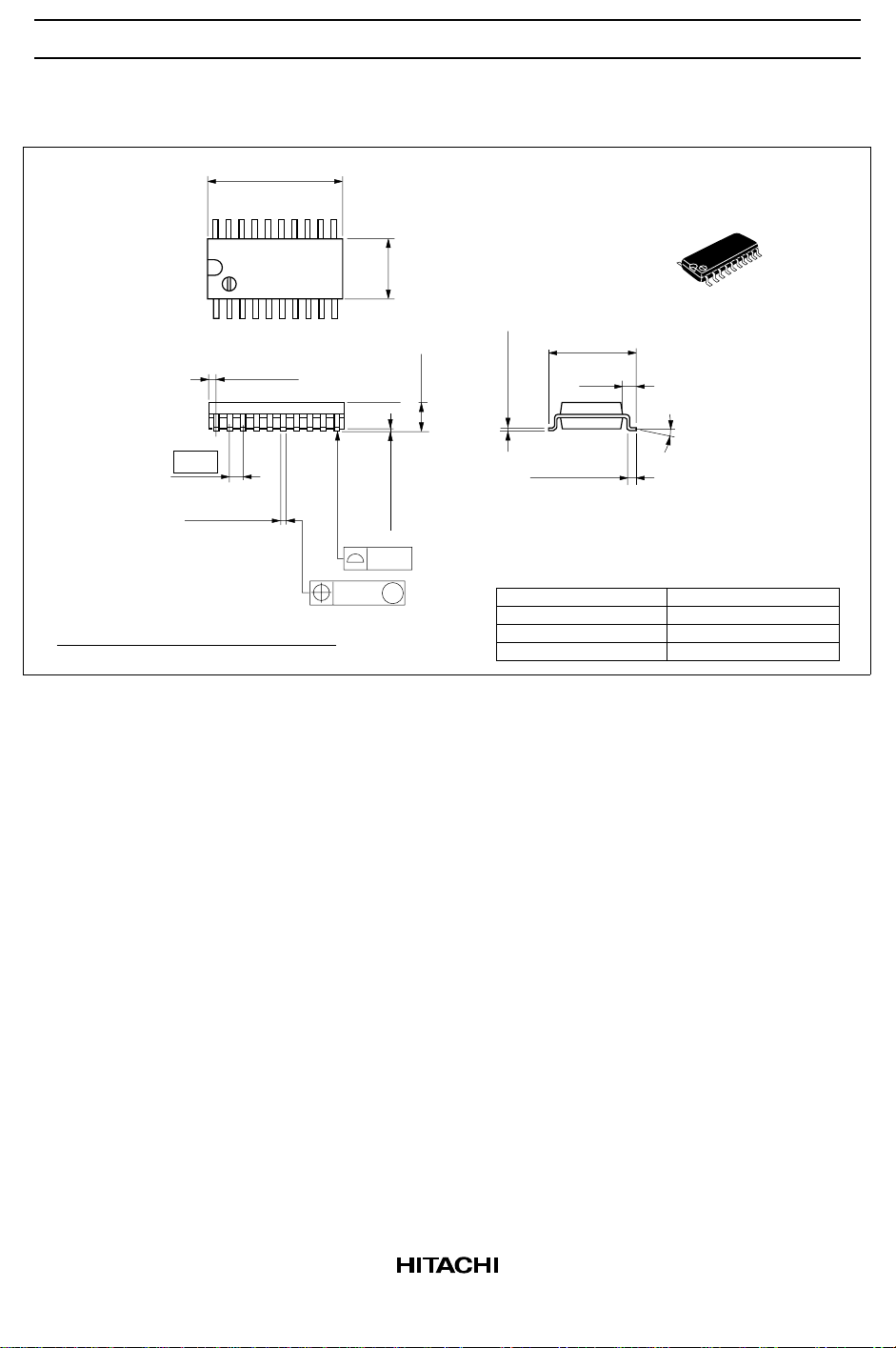

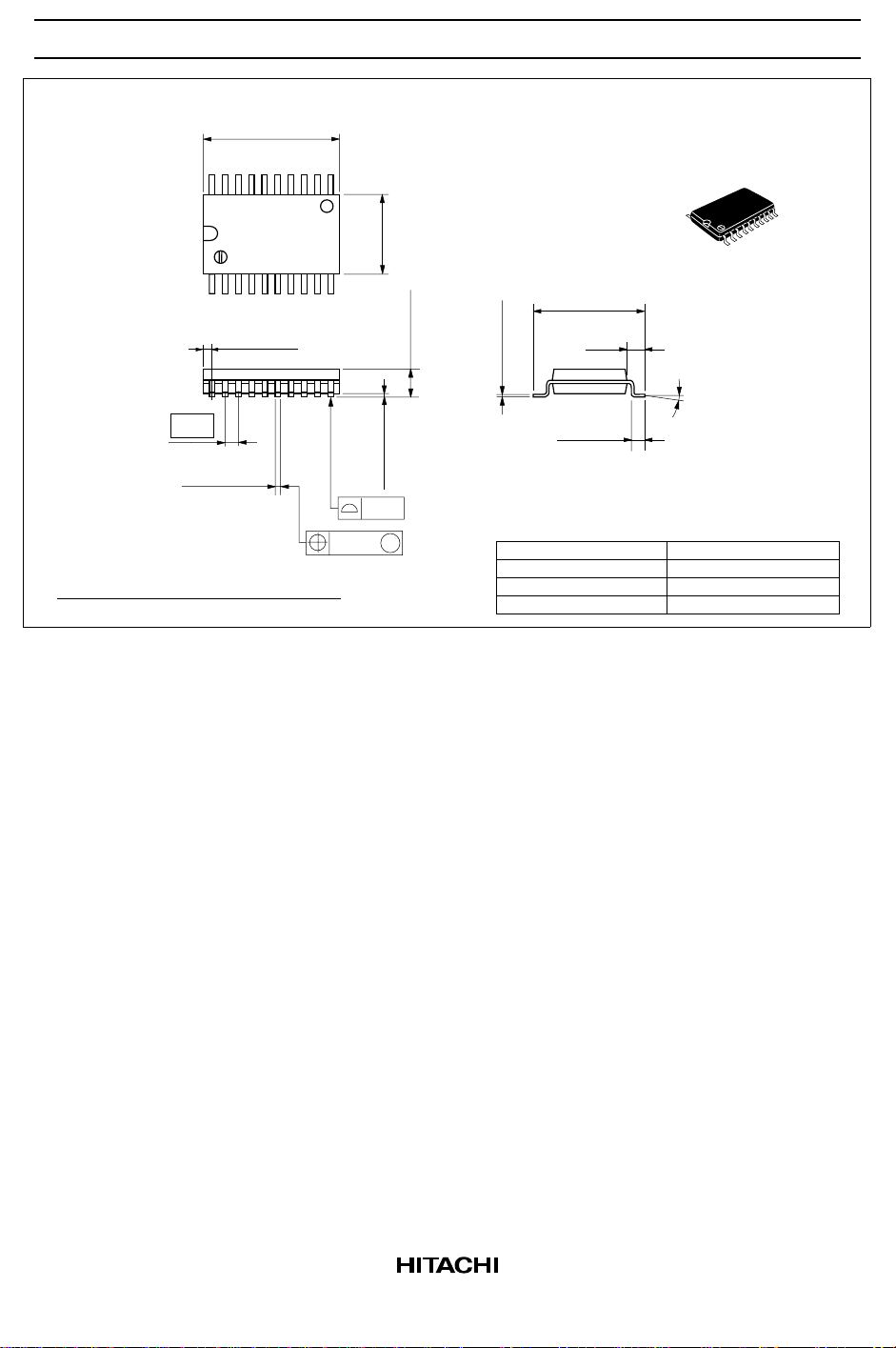

Package Dimensions

HD74LV573A

12.6

13 Max

20

1

0.80 Max

1.27

0.42 ± 0.08

0.40 ± 0.06

Dimension including the plating thickness

Base material dimension

11

10

0.12

5.5

0.10 ± 0.10

0.15

M

2.20 Max

7.80

0.22 ± 0.05

0.20 ± 0.04

0.70 ± 0.20

Hitachi Code JEDEC EIAJ Weight

(reference value)

+ 0.20 – 0.30

1.15

0° – 8°

FP-20DA — Conforms

0.31 g

13

HD74LV573A

20

Unit: mm

12.8

13.2 Max 11

7.50

1

0.935 Max

1.27

*0.42 ± 0.08

0.40 ± 0.06

*Dimension including the plating thickness

Base material dimension

10

0.12

0.20 ± 0.10

0.15

2.65 Max

M

10.40

0.25 ± 0.04

*0.27 ± 0.05

0.70

Hitachi Code JEDEC EIAJ Weight

+ 0.25 – 0.40

1.45

+ 0.57 – 0.30

(reference value)

0° – 8°

FP-20DB Conforms —

0.52 g

14

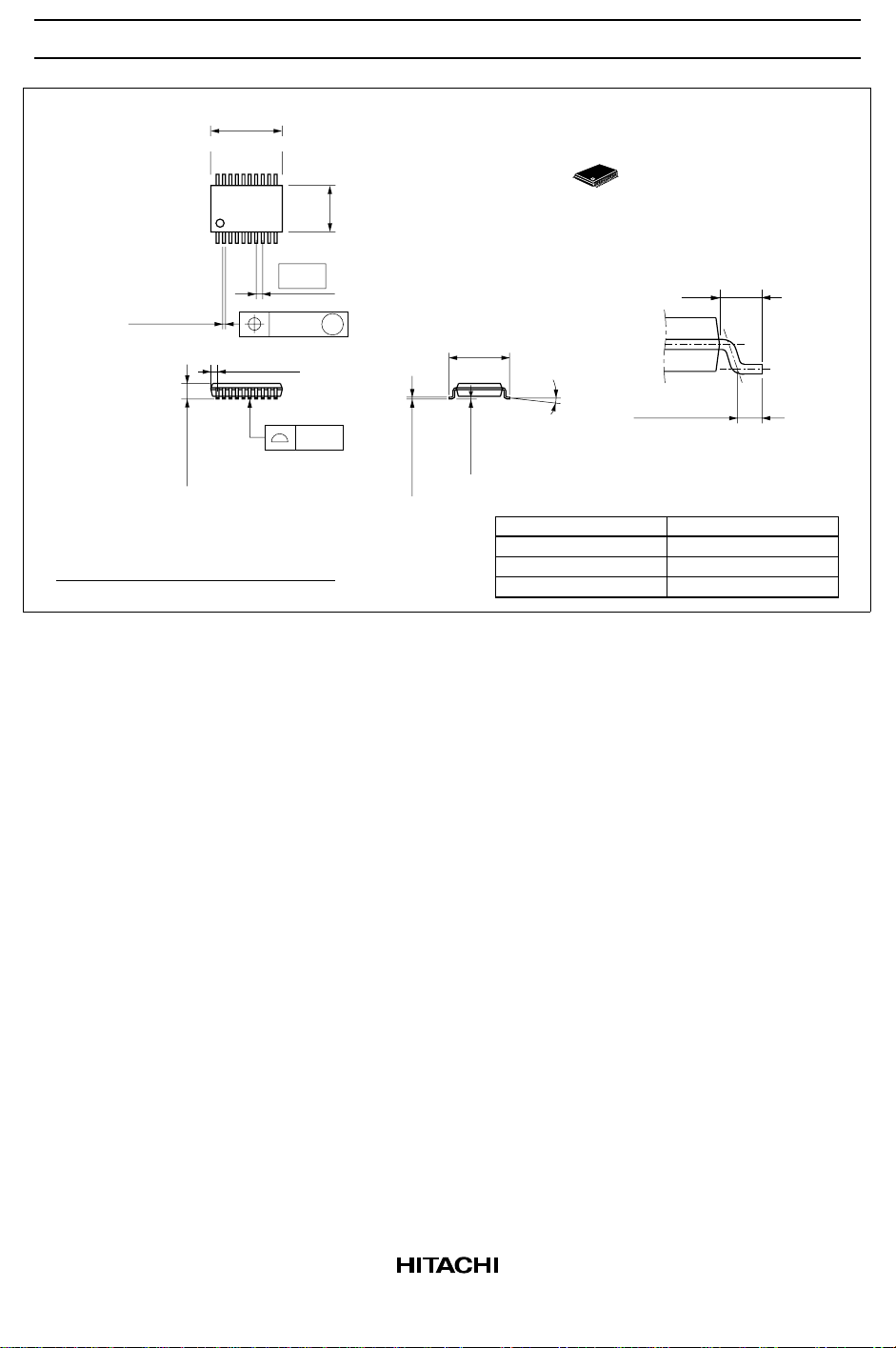

20 11

110

+0.08

0.22

–0.07

0.20 ± 0.06

6.50

6.80 Max

0.65 Max

0.65

0.13

HD74LV573A

4.40

1.0

M

6.40 ± 0.20

0.10

1.10 Max

Dimension including the plating thickness

Base material dimension

0.17 ± 0.05

0.15 ± 0.04

+0.03

–0.04

0.07

0° – 8°

Hitachi Code JEDEC EIAJ

(reference value)

Weight

0.50 ± 0.10

TTP-20DA — —

0.07 g

15

HD74LV573A
