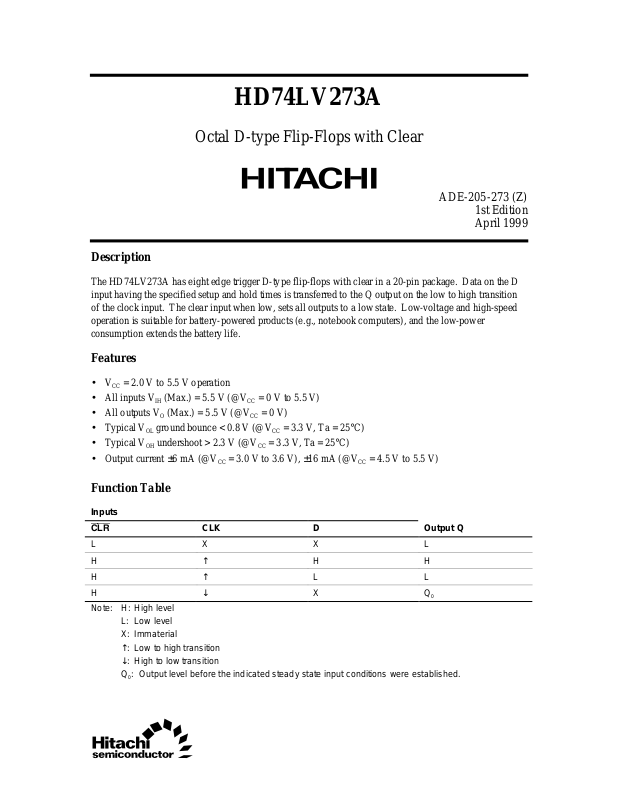

HD74LV273A
Octal D-type Flip-Flops with Clear
ADE-205-273 (Z)
1st Edition
April 1999
Description
The HD74LV273A has eight edge trigger D-type flip-flops with clear in a 20-pin package. Data on the D
input having the specified setup and hold times is transferred to the Q output on the low to high transition
of the clock input. The clear input when low, sets all outputs to a low state. Low-voltage and high-speed
operation is suitable for battery-powered products (e.g., notebook computers), and the low-power
consumption extends the battery life.
Features
• VCC = 2.0 V to 5.5 V operation
• All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
• All outputs VO (Max.) = 5.5 V (@VCC = 0 V)
• Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
• Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C)
• Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±16 mA (@VCC = 4.5 V to 5.5 V)
Function Table
Inputs
CLR CLK D Output Q
LXXL
H ↑ HH
H ↑ LL
H ↓ XQ
Note: H: High level
L: Low level
X: Immaterial
↑: Low to high transition
↓: High to low transition
Q
: Output level before the indicated steady state input conditions were established.
0
0
Page 2
HD74LV273A
Pin Arrangement
CLR
V
1
20
CC
1Q
1D
2D
2Q
3Q
3D
4D
4Q
GND
10
2
3
4
5
6
7
8
9
(Top view)
19
18
17
16
15
14
13
12
11
8Q
8D
7D
7Q
6Q
6D
5D
5Q
CLK
2
Page 3
HD74LV273A
Absolute Maximum Ratings
Item Symbol Ratings Unit Conditions
Supply voltage range V
Input voltage range*
Output voltage range*
1
1, 2
Input clamp current I
Output clamp current I
Continuous output current I
Continuous current through
V
or GND
CC
Maximum power dissipation
at Ta = 25°C (in still air)*
3
CC
V
I
V
O
IK
OK
O
or I
I
CC
GND
P
T
Storage temperature Tstg –65 to 150 °C
Notes: The absolute maximum ratings are values which must not individually be exceeded, and furthermore,
no two of which may be realized at the same time.
1. The input and output voltage ratings may be exceeded if the input and output clamp-current
ratings are observed.
2. This value is limited to 5.5 V maximum.
3. The maximum package power dissipation was calculated using a junction temperature of 150°C.
–0.5 to 7.0 V
–0.5 to 7.0 V
–0.5 to VCC + 0.5 V Output: H or L
–0.5 to 7.0 VCC: OFF
–20 mA VI < 0
±50 mA VO < 0 or VO > V
±25 mA VO = 0 to V
CC
±50 mA
835 mW SOP
757 TSSOP
CC
3
Page 4
HD74LV273A
Recommended Operating Conditions
Item Symbol Min Max Unit Conditions
Supply voltage range V
Input voltage range V
Output voltage range V
Output current I
CC
I
O
OH
I
OL
Input transition rise or fall rate ∆t /∆v 0 200 ns/V VCC = 2.3 to 2.7 V
Operating free-air temperature Ta –40 85 °C
Note: Unused or floating inputs must be held high or low.
2.0 5.5 V
0 5.5 V
0VCCV H or L
— –50 µAV
—–2 mAV
—–6 V
= 2.0 V
CC
= 2.3 to 2.7 V
CC
= 3.0 to 3.6 V
CC
— –12 VCC = 4.5 to 5.5 V
—50 µAV
= 2.0 V
CC
— 2 mA VCC = 2.3 to 2.7 V
—6 V
—12 V
= 3.0 to 3.6 V
CC
= 4.5 to 5.5 V
CC
0 100 VCC = 3.0 to 3.6 V
020 V
= 4.5 to 5.5 V
CC
Logic Diagram
1D
CLK
CLR
3
11
1D
1Q 1Q
C1
2
R
1
To Seven Other Channels
4
Page 5
HD74LV273A
DC Electrical Characteristics
• Ta = –40 to 85°C
Item Symbol VCC (V)* Min Typ Max Unit Test Conditions
Input voltage V
Output voltage V
Input current I
Quiescent
IH
V
IL
OH
V
OL
IN
I
CC
supply current
Output leakage
I
OFF
current
Input
C
IN
capacitance
Note: For conditions shown as Min or Max, use the appropriate values under recommended operating
conditions.
2.0 1.5 — — V
2.3 to 2.7 VCC × 0.7 — —
3.0 to 3.6 VCC × 0.7 — —
4.5 to 5.5 VCC × 0.7 — —
2.0 — — 0.5
2.3 to 2.7 — — VCC × 0.3
3.0 to 3.6 — — VCC × 0.3
4.5 to 5.5 — — VCC × 0.3
Min to
VCC – 0.1 — — V IOH = –50 µA
Max
2.3 2.0 — — IOH = –2 mA
3.0 2.48 — — IOH = –6 mA
4.5 3.8 — — IOH = –12 mA
Min to
— — 0.1 IOL = 50 µA
Max
2.3 — — 0.4 IOL = 2 mA
3.0 — — 0.44 IOL = 6 mA
4.5 — — 0.55 IOL = 12 mA
0 to 5.5 — — ±1 µAVI = 5.5 V or GND
5.5 — — 20 µAVI = VCC or GND, IO = 0
0——5 µAVI or VO = 0 V to 5.5 V
3.3 — 2 — pF VI = VCC or GND
5
Page 6
HD74LV273A
Switching Characteristics
• VCC = 2.5 ± 0.2 V
Ta = 25°C Ta = –40 to 85°C
Item Symbol Min Typ Max Min Max Unit Test Conditions
Maximum
clock
frequency
Propagation
delay
time
Setup
time
fmax 55 95 — 45 — MHz CL = 15 pF
45 75 — 40 — CL = 50 pF
t
PHL
t
/ t
PLH
t
PHL
t
/ t
PLH
t
SU
— 10.3 19.0 1.0 21.0 ns CL = 15 pF CLR Q
— 10.4 18.3 1.0 20.5 CLK Q
PHL
— 13.1 22.8 1.0 25.5 CL = 50 pF CLR Q
— 12.9 22.1 1.0 25.0 CLK Q
PHL
8.5 — — 10.5 — ns Data
FROM
(Input)TO(Output)
Hold
time
Pulse
width
4.0 — — 4.0 — CLR inactive
t
h
t
W
0.5 — — 1.0 — ns
6.5 — — 7.0 — ns CLR L
7.0 — — 8.5 — CLK H or L
6
Page 7
Switching Characteristics (cont)
• VCC = 3.3 ± 0.3 V
Ta = 25°C Ta = –40 to 85°C
Item Symbol Min Typ Max Min Max Unit Test Conditions
Maximum
clock
frequency
Propagation
delay
time
Setup
time
fmax 75 140 — 65 — MHz CL = 15 pF
50 110 — 45 — CL = 50 pF
t
PHL
t
/ t
PLH
t
PHL
t
/ t
PLH
t
SU
— 6.9 13.6 1.0 16.0 ns CL = 15 pF CLR Q
— 7.1 13.6 1.0 16.0 CLK Q
PHL
— 8.7 17.1 1.0 19.5 CL = 50 pF CLR Q
— 9.1 17.1 1.0 19.5 CLK Q
PHL
5.5 — — 6.5 — ns Data
HD74LV273A
FROM
(Input)TO(Output)
Hold
time
Pulse
width
2.5 — — 2.5 — CLR inactive
t
h
t
W
1.0 — — 1.0 — ns
5.0 — — 6.0 — ns CLR L
5.5 — — 6.5 — CLK H or L
7
Page 8
HD74LV273A
Switching Characteristics (cont)
• VCC = 5.0 ± 0.5 V
Ta = 25°C Ta = –40 to 85°C
Item Symbol Min Typ Max Min Max Unit Test Conditions
Maximum
clock
frequency
Propagation
delay
time
Setup
time
fmax 120 205 — 100 — MHz CL = 15 pF
80 160 — 70 — CL = 50 pF
t
PHL
t
/ t
PLH
t
PHL
t
/ t
PLH
t
SU
— 4.7 8.5 1.0 10.0 ns CL = 15 pF CLR Q
— 4.8 9.0 1.0 10.5 CLK Q
PHL
— 6.0 10.5 1.0 12.0 CL = 50 pF CLR Q
— 6.2 11.0 1.0 12.5 CLK Q
PHL
4.5 — — 4.5 — ns Data
FROM
(Input)TO(Output)
Hold
time
Pulse
width
2.0 — — 2.0 — CLR inactive
t
h
t
W
1.0 — — 1.0 — ns
5.0 — — 5.0 — ns CLR L
5.0 — — 5.0 — CLK H or L
8
Page 9
HD74LV273A
Output-skew Characteristics
Ta = 25°C Ta = –40 to 85°C
Item Symbol V
Output skew t
sk (O)
Note: Skew between any outputs of the same package switching in the same direction. This parameter is
warranted but not production tested.
Operating Characteristics
• CL = 50 pF
Item Symbol V
Power
dissipation
capacitance
C
PD
= (V) Min Max Min Max Unit
CC
2.3 to 2.7 — 2.0 — 2.0 ns
3.0 to 3.6 — 1.5 — 1.5
4.5 to 5.5 — 1.0 — 1.0
Ta = 25°C
= (V) Min Typ Max Unit Test Conditions
CC
3.3 — 15.9 — pF f = 10 MHz
5.0 — 17.1 —
Noise Characteristics
• CL = 50 pF
Item Symbol V
Quiet output,
maximum
dynamic V
Quiet output,
minimum
dynamic V
Quiet output,
minimum
dynamic V
High-level
dynamic
input voltage
Low-level
dynamic
input voltage
V
OL (P)
OL
V
OL (V)
OL
V
OH (V)
OH
V
IH (D)
V
IL (D)
Ta = 25°C
= (V) Min Typ Max Unit Test Conditions
CC
3.3 — 0.4 0.8 V
3.3 — –0.4 –0.8
3.3 — 2.9 —
3.3 2.31 — — V
3.3 — — 0.99
9
Page 10
HD74LV273A
Test Circuit
Measurement point
*
C
L
Note: C includes the probe and jig capacitance.
L
10
Page 11
HD74LV273A
•
Waveform-1
Timing input
Data input
Input
•
Waveform-2
Input
10 %
t
r
50 % V
10 %
t
50 % V
50 % V
90 %
t
PLH
su
CC
CC
CC
t
r
50 % V
50 % V
90 %
t
w
90 %
CC
t
h
50 % V
50 % V
t
f
CC
50 % V
CC
CC
10 %
90 %
t
PHL
CC
t
f
V
CC
10 %
0 V
V
CC
0 V
V
CC
0 V
V
CC
0 V
In phase output
Out of phase output
Notes:
1. I
nput waveform: PRR ≤ 1
2. The output is measured one at a time with one transition per measurement.
t
PHL
MHz, Zo = 50 Ω,
50 % V
50 % V
CC
CC
50 % V
CC
t
PLH
50 % V
CC
tr ≤ 3 ns, tf ≤ 3 ns
V
OH
V
OL
V
OH
V
OL
11
Page 12
HD74LV273A
Package Dimensions
12.6
13 Max
20
1
0.80 Max
1.27
0.42 ± 0.08
0.40 ± 0.06
Dimension including the plating thickness
Base material dimension
11
10
0.12
5.5
0.10 ± 0.10
0.15
M
2.20 Max
7.80
0.22 ± 0.05
0.20 ± 0.04
0.70 ± 0.20
Hitachi Code
JEDEC
EIAJ
Weight
(reference value)
+ 0.20
– 0.30
1.15
0° – 8°
FP-20DA
—
Conforms
0.31 g
12
Page 13
20
HD74LV273A
Unit: mm
12.8
13.2 Max
11
7.50
1
0.935 Max
1.27
*0.42 ± 0.08
0.40 ± 0.06
*Dimension including the plating thickness
Base material dimension
10
0.12
0.20 ± 0.10
0.15
2.65 Max
M
10.40
0.25 ± 0.04
*0.27 ± 0.05
0.70
Hitachi Code
JEDEC
EIAJ
Weight
+ 0.25
– 0.40
1.45
+ 0.57
– 0.30
(reference value)
0° – 8°
FP-20DB
Conforms
—
0.52 g
13
Page 14
HD74LV273A
+0.08
0.22
–0.07
0.20 ± 0.06
6.50
6.80 Max
20 11
4.40
110
0.65
0.13
M
0.65 Max
1.0
6.40 ± 0.20
0.10
1.10 Max
Dimension including the plating thickness
Base material dimension
0.17 ± 0.05
0.15 ± 0.04
+0.03
–0.04
0.07
0° – 8°
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
0.50 ± 0.10
TTP-20DA
—
—
0.07 g
14
Page 15
Cautions
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as failsafes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
Hitachi, Ltd.
Semiconductor & Integrated Circuits.
Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Tel: Tokyo (03) 3270-2111 Fax: (03) 3270-5109
URL NorthAmerica : http:semiconductor.hitachi.com/
For further information write to:
Hitachi Semiconductor
(America) Inc.
179 East Tasman Drive,
San Jose,CA 95134
Tel: <1> (408) 433-1990
Fax: <1>(408) 433-0223
Europe : http://www.hitachi-eu.com/hel/ecg
Asia (Singapore) : http://www.has.hitachi.com.sg/grp3/sicd/index.htm
Asia (Taiwan) : http://www.hitachi.com.tw/E/Product/SICD_Frame.htm
Asia (HongKong) : http://www.hitachi.com.hk/eng/bo/grp3/index.htm
Japan : http://www.hitachi.co.jp/Sicd/indx.htm
Hitachi Europe GmbH
Electronic components Group
Dornacher Stra§e 3
D-85622 Feldkirchen, Munich
Germany
Tel: <49> (89) 9 9180-0
Fax: <49> (89) 9 29 30 00
Hitachi Europe Ltd.
Electronic Components Group.
Whitebrook Park
Lower Cookham Road
Maidenhead
Berkshire SL6 8YA, United Kingdom
Tel: <44> (1628) 585000
Fax: <44> (1628) 778322
Hitachi Asia Pte. Ltd.
16 Collyer Quay #20-00
Hitachi Tower
Singapore 049318
Tel: 535-2100
Fax: 535-1533
Hitachi Asia Ltd.
Taipei Branch Office
3F, Hung Kuo Building. No.167,
Tun-Hwa North Road, Taipei (105)
Tel: <886> (2) 2718-3666
Fax: <886> (2) 2718-8180
Copyright ' Hitachi, Ltd., 1999. All rights reserved. Printed in Japan.
Hitachi Asia (Hong Kong) Ltd.
Group III (Electronic Components)
7/F., North Tower, World Finance Centre,
Harbour City, Canton Road, Tsim Sha Tsui,
Kowloon, Hong Kong
Tel: <852> (2) 735 9218
Fax: <852> (2) 730 0281
Telex: 40815 HITEC HX
Loading...
