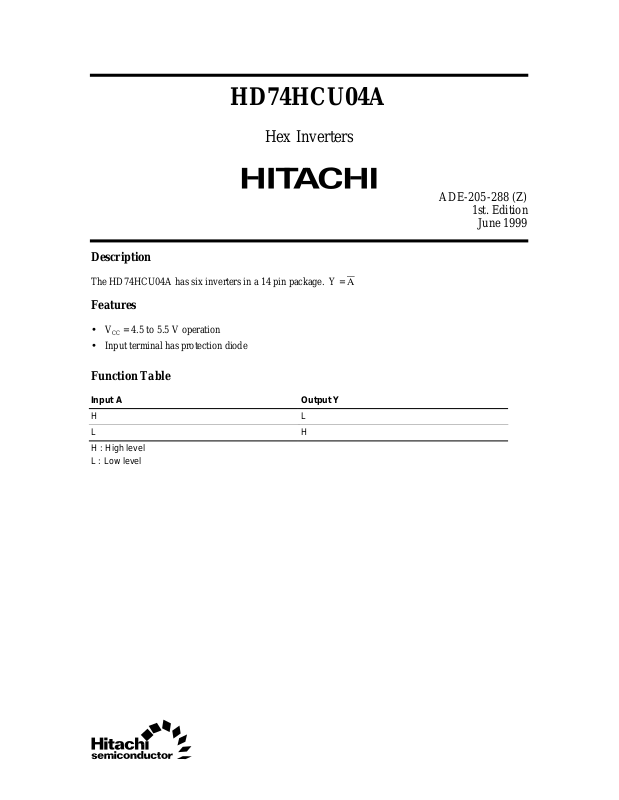

HD74HCU04A
Hex Inverters
Description
The HD74HCU04A has six inverters in a 14 pin package. Y = A
Features
• VCC = 4.5 to 5.5 V operation
• Input terminal has protection diode
Function Table
ADE-205-288 (Z)
1st. Edition
June 1999
Input A Output Y
HL
LH
H : High level
L : Low level
Page 2
HD74HCU04A
Pin Arrangement
1A
14
1
V
CC
1Y
2A
2Y
3A
3Y
GND
2
3
4
5
6
7
13
12
11
10
6A
6Y
5A
5Y
9
4A
8
4Y
(Top view)
Absolute Maximum Ratings
Item Symbol Ratings Unit
Supply voltage V
Input diode peak current I
Output diode peak current I
Output current I
VCC, GND current / pin ICC or I
CC
IK
OK
O
GND
Storage temperature Tstg –65 to 150 °C
–0.5 to 7.0 V
±20 mA
±20 mA
±25 mA
±50 mA
2
Page 3
HD74HCU04A
Recommended Operating Conditions
Item Symbol VCC (V) Min Typ Max Unit
Supply voltage V
Input voltage V
CC
IH
2.0 1.7 — — V
4.5 3.6 — —
6.0 4.8 — —
V
IL
2.0 0 — 0.3
4.5 0 — 0.8
6.0 0 — 1.1
V
I
Output voltage V
Output current I
O
OH
4.5 — –4.0 — mA
6.0 — –5.2 —
I
OL
4.5 — 4.0 —
6.0 — 5.2 —
Input rise / fall time tr, t
f
2.0 0 — 1000 ns
4.5 0 — 500
6.0 0 — 400
Operating temperature Ta –40 — 85 °C
2.0 5.0 6.0 V
0—V
CC
0—VCCV
3
Page 4
HD74HCU04A
Logic Diagram (1/4 Circuit)
A
Electrical Characteristics
Item Symbol V
Output voltage V
Input current I
Quiescent supply
voltage
OH
V
OL
I
I
CC
2.0 1.80 — — 1.80 — V IO = –20 µA
4.5 4.00 — — 4.00 —
6.0 5.50 — — 5.50 —
4.5 3.86 — — 3.76 — IO = –4 mA
6.0 5.36 — — 5.26 — IO = –5.2 mA
2.0 — — 0.20 — 0.20 IO = 20 µA
4.5 — — 0.50 — 0.50
6.0 — — 0.50 — 0.50
4.5 — — 0.32 — 0.37 IO = 4 mA
6.0 — — 0.32 — 0.37 IO = 5.2 mA
6.0 — ±0.1 ±100 — ±1000 nA VI = VCC or GND
6.0 — — 2.0 — 20 µAVI = VCC or GND,
Y
(V) Ta = 25°C Ta = –40 to 85°C Unit Test Conditions
CC
Min Typ Max Min Max
I
= 0
O
4
Page 5
Switching Characteristics (CL = 50 pF)
HD74HCU04A
Item Symbol V
Propagation t
delay time t
Output rise / fall t
time t
Input capacitance C
Power dissipation
PLH
PHL
r
f
I
C
PD
capacitance
(V) Ta = 25°C Ta = –40 to 85°C Unit Input Output
CC
Min Typ Max Min Max FROM TO
2.0 — 16 60 — 75 ns A Y
4.5 — 7 12 — 15
6.0 — 6 10 — 13
2.0 — 21 75 — 95 ns Each
4.5 — 8 15 — 19 output
6.0 — 7 13 — 16
— — 3 10 — 10 pF
— —20—— — pF
5
Page 6
HD74HCU04A
Test Circuit
• Waveform
Input
Output
Input
V
CC
Pulse Generator
Z = 50
out
Ω
Note: 1. C includes probe and jig capacitance.
L
t
r
90 %
10 %
t
PHL
1.3 V 1.3 V
90 %
1.3 V1.3 V
Output
C
L
t
f
3 V
10 %
t
PLH
0 V
V
OH
V
OL
Note: 1. Input waveform : PRR = 1 MHz, duty cycle 50%, t = 6 ns, t = 6 ns
rf
6
Page 7
Package Dimensions
14
1
1.27
10.06
10.5 Max
1.42 Max
HD74HCU04A
Unit : mm
8
5.5
7
+ 0.20
7.80
– 0.30
2.20 Max
0.22 ± 0.05
1.15
0.20 ± 0.04
0° – 8°
0.70 ± 0.20
0.42 ± 0.08
0.40 ± 0.06
Dimension including the plating thickness
Base material dimension
0.12
0.10 ± 0.10
0.15
M
Hitachi Code
JEDEC
EIAJ
Weight
(reference value)
FP-14DA
—
Conforms
0.23 g
7
Page 8
HD74HCU04A
14 8
+0.08
0.22
–0.07
0.20 ± 0.06
5.00
5.30 Max
4.40
17
0.65
M
0.13
0.83 Max
1.0
6.40 ± 0.20
0.10
1.10 Max
Dimension including the plating thickness
Base material dimension
0.17 ± 0.05
0.15 ± 0.04
+0.03
–0.04
0.07
0° – 8°
Hitachi Code
JEDEC
EIAJ
Weight
(reference value)
0.50 ± 0.10
TTP-14D
—
—
0.05 g
8
Page 9
