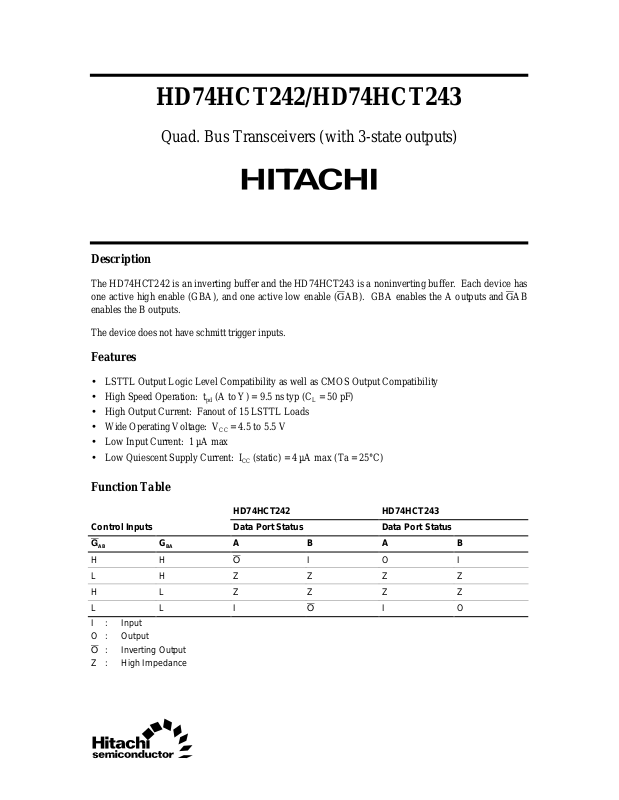

HD74HCT242/HD74HCT243

Quad. Bus Transceivers (with 3-state outputs)

Description

The HD74HCT242 is an inverting buffer and the HD74HCT243 is a noninverting buffer. Each device has
one active high enable (GBA), and one active low enable (GAB). GBA enables the A outputs and GAB
enables the B outputs.

The device does not have schmitt trigger inputs.

Features

• LSTTL Output Logic Level Compatibility as well as CMOS Output Compatibility

• High Speed Operation: tpd (A to Y) = 9.5 ns typ (CL = 50 pF)

• High Output Current: Fanout of 15 LSTTL Loads

• Wide Operating Voltage: VCC = 4.5 to 5.5 V

• Low Input Current: 1 µA max

• Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)

Function Table

HD74HCT242 HD74HCT243

Control Inputs Data Port Status Data Port Status

G

AB

HH O IOI
LHZZZZ
HLZZZZ
LL I O IO

I : Input
O : Output
O : Inverting Output
Z : High Impedance

G

BA

ABAB

HD74HCT242/HD74HCT243

(

)

Pin Arrangement

Block Diagram

HD74HCT242

GAB

NC

1A

2A

3A

4A

GND

1

2

3

4

5

6

7

14

13

12

11

10

V

CC

GBA

NC

1B

2B

3B

9

4B

8

Top view

V

CC

A

1 of 4
Transceivers

V

CC

B

GBA

GAB

2

HD74HCT243

A

GBA

GAB

Absolute Maximum Ratings

1 of 4
Transceivers

V

CC

HD74HCT242/HD74HCT243

V

CC

B

Item Symbol Rating Unit

Supply voltage range V
Input voltage V
Output voltage V
DC current drain per pin I

CC

IN

OUT

OUT

DC current drain per VCC, GND ICC, I
DC input diode current I
DC output diode current I
Power dissipation per package P

IK

OK

T

GND

–0.5 to +7.0 V
–0.5 to VCC + 0.5 V
–0.5 to VCC + 0.5 V

±35 mA
±75 mA
±20 mA
±20 mA

500 mW

Storage temperature Tstg –65 to +150 °C

3

HD74HCT242/HD74HCT243

DC Characteristics

Ta = –40 to

Ta = 25°C

Item Symbol Min Typ Max Min Max Unit V

Input voltage V

Output voltage V

IH

V

IL

OH

2.0 — — 2.0 — V 4.5 to

— — 0.8 — 0.8 V 4.5 to

4.4 — — 4.4 — V 4.5 Vin = VIH or VILIOH = –20 µA

4.18 — — 4.13 — 4.5 IOH = –6 mA

V

OL

— — 0.1 — 0.1 V 4.5 Vin = VIH or VILIOL = 20 µA
— — 0.26 — 0.33 4.5 IOL = 6 mA

Off-state output

I

OZ

——±0.5 — ±5.0 µA 5.5 Vin = VIH or VIL,

current
Input current Iin — — ±0.1 — ±1.0 µA 5.5 Vin = VCC or GND
Quiescent current I

CC

— — 4.0 — 40 µA 5.5 Vin = VCC or GND, Iout = 0 µA

+85°C Test Conditions

(V)

CC

5.5

5.5

Vout = V

or GND

CC

AC Characteristics (CL = 50 pF, Input tr = tf = 6 ns)

Ta = –40 to

Ta = 25°C

Item Symbol Min Typ Max Min Max Unit V

Propagation delay t
time t
Output enable t
time t
Output disable t
time t
Output rise/fall

time

PHL

PLH

ZL

ZH

LZ

HZ

t

TLH

t

THL

— 10 18 — 22 ns 4.5
— 9 18 — 22 4.5
— 14 30 — 38 ns 4.5
— 13 30 — 38 4.5
— 16 30 — 38 ns 4.5
— 17 30 — 38 4.5
— 4 12 — 15 ns 4.5

Input capacitance Cin — 5 10 — 10 pF —

+85°C Test Conditions

(V)

CC

4

1

19.20

20.32 Max

1.30

Unit: mm

814

6.30

7.40 Max

7

2.54 ± 0.25

2.39 Max

0.48 ± 0.10

2.54 Min 5.06 Max

0.51 Min

Hitachi Code
JEDEC
EIAJ
Weight

7.62

+ 0.10

0.25

– 0.05

0° – 15°

(reference value)

DP-14
Conforms
Conforms

0.97 g

14

1.27

10.5 Max

1

10.06

1.42 Max

Unit: mm

8

5.5

7

+ 0.20

7.80

– 0.30

2.20 Max
*0.22 ± 0.05

1.15

0.20 ± 0.04
0° – 8°

0.70 ± 0.20

*0.42 ± 0.08

0.40 ± 0.06

*Dimension including the plating thickness

Base material dimension

0.12

0.10 ± 0.10

0.15

M

Hitachi Code
JEDEC
EIAJ

(reference value)

Weight

FP-14DA
—
Conforms

0.23 g

9.05 Max

14

Unit: mm

8.65

8

*Pd plating

1

0.635 Max

1.27

*0.40 ± 0.06

7

+ 0.11

– 0.04

0.14

0.25

3.95

1.75 Max

0.15

M

6.10

1.08

*0.20 ± 0.05

0.60

Hitachi Code
JEDEC
EIAJ
Weight

+ 0.10
– 0.30

0° – 8°

+ 0.67
– 0.20

(reference value)

FP-14DN
Conforms
Conforms

0.13 g
