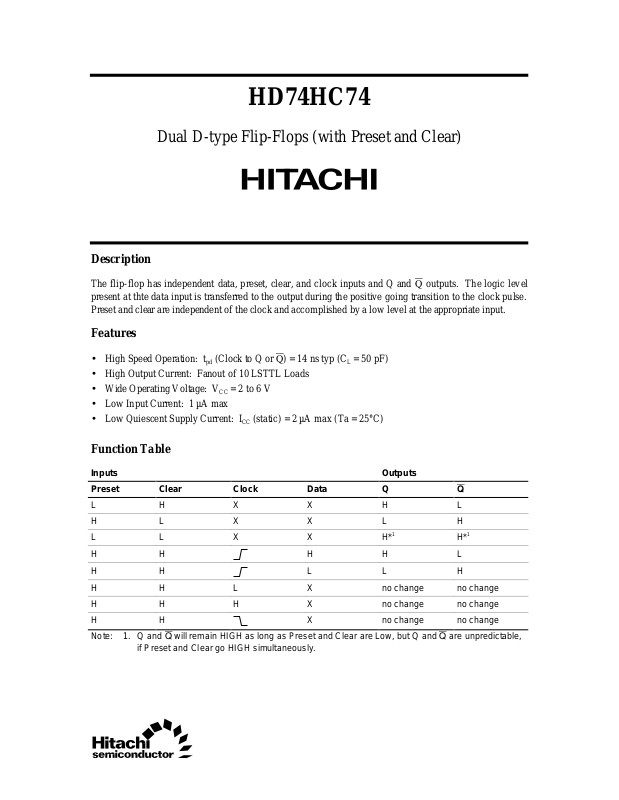

Page 1
HD74HC74
Dual D-type Flip-Flops (with Preset and Clear)
Description
The flip-flop has independent data, preset, clear, and clock inputs and Q and Q outputs. The logic level
present at thte data input is transferred to the output during the positive going transition to the clock pulse.
Preset and clear are independent of the clock and accomplished by a low level at the appropriate input.
Features
• High Speed Operation: tpd (Clock to Q or Q) = 14 ns typ (CL = 50 pF)
• High Output Current: Fanout of 10 LSTTL Loads
• Wide Operating Voltage: VCC = 2 to 6 V
• Low Input Current: 1 µA max
• Low Quiescent Supply Current: ICC (static) = 2 µA max (Ta = 25°C)
Function Table
Inputs Outputs
Preset Clear Clock Data Q Q
LH X X H L
HL X X L H
LL X X H*
HH HHL
HH LLH
H H L X no change no change
H H H X no change no change
HH X no change no change
Note: 1. Q and Q will remain HIGH as long as Preset and Clear are Low, but Q and Q are unpredictable,
if Preset and Clear go HIGH simultaneously.
1
H*
1
Page 2
HD74HC74
(
)
Pin Arrangement
Logic Diagram (1/2)
PR
CLR
D
1CLR
1D
1CK
1PR
1Q
1Q
GND
V
CK
CK
14
13
12
11
10
9
8
CC
2CLR
2D
2CK
2PR
2Q
2Q
Q
Q
CK
1
2
3
4
5
6
7
CK
#
CK
CK D
PR CLR
Q Q
DCK
CLR PR
Q Q
Top view
#
CK
#
CK
#
CK
2
CK
CK
#
CK
Page 3
HD74HC74
DC Characteristics
Ta = –40 to
Ta = 25°C
Item Symbol V
Input voltage V
IH
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 1.5 — — 1.5 — V
4.5 3.15 — — 3.15 —
6.0 4.2 — — 4.2 —
V
IL
2.0 — — 0.5 — 0.5 V
4.5 — — 1.35 — 1.35
6.0 — — 1.8 — 1.8
Output voltage V
OH
2.0 1.9 2.0 — 1.9 — V Vin = VIH or VILIOH = –20 µA
4.5 4.4 4.5 — 4.4 —
6.0 5.9 6.0 — 5.9 —
4.5 4.18 — — 4.13 — IOH = –4 mA
6.0 5.68 — — 5.63 — IOH = –5.2 mA
V
OL
2.0 — 0.0 0.1 — 0.1 V Vin = VIH or VILIOL = 20 µA
4.5 — 0.0 0.1 — 0.1
6.0 — 0.0 0.1 — 0.1
4.5 — — 0.26 — 0.33 IOL = 4 mA
6.0 — — 0.26 — 0.33 IOL = 5.2 mA
Input current Iin 6.0 — — ±0.1 — ±1.0 µA Vin = VCC or GND
Quiescent supply
I
CC
6.0 — — 2.0 — 20 µA Vin = VCC or GND, Iout = 0 µA
current
+85°C
3
Page 4
HD74HC74
AC Characteristics (CL = 50 pF, Input tr = tf = 6 ns)
Ta = –40 to
Ta = 25°C
Item Symbol V
Maximum clock f
max
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 — — 5 — 4 MHz
frequency 4.5 — 35 25 — 20
6.0 — — 29 — 24
Propagation delay t
time t
PLH
PHL
2.0 — — 160 — 200 ns Clock to Q or Q
4.5 — 14 32 — 40
6.0 — — 27 — 34
2.0 — — 160 — 200 Preset or Clear to Q or Q
4.5 — 13 32 — 40
6.0 — — 27 — 34
Setup time t
su
2.0 100 — — 125 — ns Data to Clock
4.5 20 1 — 25 —
6.0 17 — — 21 —
Hold time t
h
2.0 5 — — 5 — ns Clock to Data
4.5 5 0 — 5 —
6.0 5 — — 5 —
Removal time t
rem
2.0 25 — — 31 — ns Preset, Clear to Clock
4.5 5 –5 — 6 —
6.0 4 — — 5 —
Pulse width t
w
2.0 80 — — 100 — ns Clock, Preset, Clear
4.5 16 8 — 20 —
6.0 14 — — 17 —
Output rise/fall t
time t
TLH
THL
2.0 — — 75 — 95 ns
4.5 — 5 15 — 19
6.0 — — 13 — 16
Input Capacitance Cin — — 5 10 — 10 pF
+85°C
4
Page 5
1
19.20
20.32 Max
1.30
Unit: mm
814
6.30
7.40 Max
7
2.54 ± 0.25
2.39 Max
0.48 ± 0.10
2.54 Min 5.06 Max
0.51 Min
Hitachi Code
JEDEC
EIAJ
Weight
7.62
+ 0.10
0.25
– 0.05
0° – 15°
(reference value)
DP-14
Conforms
Conforms
0.97 g
Page 6
14
1.27
10.5 Max
1
10.06
1.42 Max
Unit: mm
8
5.5
7
+ 0.20
7.80
– 0.30
2.20 Max
*0.22 ± 0.05
1.15
0.20 ± 0.04
0° – 8°
0.70 ± 0.20
*0.42 ± 0.08
0.40 ± 0.06
*Dimension including the plating thickness
Base material dimension
0.12
0.10 ± 0.10
0.15
M
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
FP-14DA
—
Conforms
0.23 g
Page 7
9.05 Max
14
Unit: mm
8.65
8
*Pd plating
1
0.635 Max
1.27
*0.40 ± 0.06
7
+ 0.11
– 0.04
0.14
0.25
3.95
1.75 Max
0.15
M
6.10
1.08
*0.20 ± 0.05
+ 0.67
0.60
– 0.20
Hitachi Code
JEDEC
EIAJ
Weight
+ 0.10
– 0.30
0° – 8°
(reference value)
FP-14DN
Conforms
Conforms
0.13 g
Page 8
5.30 Max
14 8
17
+0.08
*0.22
–0.07
0.20 ± 0.06
5.00
0.83 Max
0.65
0.13
Unit: mm
4.40
1.0
M
6.40 ± 0.20
0.10
1.10 Max
*Dimension including the plating thickness
Base material dimension
0.15 ± 0.04
*0.17 ± 0.05
+0.03
–0.04
0.07
0° – 8°
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
0.50 ± 0.10
TTP-14D
—
—
0.05 g
