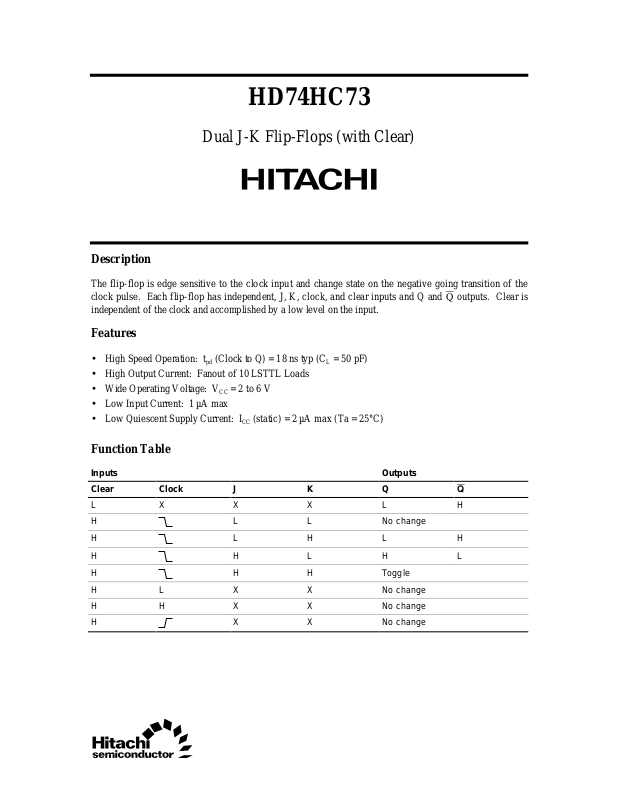

Page 1
HD74HC73
Dual J-K Flip-Flops (with Clear)
Description
The flip-flop is edge sensitive to the clock input and change state on the negative going transition of the
clock pulse. Each flip-flop has independent, J, K, clock, and clear inputs and Q and Q outputs. Clear is
independent of the clock and accomplished by a low level on the input.
Features
• High Speed Operation: tpd (Clock to Q) = 18 ns typ (CL = 50 pF)
• High Output Current: Fanout of 10 LSTTL Loads
• Wide Operating Voltage: VCC = 2 to 6 V
• Low Input Current: 1 µA max
• Low Quiescent Supply Current: ICC (static) = 2 µA max (Ta = 25°C)
Function Table
Inputs Outputs
Clear Clock J K Q Q
LX X X L H
H L L No change
H LHLH
H HL HL
H H H Toggle
H L X X No change
H H X X No change
H X X No change
Page 2
HD74HC73
Pin Arrangement
Block Diagram
CLR
J
K
1CK
1CLR
1K
V
CC
2CK
2CLR
2J
14
13
12
11
10
1J
1Q
1Q
GND
2K
9
2Q
8
2Q
Q
Q
CK
1
2
3
4
5
6
7
CK
CK
CLR
J
CK
K
K
CK
J
CLR
(Top view)
CK
Q
Q
Q
Q
CK
CK
CK
CK
CK
2
CK
CK
Page 3
HD74HC73
DC Characteristics
Ta = –40 to
Ta = 25°C
Item Symbol V
Input voltage V
IH
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 1.5 — — 1.5 — V
4.5 3.15 — — 3.15 —
6.0 4.2 — — 4.2 —
V
IL
2.0 — — 0.5 — 0.5 V
4.5 — — 1.35 — 1.35
6.0 — — 1.8 — 1.8
Output voltage V
OH
2.0 1.9 2.0 — 1.9 — V Vin = VIH or VILIOH = –20 µA
4.5 4.4 4.5 — 4.4 —
6.0 5.9 6.0 — 5.9 —
4.5 4.18 — — 4.13 — IOH = –4 mA
6.0 5.68 — — 5.63 — IOH = –5.2 mA
V
OL
2.0 — 0.0 0.1 — 0.1 V Vin = VIH or VILIOL = 20 µA
4.5 — 0.0 0.1 — 0.1
6.0 — 0.0 0.1 — 0.1
4.5 — — 0.26 — 0.33 IOL = 4 mA
6.0 — — 0.26 — 0.33 IOL = 5.2 mA
Input current Iin 6.0 — — ±0.1 — ±1.0 µA Vin = VCC or GND
Quiescent supply
I
CC
6.0 — — 2.0 — 20 µA Vin = VCC or GND, Iout = 0 µA
current
+85°C
3
Page 4
HD74HC73
AC Characteristics (CL = 50 pF, Input tr = tf = 6 ns)
Ta = –40 to
Ta = 25°C
Item Symbol V
Maximum clock f
max
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 — — 6 — 5 MHz
frequency 4.5 — — 30 — 24
6.0 — — 35 — 28
Propagation delay t
time t
PLH
PHL
2.0 — — 150 — 190 ns Clock to Q or Q
4.5 — 18 30 — 38
6.0 — — 26 — 33
2.0 — — 140 — 175 Clear to Q or Q
4.5 — 18 28 — 35
6.0 — — 24 — 30
Pulse width t
w
2.0 80 — — 100 — ns Clock, Clear
4.5 16 8 — 20 —
6.0 14 — — 17 —
Setup time t
su
2.0 100 — — 125 — ns Data to clock
4.5 20 3 — 25 —
6.0 17 — — 21 —
Hold time t
h
2.0 5 — — 5 — ns Clock to data
4.5 5 –2 — 5 —
6.0 5 — — 5 —
Removal time t
rem
2.0 100 — — 125 — ns Clear to clock
4.5 20 –3 — 25 —
6.0 17 — — 21 —
Output rise/fall t
time t
TLH
THL
2.0 — — 75 — 95 ns
4.5 — 5 15 — 19
6.0 — — 13 — 16
Input capacitance Cin — — 5 10 — 10 pF
+85°C
4
Page 5
1
19.20
20.32 Max
1.30
Unit: mm
814
6.30
7.40 Max
7
2.54 ± 0.25
2.39 Max
0.48 ± 0.10
2.54 Min 5.06 Max
0.51 Min
Hitachi Code
JEDEC
EIAJ
Weight
7.62
+ 0.10
0.25
– 0.05
0° – 15°
(reference value)
DP-14
Conforms
Conforms
0.97 g
Page 6
14
1.27
10.5 Max
1
1.42 Max
10.06
Unit: mm
8
5.5
7
+ 0.20
7.80
– 0.30
2.20 Max
*0.22 ± 0.05
1.15
0.20 ± 0.04
0° – 8°
0.70 ± 0.20
*0.42 ± 0.08
0.40 ± 0.06
*Dimension including the plating thickness
Base material dimension
0.12
0.10 ± 0.10
0.15
M
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
FP-14DA
—
Conforms
0.23 g
Page 7
9.05 Max
14
Unit: mm
8.65
8
*Pd plating
1
0.635 Max
1.27
*0.40 ± 0.06
7
+ 0.11
– 0.04
0.14
0.25
3.95
1.75 Max
0.15
M
6.10
1.08
*0.20 ± 0.05
+ 0.67
0.60
– 0.20
Hitachi Code
JEDEC
EIAJ
Weight
+ 0.10
– 0.30
0° – 8°
(reference value)
FP-14DN
Conforms
Conforms
0.13 g
Page 8
5.30 Max
14 8
17
+0.08
*0.22
–0.07
0.20 ± 0.06
5.00
0.83 Max
0.65
0.13
Unit: mm
4.40
1.0
M
6.40 ± 0.20
0.10
1.10 Max
*Dimension including the plating thickness
Base material dimension
0.15 ± 0.04
*0.17 ± 0.05
+0.03
–0.04
0.07
0° – 8°
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
0.50 ± 0.10
TTP-14D
—
—
0.05 g
Page 9
