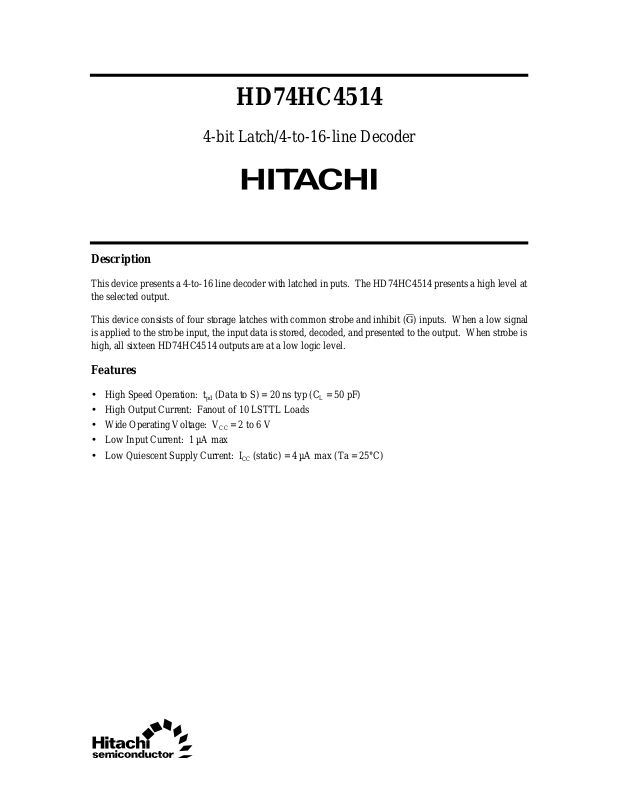

Page 1
HD74HC4514
4-bit Latch/4-to-16-line Decoder
Description
This device presents a 4-to-16 line decoder with latched in puts. The HD74HC4514 presents a high level at
the selected output.
This device consists of four storage latches with common strobe and inhibit (G) inputs. When a low signal
is applied to the strobe input, the input data is stored, decoded, and presented to the output. When strobe is
high, all sixteen HD74HC4514 outputs are at a low logic level.
Features
• High Speed Operation: tpd (Data to S) = 20 ns typ (CL = 50 pF)
• High Output Current: Fanout of 10 LSTTL Loads
• Wide Operating Voltage: VCC = 2 to 6 V
• Low Input Current: 1 µA max
• Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)
Page 2
HD74HC4514
Function Table (Strobe = High)
Data Inputs
Inhibit D C B A Select Outputs
LLLLLS
LL L L H S
LL L H L S
LLLHHS
LLHLLS
LL H L H S
LL H H L S
LLHHHS
LHLLLS
LH L L H S
LH L H L S
LHLHHS
LHHLLS
LH H L H S
LH H H L S
LHHHHS
H X X X X All output “L”
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2
Page 3
Pin Arrangement
HD74HC4514
Strobe
Data 1
Data 2
S
S
S
S
S
S
S
S
1
2
3
4
7
5
6
6
5
7
4
Latch
BADC
4 to 16
24
23
22
21
20
19
18
V
CC
Inhibit
Data 4
Data 3
S
10
S
11
S
8
Decoder
8
3
9
1
10
2
11
0
17
16
15
14
S
9
S
14
S
15
S
12
GND
12
(Top view)
13
S
13
3
Page 4
HD74HC4514
Logic Diagram
Data 1
Data 2
Data 3
Data 4
D
LE
D
LE
D
LE
D
LE
S
0
S
1
S
2
S
3
S
Q
Q
Q
Q
Q
Q
Q
Q
4
S
5
S
6
S
7
S
8
S
9
S
10
Strobe
INH
S
11
S
12
S
13
S
14
S
15
4
Page 5
HD74HC4514
DC Characteristics
Ta = –40 to
Ta = 25°C
Item Symbol V
Input voltage V
IH
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 1.5 — — 1.5 — V
4.5 3.15 — — 3.15 —
6.0 4.2 — — 4.2 —
V
IL
2.0 — — 0.5 — 0.5 V
4.5 — — 1.35 — 1.35
6.0 — — 1.8 — 1.8
Output voltage V
OH
2.0 1.9 2.0 — 1.9 — V Vin = VIH or VILIOH = –20 µA
4.5 4.4 4.5 — 4.4 —
6.0 5.9 6.0 — 5.9 —
4.5 4.18 — — 4.13 — IOH = –4 mA
6.0 5.68 — — 5.63 — IOH = –5.2 mA
V
OL
2.0 — 0.0 0.1 — 0.1 V Vin = VIH or VILIOL = 20 µA
4.5 — 0.0 0.1 — 0.1
6.0 — 0.0 0.1 — 0.1
4.5 — — 0.26 — 0.33 IOL = 4 mA
6.0 — — 0.26 — 0.33 IOL = 5.2 mA
Input current Iin 6.0 — — ±0.1 — ±1.0 µA Vin = VCC or GND
Quiescent supply
I
CC
6.0 — — 4.0 — 40 µA Vin = VCC or GND, Iout = 0 µA
current
+85°C
5
Page 6
HD74HC4514
AC Characteristics (CL = 50 pF, Input tr = tf = 6 ns)
Ta = –40 to
Ta = 25°C
Item Symbol V
Propagation delay t
time t
PLH
PHL
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 — — 200 — 250 ns Data to output
4.5 — 20 40 — 50
6.0 — — 34 — 43
t
PLH
t
PHL
2.0 — — 175 — 220 ns Inhibit to output
4.5 — 13 35 — 44
6.0 — — 30 — 37
t
PLH
t
PHL
2.0 — — 200 — 250 ns Strobe to output
4.5 — 21 40 — 50
6.0 — — 34 — 34
Setup time t
su
2.0 100 — — 125 — ns Data to strobe
4.5 20 3 — 25 —
6.0 17 — — 21 —
Hold time t
h
2.0 5 — — 5 — ns Strobe to data
4.5 5 –1 — 5 —
6.0 5 — — 5 —
Pulse width t
w
2.0 80 — — 100 — ns Strobe
4.5 16 4 — 20 —
6.0 14 — — 17 —
Output rise/fall t
time t
TLH
THL
2.0 — — 75 — 95 ns
4.5 — 6 15 — 19
6.0 — — 13 — 16
Input capacitance Cin — — 5 10 — 10 pF
+85°C
6
Page 7
31.6
24 13
32.5 Max
13.4
15.0 Max
Unit: mm
112
1.2
15.24
2.13 Max
2.54 ± 0.25
0.48 ± 0.10
0.51 Min
2.54 Min 5.70 Max
0.25
0° – 15°
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
DP-24
Conforms
Conforms
3.1 g
+ 0.11
