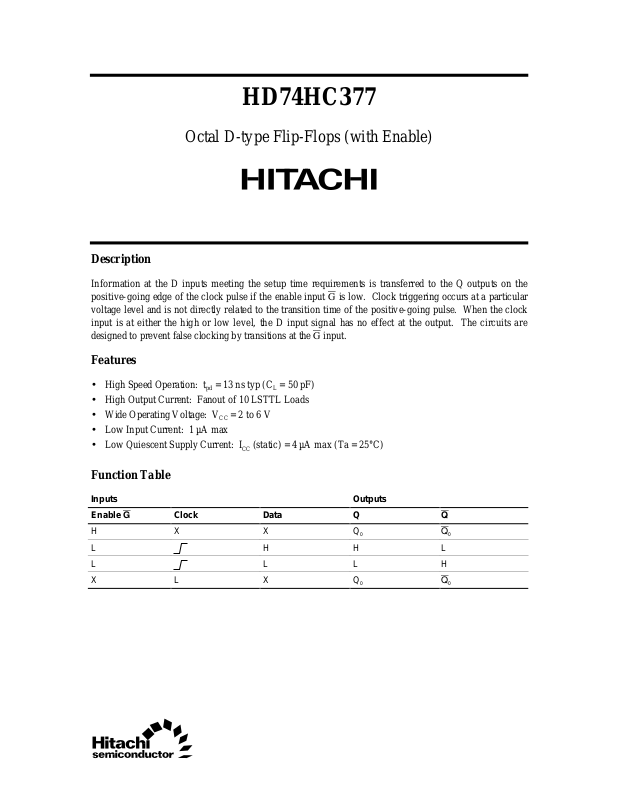

HD74HC377
Octal D-type Flip-Flops (with Enable)
Description
Information at the D inputs meeting the setup time requirements is transferred to the Q outputs on the
positive-going edge of the clock pulse if the enable input G is low. Clock triggering occurs at a particular
voltage level and is not directly related to the transition time of the positive-going pulse. When the clock
input is at either the high or low level, the D input signal has no effect at the output. The circuits are
designed to prevent false clocking by transitions at the G input.
Features
• High Speed Operation: tpd = 13 ns typ (CL = 50 pF)
• High Output Current: Fanout of 10 LSTTL Loads
• Wide Operating Voltage: VCC = 2 to 6 V
• Low Input Current: 1 µA max
• Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)
Function Table
Inputs Outputs
Enable G Clock Data Q Q
HX X Q
L HHL
L LLH
XLXQ
0
0
Q
0
Q
0
Page 2
HD74HC377
Pin Arrangement
Enable G
1Q
1D
2D
2Q
3Q
3D
4D
4Q
GND
1
2
Q
G
CK
D
3
4
D
CK
G
Q
5
6
Q
G
CK
D
7
8
D
CK
G
Q
9
10 11
(Top view)
G
CK
CK
G
G
CK
CK
G
20
19
Q
D
18
17
D
Q
16
15
Q
D
14
13
D
Q
12
VCC
8Q
8D
7D
7Q
6Q
6D
5D
5Q
Clock
2
Page 3
HD74HC377
DC Characteristics
Ta = –40 to
Ta = 25°C
Item Symbol V
Input voltage V
IH
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 1.5 — — 1.5 — V
4.5 3.15 — — 3.15 —
6.0 4.2 — — 4.2 —
V
IL
2.0 — — 0.5 — 0.5 V
4.5 — — 1.35 — 1.35
6.0 — — 1.8 — 1.8
Output voltage V
OH
2.0 1.9 2.0 — 1.9 — V Vin = VIH or VILIOH = –20 µA
4.5 4.4 4.5 — 4.4 —
6.0 5.9 6.0 — 5.9 —
4.5 4.18 — — 4.13 — IOH = –4 mA
6.0 5.68 — — 5.63 — IOH = –5.2 mA
V
OL
2.0 — 0.0 0.1 — 0.1 V Vin = VIH or VILIOL = 20 µA
4.5 — 0.0 0.1 — 0.1
6.0 — 0.0 0.1 — 0.1
4.5 — — 0.26 — 0.33 IOL = 4 mA
6.0 — — 0.26 — 0.33 IOL = 5.2 mA
Off-state output
I
OZ
6.0 — — ±0.5 — ±5.0 µA Vin = VIH or VIL,
current
Input current Iin 6.0 — — ±0.1 — ±1.0 µA Vin = VCC or GND
Quiescent supply
I
CC
6.0 — — 4.0 — 40 µA Vin = VCC or GND, Iout = 0 µA
current
+85°C
Vout = V
or GND
CC
3
Page 4
HD74HC377
AC Characteristics (CL = 50 pF, Input tr = tf = 6 ns)
Ta = –40 to
Ta = 25°C
Item Symbol V
Maximum clock f
max
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 — — 6 — 5 MHz
frequency 4.5 — — 30 — 24
6.0 — — 35 — 28
Propagation delay t
time t
PLH
PHL
2.0 — — 140 — 175 ns
4.5 — 13 28 — 35
6.0 — — 24 — 30
Setup time t
su
2.0 100 — — 125 — ns
4.5 20 5 — 25 —
6.0 17 — — 21 —
Hold time t
h
2.0 5 — — 5 — ns
4.5 5 0 — 5 —
6.0 5 — — 5 —
Pulse width t
w
2.0 80 — — 100 — ns
4.5 16 — — 20 —
6.0 14 — — 17 —
Output rise/fall t
time t
TLH
THL
2.0 — — 75 — 95 ns
4.5 — 5 15 — 19
6.0 — — 13 — 16
Input capacitance Cin — — 5 10 — 10 pF
+85°C
4
Page 5
24.50
25.40 Max
Unit: mm
1120
6.30
1
0.89
1.27 Max
2.54 ± 0.25
1.30
10
0.48 ± 0.10
7.00 Max
0.51 Min
2.54 Min 5.08 Max
Hitachi Code
JEDEC
EIAJ
Weight
7.62
+ 0.11
0.25
– 0.05
0° – 15°
(reference value)
DP-20N
—
Conforms
1.26 g

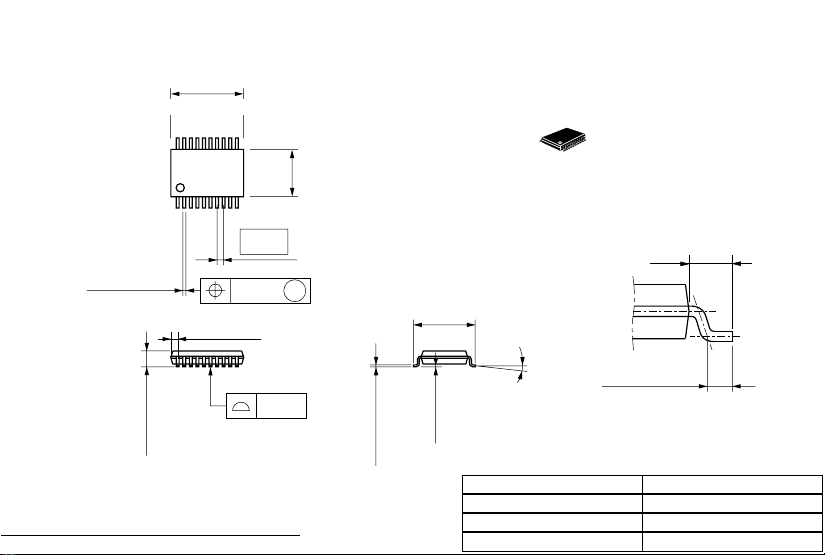

Page 6
20
Unit: mm
12.6
13 Max
11
5.5
1
0.80 Max
1.27
*0.42 ± 0.08
0.40 ± 0.06
*Dimension including the plating thickness
Base material dimension
10
0.12
0.10 ± 0.10
0.15
M
2.20 Max
7.80
0.20 ± 0.04
*0.22 ± 0.05
0.70 ± 0.20
Hitachi Code
JEDEC
EIAJ
Weight
(reference value)
+ 0.20
– 0.30
1.15
0° – 8°
FP-20DA
—
Conforms
0.31 g

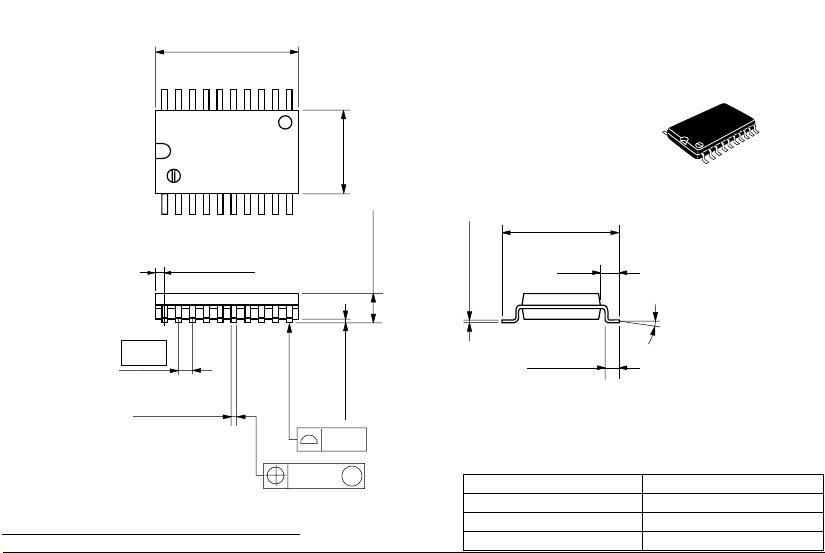

Page 7
20
Unit: mm
12.8
13.2 Max
11
7.50
1
0.935 Max
1.27
*0.42 ± 0.08
0.40 ± 0.06
*Dimension including the plating thickness
Base material dimension
10
0.12
0.20 ± 0.10
0.15
M
2.65 Max
10.40
0.25 ± 0.04
*0.27 ± 0.05
0.70
Hitachi Code
JEDEC
EIAJ
Weight
(reference value)
+ 0.25
– 0.40
1.45
+ 0.57
– 0.30
0° – 8°
FP-20DB
Conforms
—
0.52 g
Page 8
20 11
110
+0.08
*0.22
–0.07
0.20 ± 0.06
6.50
6.80 Max
0.65 Max
0.65
0.13
Unit: mm
4.40
1.0
M
6.40 ± 0.20
0.10
1.10 Max
*Dimension including the plating thickness
Base material dimension
0.15 ± 0.04
*0.17 ± 0.05
+0.03
–0.04
0.07
0° – 8°
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
0.50 ± 0.10
TTP-20DA
—
—
0.07 g
Page 9
