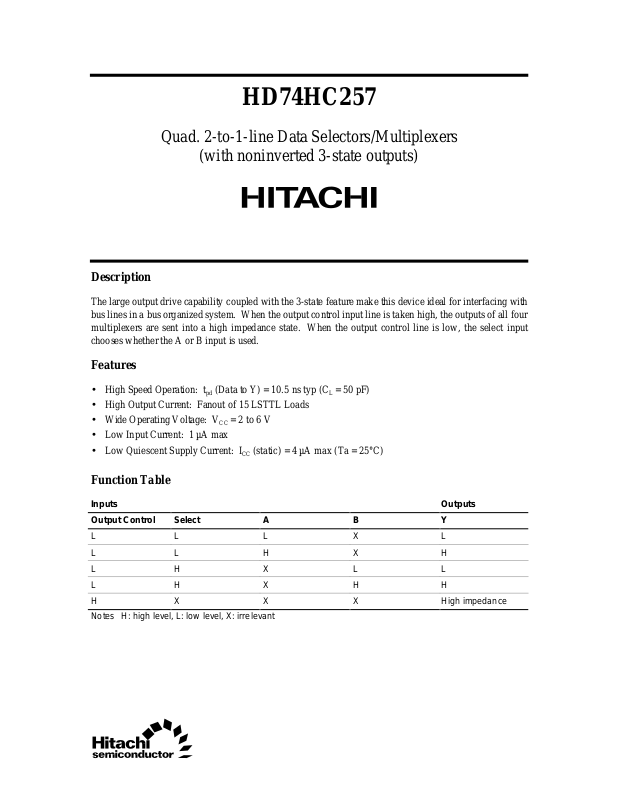

HD74HC257
Quad. 2-to-1-line Data Selectors/Multiplexers
(with noninverted 3-state outputs)
Description
The large output drive capability coupled with the 3-state feature make this device ideal for interfacing with
bus lines in a bus organized system. When the output control input line is taken high, the outputs of all four
multiplexers are sent into a high impedance state. When the output control line is low, the select input
chooses whether the A or B input is used.
Features
• High Speed Operation: tpd (Data to Y) = 10.5 ns typ (CL = 50 pF)
• High Output Current: Fanout of 15 LSTTL Loads
• Wide Operating Voltage: VCC = 2 to 6 V
• Low Input Current: 1 µA max
• Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)
Function Table
Inputs Outputs
Output Control Select A B Y
LL L X L
LL H X H
LHXLL
LH X H H
H X X X High impedance
Notes H: high level, L: low level, X: irrelevant

HD74HC257
Pin Arrangement
Select
1A
1B
1Y
2A
2B
2Y
GND
1
S
2
3
4
5
6
7
1A
1B
1Y
2A
2B
2Y
3Y
OC
4A
4B
4Y
3A
3B
8
16
15
14
13
12
11
10
9
V
CC
Output
control
4A
4B
4Y
3A
3B
3Y
(Top view)
Absolute Maximum Ratings
Item Symbol Rating Unit
Supply voltage range V
Input voltage V
Output voltage V
DC current drain per pin I
DC current drain per VCC, GND ICC, I
DC input diode current I
DC output diode current I
Power dissipation per package P
CC
IN
OUT
OUT
GND
IK
OK
T
Storage temperature Tstg –65 to +150 °C
–0.5 to +7.0 V
–0.5 to VCC + 0.5 V
–0.5 to VCC + 0.5 V
±35 mA
±75 mA
±20 mA
±20 mA
500 mW
2

HD74HC257
DC Characteristics
Ta = –40 to
Ta = 25°C
Item Symbol V
Input voltage V
IH
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 1.5 — — 1.5 — V
4.5 3.15 — — 3.15 —
6.0 4.2 — — 4.2 —
V
IL
2.0 — — 0.5 — 0.5 V
4.5 — — 1.35 — 1.35
6.0 — — 1.8 — 1.8
Output voltage V
OH
2.0 1.9 2.0 — 1.9 — V Vin = VIH or VILIOH = –20 µA
4.5 4.4 4.5 — 4.4 —
6.0 5.9 6.0 — 5.9 —
4.5 4.18 — — 4.13 — IOH = –6 mA
6.0 5.68 — — 5.63 — IOH = –7.8 mA
V
OL
2.0 — 0.0 0.1 — 0.1 V Vin = VIH or VILIOL = 20 µA
4.5 — 0.0 0.1 — 0.1
6.0 — 0.0 0.1 — 0.1
4.5 — — 0.26 — 0.33 IOL = 6 mA
6.0 — — 0.26 — 0.33 IOL = 7.8 mA
Off-state output
I
OZ
6.0 — — ±0.5 — ±5.0 µA Vin = VIH or VIL,
current
Input current Iin 6.0 — — ±0.1 — ±1.0 µA Vin = VCC or GND
Quiescent supply
I
CC
6.0 — — 4.0 — 40 µA Vin = VCC or GND, Iout = 0 µA
current
+85°C
Vout = V
or GND
CC
4

AC Characteristics (CL = 50 pF, Input tr = tf = 6 ns)
Ta = –40 to
Ta = 25°C
Item Symbol V
Propagation delay t
PHL
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 — — 115 — 145 ns Data to Y
time 4.5 — 11 23 — 29
6.0 — — 20 — 25
t
PLH
2.0 — — 115 — 145 ns
4.5 — 10 23 — 29
6.0 — — 20 — 25
t
PHL
2.0 — — 115 — 145 ns Select to Y
4.5 — 14 23 — 29
6.0 — — 20 — 25
t
PLH
2.0 — — 115 — 145 ns
4.5 — 14 23 — 29
6.0 — — 20 — 25
Output enable t
ZL
2.0 — — 150 — 190 ns Output control to Y
time 4.5 — 11 30 — 38
6.0 — — 26 — 33
t
ZH
2.0 — — 150 — 190 ns
4.5 — 13 30 — 38
6.0 — — 26 — 33
Output disable t
LZ
2.0 — — 150 — 190 ns Output control to Y
time 4.5 — 14 30 — 38
6.0 — — 26 — 33
t
HZ
2.0 — — 150 — 190 ns
4.5 — 18 30 — 38
6.0 — — 26 — 33
Output rise/fall t
time t
TLH
THL
2.0 — — 60 — 75 ns
4.5 — 4 12 — 15
6.0 — — 10 — 13
Input capacitance Cin — — 5 10 — 10 pF
+85°C
HD74HC257
5

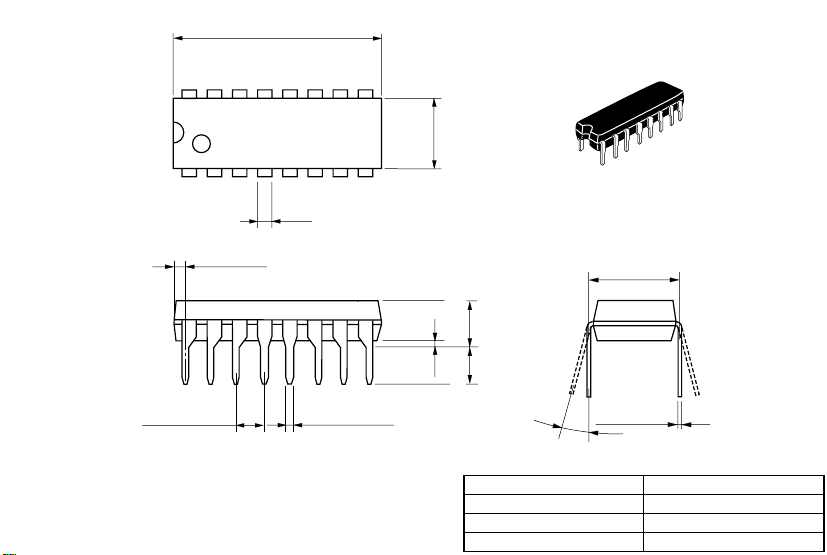

19.20
20.00 Max
16 9
1.3
Unit: mm
6.30
7.40 Max
81
1.11 Max
2.54 ± 0.25
0.48 ± 0.10
5.06 Max
2.54 Min
0.51 Min
Hitachi Code
JEDEC
EIAJ
Weight
7.62
+ 0.13
0.25
– 0.05
0° – 15°
(reference value)
DP-16
Conforms
Conforms
1.07 g

16
Unit: mm
10.06
10.5 Max
9
5.5
1
0.80 Max
1.27
*0.42 ± 0.08
0.40 ± 0.06
*Dimension including the plating thickness
Base material dimension
8
0.12
0.10 ± 0.10
0.15
M
2.20 Max
7.80
0.20 ± 0.04
*0.22 ± 0.05
0.70 ± 0.20
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
+ 0.20
– 0.30
1.15
0° – 8°
FP-16DA
—
Conforms
0.24 g

16
Unit: mm
9.9
10.3 Max
9
1
1.27
0.635 Max
*0.42 ± 0.08
0.40 ± 0.06
*Dimension including the plating thickness
Base material dimension
8
0.25
+ 0.11
– 0.04
0.14
0.15
3.95
1.75 Max
M
6.10
1.08
0.20 ± 0.03
*0.22 ± 0.03
0.60
Hitachi Code
JEDEC
EIAJ
Weight
+ 0.10
– 0.30
0° – 8°
+ 0.67
– 0.20
(reference value)
FP-16DN
Conforms
Conforms
0.15 g
