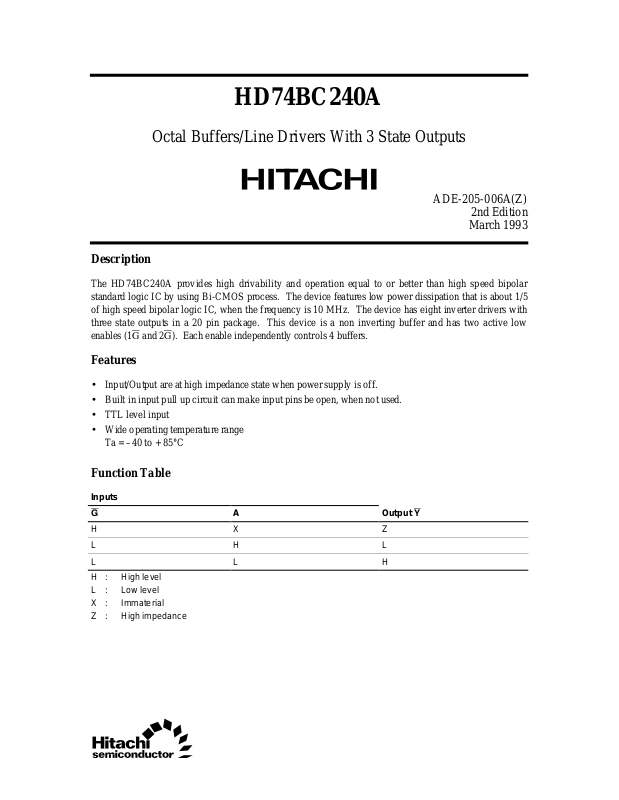

HD74BC240A

Octal Buffers/Line Drivers With 3 State Outputs

ADE-205-006A(Z)

2nd Edition

March 1993

Description

The HD74BC240A provides high drivability and operation equal to or better than high speed bipolar
standard logic IC by using Bi-CMOS process. The device features low power dissipation that is about 1/5
of high speed bipolar logic IC, when the frequency is 10 MHz. The device has eight inverter drivers with
three state outputs in a 20 pin package. This device is a non inverting buffer and has two active low
enables (1G and 2G). Each enable independently controls 4 buffers.

Features

• Input/Output are at high impedance state when power supply is off.

• Built in input pull up circuit can make input pins be open, when not used.

• TTL level input

• Wide operating temperature range

Ta = –40 to + 85°C

Function Table

Inputs
G A Output Y

HX Z
LH L
LL H

H : High level
L : Low level
X : Immaterial
Z : High impedance

HD74BC240A

Pin Arrangement

1G

V

1

20

CC

1A1
2Y4
1A2
2Y3
1A3
2Y2
1A4

2Y1

GND

2
3
4
5

6
7

8

9

10

19
18
17
16
15
14
13
12
11

2G
1Y1
2A4

1Y2
2A3

1Y3
2A2
1Y4
2A1

(Top view)

Absolute Maximum Ratings

Item Symbol Rating Unit

Supply voltage V
Input diode current I
Input voltage V
Output voltage V
Off state output voltage V

CC

IK

IN

OUT

OUT(off)

Storage temperature Tstg –65 to +150 °C
Note: 1. The absolute maximum ratings are values which must not individually be exceeded, and

furthermore, no two of which may be realized at the same time.

–0.5 to +7.0 V
±30 mA
–0.5 to +7.5 V
–0.5 to +7.5 V
–0.5 to +5.5 V

2

HD74BC240A

Recommended Operating Conditions

Item Symbol Min Typ Max Unit

Supply voltage V
Input voltage V
Output voltage V

CC

IN

OUT

Operating temperature Topr –40 — 85 °C
Input rise/fall time*

1

tr, t

f

Note: 1. This item guarantees maximum limit when one input switches.

Waveform: Refer to test circuit of switching characteristics.

Logic Diagram

1G

4.5 5.0 5.5 V
0—VCCV
0—VCCV

0 — 8 ns/V

2G

1A1

2Y4

1A2

2Y3

1A3

2Y2

1A4

2Y1

1Y1

2A4

1Y2

2A3

1Y3

2A2

1Y4

2A1

3

HD74BC240A

Electrical Characteristics (Ta = –40°C to +85°C)

Item Symbol VCC(V) Min Max Unit Test Conditions

Input voltage V

Output voltage V

IH

V

IL

OH

4.5 2.4 — V IOH = –3 mA

4.5 2.0 — V IOH = –15 mA

V

OL

4.5 — 0.5 V IOL = 48 mA

4.5 — 0.55 V IOL = 64 mA
Input diode voltage V
Input current I

IK

I

4.5 — –1.2 V IIN = –18 mA

5.5 — –250 µAV

5.5 — 1.0 µAV

5.5 — 100 µAV
Short circuit output current*1I
Off state output current I

Supply current I

OS

OZH

I

OZL

CCL

I

CCH

I

CCZ

2

I

*

CCT

5.5 –100 –225 mA VIN = 0 or 5.5 V

5.5 — 50 µAV

5.5 — –50 µAV

5.5 — 27.5 mA VIN = 0 or 5.5 V

5.5 — 2.5 mA VIN = 0 or 5.5 V

5.5 — 2.5 mA VIN = 0 or 5.5 V

5.5 — 1.5 mA VIN = 3.4 or 0.5 V
Notes: 1. Not more than one output should be shorted at a time and duration of the short circuit should not

exceed one second.

2. When input by the TTL level, it shows I

2.0 — V
— 0.8 V

increase at per one input pin.

CC

= 0 V

IN

= 5.5 V

IN

= 7.0 V

IN

= 2.7 V

O

= 0.5 V

O

All outputs is “L”

All outputs is “H”

All outputs is “Z”

4

Switching Test Method (CL = 50 pF)

HD74BC240A

Ta = 25°C
V

= 5.0 V

CC

Ta = –40 to 85°C
VCC = 5.0 V ±10%

Item Symbol Min Max Min Max Unit Test Conditions

Propagation delay time t

Output enable time t

Output disable time t

Input capacitanse C
Output capacitance C

PLH

t

PHL

ZH

t

ZL

HZ

t

LZ

IN

O

3.0 6.0 3.0 7.0 ns See under figure

3.0 6.0 3.0 7.0

3.0 8.0 3.0 10.0 ns

3.0 8.0 3.0 10.0

3.0 7.0 3.0 9.0 ns

3.0 7.0 3.0 9.0

3.0(Typ) — pF VIN = VCC or GND

15.0(Typ) — pF VO = VCC or GND

Test Circuit

V

G

1A1

1A2

1A3

1A4

CC

1Y1

1Y2

1Y3

Output

Output

C =

L

450 Ω

50 pF

50 ScopeΩ

Same as above
load circuit

Same as above
load circuit

500 Ω

*3

OPEN
7 V

Pulse Generator

Z

out

= 50

Ω

V

CC

Input

See Function Table

1Y4

Notes: 1. CL includes probe and jig capacitance.

2. 2G, 2A1-2A4 to 2Y1-2Y4 are identical to above load circuit.

3. Open: t
7 V: tZL, t

PLH

, t

, tZH, t

PHL

LZ

HZ

Same as above
load circuit

5

HD74BC240A

Waveforms-1

t

f

90%

Input A

1.5 V

Output Y

Notes: 1. tr = 2.5 ns, tf = 2.5 ns

2. Input waveform: PRR =1 MHz, duty cycle 50%

Waveforms-2

t

Input G

1.5 V
10%

10% 10%

t

PLH

1.5 V

f

t

ZL

t

r

10%

90%90%

1.5 V

t

LZ

t

r

1.5 V

90%

t

PHL

1.5 V

3 V

0 V

V

OH

V

OL

3 V

0 V

3.5 V

Waveform–A

Waveform–B

Notes: 1. tr = 2.5 ns, tf = 2.5 ns

2. Input waveform: PRR = 1 MHz, duty cycle 50%

3. Waveform-A shows input conditions such that the output is “L” level when enable by the
output control.

4. Waveform-B shows input conditions such that the output is “H” level when enable by the
output control.

6

1.5 V
V

+ 0.3 V

OL

t

ZH

t

HZ

V

– 0.3 V

OH

V

OL

V

OH

1.5 V

0 V

Package Dimensions

HD74BC240A

Unit: mm

7
