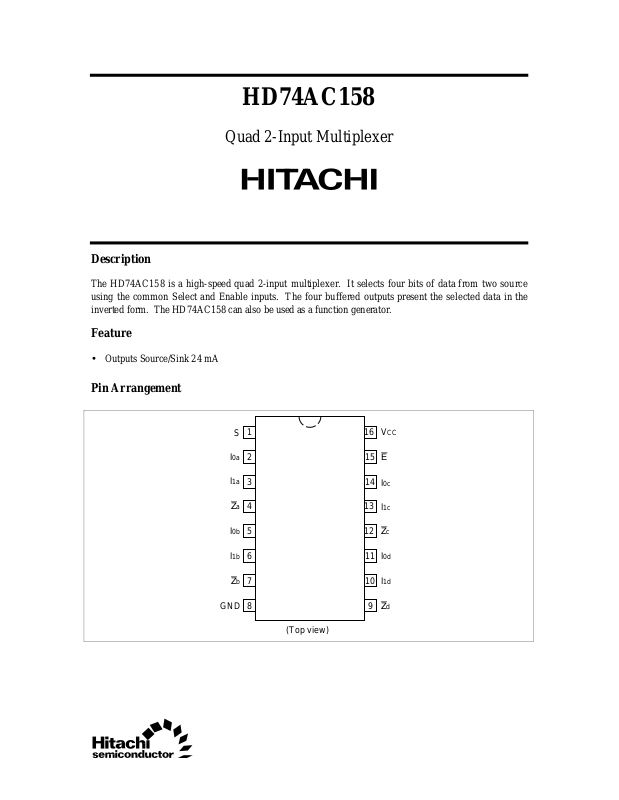

Page 1
HD74AC158
Quad 2-Input Multiplexer
Description
The HD74AC158 is a high-speed quad 2-input multiplexer. It selects four bits of data from two source
using the common Select and Enable inputs. The four buffered outputs present the selected data in the
inverted form. The HD74AC158 can also be used as a function generator.
Feature
• Outputs Source/Sink 24 mA
Pin Arrangement
I
I1a
Za
I0b
I1b
Zb
GND
1
S
0a
2
3
4
5
6
7
8
(Top view)
16
15
14
13
12
11
10
CC
V
E
0c
I
I1c
Zc
I0d
I1d
9
Zd
Page 2
HD74AC158
Logic Symbol
Pin Names
I0a to I0dSource 0 Data Inputs
I1a to I1dSource 1 Data Inputs
E Enable Input
S Select Input
Za to ZdOutputs
S
EI
0a
I1a I0b I0c I1c Iod I1dI1b
Za Zb Zc Zd
Functional Description
The HD74AC158 quad 2-input multiplexer selects four bits of data from two sources under the control of a
common Select input (S) and presents the data in inverted form at the four outputs. The Enable Input (E) is
active-LOW. When E is HIGH, all of the outputs (Z) are forced HIGH regardless of all other inputs. The
HD74AC158 is the logic implementation of a 4-pole, 2-position switch where the position of the switch is
determined by the logic levels supplied to the Select input.
A common use of the HD74AC158 is the moving of data from two groups of registers to four common
output busses. The particular register from which the data comes is determined by the state of the Select
input. A less obvious use is as a function generator. The HD74AC158 can generate four functions of two
variables with one variable common. This is useful for implementing gating functions.
2
Page 3
HD74AC158
Truth Table
Inputs Output
E SI
HX X X H
LL L X H
LL H X L
LHXLH
LH X H L
H : High Voltage Level
L : Low Voltage Level
X : Immaterial
0
I
1
Logic Diagram
I0a I1a I0b I1b I0c I1c I0d I1d SE
Z
Za Zb Zc Zd
Please note that this diagram is provided only for the understanding of logic operations and should not be
used to estimate propagation delays.
3
Page 4
HD74AC158
DC Characteristics (unless otherwise specified)
Item Symbol Max Unit Condition
Maximum quiescent supply current I
Maximum quiescent supply current I
CC
CC
AC Characteristics: HD74AC158
80 µAV
8.0 µAV
= VCC or ground, VCC = 5.5 V,
IN
Ta = Worst case
= VCC or ground, VCC = 5.5 V,
IN
Ta = 25°C
Item Symbol V
Propagation delay t
S to Z
n
Propagation delay t
S to Z
n
Propagation delay t
E to Z
n
Propagation delay t
E to Z
n
Propagation delay t
In to Z
n
Propagation delay t
In to Z
n
PLH
PHL
PLH
PHL
PLH
PHL
(V)*1Min Typ Max Min Max Unit
CC
3.3 1.0 7.0 11.5 1.0 12.5 ns
5.0 1.0 5.5 9.0 1.0 9.5
3.3 1.0 7.0 11.5 1.0 12.5 ns
5.0 1.0 5.5 9.0 1.0 10.0
3.3 1.0 7.5 12.0 1.0 13.0 ns
5.0 1.0 6.0 9.5 1.0 10.5
3.3 1.0 7.0 11.0 1.0 12.0 ns
5.0 1.0 5.5 8.5 1.0 9.5
3.3 1.0 5.5 9.0 1.0 10.0 ns
5.0 1.0 4.0 7.0 1.0 7.5
3.3 1.0 5.0 8.0 1.0 8.5 ns
5.0 1.0 4.0 6.5 1.0 6.5
Note: 1. Voltage Range 3.3 is 3.3 V ± 0.3 V
Voltage Range 5.0 is 5.0 V ± 0.5 V
Capacitance
Ta = +25°C
C
= 50 pF
L
Ta = –40°C to +85°C
CL = 50 pF
Item Symbol Typ Unit Condition
Input capacitance C
Power dissipation capacitance C
IN
PD
4.5 pF VCC = 5.5 V
45.0 pF VCC = 5.0 V
4
Page 5
19.20
20.00 Max
16 9
1.3
Unit: mm
6.30
7.40 Max
81
1.11 Max
2.54 ± 0.25
0.48 ± 0.10
5.06 Max
2.54 Min
0.51 Min
Hitachi Code
JEDEC
EIAJ
Weight
7.62
+ 0.13
0.25
– 0.05
0° – 15°
(reference value)
DP-16
Conforms
Conforms
1.07 g
Page 6
16
Unit: mm
10.06
10.5 Max
9
5.5
1
0.80 Max
1.27
*0.42 ± 0.08
0.40 ± 0.06
*Dimension including the plating thickness
Base material dimension
8
0.12
0.10 ± 0.10
0.15
M
2.20 Max
7.80
0.20 ± 0.04
*0.22 ± 0.05
0.70 ± 0.20
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
+ 0.20
– 0.30
1.15
0° – 8°
FP-16DA
—
Conforms
0.24 g
Page 7
16
Unit: mm
9.9
10.3 Max
9
1
1.27
0.635 Max
*0.42 ± 0.08
0.40 ± 0.06
*Dimension including the plating thickness
Base material dimension
8
0.25
+ 0.11
– 0.04
0.14
0.15
3.95
1.75 Max
M
6.10
1.08
0.20 ± 0.03
*0.22 ± 0.03
+ 0.67
0.60
– 0.20
Hitachi Code
JEDEC
EIAJ
Weight
+ 0.10
– 0.30
0° – 8°
(reference value)
FP-16DN
Conforms
Conforms
0.15 g
Page 8
16 9
18
+ 0.08
*0.22
– 0.07
0.20 ± 0.06
5.00
5.30 Max
0.65 Max
0.65
0.13
Unit: mm
4.40
1.0
M
6.40 ± 0.20
0.10
1.10 Max
*Dimension including the plating thickness
Base material dimension
0.15 ± 0.04
*0.17 ± 0.05
+0.03
–0.04
0.07
0° – 8°
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
0.50 ± 0.10
TTP-16DA
—
—
0.05 g
Page 9
Cautions
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as failsafes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
