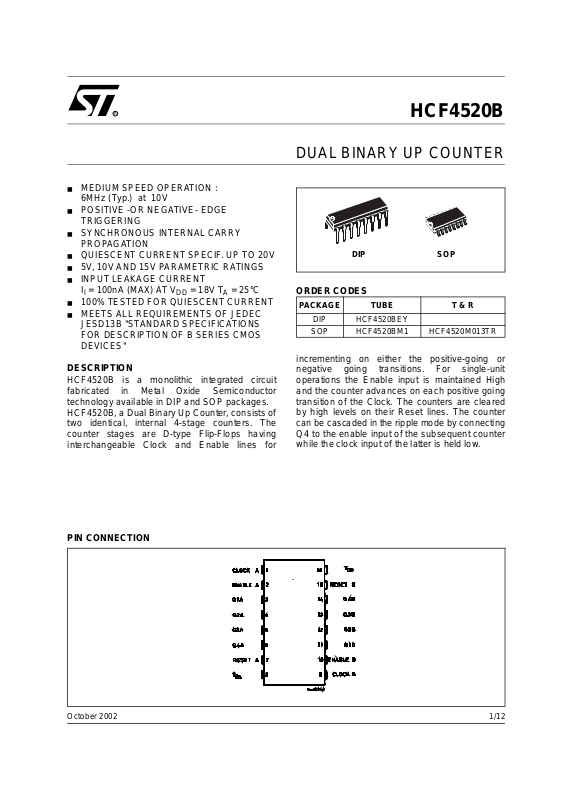

HCF4520B

DUAL BINARY UP COUNTER

■ MEDIUM SPEED OPERATION :

6MHz (Typ.) at 10V

■ POSITIVE -OR NEGATIVE- EDGE

TRIGGERING

■ SYNCHRONOUS INTERNAL CARRY

PROPAGATION

■ QUIESCENT CURRENT SPECIF. UP TO 20V

■ 5V , 10V AND 15V P ARAMETRIC RATINGS

■ INPUT LEAKAGE CURRENT

I

= 100nA (MAX) AT VDD = 18V TA = 25°C

I

■ 100% TESTED FOR QUIESCENT CURRENT

■ MEETS ALL REQUIREMENTS OF JEDEC

JESD13B "STANDARD SPECIFICATIONS
FOR DESCRIPTI ON OF B SERI ES CMOS
DEVICES"

DESCRIPTION

HCF4520B is a monolithic integrated circuit
fabricated in Metal Oxide Semiconductor
technology available in DIP and SOP packages.
HCF4520B, a Dual Binary Up Counter, consists of
two identical, internal 4-stage counters. The
counter stages are D-type Flip-Flops having
interchangeable Clock and Enable lines for

DIP SOP

ORDER CODES

PACKAGE TUBE T & R

DIP HCF4520BEY

SOP HCF4520BM1 HCF4520M013TR

incrementing on either the positive-going or
negative going transitions. For single-unit
operations the Enable input is maintained High
and the counter advances on each pos itive going
transition of the Clock. The counters are cleared
by high levels on their Reset lines. The counter
can be cascaded in the ripple mode by connecting
Q4 to the enable in put of the sub sequent counter
while the clock input of the latter is held low.

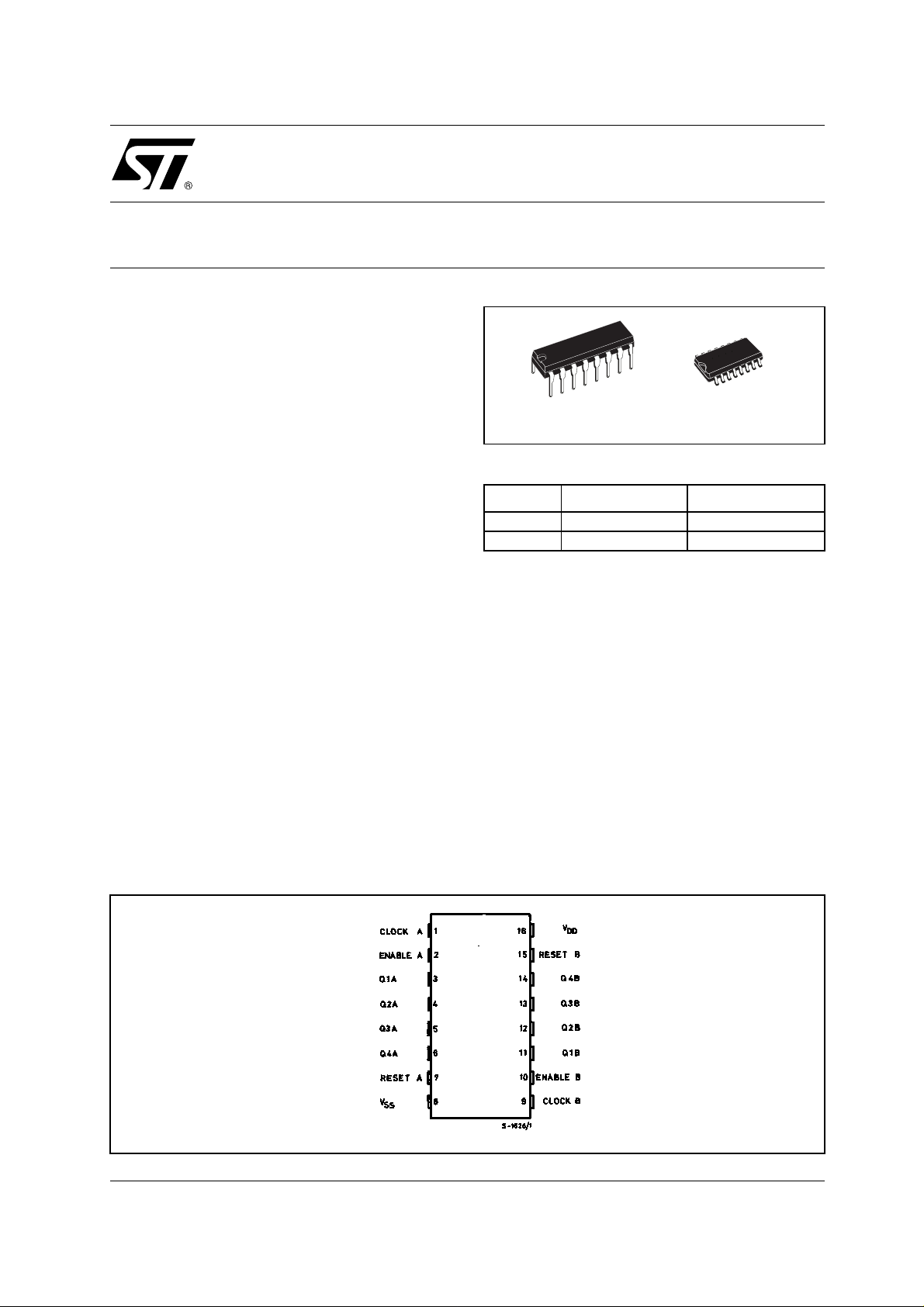

PIN CONNECTION

1/12October 2002

HCF4520B

IINPUT EQUIVALENT CIRCUIT PIN DESCRIPTION

PIN No SYMBOL NAME AND FUNCTION

1 CLOCK A Clock A input
2 ENABLE A Enable A Input
7 RESET A Reset A Input

3, 4, 5, 6 Q1A to Q4A Data Outputs

9 CLOCK B Clock B input
10 ENABLE B Enable B Input
15 RESET B Reset B Input

11,12,13,14 Q1B to Q4B Data Outputs

8
16

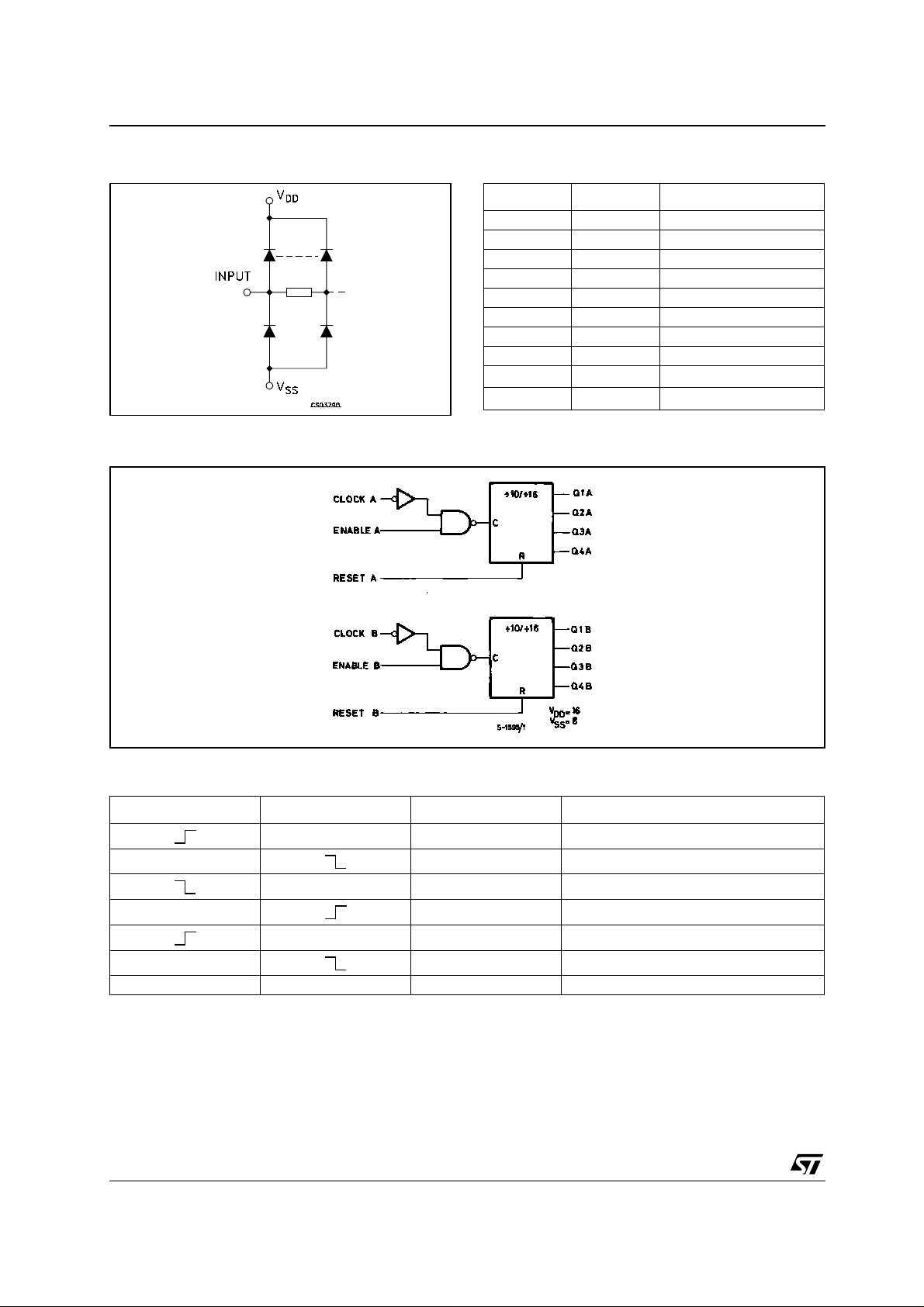

FUNCTIONAL DIAGRAM

V

SS

V

DD

Negative Supply Voltage
Positive Supply Voltage

TRUTH TABLE

CLOCK ENABLE RESET ACTION

L L INCREMENT COUN TER

X L NO CHANGE

H L NO CHANGE
X X H Q1 THRU Q4 = 0

X : Don’t Care

2/12

H L INCREMENT COUN TER

X L NO CHANGE

L L NO CHANGE

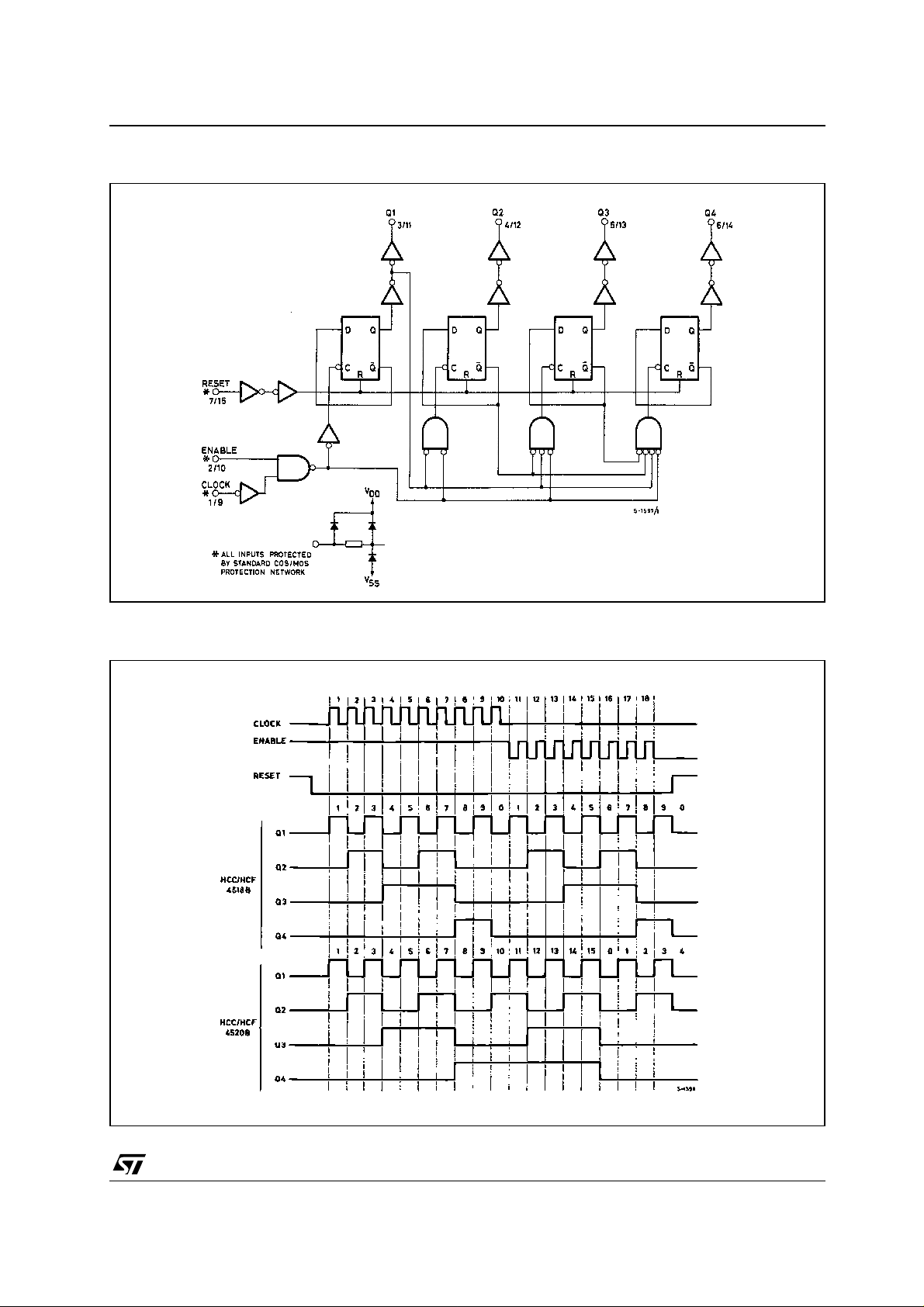

LOGIC DIAGRAM

HCF4520B

TIMING CHART

3/12

HCF4520B

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

V

V

P

T

T

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied.
All voltage values are referred to V

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Value Unit

V

V

T

Supply Voltage

DD

DC Input Voltage -0.5 to VDD + 0.5

I

I

DC Input Current

I

Power Dissipation per Package 200 mW

D

-0.5 to +22 V

10 mA

±

Power Dissipation per Output Transistor 100 mW
Operating Temperature

op

Storage Temperature

stg

pin voltage.

SS

Supply Voltage

DD

Input Voltage 0 to V

I

Operating Temperature

op

-55 to +125 °C

-65 to +150 °C

3 to 20 V

DD

-55 to 125 °C

V

V

4/12

DC SPECIFICATIONS

Test Condition Value

T

Symbol Parameter

I

Quiescent Current 0/5 5 0.04 5 150 150

L

V

(V)

V

I

(V)

|I

|

O

O

(µA)

V

DD

(V)

= 25°C

A

Min. Typ. Max. Min. Max. Min. Max.

0/10 10 0.04 10 300 300
0/15 15 0.04 20 600 600
0/20 20 0.08 100 3000 3000

V

High Level Output

OH

Voltage

0/5 <1 5 4.95 4.95 4.95

0/15 <1 15 14.95 14.95 14.95

Low Level Output

V

OL

Voltage

5/0 <1 5 0.05 0.05 0.05

15/0 <1 15 0.05 0.05 0.05

High Level Input

V

IH

Voltage

0.5/4.5 <1 5 3.5 3.5 3.5

1.5/13.5 <1 15 11 11 11

V

IL

Low Level Input
Voltage

4.5/0.5 <1 5 1.5 1.5 1.5

13.5/1.5 <1 15 4 4 4

I

OH

Output Drive
Current

0/5 2.5 <1 5 -1.36 -3.2 -1.1 -1.1

0/5 4.6 <1 5 -0.44 -1 -0.36 -0.36
0/10 9.5 <1 10 -1.1 -2.6 -0.9 -0.9
0/15 13.5 <1 15 -3.0 -6.8 -2.4 -2.4

I

OL

Output Sink
Current

0/5 0.4 <1 5 0.44 1 0.36 0.36

0/15 1.5 <1 15 3.0 6.8 2.4 2.4

Input Leakage

I

I

Current

C

Input Capacitance

I

The Noi se Margin fo r both "1" and "0" level is: 1V min. with VDD=5V, 2V min. with VDD=10V, 2.5V min. with VDD=15V

0/18 Any Input 18

Any Input 5 7.5 pF

-5

10

±

-40 to 85°C -55 to 125°C

0.1

±

1

±

HCF4520B

Unit

A

µ

V0/10 <1 10 9.95 9.95 9.95

V10/0 <1 10 0.05 0.05 0.05

V1/9 <1 10 7 7 7

V9/1 <1 10 3 3 3

mA

mA0/10 0.5 <1 10 1.1 2.6 0.9 0.9

1

±

A

µ

5/12

HCF4520B

DYNAMIC ELECTRICAL CHARACTERISTICS (T

Symbol Parameter

t

PLH tPHL

t

PLH tPHL

t

TLH tTHL

t

f

MAX

t

(*) Typical temperature coefficient for all VDD value is 0.3 %/°C.

Propagation Delay Time
Clock or Enable to Output

Propagation Delay Time
Reset to Output

Transition Time 5 100 200

Clock Pulse Width 5 200 100

t

W

Reset Pulse Width 5 250 125

t

W

Enable Pulse Width 5 400 200

t

W

Clock or Enable Rise and

, t

r

f

Fall Time

Maximum Clock
Frequency

, t

Clock or Enable Rise and

r

f

Fall Time

(V)

V

DD

5 280 560

15 80 160

5 330 650

15 90 170

15 40 80

15 70 35

15 80 40

15 140 70

515

15 5

5 1.5 3

15 4 8

515

15 5

= 25°C, CL = 50pF, RL = 200KΩ, tr = tf = 20 ns)

amb

Test Condition Value (*) Unit

Min. Typ. Max.

ns10 115 230

ns10 130 225

ns10 50 100

ns10 100 50

ns10 110 55

ns10 200 100

µ

MHz10 3 6

µ

s10 15

s10 5

6/12

HCF4520B

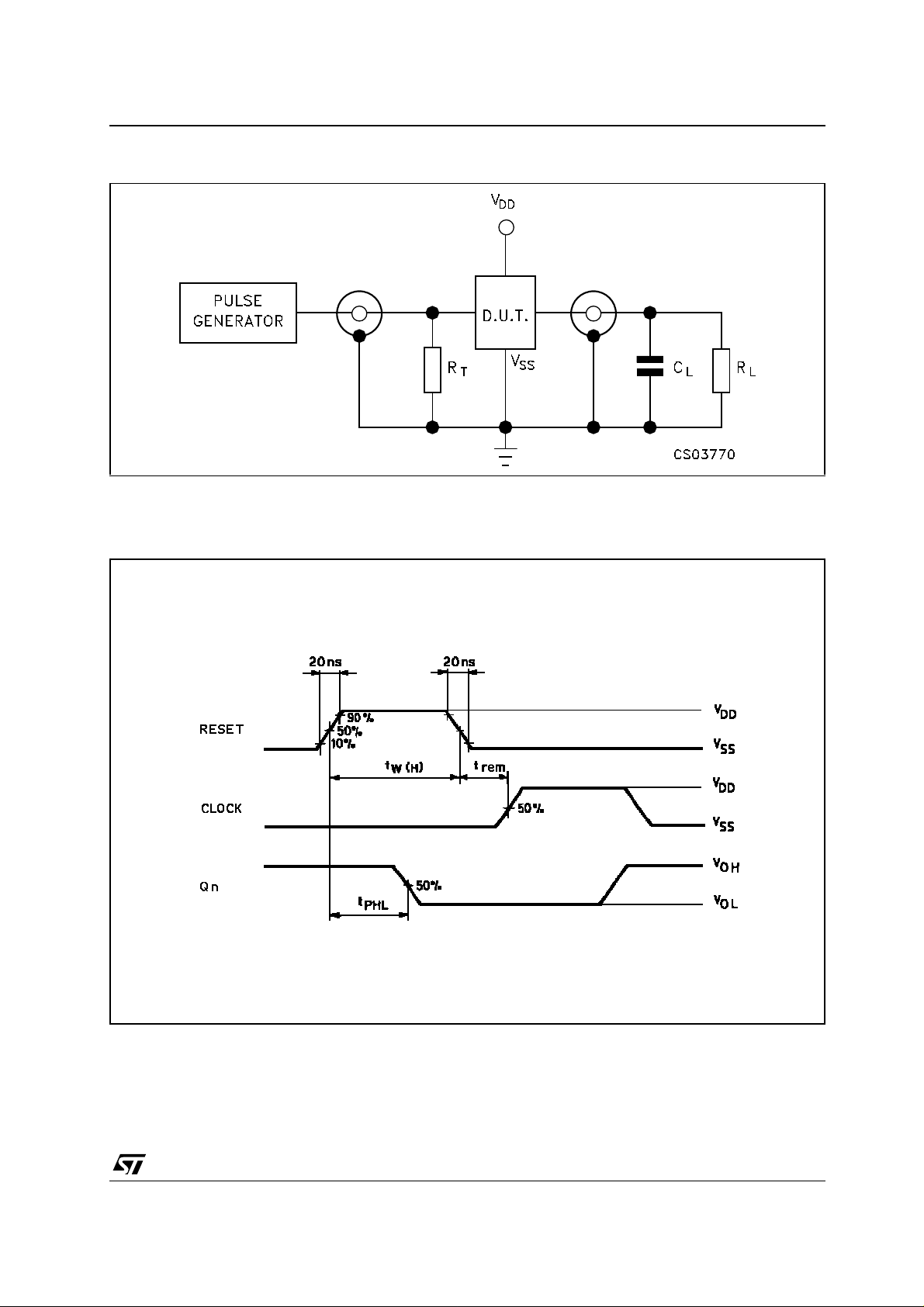

TEST CIRCUIT

CL = 50pF or equivalent (in cludes jig and probe capac i t ance)
R

= 200K

Ω

L

R

= Z

of pulse generator (typically 50Ω)

T

OUT

WAVEFORM 1 : MINIMUM PULSE WIDTH AND REMOVAL TIME (f=1M H z; 50% duty c y cle)

7/12

HCF4520B

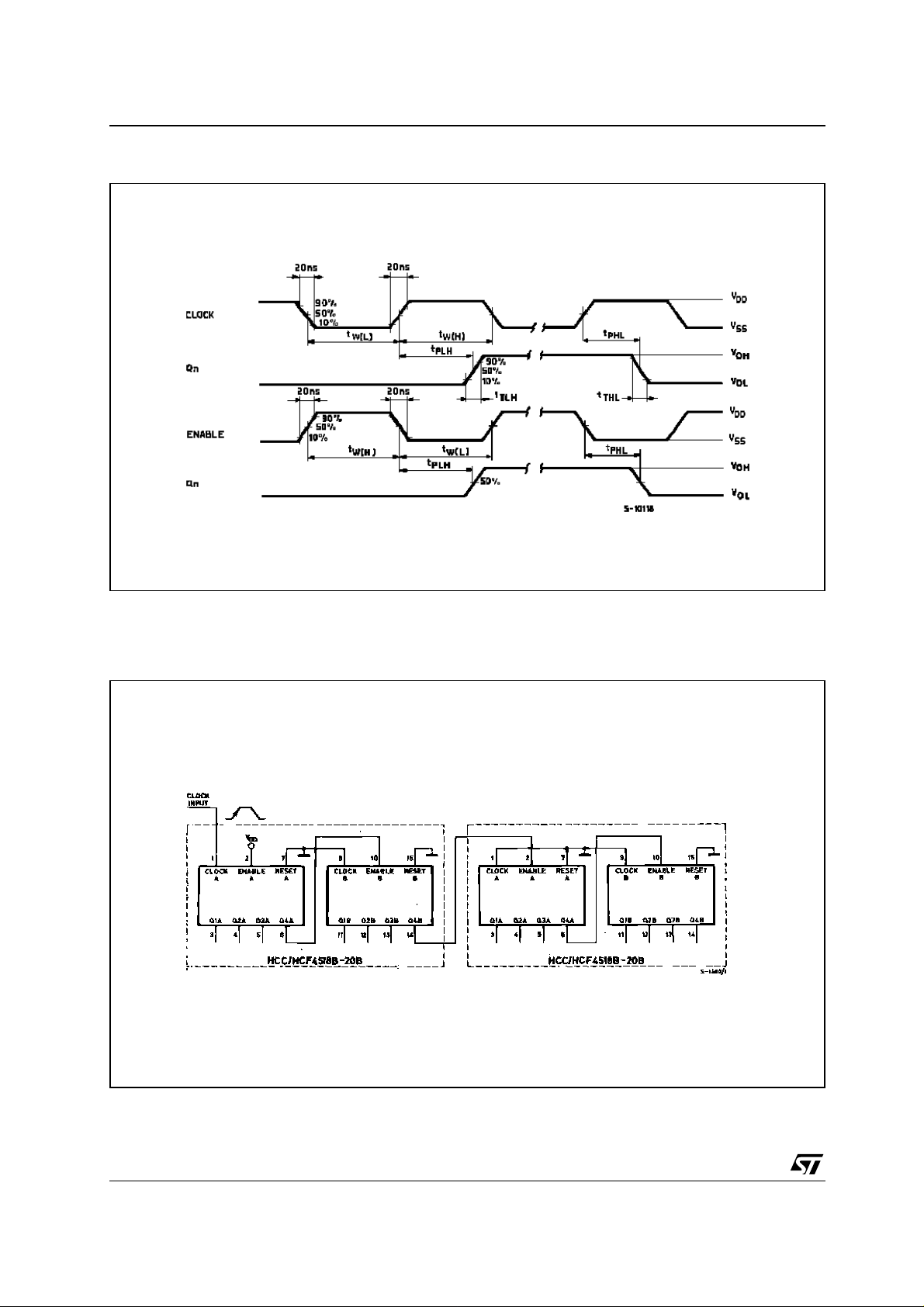

WAVEFORM 2 : PROPAGATION DELAY TIME, MINIMUM PULSE WIDTH (f=1MHz; 50% duty cycle)

TYPICAL APPLICATION

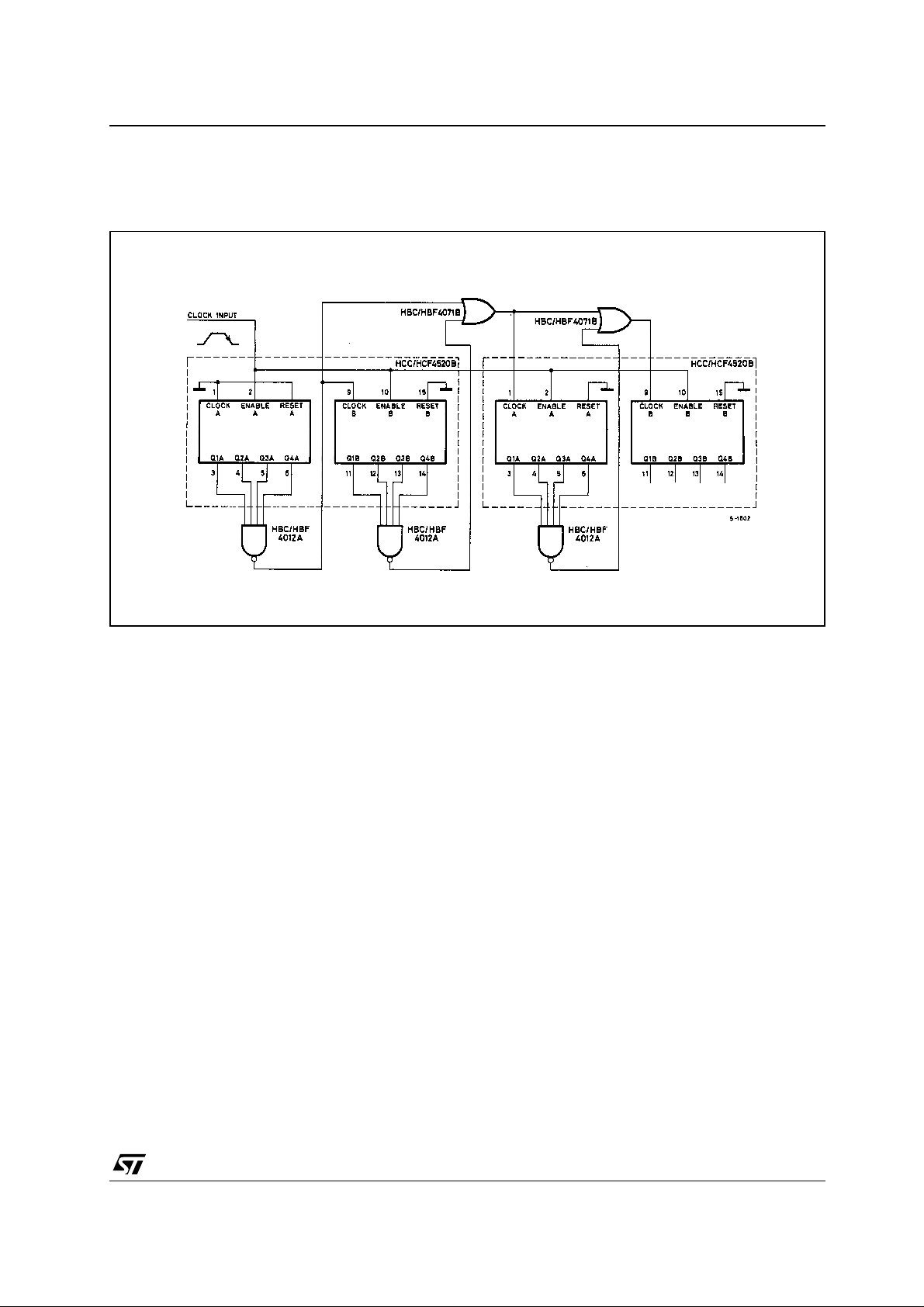

RIPPLE CASCADIN G OF FOUR COUNT ERS WI TH POS I T IVE-EDGE TRIGGERI N G

8/12

HCF4520B

TYPICAL APPLICATION

SYNCHRONOUS CASCADING OF 4 BINARY COUNTERS WITH NEGATIVE-EDGE TRIGGERING

9/12

HCF4520B

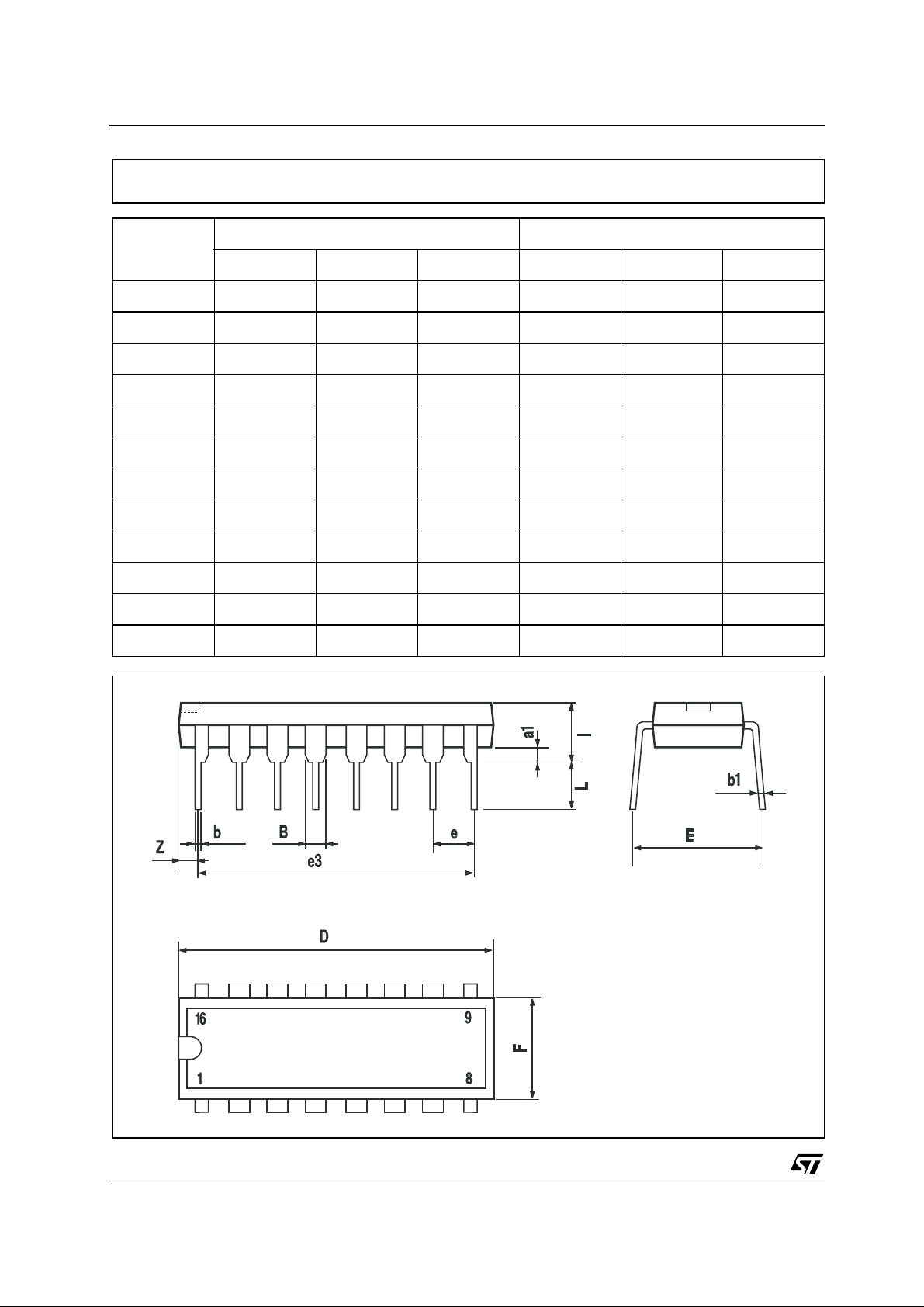

Plastic DIP-16 (0.25) MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

a1 0.51 0.020

B 0.77 1.65 0.030 0.065
b 0.5 0.020

b1 0.25 0.010

D 20 0.787
E 8.5 0.335
e 2.54 0.100

e3 17.78 0.700

F 7.1 0.280

I 5.1 0.201
L 3.3 0.130
Z 1.27 0.050

10/12

P001C

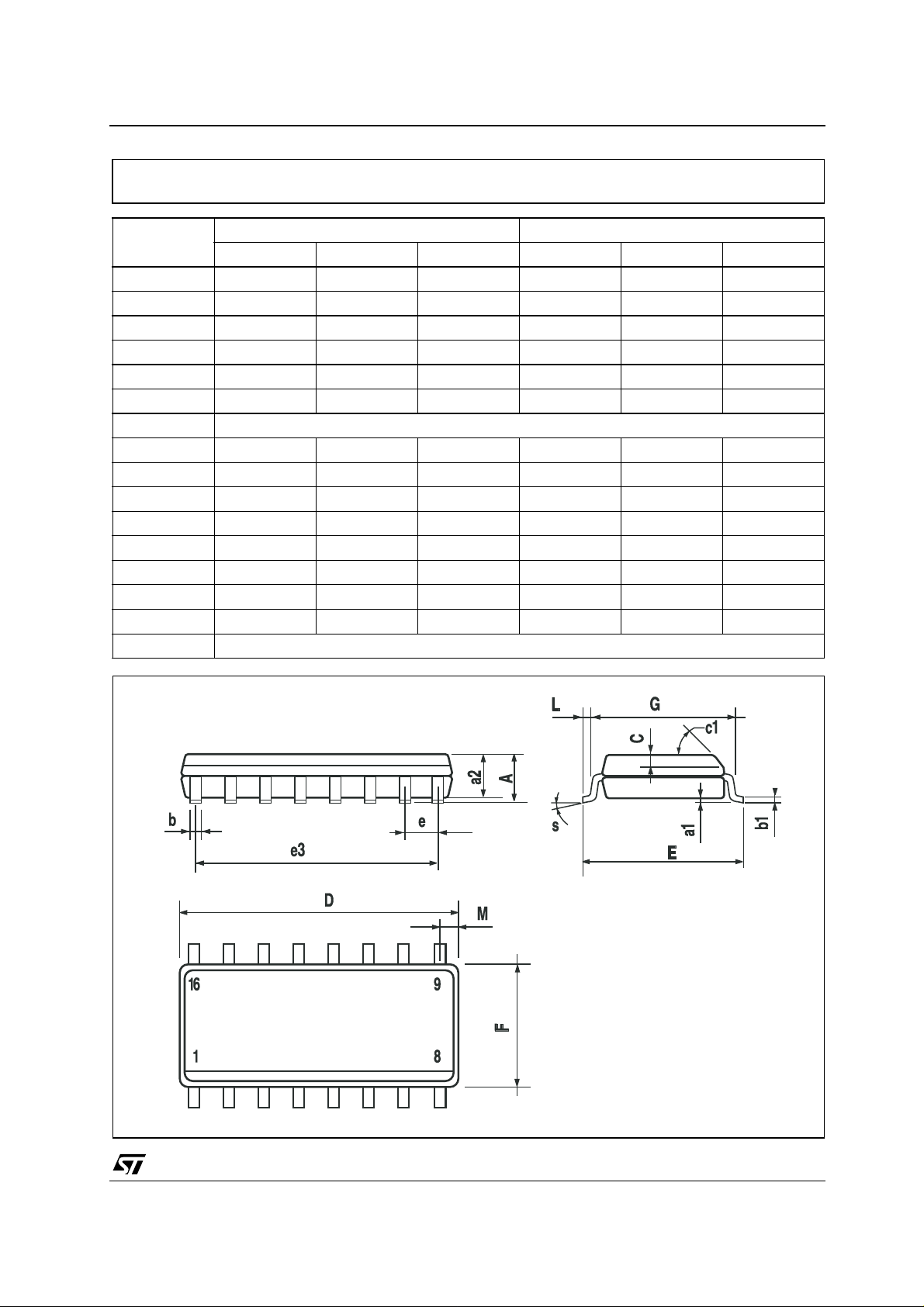

SO-16 MECHANICAL DATA

HCF4520B

DIM.

A 1.75 0.068

a1 0.1 0.2 0.003 0.007
a2 1.65 0.064

b 0.35 0.46 0.013 0.018

b1 0.19 0.25 0.007 0.010

C 0.5 0.019

c1 45˚ (typ.)

D 9.8 10 0.385 0.393
E 5.8 6.2 0.228 0.244
e 1.27 0.050

e3 8.89 0.350

F 3.8 4.0 0.149 0.157
G 4.6 5.3 0.181 0.208
L 0.5 1.27 0.019 0.050

M 0.62 0.024

S ˚ (max.)

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

8

PO13H

11/12

HCF4520B
