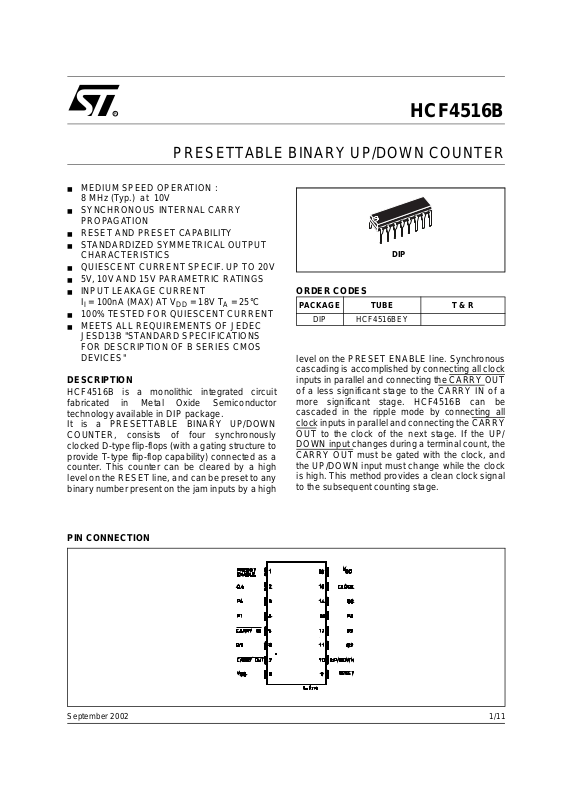

HCF4516B
PRESETTABLE BINARY UP/DOWN COUNTER
■ MEDIUM SPEED OPERATION :
8 MHz (Typ.) at 10V
■ SYNCHRONOUS INTERNAL CARRY
PROPAGATION
■ RESET AND PRESET CAPABILITY
■ STANDARDIZED SYMMETRICAL OUTPUT
CHARACTERISTICS
■ QUIESCENT CURRENT SPECIF. UP TO 20V
■ 5V , 10V AND 15V PARAMETRIC RATINGS
■
INPUT LEAKAGE CURRENT
= 100nA (MAX) AT VDD = 18V TA = 25°C
I
I
■ 100% TESTED FOR QUIESCENT CURRENT
■ MEETS ALL REQUIREMENTS OF JEDEC
JESD13B "STANDARD SPECIFICATIONS
FOR DESCRIPTI ON OF B SERI ES CMOS
DEVICES"
DESCRIPTION
HCF4516B is a monolithic integrated circuit
fabricated in Metal Oxide Semiconductor
technology available in DIP package.
It is a PRESETTABLE BINARY UP/DOWN
COUNTER, consists of four synchronously
clocked D-type flip-flops (with a gating structure to
provide T-type flip-flop capab ility) connec ted a s a
counter. This counter can be cleared by a high
level on the RESET line, and ca n b e p r e se t to a n y
binary number present on the jam inputs by a high
DIP
ORDER CODES
PACKAGE TUBE T & R
DIP HCF4516BEY
level on the PRESET ENABLE line. Synchro nous
cascading is accomplished by connecting all clock
inputs in parallel and connecting the CARRY OUT
of a less significant stage to the CARRY IN of a
more significant stage. HCF4516B can be
cascaded in the ripple mode by connecting all
clock inputs in parallel and connecting the CARRY
OUT to the clock of the next stage. If the UP/
DOWN input changes during a terminal count, the
CARRY OUT
must be ga ted with the clock, and
the UP/DOWN input m ust change whi le the clock
is high. This method provides a clean clock signal
to the subsequent counting stage.
PIN CONNECTION
1/11September 2002
Page 2
HCF4516B
IINPUT EQUIVALENT CIRCUIT PIN DESCRIPTION
PIN No SYMBOL NAME AND FUNCTION
1
4, 12, 13, 3 P1 to P4 Inputs
6, 11, 14, 2 Q1 to Q4 Outputs
15 CLOCK Clock Input
10 UP/DOWN Up/Down Control Input
5 CARRY-IN
7 CARRY-OUT
9 RESET Reset Input
8
16
FUNCTIONAL DIAGRAM
PRESET
ENABLE
V
SS
V
DD
Preset Enable Input
Carry Input
Carry Output
Negative Supply Voltage
Positive Supply Voltage
TRUTH TABLE
CL
X H X L L NO COUNT
X X X H L PRESET
XXXXH RESET
X : Don’t Care
2/11
CARRY-IN
CI
L H L L COUNT UP
L L L L COUNT DOWN
UP/DOWN
PRESET
ENABLE
RESET ACTION
Page 3

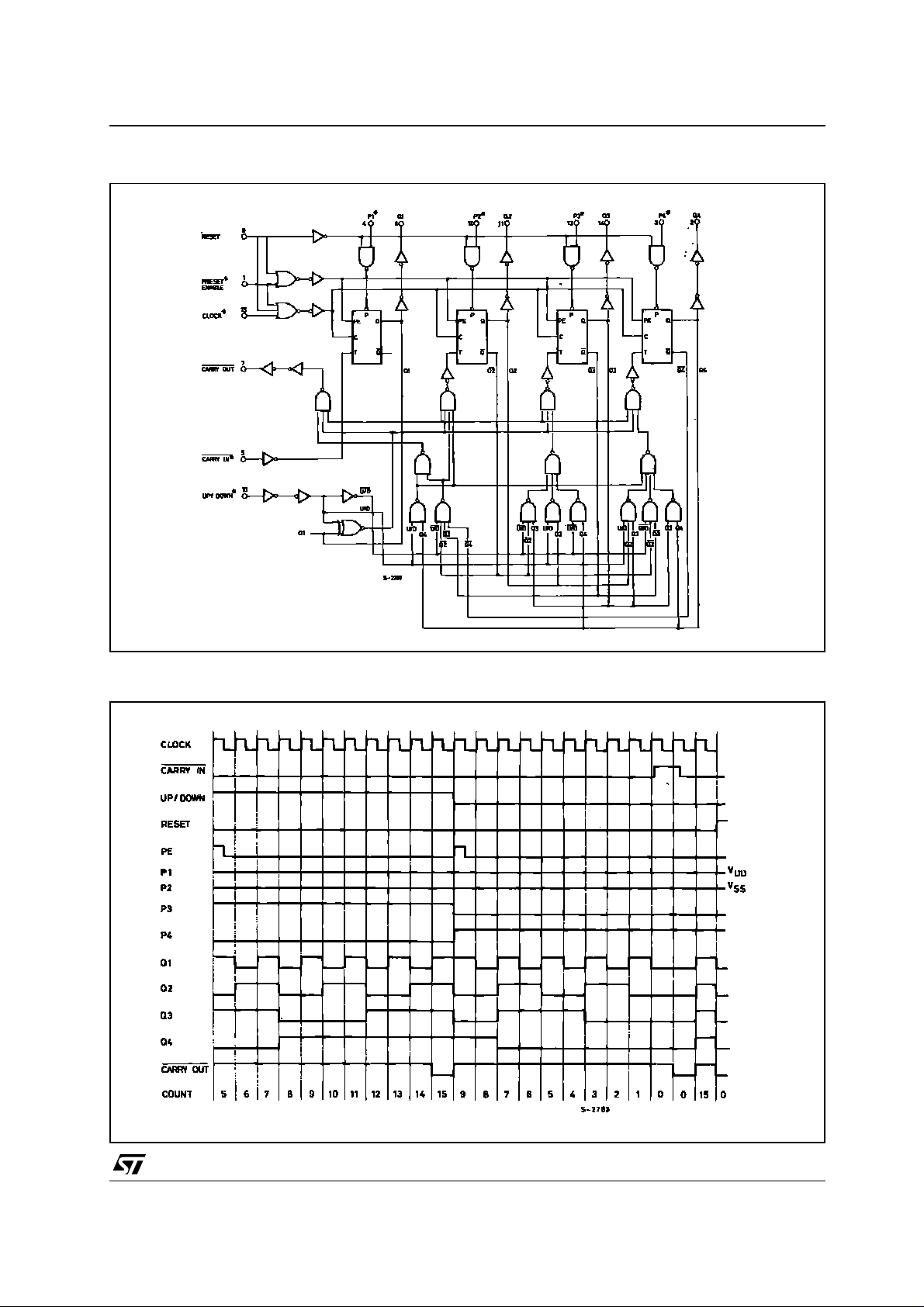

LOGIC DIAGRAM
HCF4516B
TIMING CHART
3/11
Page 4
HCF4516B
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
V
V
P
T
T
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied.
All voltage values ar e referred to V
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Value Unit
V
V
T
Supply Voltage
DD
DC Input Voltage -0.5 to VDD + 0.5
I
I
DC Input Current
I
Power Dissipation per Package 200 mW
D
-0.5 to +22 V
10 mA
±
Power Dissipation per Output Transistor 100 mW
Operating Temperature
op
Storage Temperature
stg
pin voltage.
SS
Supply Voltage
DD
Input Voltage 0 to V
I
Operating Temperature
op
-55 to +125 °C
-65 to +150 °C
3 to 20 V
DD
-55 to 125 °C
V
V
4/11
Page 5
DC SPECIFICATIONS
Test Condition Value
T
Symbol Parameter
I
Quiescent Current 0/5 5 0.04 5 150 150
L
V
(V)
V
I
(V)
|I
|
O
O
(µA)
V
DD
(V)
= 25°C
A
Min. Typ. Max. Min. Max. Min. Max.
0/10 10 0.04 10 300 300
0/15 15 0.04 20 600 600
0/20 20 0.08 100 3000 3000
V
High Level Output
OH
Voltage
0/5 <1 5 4.95 4.95 4.95
0/15 <1 15 14.95 14.95 14.95
Low Level Output
V
OL
Voltage
5/0 <1 5 0.05 0.05 0.05
15/0 <1 15 0.05 0.05 0.05
High Level Input
V
IH
Voltage
0.5/4.5 <1 5 3.5 3.5 3.5
1.5/13.5 <1 15 11 11 11
V
IL
Low Level Input
Voltage
4.5/0.5 <1 5 1.5 1.5 1.5
13.5/1.5 <1 15 4 4 4
I
OH
Output Drive
Current
0/5 2.5 <1 5 -1.36 -3.2 -1.1 -1.1
0/5 4.6 <1 5 -0.44 -1 -0.36 -0.36
0/10 9.5 <1 10 -1.1 -2.6 -0.9 -0.9
0/15 13.5 <1 15 -3.0 -6.8 -2.4 -2.4
I
OL
Output Sink
Current
0/5 0.4 <1 5 0.44 1 0.36 0.36
0/15 1.5 <1 15 3.0 6.8 2.4 2.4
Input Leakage
I
I
Current
C
Input Capacitance
I
The Noi se Margin for bot h " 1" and "0" level is: 1V min. with VDD=5V, 2V min. with VDD=10V, 2.5V min. with VDD=15V
0/18 Any Input 18
Any Input 5 7.5 pF
-5
10
±
-40 to 85°C -55 to 125°C
0.1
±
1
±
HCF4516B
Unit
A
µ
V0/10 <1 10 9.95 9.95 9.95
V10/0 <1 10 0.05 0.05 0.05
V1/9 <1 10 7 7 7
V9/1 <1 10 3 3 3
mA
mA0/10 0.5 <1 10 1.1 2.6 0.9 0.9
1
±
A
µ
5/11
Page 6
HCF4516B
DYNAMIC ELECTRICAL CHARACTERISTICS (T
= 25°C, CL = 50pF, RL = 200KΩ, tr = tf = 20 ns)
amb
Test Condition Value (*) Unit
Symbol Parameter
t
PHL tPLH
Propagation Delay Time
Clock to Q Output
(V)
V
DD
Min. Typ. Max.
5 200 400
ns10 100 200
15 75 150
t
PHL tPLH
t
PHL tPLH
Propagation Delay Time
Preset or Reset to Q
Output
Propagation Delay Time
Clock to Carry Out
5 210 420
ns10 105 210
15 80 160
5 240 480
ns10 120 240
15 90 180
t
PHL tPLH
Propagation Delay Time
Carry in to Carry Out
5 125 250
ns10 60 120
15 50 100
t
PHL tPLH
t
THL tTLH
Propagation Delay Time
Preset or Reset to Carry
Out
Transition Time 5 100 200
5 320 640
ns10 160 320
15 125 250
ns10 50 100
15 40 80
f
MAX
Maximum Clock
Frequency
524
MHz10 4 8
15 5.5 11
Clock Pulse Width 5 150
t
W
ns10 75
15 60
(1)
t
REM
Preset Enable or Reset
Removal Time
5150
ns10 80
15 60
(2)
, t
t
r
Clock Rise or Fall Time 5 15
f
s10 5
µ
15 5
t
setup
Carry in Setup Time 5 130
ns10 60
15 45
t
setup
Up/Down Setup Time 5 360
ns10 160
15 110
Preset Enable or Reset
t
W
Pulse Width
5220
ns10 100
15 75
(*) Typical temperature coefficient for all VDD value is 0.3 %/°C.
(1) Time required after the falling edge of the reset or preset enable inputs before the rising edge of the clock will trigger the counter (similar
to setup time)
(2) If more than unit is cascaded in the parallel clocked application, trCL should be made less than or equal to the sum of the fixed pr opa gati on
delay at 15pF and the transition time of the carry output driving stage for the estimated capacitive load.
6/11
Page 7

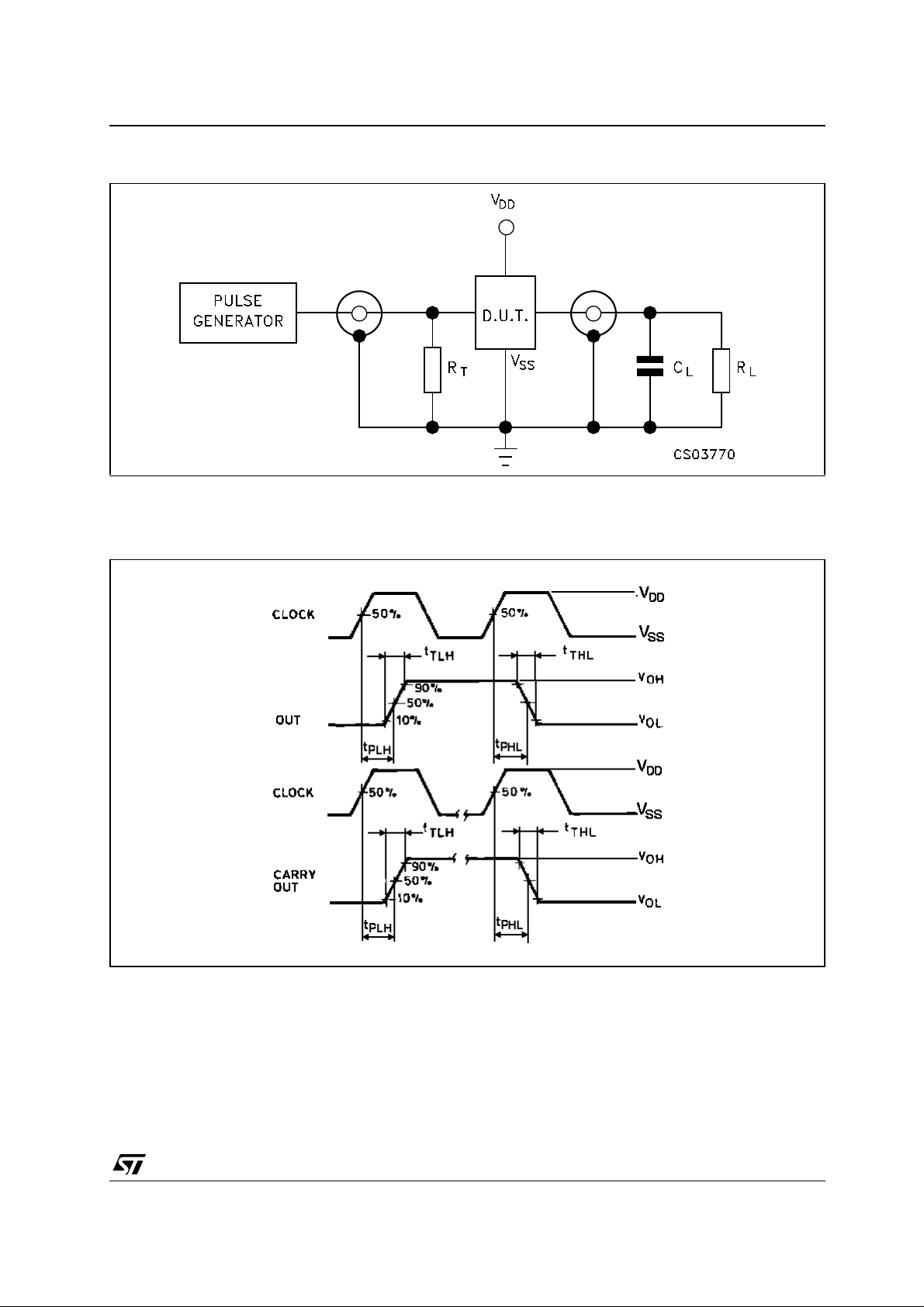

TEST CIRCUIT
CL = 50pF or equivalent (includes jig and probe capacitance)
R
= 200K
Ω
L
R
= Z
of pulse generator (typically 50Ω)
T
OUT
WAVEFORM 1 : PROPAGATION DELAY TIMES (f=1MHz; 50% duty cycl e )
HCF4516B
7/11
Page 8
HCF4516B

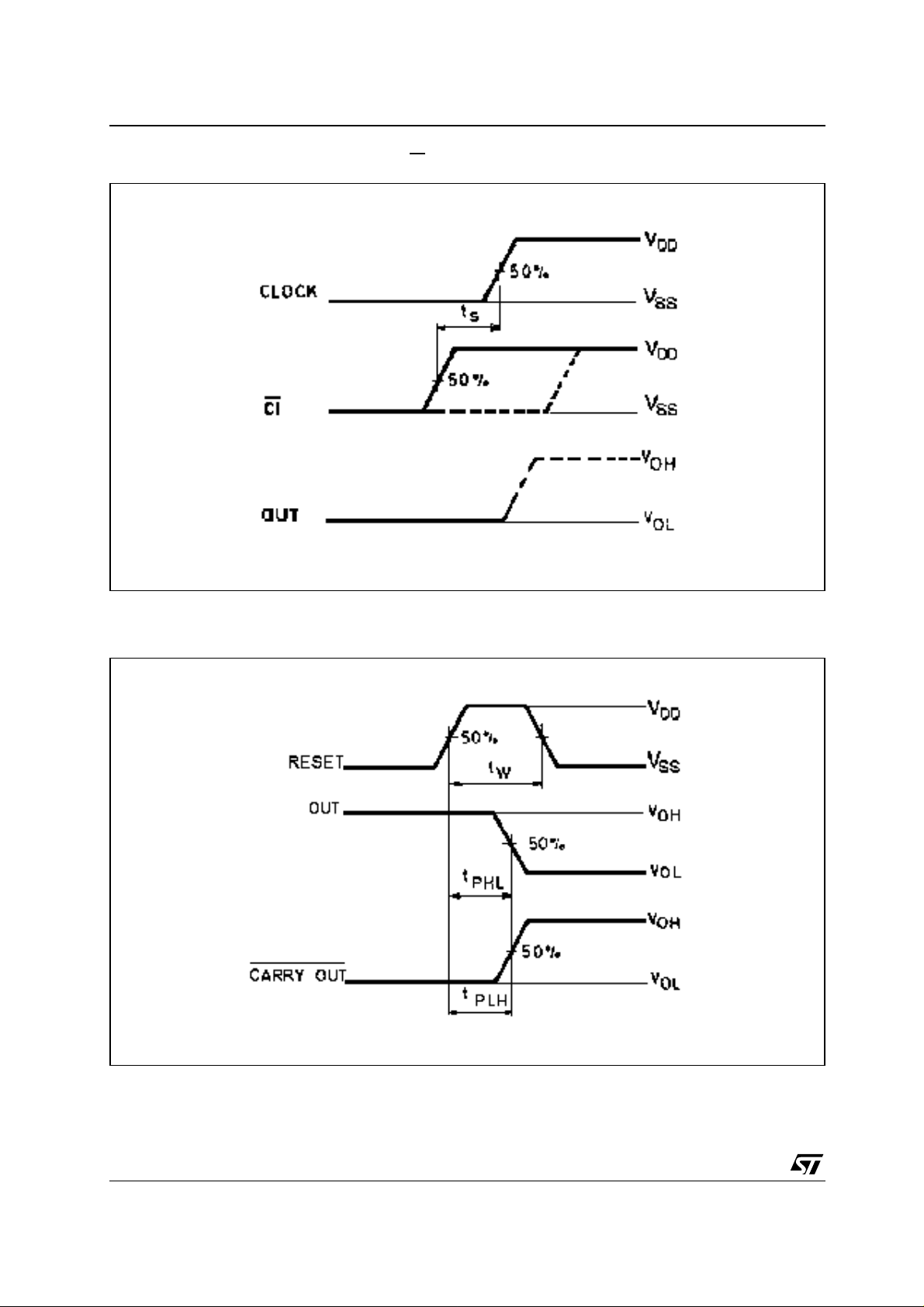

WAVEFORM 2 : MINIMUM SETUP TIME (CI TO CLOCK) (f=1MHz; 50% duty cycl e )
WAVEFORM 3 : PROPAGATION DELAY TIMES, MINIMUM RESET PULSE WIDTH (f=1MHz; 50%
duty cycle)
8/11
Page 9

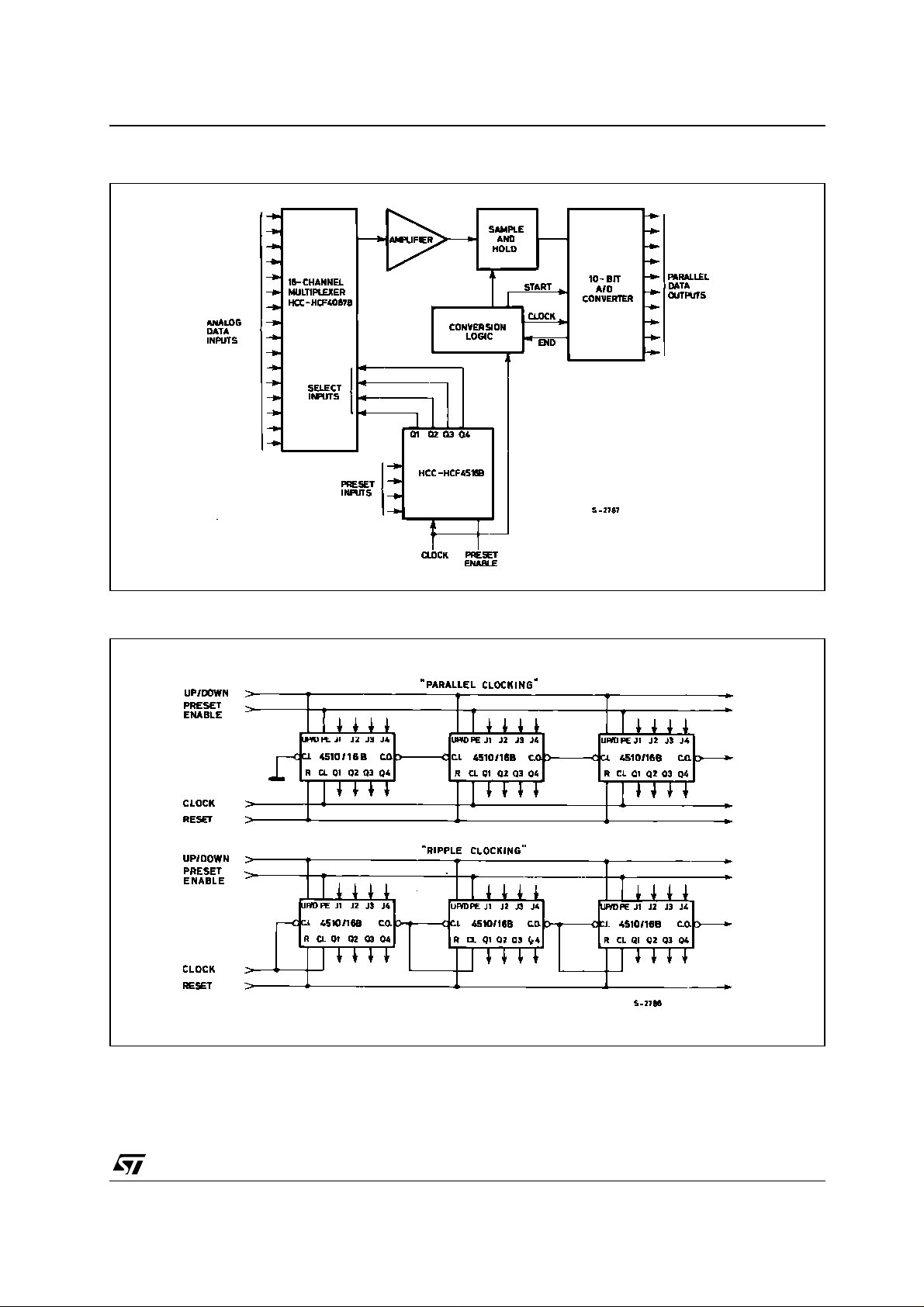

TYPICAL APPLICATIONS TIPICAL 16 CHANNEL, 10 BIT ACQUISITION SYSTEM
HCF4516B
TYPICAL APPLICATIONS CASCADING COUNTER PACKAGES
9/11
Page 10
HCF4516B
Plastic DIP-16 (0.25) MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
a1 0.51 0.020
B 0.77 1.65 0.030 0.065
b 0.5 0.020
b1 0.25 0.010
D 20 0.787
E 8.5 0.335
e 2.54 0.100
e3 17.78 0.700
F 7.1 0.280
I 5.1 0.201
L 3.3 0.130
Z 1.27 0.050
