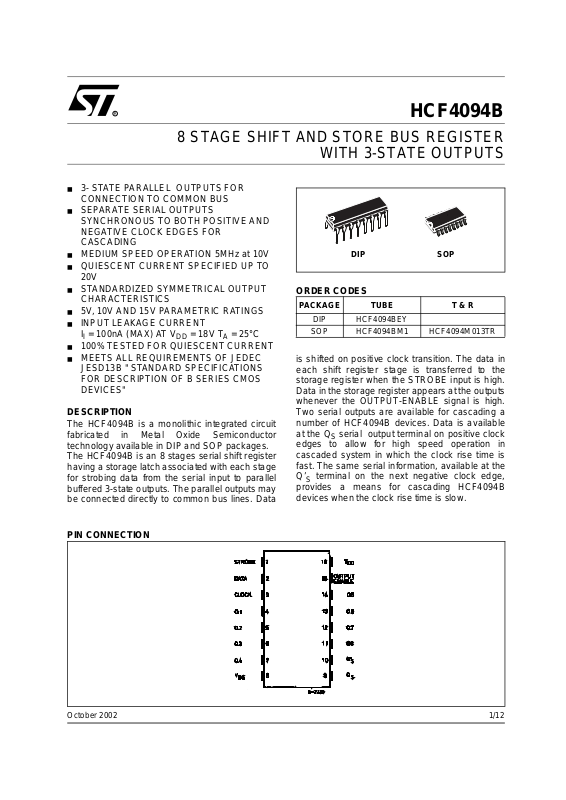

Datasheet HCF4094BE Specification

8 STAGE SHIFT AND STORE BUS REGISTER

■ 3- STATE PARALLEL OUTPUTS FOR

CONNECTION TO COMMON BUS

■ SEPARATE SERIAL OUTPUTS

SYNCHRONOUS TO BOTH POSITIVE AND
NEGATIVE CLOCK EDGES FOR
CASCADING

■ MEDIUM SPEED OPERATION 5MHz at10V

■ QUIESCENT CURRE NT SPECIFIED UP TO

20V

■ STANDARDIZED SYMMETRICAL OUTPUT

CHARACTERISTICS

■ 5V, 10V AND 15V PARAMETRIC RATINGS

■ INPUT LEAKAGE CURRENT

I

= 100nA (MAX) AT VDD=18VTA= 25°C

I

■ 100% T ESTED FOR QUIESCENT CURRENT

■ MEETS ALL REQUIREMENTS OF JEDEC

JESD13B " STANDARD SPECIFICATIONS
FOR DESCRIPTION OF B SERIES CMOS
DEVICES"

DESCRIPTION

The HCF4094B is a monolithic integrated circuit
fabricated in Metal Oxide Semiconductor
technology available in DIP and SOP packages.
The HCF4094B is an 8 stages serial shift register
having a storage latch a ssociated with each stage
for strobing data from the serial input to parallel
buffered 3-state o utp uts. The parallel outputs may
be connected directly to common bus lines. Data

HCF4094B

WITH 3-STAT E OUTPUTS

DIP SOP

ORDER CODES

PACKAGE TUBE T & R

DIP HCF4094BEY

SOP HCF4094BM1 HCF4094M013TR

is shifted on positive clock transition. The data in
each shift register stage is transfe rred to the
storage register whe n the STROBE input is high.
Data in the storage register appears at the outputs
whenever the OUTPUT-ENABLE signal is high.
Two serial outputs are available for c as cading a
number of HCF4094B devices. Data is available
at the Q
edges to allow for high speed operation in
cascaded system in which the clock rise time is
fast. The sam e serial informat ion, available at the
Q’

S

provides a means for cascading HCF4094B
devices when the clock rise time is slow.

serial output terminal on positive clock

S

terminal on the next negative clock edge,

PIN CONNECTION

1/12October 2002

HCF4094B

IINPUT EQ UIVALENT CIRCUIT PIN DES CRIPTION

PIN No SYMBOL NAME AND FUNCTION

2 DATA Data Input
1 STROBE Strobe Input
3 CLOCK Clock Input

9, 10

4, 5, 6, 7, 14,

13, 12, 11

15

8

16

FUNCTIONAL DIAGRAM

Q

S

Q1 to Q8
OUTPUT

ENABLE

V
V

,Q’

SS
DD

Serial Outputs

S

Parallel Outputs

Output Enable Input
Negative Supply Voltage

Positive Supply Voltage

TRUTH TABLE

CLOCK

OUTPUTS

ENABLE

STROBE DATA

L X X OC OC Q7 No Change

L X X OC OC No Change Q7
H L X No Change No Change Q7 No Change
HHLL
HHHH
H H H No Change No Change No Change Q7

X : Don’tCare
OC : Open Circuit
* At the positive clock edge information on the 7th shift register stage is transferred to the 8th register stage and the QSoutput.

2/12

PARALLEL OUTPUTS SERIAL OUTPUTS

Q

1

Q

n

-1

Q

n

-1

Q

n

Q*

S

Q7 No Change
Q7 No Change

Q’

S

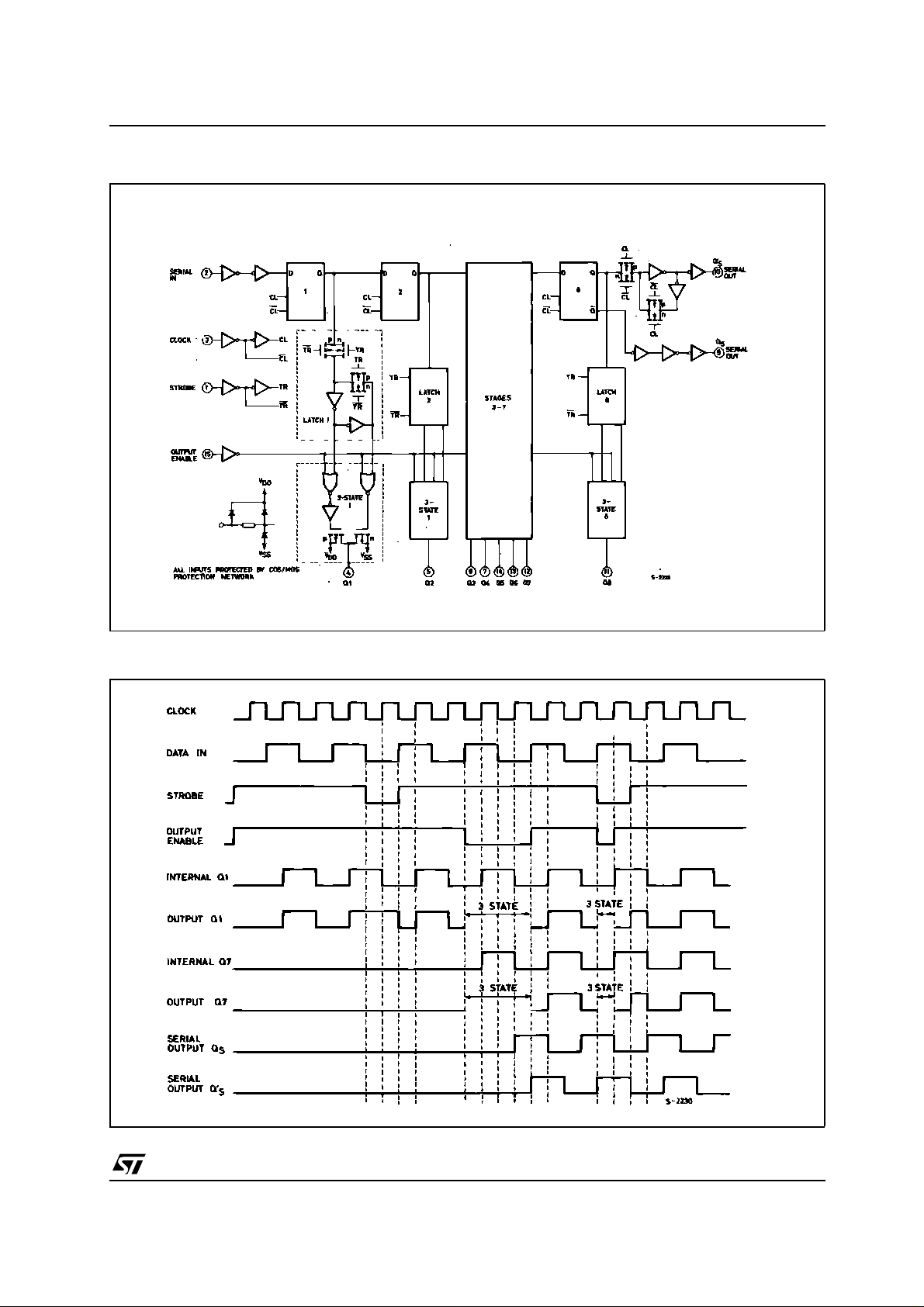

LOGIC DIAGRAM

HCF4094B

TIMING CHART

3/12

HCF4094B

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

V

V

P

T

T

stg

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied.

All voltage values arereferredto V
(*) 500mW at 65

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Value Unit

V

V

T

Supply Voltage

DD

DC Input Voltage -0.5 to VDD+ 0.5

I

DC Input Current

I

I

Power Dissipation per Package 500 (*) mW

D

-0.5 to +22 V

± 10 mA

Power Dissipation per Output Transistor 100 mW
Operating Temperature

op

Storage Temperature

pin voltage.

°C; derate to 300mW by 10mW/°Cfrom65°Cto85°C

Supply Voltage

DD

Input Voltage 0 to V

I

Operating Temperature

op

SS

-55 to +125 °C

-65 to +150 °C

3to20 V

DD

-55 to 125 °C

V

V

4/12

DC SPECIFICATIONS

Test Condition Value

= 25°C

Symbol Parameter

I

Quiescent Current 0/5 5 0.04 5 150 150

L

V

(V)

|

V

I

O

(V)

|I

O

(µA)

V

DD

(V)

T

A

Min. Typ. Max. Min. Max. Min. Max.

0/10 10 0.04 10 300 300
0/15 15 0.04 20 600 600
0/20 20 0.08 100 3000 3000

V

High Level Output

OH

Voltage

0/5 <1 5 4.95 4.95 4.95

0/15 <1 15 14.95 14.95 14.95

V

Low Level Output

OL

Voltage

5/0 <1 5 0.05 0.05 0.05

15/0 <1 15 0.05 0.05 0.05

V

High Level Input

IH

Voltage

0.5/4.5 <1 5 3.5 3.5 3.5

1.5/13.5 <1 15 11 11 11

V

Low Level Input

IL

Voltage

4.5/0.5 <1 5 1.5 1.5 1.5

13.5/1.5 <1 15 4 4 4

I

OH

Output Drive
Current

0/5 2.5 <1 5 -1.36 -3.2 -1.1 -1.1

0/5 4.6 <1 5 -0.44 -1 -0.36 -0.36
0/10 9.5 <1 10 -1.1 -2.6 -0.9 -0.9
0/15 13.5 <1 15 -3.0 -6.8 -2.4 -2.4

I

OL

Output Sink
Current

0/5 0.4 <1 5 0.44 1 0.36 0.36

0/15 1.5 <1 15 3.0 6.8 2.4 2.4

I

Input Leakage

I

Current

I

OH,IOL

The Noise Marginfor both"1" and "0"level is:1V min. with VDD=5V, 2V min. with VDD=10V, 2.5V min. with VDD=15V

3-State Output
Leakage Current

Input Capacitance

C

I

0/18 Any Input 18

0/18 0/18 18

Any Input 5 7.5 pF

±10

±10

-5

-4

-40 to 85°C -55 to 125°C

± 0.1 ± 1 ± 1 µA

± 0.4 ± 12 ± 12 µA

HCF4094B

Unit

µA

V0/10 <1 10 9.95 9.95 9.95

V10/0 <1 10 0.05 0.05 0.05

V1/9 <1 10 7 7 7

V9/1 <1 10 3 3 3

mA

mA0/10 0.5 <1 10 1.1 2.6 0.9 0.9

5/12

HCF4094B

DYNAMIC ELECTRICAL CHARACTERISTICS (T

Symbol Parameter

t

PLHtPHL

t

PLHtPHL

t

PLHtPHL

t

PLHtPHL

t

PZL,tPZH

Propagation Delay Time
(Clock to serial Output Q

)

S

Propagation Delay Time
(Clock to serial Output Q’

)

S

Propagation Delay Time
(Clock to Parallel Output)

Propagation Delay Time
(Strobe to Parallel Output)

Propagation Delay Time
Output Enable to Parallel Out :
Output High to High Impedance

t

PHZtPLZ

Propagation Delay Time
Output Enable to Parallel Out :
Output Low to High Impedance

Strobe Pulse Width 5 200 100

t

W

t

Clock Pulse Width 5 200 100

W

t

setup

t

t

TLHtTHL

f

(*) Typical temperature coefficient for all VDDvalue is 0.3 %/°C.

Data Setup Time 5 125 60

Minimum Hold Time 5 0 0 0

hold

Transition Time 5 100 200

t

Clock input Rise or Fall Time 5 15

r,tf

Maximum Clock Input

max

Frequency

(V)

V

DD

5 300 600

15 95 190

5 230 460

15 75 150

5 420 840

15 135 270

5 290 580

15 100 200

5 140 280

15 55 110

5 225 450
10 95 190
15 70 140

15 70 35

15 83 40

15 35 20

15 0 0 0

15 40 80

15 5

5 1.25 2.5

15 3 6

= 25°C, CL= 50pF, RL= 200KΩ,tr=tf=20ns)

amb

Test Condition Value (*) Unit

Min. Typ. Max.

ns10 125 250

ns10 110 220

ns10 195 390

ns10 145 290

ns10 75 150

ns

ns10 80 40

ns10 100 50

ns10 55 30

ns10 0 0 0

ns10 50 100

µs10 5

MHz10 2.5 5

6/12

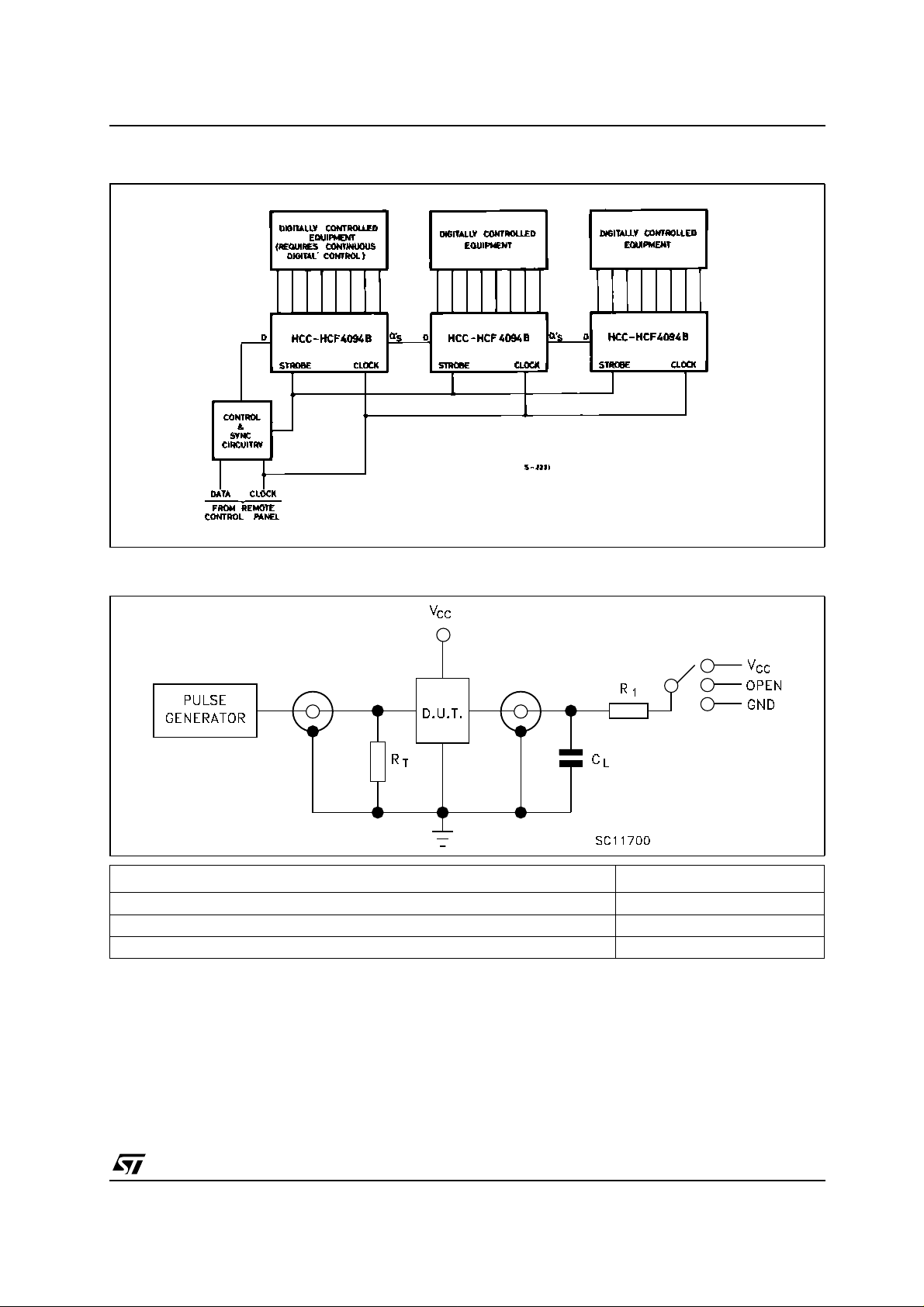

TYPICAL APPLICATION (REMOTE CONTROL HOLDING REGISTER)

HCF4094B

TEST CIRCUIT

TEST SWITCH

t

PLH,tPHL

t

PZL,tPLZ

t

PZH,tPHZ

CL= 50pF or equivalent (includes jig and probe capacitance)

=200KΩ

R

L

R

T=ZOUT

of pulse generator (typically 50Ω)

Open

V

CC

GND

7/12

HCF4094B

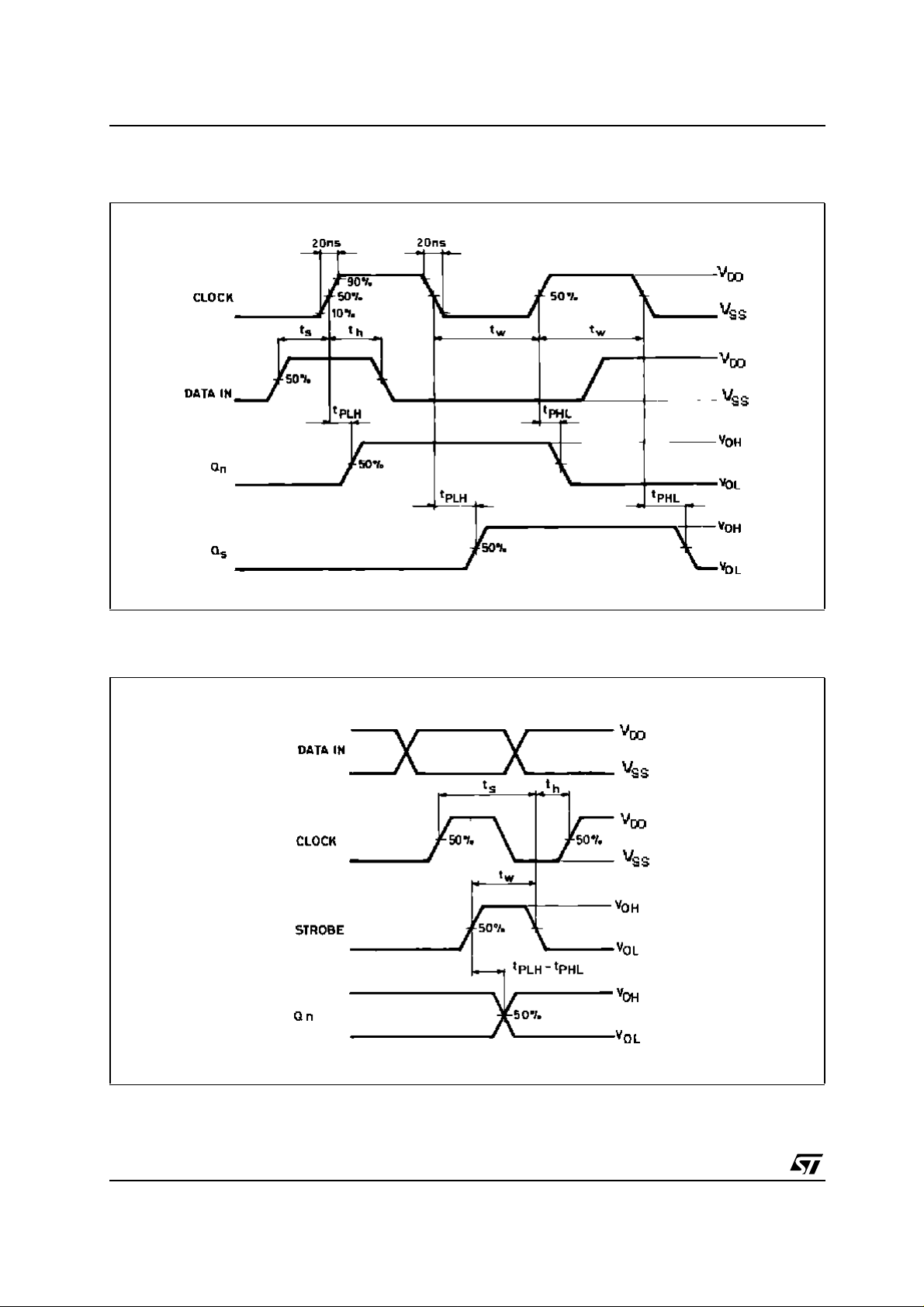

WAVEFORM 1 : PRO PAGATION DELAY TIMES, PULSE WIDTH (CLOCK), SETUP AND H OLD TIME
(DATA IN TO CL OCK) (f=1MHz; 50 % duty cycle)

WAVEFORM 2 : PROPAGATION D ELAY TIME, P ULSE WIDTH (S T ROBE), SETUP AND HOLD TIME
(STROBE TO CLOCK) (f=1MHz; 50% duty cycle)

8/12

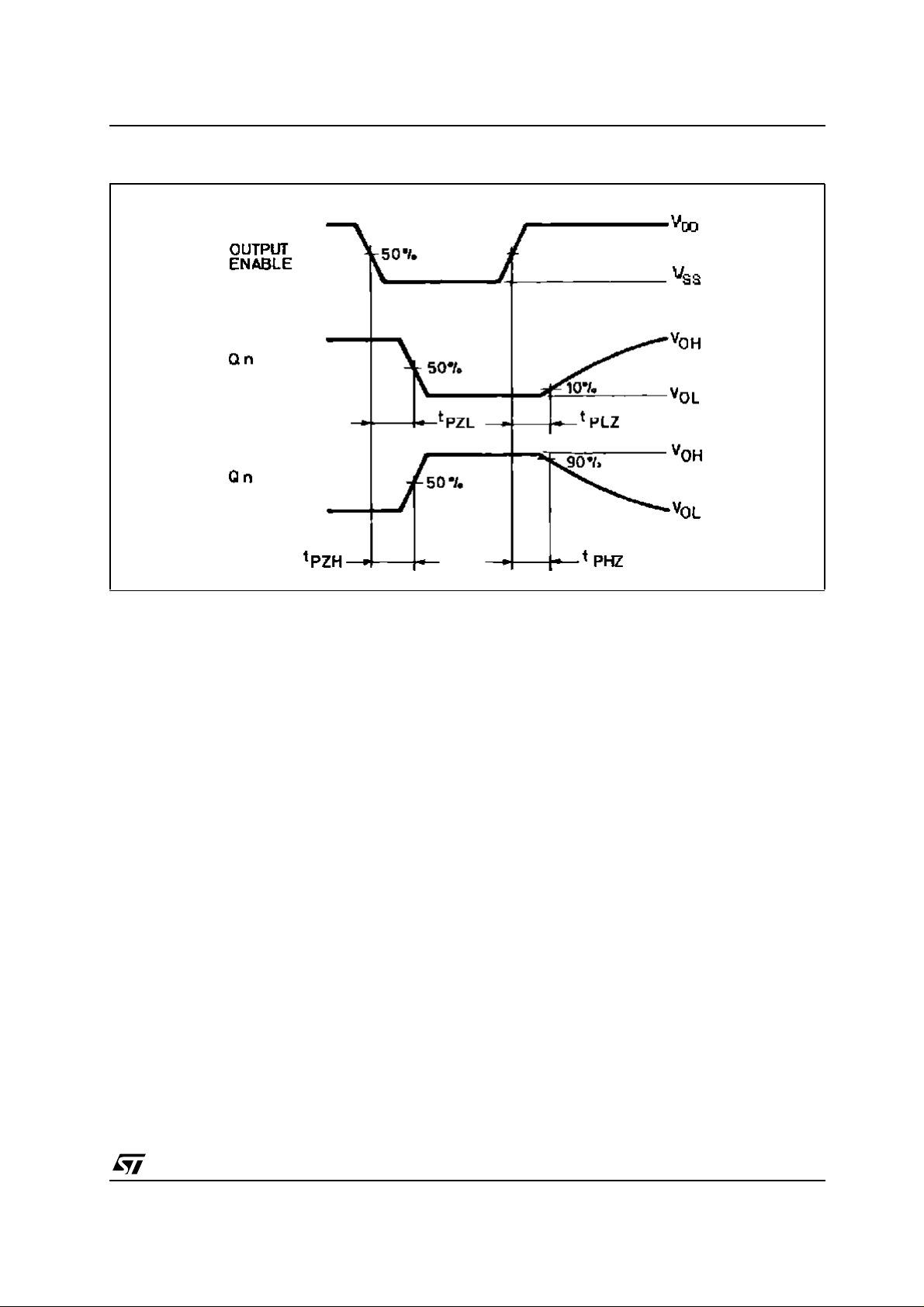

WAVEFORM 3 : OUTPUT ENABL E AND DISABLE TIME (f=1MHz; 50% duty cycle)

HCF4094B

9/12

HCF4094B

Plastic DIP-16 (0.25) MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

a1 0.51 0.020

B 0.77 1.65 0.030 0.065
b 0.5 0.020

b1 0.25 0.010

D 20 0.787
E 8.5 0.335
e 2.54 0.100

e3 17.78 0.700

F 7.1 0.280

I 5.1 0.201
L 3.3 0.130
Z 1.27 0.050

10/12

P001C

SO-16 MECHANICAL DATA

HCF4094B

DIM.

A 1.75 0.068

a1 0.1 0.2 0.003 0.007
a2 1.65 0.064

b 0.35 0.46 0.013 0.018

b1 0.19 0.25 0.007 0.010

C 0.5 0.019

c1 45˚ (typ.)

D 9.8 10 0.385 0.393
E 5.8 6. 2 0.228 0.244
e 1.27 0.050

e3 8.89 0.350

F 3.8 4.0 0.149 0.157
G 4.6 5.3 0.181 0.208
L 0.5 1.27 0.019 0.050

M 0.62 0.024

S ˚ (max.)

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

8

PO13H

11/12

HCF4094B

Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility f or t he
consequences of use of such informatio n nor for any infringement of paten ts or o ther rig hts of t hird part ies which ma y result from
its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications
mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information
previousl y suppl ied. STM icroel ectronics produc ts are not auth orized for use as c ritica l compone nts in l ife s upport dev ices or
systems without express written approval of STMicroelectronics.

Australia - Brazil - Canada - China - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco

© The ST logo is a registered trademark of STMicroelectronics

© 2002 STMicroelectronics - Printed in Italy - All Rights Reserved

STMicroelectronics GROUP OF COMPANIES

Singapore - Spain - Sweden - Switzerland - United Kingdom - United States.

© http://www.st.com

12/12
