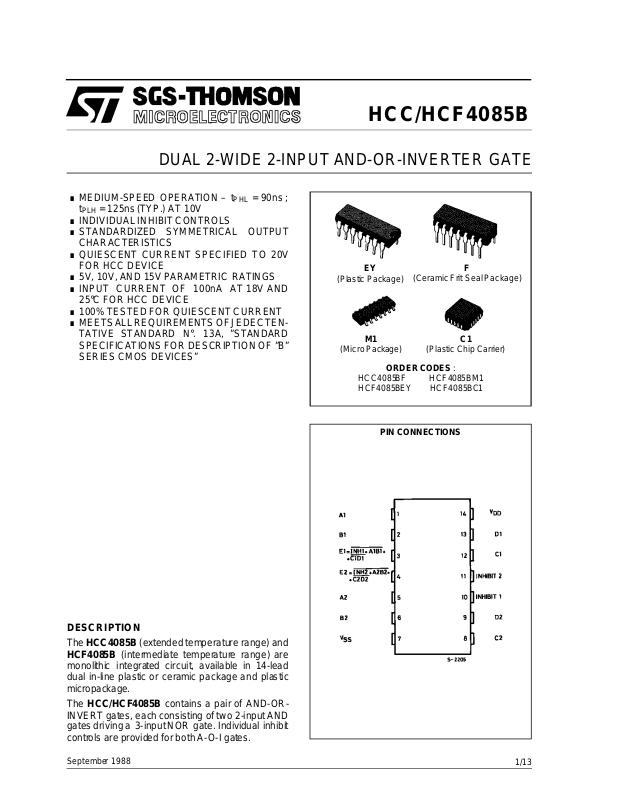

HCC/HCF4085B
DUAL 2-WIDE 2-INPUT AND-OR-INVERTER GATE
.MEDIUM-SPEED OPERATION – t
t
=125ns(TYP.) AT 10V
PLH
PHL
= 90ns ;
.INDIVIDUALINHIBITCONTROLS
.STANDARDIZED SYMMETRICAL OUTPUT
CHARACTERISTICS
.QUIESCENT CURRENT SPECIFIED TO 20V
FOR HCC DEVICE
.5V, 10V, AND 15VPARAMETRIC RATINGS
.INPUT CURRENT OF 100nA AT 18V AND
25°C FORHCC DEVICE
.100% TESTEDFOR QUIESCENTCURRENT
.MEETSALLREQUIREMENTSOFJEDECTEN-
TATIVE STANDARD N°. 13A, ”STANDARD
SPECIFICATIONSFOR DESCRIPTIONOF ”B”
SERIESCMOS DEVICES”
EY
(Plastic Package)
M1
(MicroPackage)
HCC4085BF HCF4085BM1
HCF4085BEY HCF4085BC1
PIN CONNECTIONS
(CeramicFrit Seal Package)
(PlasticChip Carrier)
ORDERCODES :
F
C1
DESCRI PTION
TheHCC4085B (extended temperature range) and
HCF4085B (intermediate temperature range) are
monolithic integrated circuit, available in 14-lead
dual in-line plastic or ceramic package and plastic
micropackage.
The HCC/HCF4085B contains a pair of AND-OR-
INVERT gates,each consisting oftwo 2-input AND
gates driving a 3-inputNOR gate.Individual inhibit
controlsare provided forboth A-O-Igates.
September 1988
1/13
Page 2
HCC/HCF4085B
LOGI C DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
V
* Supply Voltage : HCC Types
DD
HCF Types
V
Input Voltage – 0.5 to VDD+ 0.5 V
i
I
DC Input Current (any one input) ± 10 mA
I
P
Total Power Dissipation (per package)
tot
Dissipation per Output Transistor
for T
= Full Package-temperature Range
op
T
Operating Temperature : HCC Types
op
HCF Types
T
Stresses above those listed under ”Absolute Maximum Ratings” may cause permanent damage to the device.This is a stress rating only
and functional operation of the device at those or any other conditions aboves thoseindicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for external periods may affect device reliability.
* All voltage values are referred to VSSpin voltage.
Storage Temperature – 65 to + 150 °C
stg
– 0.5 to + 20
– 0.5 to + 18
200
100
– 55 to + 125
–40to+85
V
V
mW
mW
°C
°C
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Value Unit
V
T
2/13
Supply Voltage : HC C Types
DD
HCF Types
V
Input Voltage 0 to V
I
Operating Temperature : HC C Types
op
HCF Types
3to18
3to15
DD
–55to+125
–40to+85
°C
°C
V
V
V
Page 3
SCHEM ATIC DIA G RA M
HCC/HCF4085B
3/13
Page 4
HCC/HCF4085B
STATIC ELECTRICALCHARACTERISTICS (over recommended operating conditions)
Test Conditions Value
Symbol Parameter
I
Quiescent
L
Current
HCC
Types
HCF
Types
V
OH
Output High
Voltage
V
OL
Output Low
Voltage
V
IH
Input High
Voltage
IL
Input Low
V
Voltage
I
OH
Output
Drive
Current
HCC
Types
HCF
Types
I
OL
Output
Sink
Current
HCC
Types
HCF
Types
I
IH,IIL
Input
Leakage
Current
HCC
Types
HCF
Types
Input Capacitance Any Input 5 7.5 pF
C
I
*T
=–55°CforHCC device : – 40°C for HCF device.
Low
*T
= + 125°CforHCC device : + 85°C for HCF device.
High
The Noise Margin for both ”1” and ”0” level is :1V min. with VDD= 5V, 2V min. with VDD= 10V, 2.5min. with VDD= 15V.
V
V
I
(V) (V) (µA) (V)
O
|IO|V
DD
T
* 25°CT
Low
High
*
Min. Max. Min. Typ. Max. Min. Max.
0/ 5 5 1 0.02 1 30
0/10 10 2 0.02 2 60
0/15 15 4 0.02 4 120
0/20 20 20 0.04 20 600
0/ 5 5 4 0.02 4 30
0/10 10 8 0.02 8 60
0/15 15 16 0.02 16 120
0/ 5 < 1 5 4.95 4.95 4.95
0/10 < 1 10 9.95 9.95 9.95
0/15 < 1 15 14.95 14.95 14.95
5/0 < 1 5 0.05 0.05 0.05
10/0 < 1 10 0.05 0.05 0.05
15/0 < 1 15 0.05 0.05 0.05
0.5/4.5 < 1 5 3.5 3.5 3.5
1/9 < 1 10 7 7 7
1.5/13.5 < 1 15 11 11 11
4.5/0.5 < 1 5 1.5 1.5 1.5
9/1 < 1 10 3 3 3
13.5/1.5 < 1 15 4 4 4
0/ 5 2.5 5 – 2 – 1.6 – 3.2 – 1.15
0/ 5 4.6 5 – 0.64 – 0.51 – 1 – 0.36
0/10 9.5 10 – 1.6 – 1.3 – 2.6 – 0.9
0/15 13.5 15 – 4.2 – 3.4 – 6.8 – 2.4
0/ 5 2.5 5 – 1.53 – 1.36 – 3.2 – 1.1
0/ 5 4.6 5 – 0.52 – 0.44 – 1 – 0.36
0/10 9.5 10 – 1.3 – 1.1 – 2.6 – 0.9
0/15 13.5 15 – 3.6 – 3.0 – 6.8 – 2.4
0/ 5 0.4 5 0.64 0.51 1 0.36
0/10 0.5 10 1.6 1.3 2.6 0.9
0/15 1.5 15 4.2 3.4 6.8 2.4
0/ 5 0.4 5 0.52 0.44 1 0.36
0/10 0.5 10 1.3 1.1 2.6 0.9
0/15 1.5 15 3.6 3.0 6.8 2.4
0/18
18 ± 0.1 ±10
–5
± 0.1 ± 1
Any Input
0/15
15 ± 0.3 ±10
–5
± 0.3 ± 1
Unit
µA
V
V
V
V
mA
mA
µA
4/13
Page 5
HCC/HCF4085B
DYNAMIC ELECTRICAL CHARACTERISTICS (T
=25°C, CL= 50pF, RL= 200kΩ,
amb
typical temperature coefficient for all VDD= 0.3%/°C values, all input rise and fall time = 20ns)
Symbol Parameter
t
PHL
t
PLH
t
PHL
t
PLH
t
TLH,tTHL
Propagation Delay Time (data) 5 225 450
Propagation Delay Time (data) 5 310 620
Propagation Delay Time (inhibit) 5 150 300
Propagation Delay Time (inhibit) 5 250 500
Transition Time 5 100 200
Test Conditions
V
(V) Min. Typ. Max.
DD
10 90 180
15 65 130
10 125 250
15 90 180
10 60 120
15 40 80
10 100 200
15 70 140
10 50 100
15 40 80
Value

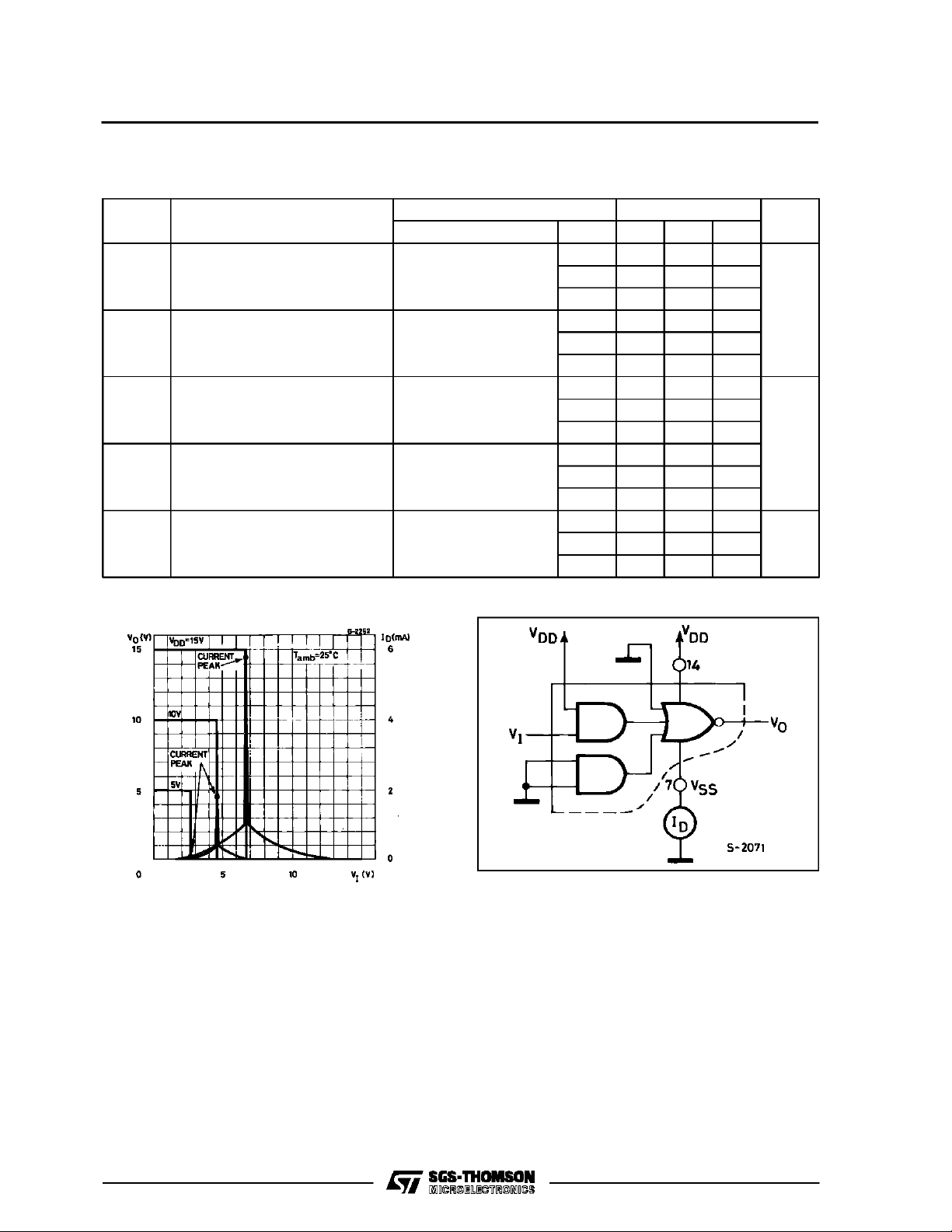

TypicalVoltage and Current TransferCharacteristics withTest Circuit.
Unit
ns
ns
ns
5/13
Page 6
HCC/HCF4085B

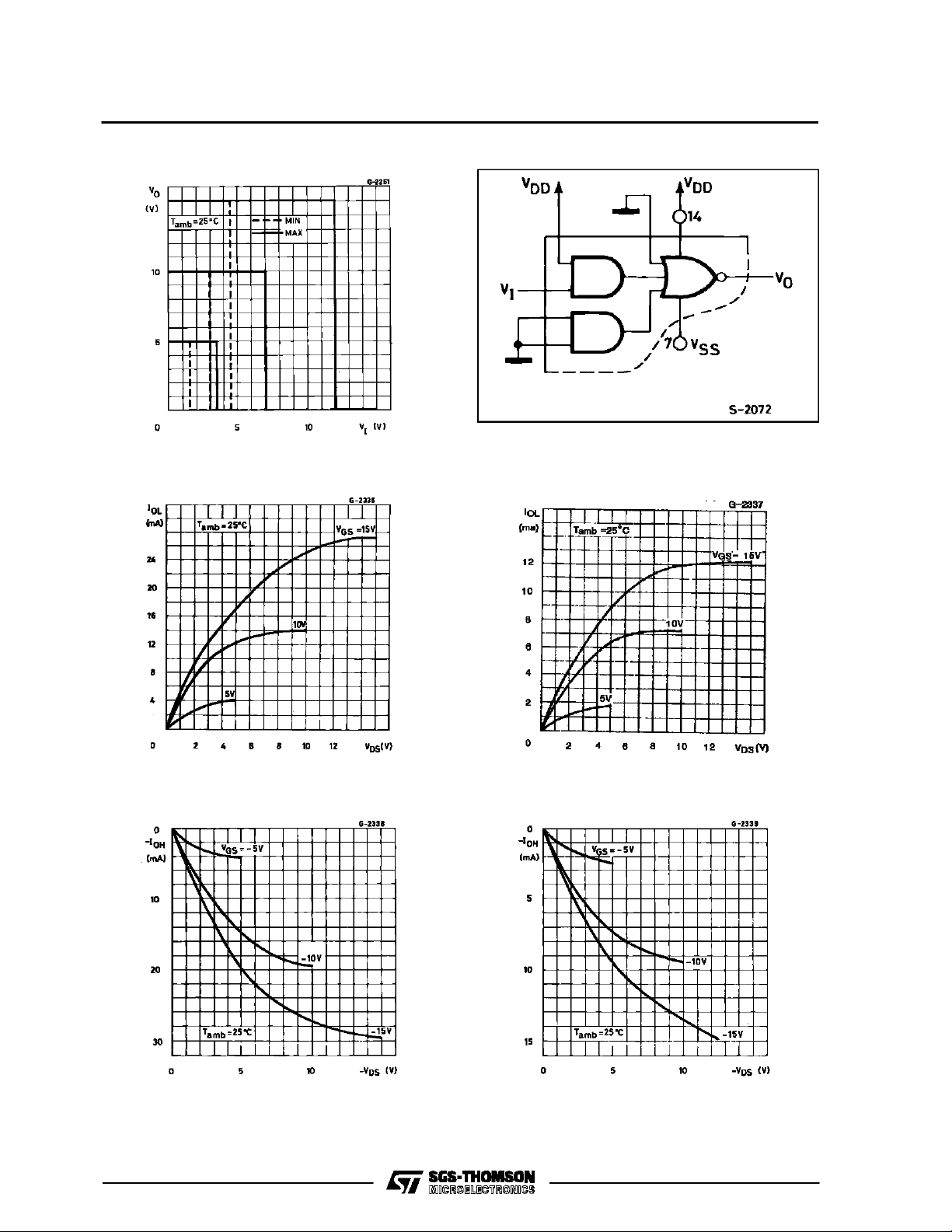

Minimum and Maximum Voltage TransferCharacteristics withTest Circuit.
TypicalOutput Low (sink)Current Characteristics. Minimum Output Low (sink) Current Charac-
teristics.
TypicalOuput High(source) Current Characteristics.
6/13
Minimum Output High (source)Current Characteristics.
Page 7
HCC/HCF4085B

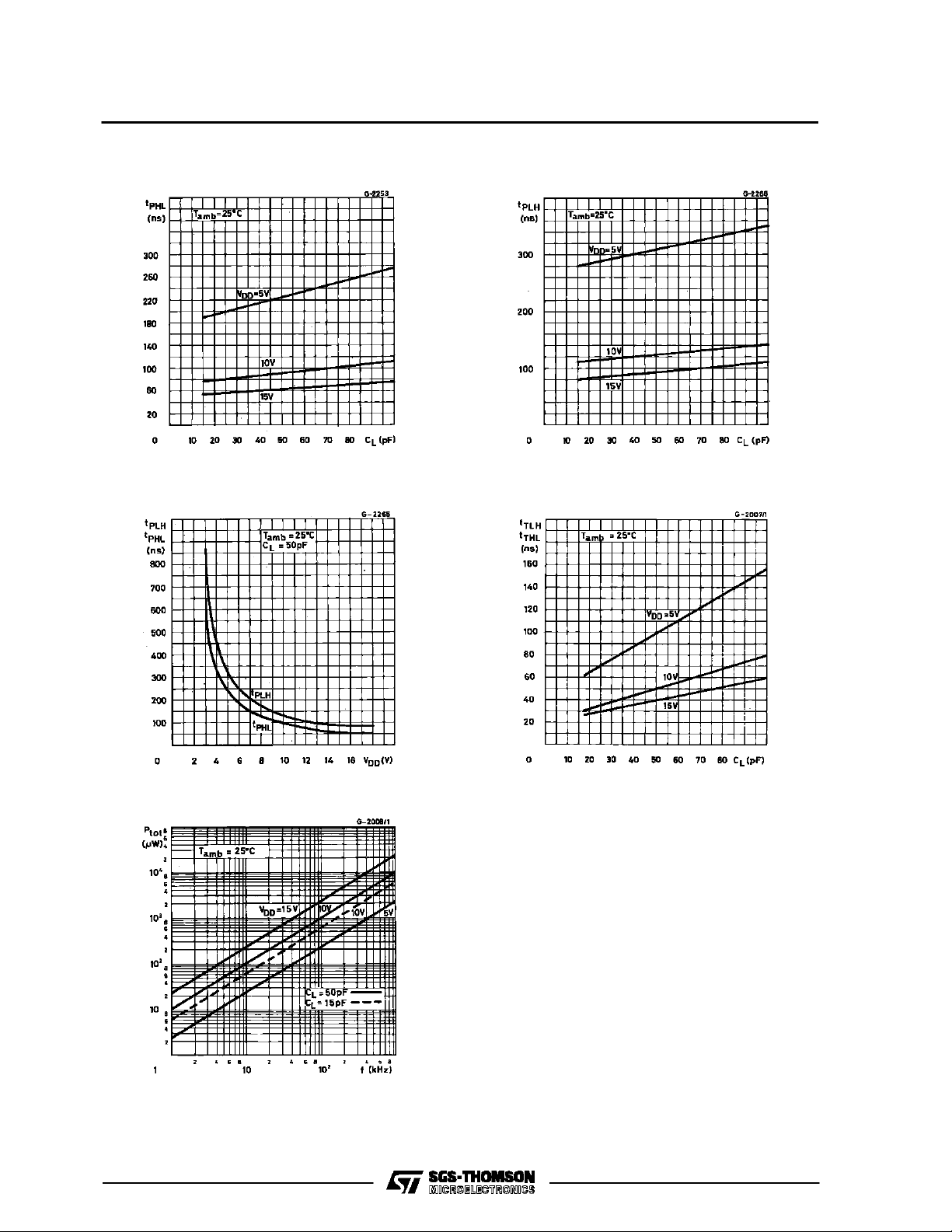

TypicalData High-to-low Level Propagation Delay
Time vs. Load Capacitance.
TypicalData Propagation DelayTime vs. Supply
Voltage.
TypicalData Low-to-high Level Propagation
Delay Time vs. Load Capacitance.
TypicalTransition Time vs. LoadCapacitance.
TypicalPower Dissipation vs.Frequency.
7/13
Page 8
HCC/HCF4085B

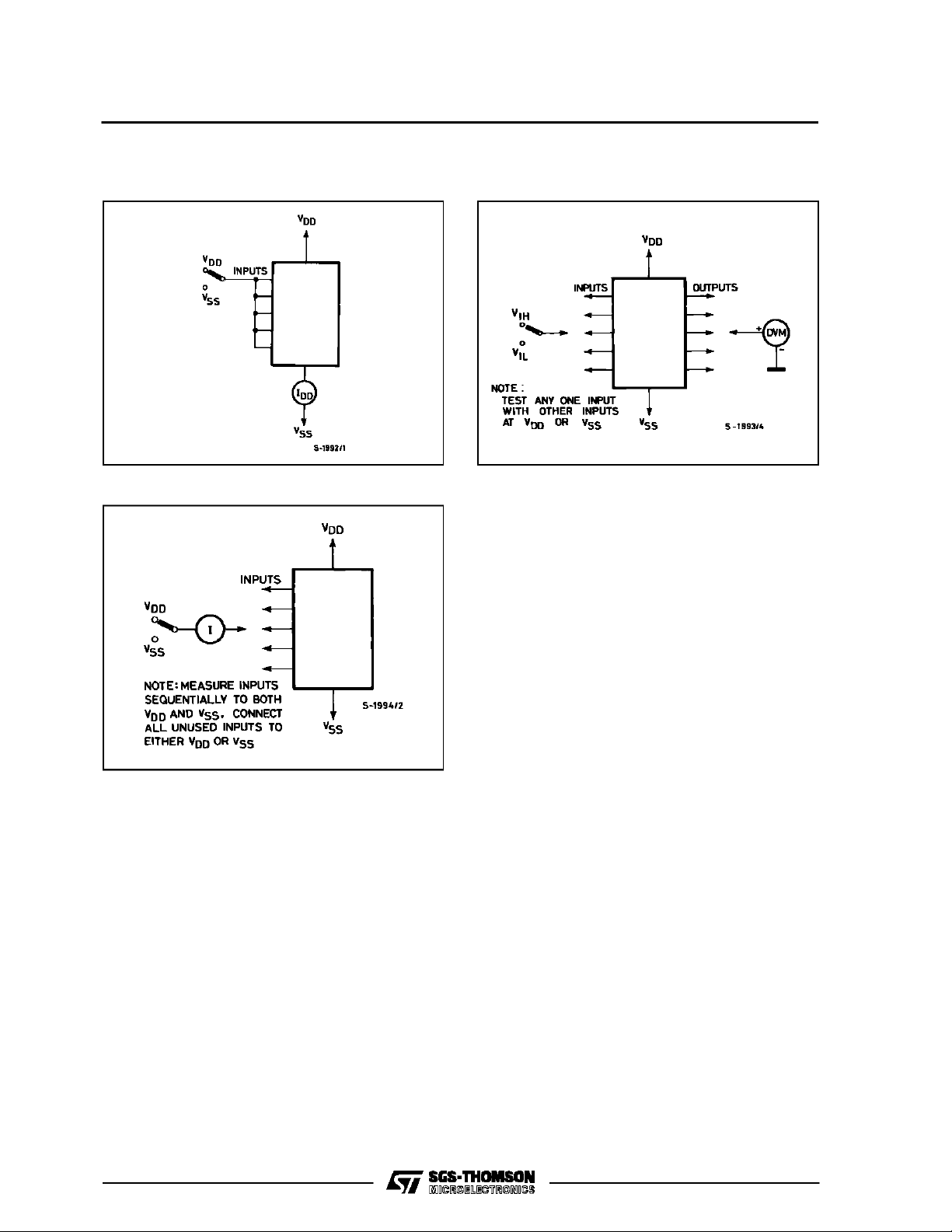

TEST CIRCUITS
Input Current.
Input Voltage.QuiescentDevice Current.
8/13
Page 9

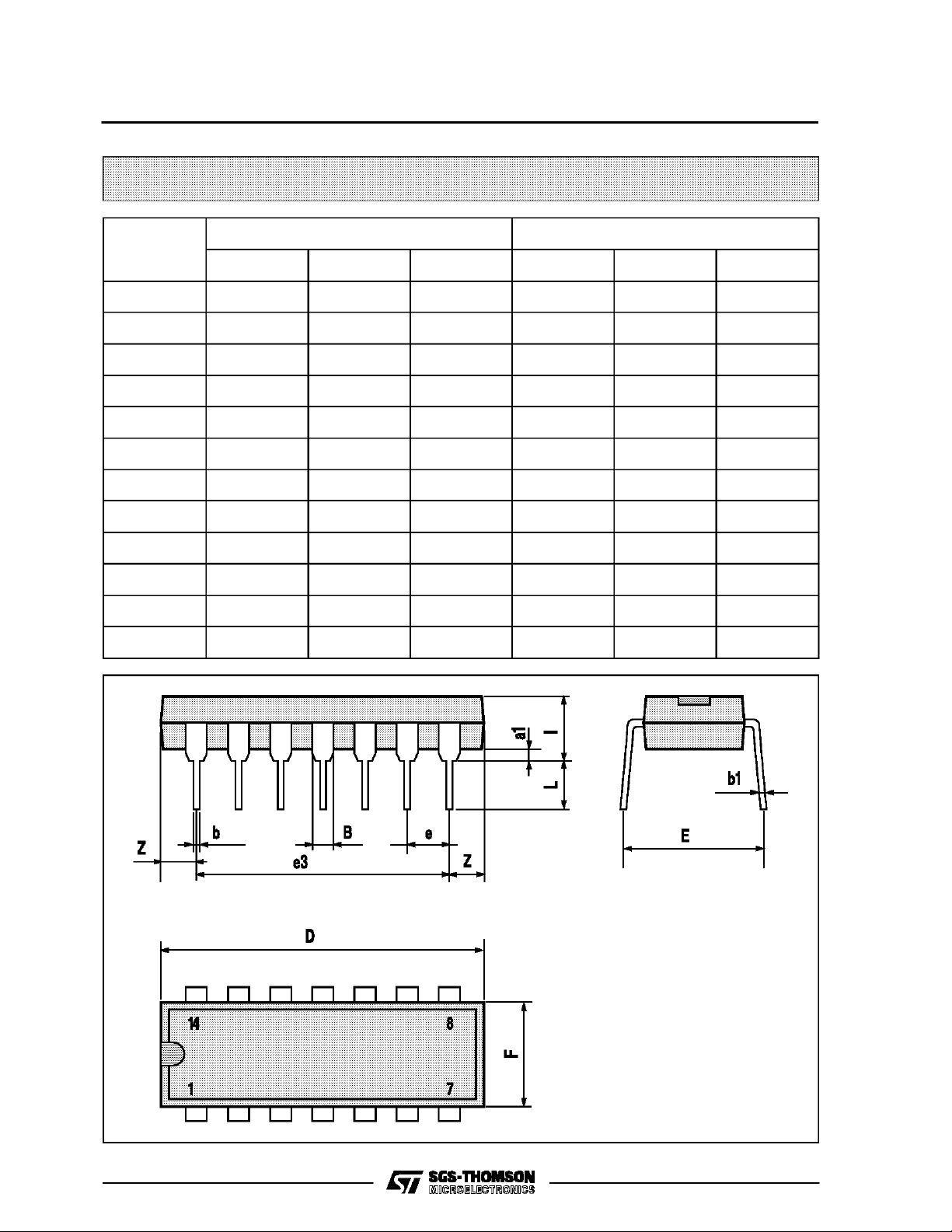

Plastic DIP14 MECHANICAL DATA
HCC/HCF4085B
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
a1 0.51 0.020
B 1.39 1.65 0.055 0.065
b 0.5 0.020
b1 0.25 0.010
D 20 0.787
E 8.5 0.335
e 2.54 0.100
e3 15.24 0.600
F 7.1 0.280
I 5.1 0.201
L 3.3 0.130
Z 1.27 2.54 0.050 0.100
mm inch
P001A
9/13
Page 10
HCC/HCF4085B

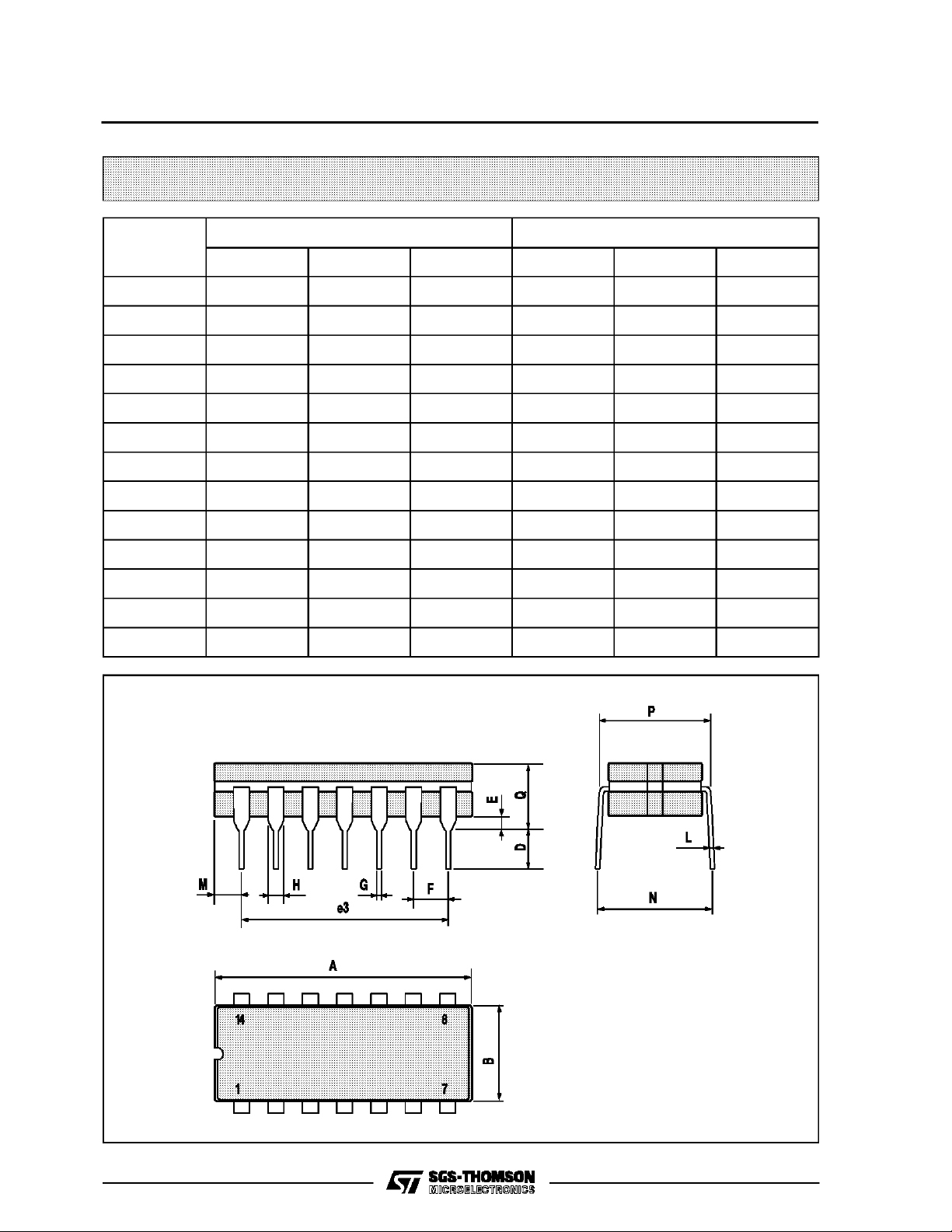

Ceramic DIP14/1 MECHANICAL DATA
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 20 0.787
B 7.0 0.276
D 3.3 0.130
E 0.38 0.015
e3 15.24 0.600
F 2.29 2.79 0.090 0.110
G 0.4 0.55 0.016 0.022
H 1.17 1.52 0.046 0.060
L 0.22 0.31 0.009 0.012
M 1.52 2.54 0.060 0.100
N 10.3 0.406
P 7.8 8.05 0.307 0.317
Q 5.08 0.200
mm inch
10/13
P053C
Page 11

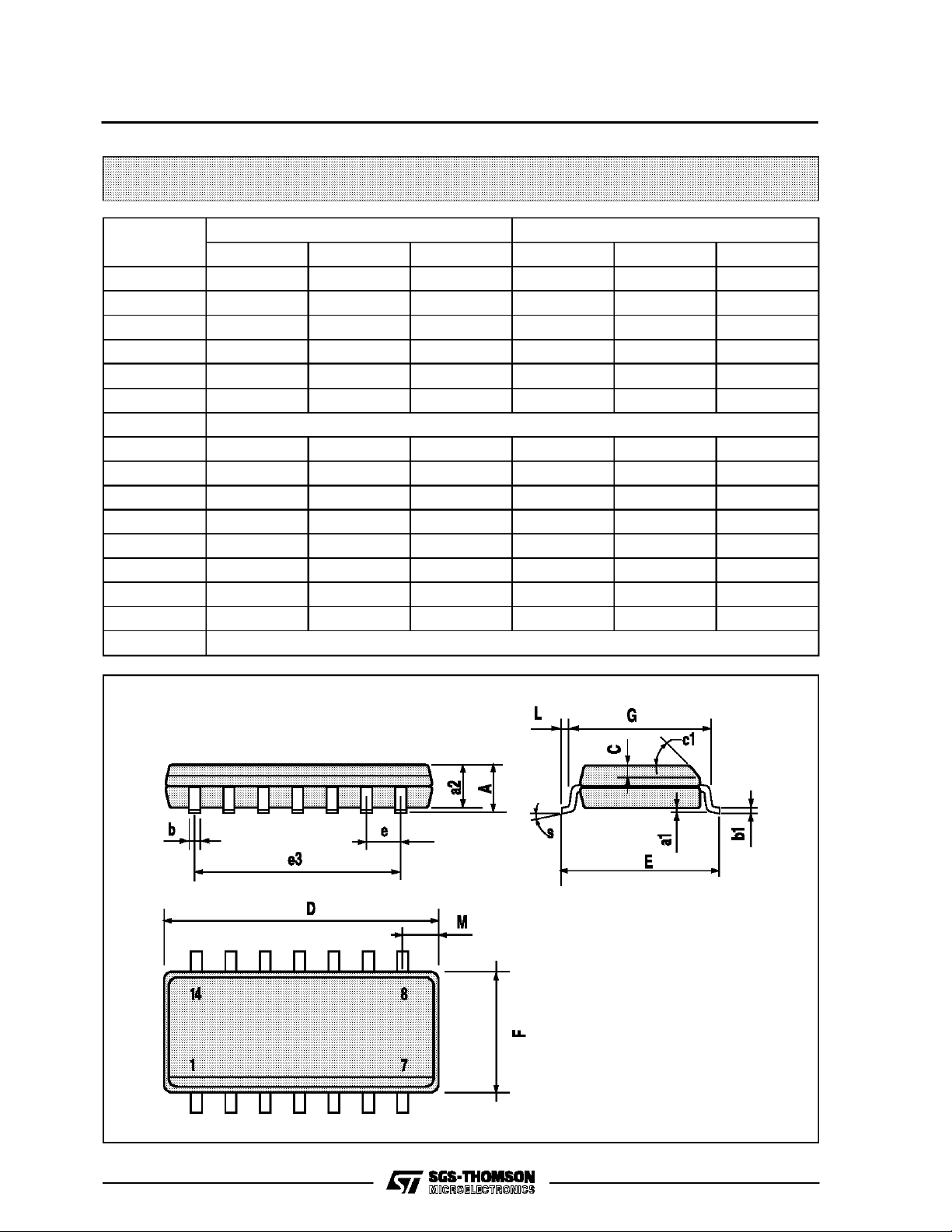

SO14 MECHANICAL DATA
HCC/HCF4085B
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 1.75 0.068
a1 0.1 0.2 0.003 0.007
a2 1.65 0.064
b 0.35 0.46 0.013 0.018
b1 0.19 0.25 0.007 0.010
C 0.5 0.019
c1 45° (typ.)
D 8.55 8.75 0.336 0.344
E 5.8 6.2 0.228 0.244
e 1.27 0.050
e3 7.62 0.300
F 3.8 4.0 0.149 0.157
G 4.6 5.3 0.181 0.208
L 0.5 1.27 0.019 0.050
M 0.68 0.026
S8°(max.)
mm inch
P013G
11/13
Page 12
HCC/HCF4085B

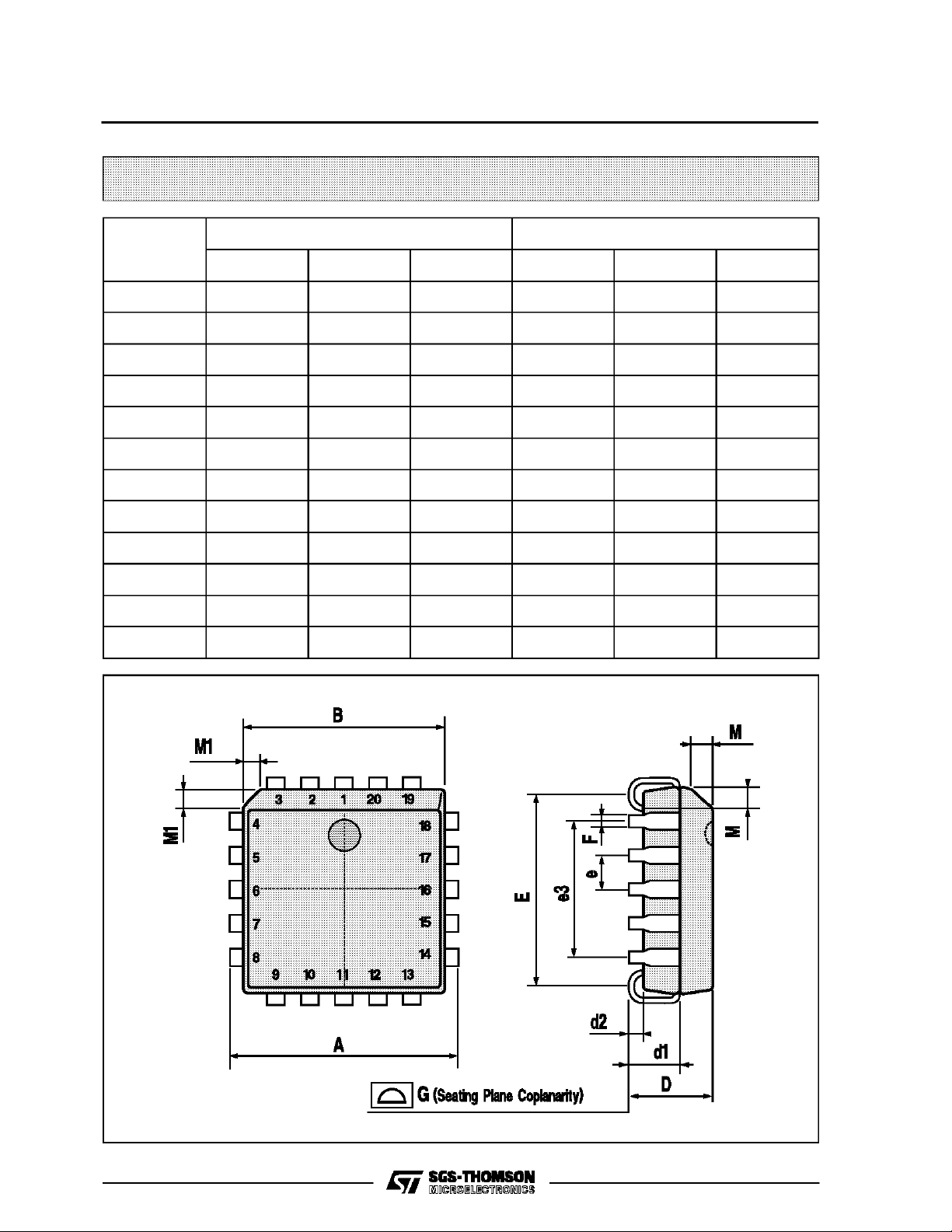

PLCC20 MECHANICAL DATA
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 9.78 10.03 0.385 0.395
B 8.89 9.04 0.350 0.356
D 4.2 4.57 0.165 0.180
d1 2.54 0.100
d2 0.56 0.022
E 7.37 8.38 0.290 0.330
e 1.27 0.050
e3 5.08 0.200
F 0.38 0.015
G 0.101 0.004
M 1.27 0.050
M1 1.14 0.045
mm inch
12/13
P027A
Page 13
HCC/HCF4085B
