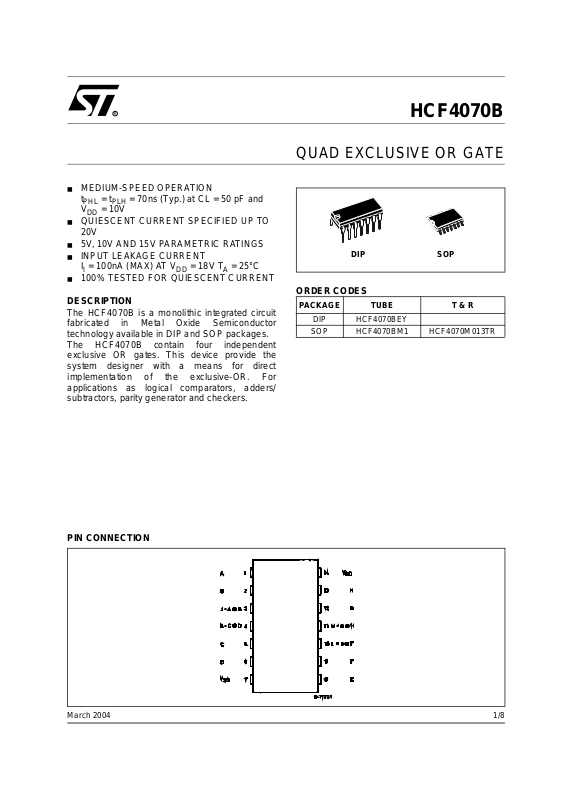

Datasheet HCF4070BE Specification

MEDIUM-SPEED OPERATION
t
PHL=tPLH
V
QUIESCENT CURRE NT SPECIFIED UP TO
= 70ns (Typ.) at CL = 50 pF and
= 10V
20V
5V,10V AND 15V PARAMETRIC RATINGS
INPUT LEA KAGE CURRENT
I
= 100nA (MAX) AT VDD=18VTA= 25°C
I
100% TESTED FOR QUIESCENT CURRENT
DESCRIPTION
The HCF4070B i s a monoli thic integrated c ircuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. The HCF4070B contain four independent exclusive OR gates. This device provide the system desi gner with a means for direct implementation of the exclusive-OR. For applications as logical comparators, adders/ subtractors, parity generator and checkers.
HCF4070B
QUAD EXCLUSIVE OR GATE
DIP SOP
ORDER CODES
PACKAGE TUBE T & R
DIP HCF4070BEY
SOP HCF4070BM1 HCF4070M013TR
PIN CO NNECTION
1/8March 2004
HCF4070B
INPUT EQUIVALENT CIRCUIT
LOGIC DIAGRAM
PIN DESCRIPTION
PIN N° SYMBOL NAME AND FUNCTION
1, 5, 8, 12 A, C, E, G Data Inputs 2, 6, 9, 13 B, D, F, H Data inputs
3, 4, 10, 11 J, K, L, M Data Outputs
7
14
V
SS
V
DD
Negative Supply Voltage Positive Supply Voltage
TRUTH TABLE
INPUTS OUTPUT
A, C, E, G B, D, F, H J, K, L, M
LLL
LHH HLH HHL
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
V
V
P
Supply Voltage
DD
DC Input Voltage -0.5 to VDD+0.5
I
I
DC Input Current
I
Power Dissipation per Package 200 mW
D
-0.5 to +22 V
± 10 mA
V
Power Dissipation per Output Transistor 100 mW
T
T
stg
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied. All voltagevalues are referred toVSSpin voltage.
Operating Temperature
op
Storage Temperature
-55 to +125 °C
-65 to +150 °C
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Value Unit
V
V
T
2/8
Supply Voltage
DD
Input Voltage 0 to V
I
Operating Temperature
op
3to20 V
DD
-55 to 125 °C
V
DC SPECIFICATIONS
Test Condition Value
T
Symbol Parameter
I
Quiescent Current 0/5 5 0.02 1 30 30
L
V
(V)
V
I
(V)
|I
|
O
O
(µA)
V
DD
(V)
= 25°C
A
Min. Typ. Max. Min. Max. Min. Max.
0/10 10 0.02 2 60 60 0/15 15 0.02 4 120 120 0/20 20 0.04 20 600 600
V
High Level Output
OH
Voltage
0/5 <1 5 4.95 4.95 4.95
0/15 <1 15 14.95 14.95 14.95
V
Low Level Output
OL
Voltage
5/0 <1 5 0.05 0.05 0.05
15/0 <1 15 0.05 0.05 0.05
V
High Level Input
IH
Voltage
0.5/4.5 <1 5 3.5 3.5 3.5
1.5/13.5 <1 15 11 11 11
V
Low Level Input
IL
Voltage
4.5/0.5 <1 5 1.5 1.5 1.5
13.5/1.5 <1 15 4 4 4
I
OH
Output Drive Current
0/5 2.5 <1 5 -1.36 -3.2 -1.15 -1.1
0/5 4.6 <1 5 -0.44 -1 -0.36 -0.36 0/10 9.5 <1 10 -1.1 -2.6 -0.9 -0.9 0/15 13.5 <1 15 -3.0 -6.8 -2.4 -2.4
I
OL
Output Sink Current
0/5 0.4 <1 5 0.44 1 0.36 0.36
0/15 1.5 <1 15 3.0 6.8 2.4 2.4
I
Input Leakage
I
Current Input Capacitance
C
I
The Noise Margin for both"1" and"0" levelis: 1V min. with VDD=5V, 2V min. with VDD=10V, 2.5V min. with VDD=15V
0/18 Any Input 18
Any Input 5 7.5 pF
±10
-5
-40 to 85°C -55 to 125°C
±0.1 ±1 ±1 µA
HCF4070B
Unit
µA
V0/10 <1 10 9.95 9.95 9.95
V10/0 <1 10 0.05 0.05 0.05
V1/9 <1 10 7 7 7
V9/1 <1 10 3 3 3
mA
mA0/10 0.5 <1 10 1.1 2.6 0.9 0.9
DYNAMIC ELECTRICAL CHARACTERISTICS (T
Symbol Parameter
t
PLHtPHL
t
TLHtTHL
(*) Typical temperature coefficient for all VDDvalue is 0.3%/°C.
Propagation Delay Time 5 140 280
Output Transition Time 5 100 200
(V)
V
DD
15 50 100
15 40 80
= 25°C, CL= 50pF, RL= 200K,tr=tf=20ns)
amb
Test Condition Value (*) Unit
Min. Typ. Max.
ns10 70 130
ns10 50 100
3/8
HCF4070B

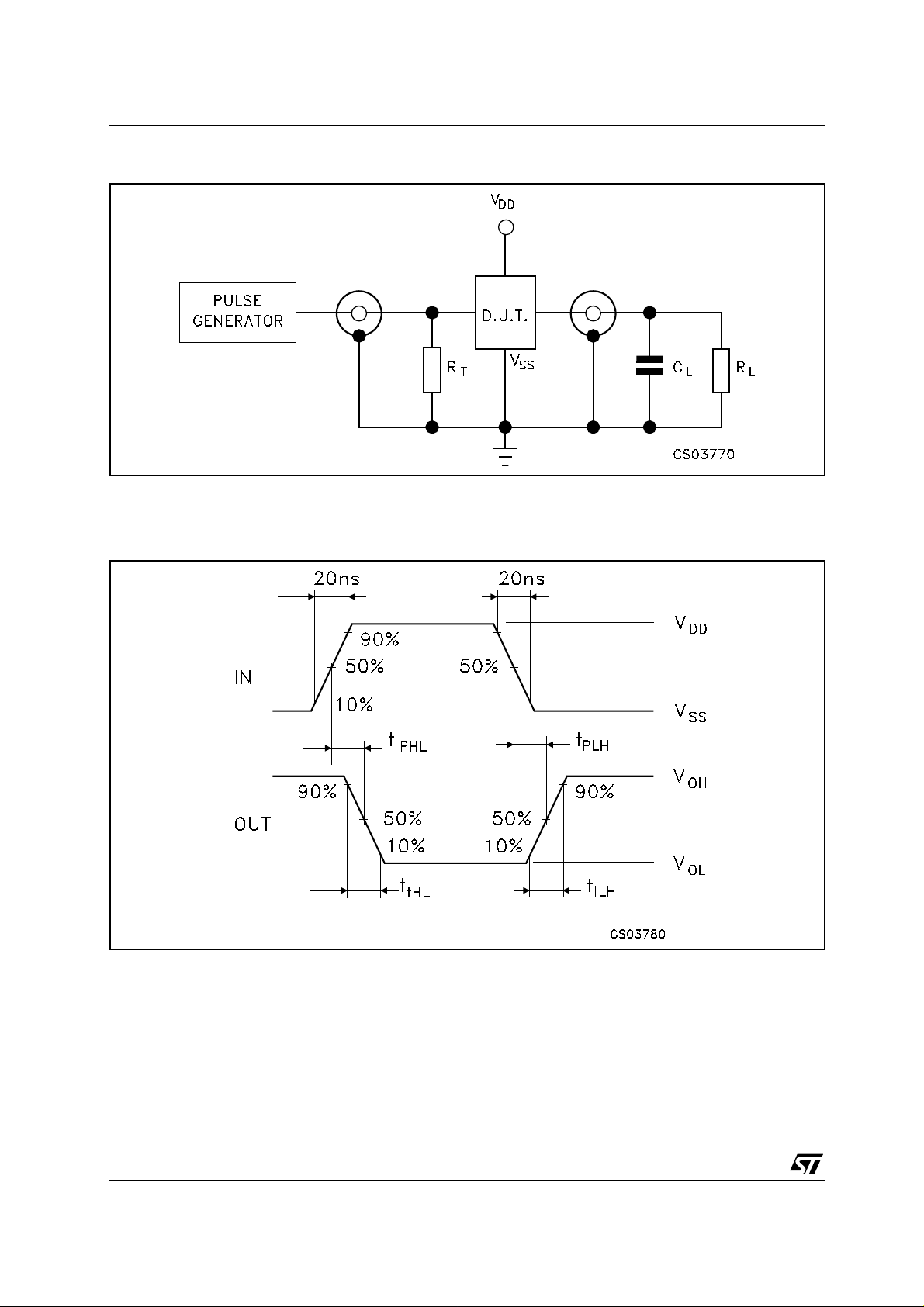

TEST CIRCUIT
CL= 50pF or equivalent (includes jig and probe capacitance)
=200K
R
L
R
T=ZOUT
WAVEFORM: P RO PAGATION DELAY TIMES (f=1MHz; 50% duty cycle)
of pulse generator (typically 50Ω)
4/8
HCF4070B
Plastic DIP-14 MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
a1 0.51 0.020
B 1.39 1.65 0.055 0.065 b 0.5 0.020
b1 0.25 0.010
D 20 0.787 E 8.5 0.335 e 2.54 0.100
e3 15.24 0.600
F 7.1 0.280
I 5.1 0.201 L 3.3 0.130 Z 1.27 2.54 0.050 0.100
P001A
5/8
HCF4070B
SO-14 MECHANICAL DATA
DIM.
A 1.75 0.068
a1 0.1 0.2 0.003 0.007 a2 1.65 0.064
b 0.35 0.46 0.013 0.018
b1 0.19 0.25 0.007 0.010
C 0.5 0.019
c1 45˚ (typ.)
D 8.55 8.75 0.336 0.344 E 5.8 6.2 0.228 0.244 e 1.27 0.050
e3 7.62 0.300
F 3.8 4.0 0.149 0.157 G 4.6 5.3 0.181 0.208 L 0.5 1.27 0.019 0.050
M 0.68 0.026
(max.)
MIN. TYP MAX. MIN. TYP. MAX.
mm. inch
8
6/8
PO13G
HCF4070B
Tape & Reel SO-14 MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
A 330 12.992 C 12.8 13.2 0.504 0.519 D 20.2 0.795 N 60 2.362
T 22.4 0.882 Ao 6.4 6.6 0.252 0.260 Bo 9 9.2 0.354 0.362 Ko 2.1 2.3 0.082 0.090 Po 3.9 4.1 0.153 0.161
P 7.9 8.1 0.311 0.319
7/8
