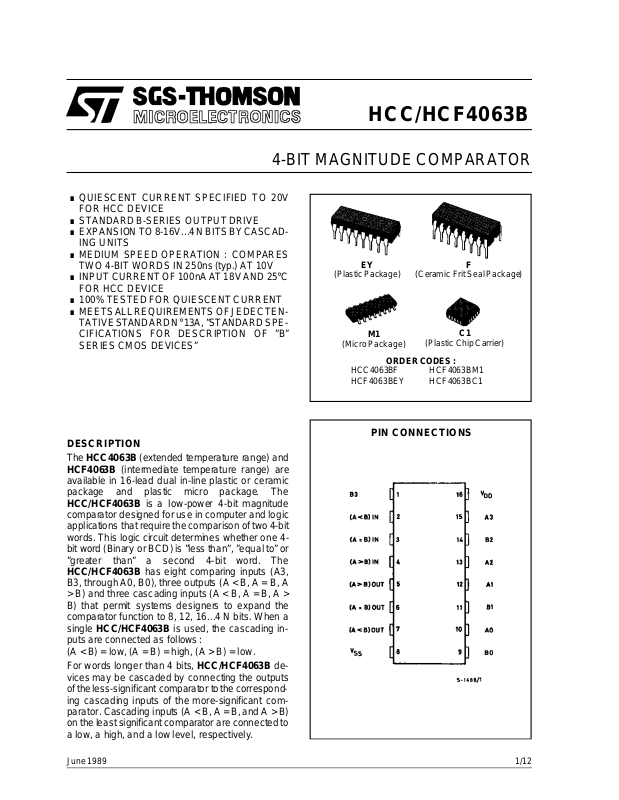

Datasheet HCF4063BE Specification

4-BIT MAGNITUDE COMPARATOR

.QUIESCENT CURRENT SPECIFIED TO 20V

FOR HCC DEVICE

.STANDARDB-SERIES OUTPUTDRIVE

.EXPANSION TO8-16V...4NBITSBYCASCAD-

ING UNITS

.MEDIUM SPEED OPERATION : COMPARES

TWO 4-BITWORDS IN 250ns (typ.) AT 10V

.INPUT CURRENT OF 100nAAT 18VAND 25°C

FOR HCC DEVICE

.100% TESTEDFOR QUIESCENTCURRENT

.MEETSALLREQUIREMENTSOFJEDECTEN-

TATIVESTANDARDN°13A,”STANDARDSPE­CIFICATIONS FOR DESCRIPTION OF ”B”
SERIESCMOS DEVICES”

HCC/HCF4063B

EY

(PlasticPackage)F(Ceramic FritSeal Package)

M1

(MicroPackage)

ORDER CODES :

HCC4063BF HCF4063BM1
HCF4063BEY HCF4063BC1

(PlasticChipCarrier)

C1

DESCRIPTI ON
TheHCC4063B (extended temperature range) and

HCF4063B (intermediate temperature range) are

available in 16-lead dual in-line plastic or ceramic
package and plastic micro package. The
HCC/HCF4063B is a low-power 4-bit magnitude
comparator designedfor use in computerand logic
applications that requirethecomparison oftwo4-bit
words. This logic circuit determines whether one 4­bit word(Binary or BCD) is ”less than”, ”equal to”or
”greater than” a second 4-bit word. The
HCC/HCF4063B has eight comparing inputs (A3,
B3, through A0, B0), three outputs (A< B, A = B, A
> B) and three cascading inputs (A < B, A =B, A>
B) that permit systems designers to expand the
comparator function to 8, 12, 16...4N bits.When a
single HCC/HCF4063B is used, the cascading in­puts areconnected as follows:
(A < B) = low, (A =B) = high, (A > B) =low.

For words longer than4 bits, HCC/HCF4063B de­vices may be cascaded by connecting the outputs
oftheless-significant comparator tothecorrespond­ing cascading inputs of the more-significant com­parator. Cascading inputs(A < B, A = B, and A> B)
on theleastsignificant comparator areconnectedto
a low, a high,and a lowlevel, respectively.

PIN CONNECTIONS

June1989

1/12

HCC/HCF4063B

FUN CTIONAL DIAG R A M

ABSOLUTE MAXIMUM RATIN GS

Symbol Parameter Value Unit

* Supply Voltage :HC C Types

V

DD

HCF Types

V

Input Voltage – 0.5 to VDD+ 0.5 V

i

DC Input Current (any one input) ± 10 mA

I

I

P

Total Power Dissipation (per package)

tot

Dissipation per Output Transistor
for T

T

Operating Temperature : HCC Types

op

= Full Package-temperature Range

op

HCF Types

T

Stresses above those listed under ”Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress
rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections
of this specification is not implied. Exposure to absolute maximum rating conditions for external periods may affect device reliability.
* All voltage values are referred to VSSpin voltage.

Storage Temperature – 65 to + 150 °C

stg

– 0.5 to + 20
– 0.5 to + 18

200
100

– 55 to + 125

–40to+85

V
V

mW
mW

°C
°C

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Value Unit

2/12

V

Supply Voltage :HC C Types

DD

HCF Types

V

Input Voltage 0 to V

I

T

Operating Temperature : HCC Types

op

HCF Types

3to18
3to15

DD

– 55 to + 125

–40to+85

V
V

V

°C
°C

LOGI C DI AGRAM

HCC/HCF4063B

TRUTH TABLE

Inputs

Compari n g Cascading

A3, B3 A2, B2 A1, B1 A0, B0 A < B A = B A > B A < B A = B A > B

A3 > B3
A3 = B3
A3 = B3
A3 = B3

A3 = B3
A3 = B3
A3 = B3

A3 = B3
A3 = B3
A3 = B3
A3 < B3

X = Don’t care 1 ≡ Highstate 0 ≡ Low state.

X
A2 > B2
A2 = B2
A2 = B2

A2 = B2
A2 = B2
A2 = B2

A2 = B2
A2 = B2
A2 < B2

X

X

X
A1 > B1
A1 = B1

A1 = B1
A1 = B1
A1 = B1

A1 = B1
A1 < B1

X

X

X
X
X

A0 > B0
A0 = B0

A0 = B0
A0 = B0

A0 < B0

X
X
X

X
X
X
X

0
0
1

X
X
X
X

X
X
X
X

0
1
0

X
X
X
X

X
X
X
X

1
0
0

X
X
X
X

0
0
0
0

0
0
1

1
1
1
1

Outputs

0
0
0
0

0
1
0

0
0
0
0

1
1
1
1

1
0
0

0
0
0
0

3/12

HCC/HCF4063B

STATIC ELECTRICAL CHARACTERISTICS (over recommended operating conditions)

Test Conditions Value

Symbol Paramete r

(V) (V) (µA) (V)

I

L

Quiescent
Current

HCC
Types

0/ 5 5 5 0.04 5 150
0/10 10 10 0.04 10 300
0/15 15 20 0.04 20 600
0/20 20 100 0.08 100 3000

0/ 5 5 20 0.04 20 150

HCF
Types

0/10 10 40 0.04 40 300
0/15 15 80 0.04 80 600

V

OH

Output High
Voltage

0/ 5 < 1 5 4.95 4.95 4.95
0/10 < 1 10 9.95 9.95 9.95
0/15 < 1 15 14.95 14.95 14.95

V

OL

Output Low
Voltage

5/0 < 1 5 0.05 0.05 0.05
10/0 < 1 10 0.05 0.05 0.05
15/0 < 1 15 0.05 0.05 0.05

V

IH

Input High
Voltage

V

IL

Input Low
Voltage

I

OH

Output
Drive
Current

HCC
Types

0/ 5 2.5 5 – 2 – 1.6 – 3.2 – 1.15

0/ 5 4.6 5 – 0.64 – 0.51 – 1 – 0.36
0/10 9.5 10 – 1.6 – 1.3 – 2.6 – 0.9
0/15 13.5 15 – 4.2 – 3.4 – 6.8 – 2.4

0/ 5 2.5 5 – 1.53 – 1.36 – 3.2 – 1.1

HCF
Types

0/ 5 4.6 5 – 0.52 – 0.44 – 1 – 0.36
0/10 9.5 10 – 1.3 – 1.1 – 2.6 – 0.9
0/15 13.5 15 – 3.6 – 3.0 – 6.8 – 2.4

I

OL

Output
Sink
Current

HCC
Types

0/ 5 0.4 5 0.64 0.51 1 0.36
0/10 0.5 10 1.6 1.3 2.6 0.9
0/15 1.5 15 4.2 3.4 6.8 2.4

0/ 5 0.4 5 0.52 0.44 1 0.36

HCF
Types

0/10 0.5 10 1.3 1.1 2.6 0.9
0/15 1.5 15 3.6 3.0 6.8 2.4

I

IH,IIL

*T

Low

*T

High

The Noise Margin for both ”1” and ”0” level is : 1V min. with VDD= 5V, 2V min. with VDD= 10V, 2.5V min. with VDD= 15V.

Input
leakage
Current

C

I

=–55°CforHCC device : – 40°CforHCF device.

= + 125°CforHCC device : + 85°CforHCF device.

Input Capacitance Any Input 5 7.5 pF

HCC
Types

HCF
Types

0/18

0/15

V

V

I

O

|IO|V

DD

T

* 25°CT

Low

Min. Max. Min. Typ. Max. Min. Max.

0.5/4.5 < 1 5 3.5 3.5 3.5
1/9 < 1 10 7 7 7

1.5/13.5 < 1 15 11 11 11

4.5/0.5 < 1 5 1.5 1.5 1.5
9/1 < 1 10 3 3 3

13.5/1.5 < 1 15 4 4 4

–5

18 ± 0.1 ±10

± 0.1 ± 1

Any Input

–5

15 ± 0.3 ±10

± 0.3 ± 1

High

*

Unit

µA

V

V

V

V

mA

mA

µA

4/12

HCC/HCF4063B

DYNAMIC ELECTRICAL CHARACTERISTICS (T

=25°C, CL= 50pF, RL= 200kΩ,

amb

typical temperature coefficient for all VDDvalues is 0.3%/°C, all input rise and fall times = 20ns)

Symbol Parameter

t

PLH,tPHL

t

TLH,tTHL

Propagation Delay Time Comparing Inputs to

Transition Time 5 100 200

Minimum Output High (source)Current Charac­teristics.

Test Conditions Value

V

(V) Min. Typ. Max.

DD

5 625 1250

Outputs

Cascading Inputs to
Outputs

10 250 500
15 175 350

5 500 1000
10 200 400
15 140 280

10 50 100
15 40 80

Minimum Output Low (sink)Current Charac­teristics.

Unit

ns

ns

TypicalOutput High (source) Current Charac­teristics.

TypicalOutput Low (sink) Current Characteristics.

5/12

HCC/HCF4063B

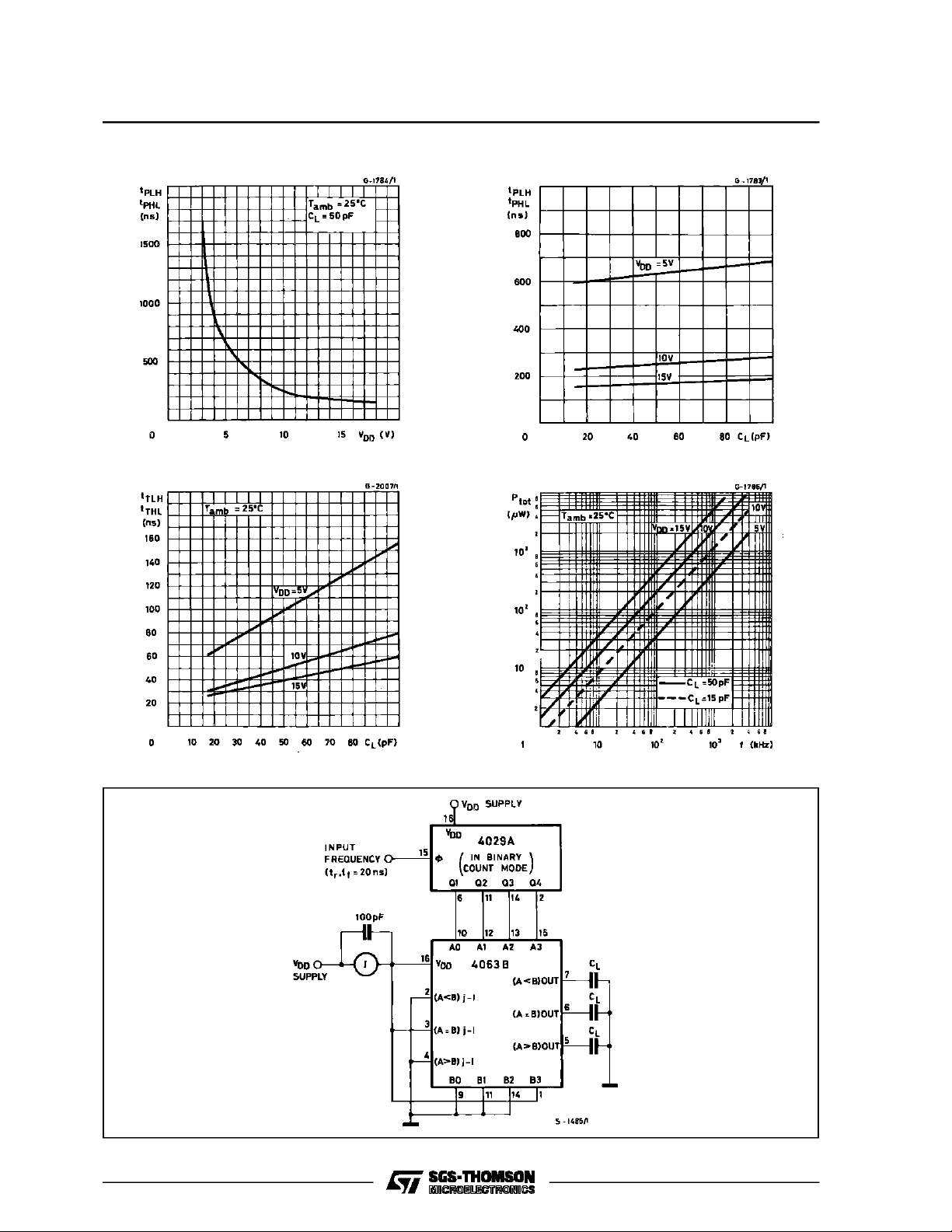

TypicalPropagation Delay Time vs. VDD. TypicalPropagation Delay Time vs. CL.

TypicalTransitionTime vs. Load Capacitance. TypicalPower Dissipation Characteristics.

Dynamic Power Dissipation.

6/12

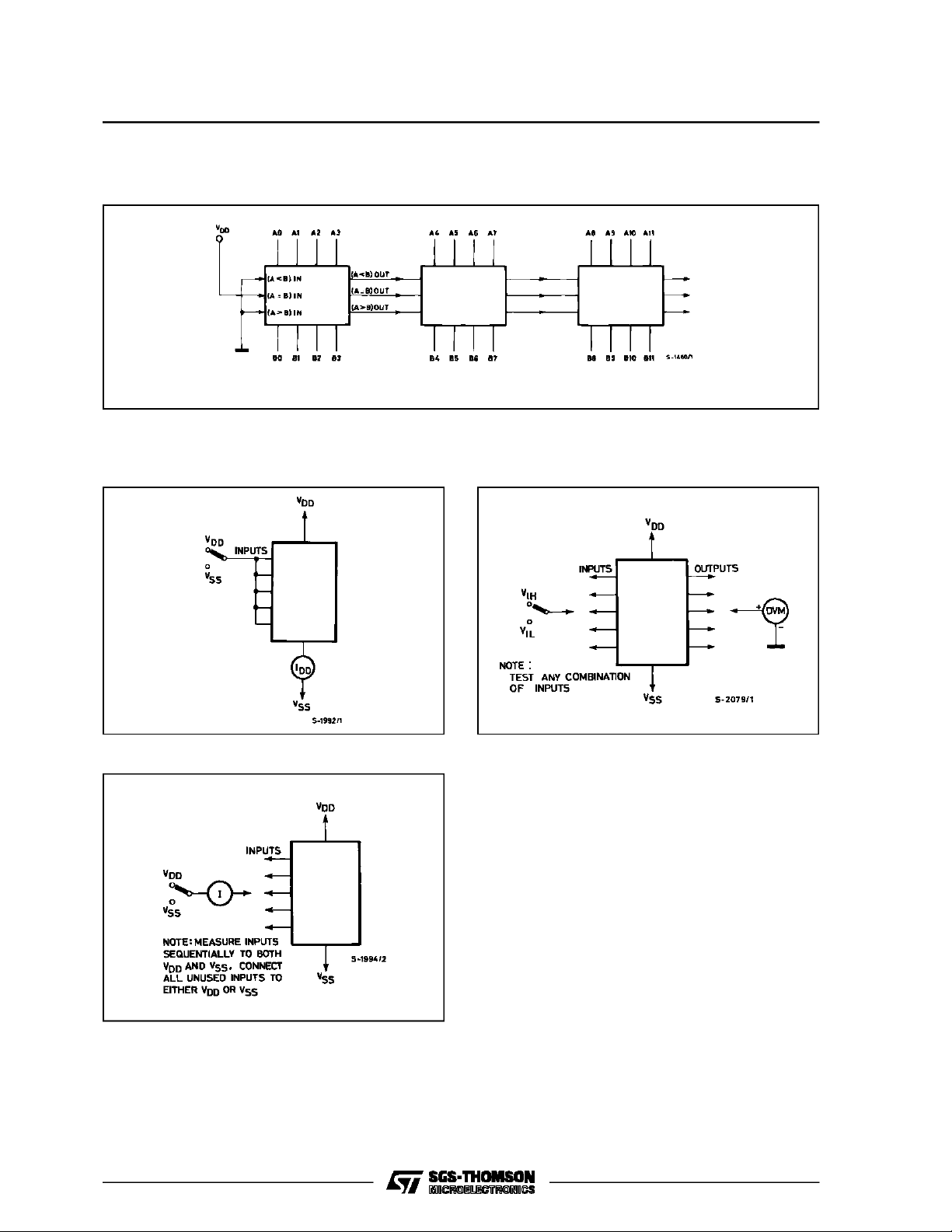

TYPICAL APPLICA TI O N

TYPICALSPEED CHARACTERISTICS OF A 12-BIT COMPARATOR

HCC/HCF4063B

t

p (TOT.)=tp

VDD= 10V (3 stages) = 250 + 2 x (200) = 650ns (typ.).

(COMPARE INPUTS) + 2 x tp(CASCADEINPUTS) at CL= 50pF (each output),

TEST CIRCUITS

QuiescentDevice Current. Noise Immunity.

Input Leakage Current.

7/12

HCC/HCF4063B

Plastic DIP16 (0.25) MECHANICAL DATA

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

a1 0.51 0.020

B 0.77 1.65 0.030 0.065

b 0.5 0.020

b1 0.25 0.010

D 20 0.787
E 8.5 0.335

e 2.54 0.100

e3 17.78 0.700

F 7.1 0.280

I 5.1 0.201

L 3.3 0.130

Z 1.27 0.050

mm inch

8/12

P001C

Ceramic DIP16/1 MECHANICAL DATA

HCC/HCF4063B

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

A 20 0.787
B 7 0.276
D 3.3 0.130
E 0.38 0.015

e3 17.78 0.700

F 2.29 2.79 0.090 0.110
G 0.4 0.55 0.016 0.022
H 1.17 1.52 0.046 0.060

L 0.22 0.31 0.009 0.012
M 0.51 1.27 0.020 0.050
N 10.3 0.406

P 7.8 8.05 0.307 0.317

Q 5.08 0.200

mm inch

P053D

9/12

HCC/HCF4063B

SO16 (Narrow) MECHANICAL DATA

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

A 1.75 0.068
a1 0.1 0.2 0.004 0.007
a2 1.65 0.064

b 0.35 0.46 0.013 0.018

b1 0.19 0.25 0.007 0.010

C 0.5 0.019

c1 45° (typ.)

D 9.8 10 0.385 0.393

E 5.8 6.2 0.228 0.244

e 1.27 0.050

e3 8.89 0.350

F 3.8 4.0 0.149 0.157

G 4.6 5.3 0.181 0.208

L 0.5 1.27 0.019 0.050

M 0.62 0.024

S8°(max.)

mm inch

10/12

P013H

PLCC20 MECHANICAL DATA

HCC/HCF4063B

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

A 9.78 10.03 0.385 0.395

B 8.89 9.04 0.350 0.356

D 4.2 4.57 0.165 0.180
d1 2.54 0.100
d2 0.56 0.022

E 7.37 8.38 0.290 0.330

e 1.27 0.050

e3 5.08 0.200

F 0.38 0.015
G 0.101 0.004
M 1.27 0.050

M1 1.14 0.045

mm inch

P027A

11/12

HCC/HCF4063B
