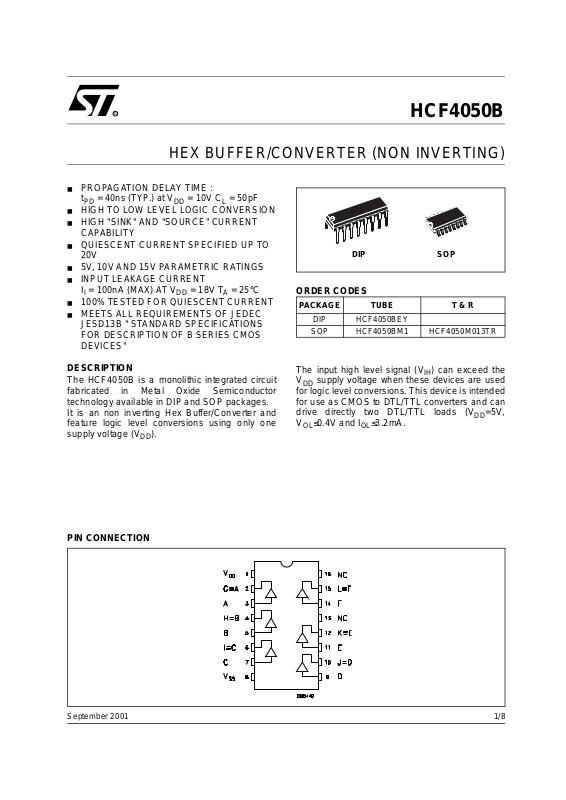

HCF4050B
HEX BUFFER/CONVERTER (NON INVERTING)
■ PROPAGATION DELAY TIME :
t
= 40ns (TYP.) at VDD = 10V CL = 50pF
PD
■ HIGH TO LOW LEVEL LOGIC CONVERSION
■ HIGH "SINK" AND "SOURCE" CURRENT
CAPABILITY
■ QUIESCENT CURRENT SPECIFIED UP TO
20V
■ 5V, 10V AND 15V PARAMETRIC RATINGS
■ INPUT LEAKAGE CURRENT
I
= 100nA (MAX) AT VDD = 18V TA = 25°C
I
■ 100% TESTED FOR QUIESCENT CURRENT
■ MEETS ALL REQUIREMENTS OF JEDEC
JESD13B " STANDARD SPECIFICATIONS
FOR DESCRIPTI ON OF B SERI ES CMOS
DEVICES"
DESCRIPTION
The HCF4050B is a m onolithic integrated circuit
fabricated in Metal Oxide Semiconductor
technology available in DIP and SOP packages.
It is an non inverting Hex Buffer/Converter and
feature logic level conversions using only one
supply voltage (V
DD
).
DIP SOP
ORDER CODES
PACKAGE TUBE T & R
DIP HCF4050BEY
SOP HCF4050BM1 HCF4050M013TR
The input high level signal (V
V
supply voltage when t hese devices are used
DD
) can exceed t he
IH
for logic level conversions. This device is intended
for use as CMOS to DTL/TTL converters and can
drive directly two DTL/TTL loads (V
V
≤0.4V and IOL≤3.2mA.
OL
DD
=5V,
PIN CONNECTION
1/8September 2001
Page 2
HCF4050B
INPUT EQUIVALENT CIRCUIT PIN DESCRIPTION
PIN No SYMBOL NAME AND FUNCTION
3, 5, 7, 9, 1 1, 14A, B, C, D, E,
F
2, 4, 6, 10,
12, 15
G, H, I, J, K,
L
13 , 16 NC Not Connected
8
1
V
SS
V
DD
TRUTH TABLE
INPUTS OUTPUTS
A, B, C, D,E, F G, H, I, J, K, L
LL
HH
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
V
V
P
T
T
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied.
All voltage values ar e referred to V
Supply Voltage
DD
DC Input Voltage -0.5 to VDD + 0.5
I
I
DC Input Current
I
Power Dissipation per Package 200 mW
D
Power Dissipation per Output Transistor 100 mW
Operating Temperature
op
Storage Temperature
stg
pin voltage.
SS
Data Inputs
Data Outputs
Negative Supply Voltage
Positive Supply Voltage
-0.5 to +22 V
V
± 10 mA
-55 to +125 °C
-65 to +150 °C
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Value Unit
V
V
T
2/8
Supply Voltage
DD
Input Voltage 0 to V
I
Operating Temperature
op
3 to 20 V
DD
-55 to 125 °C
V
Page 3
DC SPECIFICATIONS
Test Condition Value
T
Symbol Parameter
I
Quiescent Current 0/5 5 0.02 1 30 30
L
V
(V)
V
I
(V)
|I
|
O
O
(µA)
V
DD
(V)
= 25°C
A
Min. Typ. Max. Min. Max. Min. Max.
0/10 10 0.02 2 60 60
0/15 15 0.02 4 120 120
0/20 20 0.04 20 600 600
V
High Level Output
OH
Voltage
0/5 <1 5 4.95 4.95 4.95
0/15 <1 15 14.95 14.95 14.95
Low Level Output
V
OL
Voltage
5/0 <1 5 0.05 0.05 0.05
15/0 <1 15 0.05 0.05 0.05
High Level Input
V
IH
Voltage
0.5/4.5 <1 5 3.5 3.5 3.5
1.5/13.5 <1 15 11 11 11
V
IL
Low Level Input
Voltage
4.5/0.5 <1 5 1.5 1.5 1.5
13.5/1.5 <1 15 4 4 4
I
OH
Output Drive
Current
0/5 2.5 <1 5 -1.25 -6.4 -0.42 -0.42
0/5 4.6 <1 5 -0.51 -1.6 -0.38 -0.38
0/10 9.5 <1 10 -1.25 -3.6 -1 -1
0/15 13.5 <1 15 -3.75 -12 -3 -3
I
OL
Output Sink
Current
0/5 0.4 <1 5 3.2 6.4 2.6 2.6
0/15 1.5 <1 15 24 48 19 19
Input Leakage
I
I
Current
C
Input Capacitance
I
The Noi se Margin for both "1" and "0 " level is: 1V min. wi th VDD=5V, 2V min. with VDD=10V, 2.5V min. with VDD=15V
0/18 Any Input 18
Any Input 5 7.5 pF
±10
-5
-40 to 85°C -55 to 125°C
±0.1 ±1 ±1 µA
HCF4050B
Unit
µA
V0/10 <1 10 9.95 9.95 9.95
V10/0 <1 10 0.05 0.05 0.05
V1/9 <1 10 7 7 7
V9/1 <1 10 3 3 3
mA
mA0/10 0.5 <1 10 8 16 6.6 6.6
3/8
Page 4
HCF4050B
DYNAMIC ELECTRICAL CHARACTERISTICS (T
Symbol Parameter
t
t
t
t
(*) Typical temperat ure coefficient for all VDD value is 0.3 %/°C.
Output Transition Time 5 5 80 160
TLH
Output Transition Time 5 5 30 60
THL
Propagation Delay Time 5 5 70 140
PLH
Propagation Delay Time 5 5 55 110
PHL
(V) VI (V)
V
DD
15 15 30 60
15 15 15 30
10 10 40 80
510 4590
15 15 30 60
515 4080
10 10 22 55
510 50100
15 15 15 30
515 50100
TEST CIRCUIT
= 25°C, CL = 50pF, RL = 200KΩ, tr = tf = 20 ns)
amb
Test Condition Value (*) Unit
Min. Typ. Max.
ns10 10 40 80
ns10 10 20 40
ns
ns
CL = 50pF or equivalent (includes jig and probe capacit ance)
= 200KΩ
R
L
= Z
R
of pulse generator (typically 50Ω)
T
OUT
4/8
Page 5

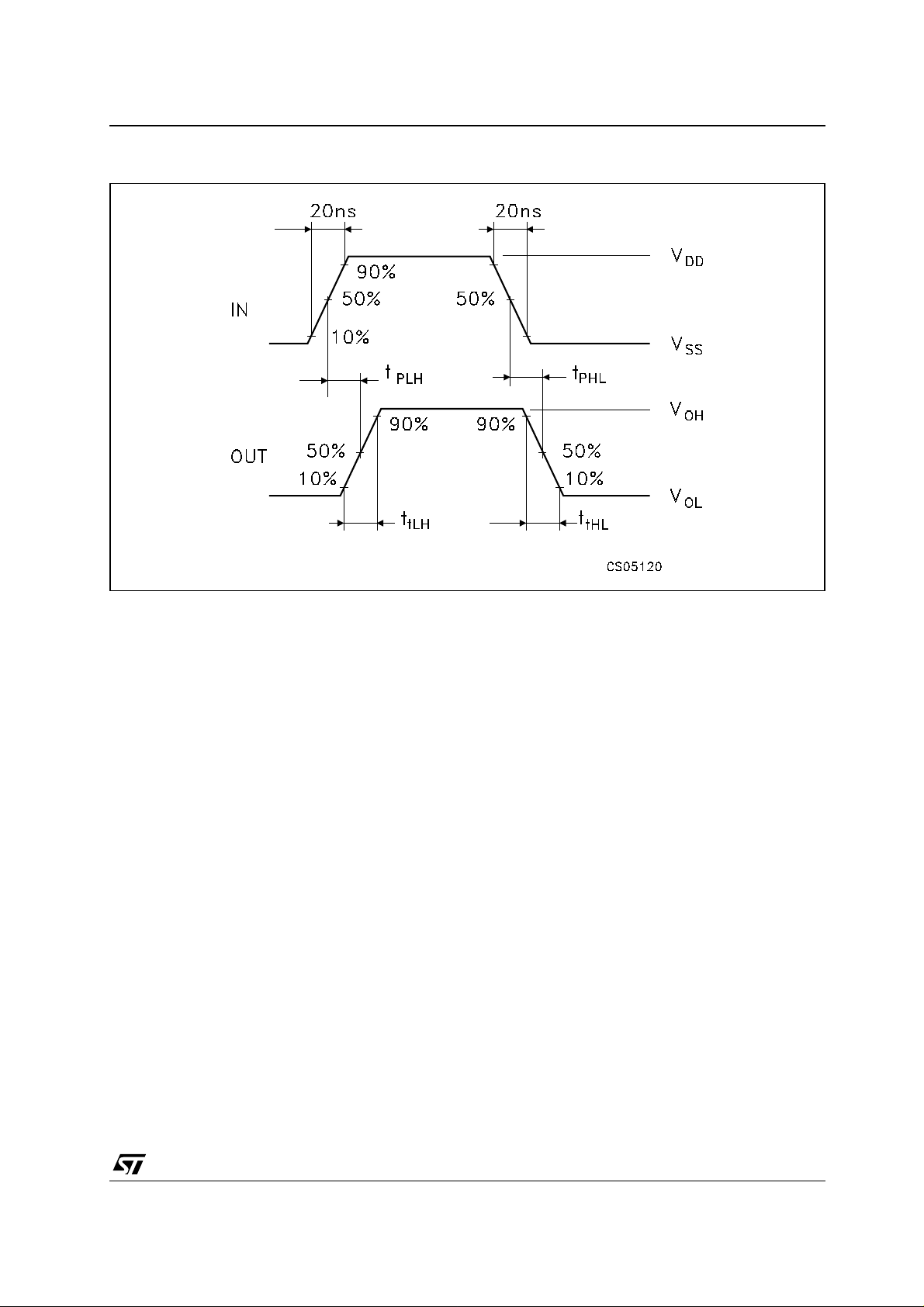

WAVEFORM : PROPAGATION DELAY TIMES (f=1MHz; 50% duty cycle)
HCF4050B
5/8
Page 6
HCF4050B
Plastic DIP-16 (0.25) MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. M AX.
a1 0.51 0.020
B 0.77 1.65 0.030 0.065
b 0.5 0.020
b1 0.25 0.010
D 20 0.787
E 8.5 0.335
e 2.54 0.100
e3 17.78 0.700
F 7.1 0.280
I 5.1 0.201
L 3.3 0.130
Z 1.27 0.050
6/8
P001C
Page 7
SO-16 MECHANICAL DATA
HCF4050B
DIM.
A 1.75 0.068
a1 0.1 0.2 0.003 0.007
a2 1.65 0.064
b 0.35 0.46 0.013 0.018
b1 0.19 0.25 0.007 0.010
C 0.5 0.019
c1 45° (typ.)
D 9.8 10 0.385 0.393
E 5.8 6.2 0.228 0.244
e 1.27 0.050
e3 8.89 0.350
F 3.8 4.0 0.149 0.157
G 4.6 5.3 0.181 0.208
L 0.5 1.27 0.019 0.050
M 0.62 0.024
S8° (max.)
MIN. TYP MAX. MIN. TYP. MAX.
mm. inch
PO13H
7/8
Page 8
HCF4050B
Information furnished is bel ieved to be accurate and reliable. However, STMicroe lectronics assumes no responsibility for the
consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from
its use. No li cense is granted by imp lication or otherwise under any patent or patent rig hts of STMicroelectronics. Specificat ions
mentioned in this publication ar e subject to change without notice. This publication supersedes and replaces all information
previously supplied. S TMicroelectronics products are not authorized for use as critica l components in life suppo rt devices or
systems without express written approval of STMicroelectronics.
Australi a - Brazil - China - Finland - F rance - Germany - Hong Kong - India - Italy - Jap an - Malaysia - Malta - Moro cco
© The ST logo is a registered trademark of STMicroelectronics
© 2001 STM icroelectronics - Pri nted in Italy - A ll Rights Reser ved
STMicr o el ectronics GROUP OF COMPANI E S
Singapo re - Spain - Swe den - Switzerl and - United K ingdom
© http://www.st.com
