Page 1

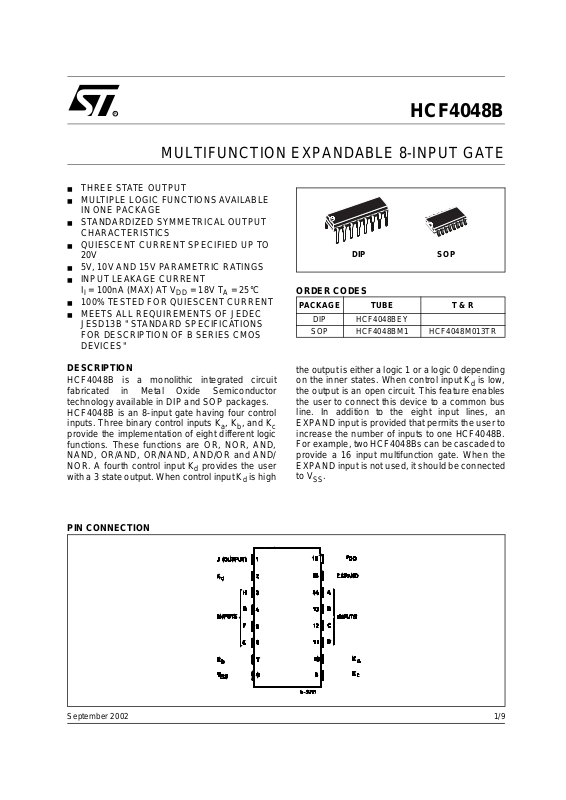

HCF4048B
MULTIFUNCTION EXPANDABLE 8-INPUT GATE
■ THREE STA TE OUTPUT
■ MULTIPLE LOGIC FUNCTIONS AVAILABLE
IN ONE PACKAGE
■ STANDARDIZED SYMMETRICAL OUTPUT
CHARACTERISTICS
■ QUIESCENT CURRENT SPECIFIED UP TO
20V
■ 5V, 10V AND 15V PARAMETRIC RATINGS
■ INPUT LEAKAGE CURRENT
I
= 100nA (MAX) AT VDD = 18V TA = 25°C
I
■ 100% TESTED FOR QUIESCENT CURRENT
■ MEETS ALL REQUIREMENTS OF JEDEC
JESD13B " STANDARD SPECIFICATIONS
FOR DESCRIPTI ON OF B SERI ES CMOS
DEVICES"
DESCRIPTION
HCF4048B is a monolithic integrated circuit
fabricated in Metal Oxide Semiconductor
technology available in DIP and SOP packages.
HCF4048B is an 8-input ga te having four control
inputs. Three binary control inputs K
, Kb, and K
a
provide the implementation of eight different logic
functions. These functions are OR, NOR, AND,
NAND, OR/AND, OR/NAND, AND/OR and AND/
NOR. A fourth control input K
with a 3 state output. When control input K
provides the user
d
is high
d
DIP SOP
ORDER CODES
PACKAGE TUBE T & R
DIP HCF4048BEY
SOP HCF4048BM1 HCF4048M013TR
the output is either a logic 1 or a logic 0 depending
on the inner states. When control input K
the output is an open c i rcuit. T his feat ure enables
the user to connect this device t o a common bus
line. In addition to the eight input lines, an
EXPAND input is pro vided that permits the user to
c
increase the number of inpu ts to one HCF4048B.
For example, two HCF4048Bs can be cascaded to
provide a 16 input multifunction gate. When the
EXPAND input is no t used , it should be connected
to V
.
SS
is low,
d
PIN CONNECTION
1/9September 2002
Page 2
HCF4048B
INPUT EQUIVALENT CIRCUIT PIN DESCRIPTION
PIN No SYMBOL NAME AND FUNCTION
14, 13, 12,
11
6, 5, 4, 3 E, F, G, H Data Inputs
10, 7, 9
2
1 J Data Output
15 EXPAND Expand Input
8
16
FUNCTIONAL DIAGRAM
A, B, C, D Data Inputs
, Kb, K
K
a
K
d
V
SS
V
DD
Function Control Inputs
c
3-State Control Inputs
Negative Supply Voltage
Positive Supply Voltage
TRUTH TABLE
Output Function Boolean Expression
NOR J = A + B + C + D + E + F + G + H
OR J = A + B + C + D + E + F + G + H
OR/AND J = (A + B + C + D) • (E + F + G + H)
OR/NAND
AND J = ABCDEFGH
NAND J = ABCDEFGH
AND/NOR J = ABCD + EFGH
AND/OR J = ABCD + EFGH
Kd = 1 - NORMAL INVERTER ACTION
K
= 0 - HIGH IMPEDANCE OUTPUT
d
2/9
J = (A + B + C + D) • (E + F + G + H)
KbK
K
a
c
000
001
010
011
100
101
110
111
Unused Input
V
SS
V
SS
V
SS
V
SS
V
DD
V
DD
V
DD
V
DD
Page 3
LOGIC DIAGRAM
HCF4048B
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
V
V
P
Supply Voltage
DD
DC Input Voltage -0.5 to VDD + 0.5
I
I
DC Input Current
I
Power Dissipation per Package 200 mW
D
-0.5 to +22 V
10 mA
±
V
Power Dissipation per Output Transistor 100 mW
T
T
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied.
All voltage values ar e referred to V
Operating Temperature
op
Storage Temperature
stg
pin voltage.
SS
-55 to +125 °C
-65 to +150 °C
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Value Unit
V
V
T
Supply Voltage
DD
Input Voltage 0 to V
I
Operating Temperature
op
3 to 20 V
DD
-55 to 125 °C
V
3/9
Page 4
HCF4048B
DC SPECIFICATIONS
Test Condition Value
T
Symbol Parameter
I
Quiescent Current 0/5 5 0.01 0.25 7.5 7.5
L
V
(V)
V
I
(V)
|I
|
O
O
(µA)
V
DD
(V)
= 25°C
A
Min. Typ. Max. Min. Max. Min. Max.
0/10 10 0.01 0.5 15 15
0/15 15 0.01 1 30 30
0/20 20 0.02 5 150 150
V
High Level Output
OH
Voltage
0/5 <1 5 4.95 4.95 4.95
0/15 <1 15 14.95 14.95 14.95
Low Level Output
V
OL
Voltage
5/0 <1 5 0.05 0.05 0.05
15/0 <1 15 0.05 0.05 0.05
High Level Input
V
IH
Voltage
0.5/4.5 <1 5 3.5 3.5 3.5
1.5/13.5 <1 15 11 11 11
V
IL
Low Level Input
Voltage
4.5/0.5 <1 5 1.5 1.5 1.5
13.5/1.5 <1 15 4 4 4
I
OH
Output Drive
Current
0/5 2.5 <1 5 -1.36 -3.2 -1.15 -1.1
0/5 4.6 <1 5 -0.44 -1 -0.36 -0.36
0/10 9.5 <1 10 -1.1 -2.6 -0.9 -0.9
0/15 13.5 <1 15 -3.0 -6.8 -2.4 -2.4
I
OL
Output Sink
Current
0/5 0.4 <1 5 0.44 1 0.36 0.36
0/15 1.5 <1 15 3.0 6.8 2.4 2.4
Input Leakage
I
I
Current
I
3-State Output
OZ
Current
C
Input Capacitance
I
The Noi se Margin for both "1" and "0 " le vel is: 1V min. wi t h VDD=5V, 2V min. with VDD=10V, 2.5V min. with VDD=15V
0/18 Any Input 18
0/18 Any Input 18
Any Input 5 7.5 pF
-5
10
±
-4
10
±
-40 to 85°C -55 to 125°C
0.1
±
0.4
±
1
±
1
±
Unit
A
µ
V0/10 <1 10 9.95 9.95 9.95
V10/0 <1 10 0.05 0.05 0.05
V1/9 <1 10 7 7 7
V9/1 <1 10 3 3 3
mA
mA0/10 0.5 <1 10 1.1 2.6 0.9 0.9
1
±
12
±
A
µ
A
µ
4/9
Page 5
HCF4048B
DYNAMIC ELECTRICAL CHARACTERISTICS (T
= 25°C, CL = 50pF, RL = 200KΩ, tr = tf = 20 ns)
amb
Test Condition Value (*) Unit
Symbol Parameter
t
PHL tPLH
Propagation Delay Time
Inputs to Output and K
Output
Propagation Delay Time
to Output
K
b
a
to
(V)
V
DD
Min. Typ. Max.
5 300 600
15 120 240
5 225 450
ns10 150 300
ns10 85 170
15 5 5 110
Propagation Delay Time
to Output
K
c
5 140 280
ns10 50 100
15 40 80
Propagation Delay Time
EXPAND Input to Output
5 190 380
ns10 90 180
15 65 130
t
PHZ, tPLZ
t
PZH, tPZL
3 - State Propagation
Delay Time K
to Output
d
5
RL = 1K
Ω
80 160
ns10 35 70
15 25 50
t
TLH tTHL
Output Transition Time 5 100 200
ns10 50 100
15 40 80
3-State Output Capacitance 510pF
(*) Typical temperat ure coefficient for all VDD value is 0.3 %/°C.
TEST CIRCUIT
TEST SWITCH
, t
t
PLH
PHL
, t
t
PZL
PLZ
t
, t
PZH
PHZ
CL = 50pF or equivalent (includes jig and p robe capacitance)
R
= 200K
Ω
L
R
= Z
of pulse generator (typically 50Ω)
T
OUT
Open
V
DD
V
SS
5/9
Page 6
HCF4048B

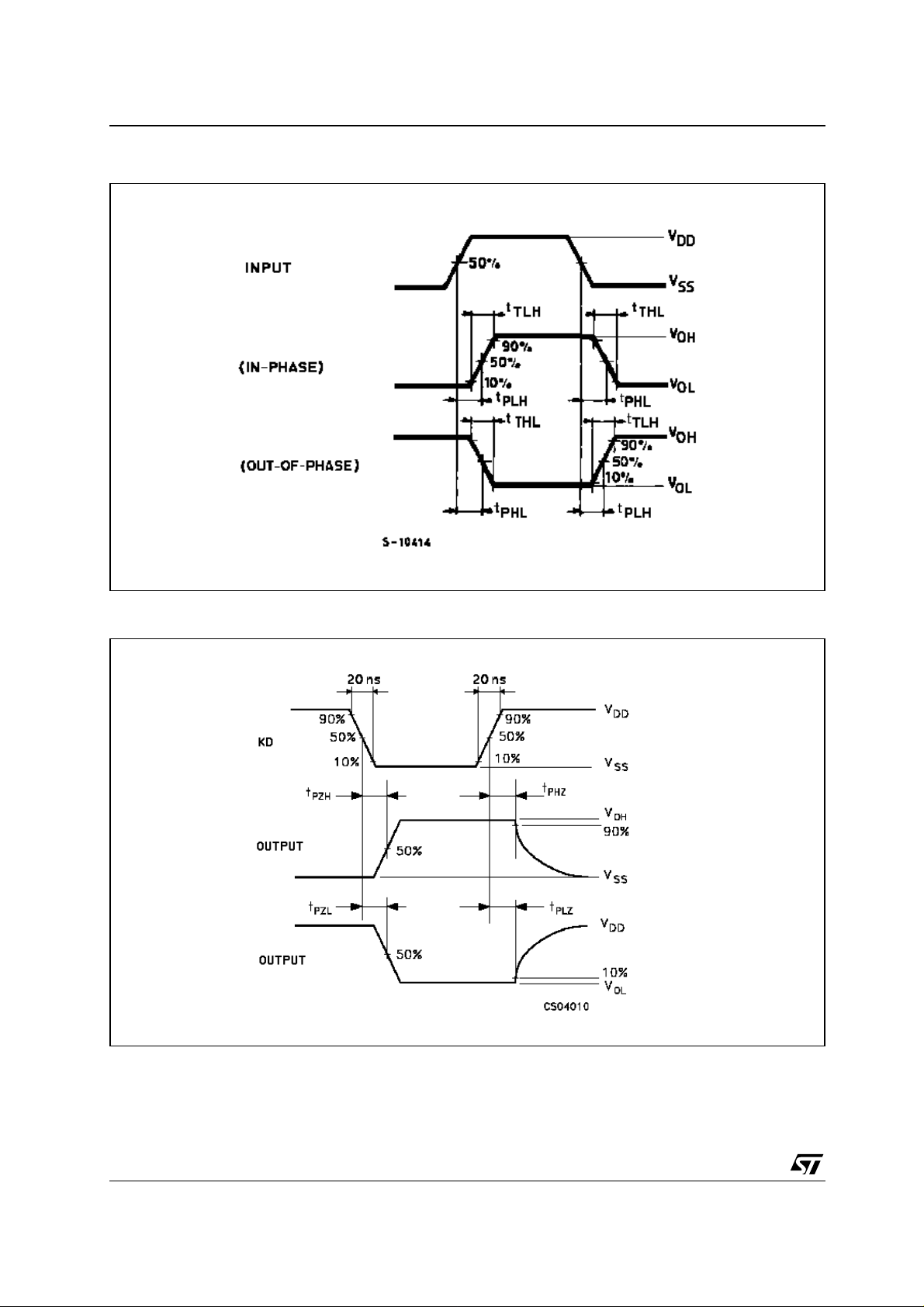

WAVEFORM 1 : PROPAGATION DELAY TIMES (f=1MHz; 50% duty cycle)
WAVEFORM 2 : OUTPUT ENABLE AND DISABLE TIME (f=1MHz; 50% duty cycle)
6/9
Page 7
HCF4048B
Plastic DIP-16 (0.25) MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
a1 0.51 0.020
B 0.77 1.65 0.030 0.065
b 0.5 0.020
b1 0.25 0.010
D 20 0.787
E 8.5 0.335
e 2.54 0.100
e3 17.78 0.700
F 7.1 0.280
I 5.1 0.201
L 3.3 0.130
Z 1.27 0.050
P001C
7/9
Page 8
HCF4048B
SO-16 MECHANICAL DATA
DIM.
A 1.75 0.068
a1 0.1 0.2 0.003 0.007
a2 1.65 0.064
b 0.35 0.46 0.013 0.018
b1 0.19 0.25 0.007 0.010
C 0.5 0.019
c1 45˚ (typ.)
D 9.8 10 0.385 0. 393
E 5.8 6.2 0.228 0.244
e 1.27 0.050
e3 8.89 0.350
F 3.8 4.0 0.149 0.157
G 4.6 5. 3 0.181 0.208
L 0.5 1.27 0.019 0. 050
M 0.62 0.024
S ˚ (max.)
MIN. TYP MAX. MIN. TYP. MAX.
mm. inch
8
8/9
PO13H
Page 9
HCF4048B
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsib ility f or the
consequences of use of such informatio n nor for any infringement of paten ts or o ther rig hts of t hird part ies which ma y result from
its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications
mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information
previousl y suppl ied. STM icroel ectronics produc ts are not auth orized for use as c ritica l compone nts in l ife s upport dev ices or
systems without express written approval of STMicroelectronics.
Australia - Brazil - Canada - China - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco
© The ST logo is a registered trademark of STMicroelectronics
© 2002 STMicroelectronics - Printed in Italy - All Rights Reserved
STMicroelectronics GROUP OF COMPANIES
Singapore - Spain - Sweden - Switzerland - United Kingdom - United States.
© http://www.st.com
9/9
