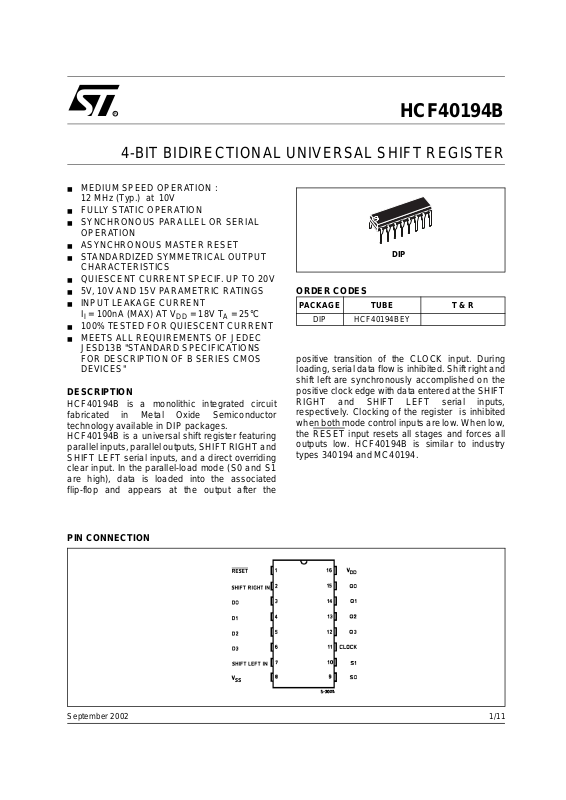

Page 1
HCF40194B
4-BIT BIDIRECTIONAL UNIVERSAL SHIFT REGISTER
■ MEDIUM SPEED OPERATION :
12 MHz (Typ.) at 10V
■ FULLY STATIC OPERATION
■ SYNCHRONOUS PARALLEL OR SERIAL
OPERATION
■ ASYNCHRONOUS MASTER RESET
■ STANDARDIZED SYMMETRICAL OUTPUT
CHARACTERISTICS
■ QUIESCENT CURRENT SPECIF. UP TO 20V
■
5V , 10V AND 15V PARAMETRIC RATINGS
■ INPUT LEAKAGE CURRENT
= 100nA (MAX) AT VDD = 18V TA = 25°C
I
I
■ 100% TESTED FOR QUIESCENT CURRENT
■ MEETS ALL REQUIREMENTS OF JEDEC
JESD13B "STANDARD S PECIFICATIONS
FOR DESCRIPTI ON OF B SERI ES CMOS
DEVICES"
DESCRIPTION
HCF40194B is a monolithic integrated circuit
fabricated in Metal Oxide Semiconductor
technology available in DIP packages.
HCF40194B is a universal shift register featuring
parallel inputs, parallel outputs, SHIFT RIGHT and
SHIFT LEFT seria l inputs, and a direct overridi ng
clear input. In the parallel-load mode (S0 and S 1
are high), data is loaded into the associated
flip-flop and appears at the output after the
DIP
ORDER CODES
PACKAGE TUBE T & R
DIP HCF40194BEY
positive transition of the CLOCK input. During
loading, serial data flow is inhibited. Shift right and
shift left are syn chronously accomplished on the
positive clock edge with data entered at the SHIFT
RIGHT and SHIFT LEFT serial inputs,
respectively. Clocking of the register is inhibited
when both mode control inputs are low. When low,
the RESET
input resets all stages and forces all
outputs low. HCF40194B is similar to industry
types 340194 and MC40194 .
PIN CONNECTION
1/11September 2002
Page 2
HCF40194B
IINPUT EQUIVALENT CIRCUIT PIN DESCRIPTION
PIN No SYMBOL NAME AND FUNCTION
1 RESET
3, 4, 5, 6 D0 to D3 Inputs
15, 14, 13,
12
2 Shift Right IN Shift Righ Input
7 Shift Left IN Shift Left Input
11 CLOCK Clock Input
9, 10 S0, S1 Input (High)
8
16
FUNCTIONAL DIAGRAM
Q0 to Q3 Outputs
V
SS
V
DD
Reset Input
Negative Supply Voltage
Positive Supply Voltage
TRUTH TABLE
CLOCK
X L L H NO CHANGE
XXXLRESET
X : Don’t Care
2/11
MODE SELECT
S0 S1
HLH
LHH
H H H PARALLEL LOAD
RESET ACTION
SHIFT RIGHT (Q0
toward Q3)
SHIFT LEFT (Q3
toward Q0)
Page 3
LOGIC DIAGRAM
HCF40194B
3/11
Page 4
HCF40194B
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
V
V
P
T
T
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied.
All voltage values ar e referred to V
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Value Unit
V
V
T
Supply Voltage
DD
DC Input Voltage -0.5 to VDD + 0.5
I
I
DC Input Current
I
Power Dissipation per Package 200 mW
D
-0.5 to +22 V
10 mA
±
Power Dissipation per Output Transistor 100 mW
Operating Temperature
op
Storage Temperature
stg
pin voltage.
SS
Supply Voltage
DD
Input Voltage 0 to V
I
Operating Temperature
op
-55 to +125 °C
-65 to +150 °C
3 to 20 V
DD
-55 to 125 °C
V
V
4/11
Page 5
DC SPECIFICATIONS
Test Condition Value
T
Symbol Parameter
I
Quiescent Current 0/5 5 0.04 5 150 150
L
V
(V)
V
I
(V)
|I
|
O
O
(µA)
V
DD
(V)
= 25°C
A
Min. Typ. Max. Min. Max. Min. Max.
0/10 10 0.04 10 300 300
0/15 15 0.04 20 600 600
0/20 20 0.08 100 3000 3000
V
High Level Output
OH
Voltage
0/5 <1 5 4.95 4.95 4.95
0/15 <1 15 14.95 14.95 14.95
Low Level Output
V
OL
Voltage
5/0 <1 5 0.05 0.05 0.05
15/0 <1 15 0.05 0.05 0.05
High Level Input
V
IH
Voltage
0.5/4.5 <1 5 3.5 3.5 3.5
1.5/13.5 <1 15 11 11 11
V
IL
Low Level Input
Voltage
4.5/0.5 <1 5 1.5 1.5 1.5
13.5/1.5 <1 15 4 4 4
I
OH
Output Drive
Current
0/5 2.5 <1 5 -1.36 -3.2 -1.1 -1.1
0/5 4.6 <1 5 -0.44 -1 -0.36 -0.36
0/10 9.5 <1 10 -1.1 -2.6 -0.9 -0.9
0/15 13.5 <1 15 -3.0 -6.8 -2.4 -2.4
I
OL
Output Sink
Current
0/5 0.4 <1 5 0.44 1 0.36 0.36
0/15 1.5 <1 15 3.0 6.8 2.4 2.4
Input Leakage
I
I
Current
C
Input Capacitance
I
The Noi se Margin for bot h " 1" and "0" level is: 1V min. with VDD=5V, 2V min. with VDD=10V, 2.5V min. with VDD=15V
0/18 Any Input 18
Any Input 5 7.5 pF
-5
10
±
-40 to 85°C -55 to 125°C
0.1
±
1
±
HCF40194B
Unit
A
µ
V0/10 <1 10 9.95 9.95 9.95
V10/0 <1 10 0.05 0.05 0.05
V1/9 <1 10 7 7 7
V9/1 <1 10 3 3 3
mA
mA0/10 0.5 <1 10 1.1 2.6 0.9 0.9
1
±
A
µ
5/11
Page 6
HCF40194B
DYNAMIC ELECTRICAL CHARACTERISTICS (T
Symbol Parameter
t
PHL tPLH
t
t
THL tTLH
t
setup
Propagation Delay Time
Clock to Q
PHZ
Transition Time 5 100 200
Setup Time D0, D3, SR,
SL to Clock
SO, S1 to Clock 5 200 400
t
Hold Time D0, D3, SR, SL
hold
to Clock
SO, S1 to Clock 5 -170 0
Clock Pulse Width 5 90 180
t
W
Clock Input Frequency 5 3 6
f
CL
Clock Input Rise or Fall
, t
t
r
f
Time
Reset Pulse Width 5 150 300
t
W
t
PRHL
Propagation Delay Reset 5 230 460
(V)
V
DD
5 220 440
15 70 140
54590
15 20 40
15 40 80
580100
15 20 50
15 65 130
5-650
15 -15 0
15 -55 0
15 25 50
15 8 15
51000
15 100
15 70 140
15 65 130
= 25°C, CL = 50pF, RL = 200KΩ, tr = tf = 20 ns)
amb
Test Condition Value (*) Unit
Min. Typ. Max.
ns10 100 200
ns10 25 50
ns10 50 100
ns10 35 70
ns10 110 220
ns10 -25 0
ns10 -95 0
ns10 40 180
MHz10 6 12
µ
ns10 100 200
ns10 90 180
s10 100
6/11
Page 7

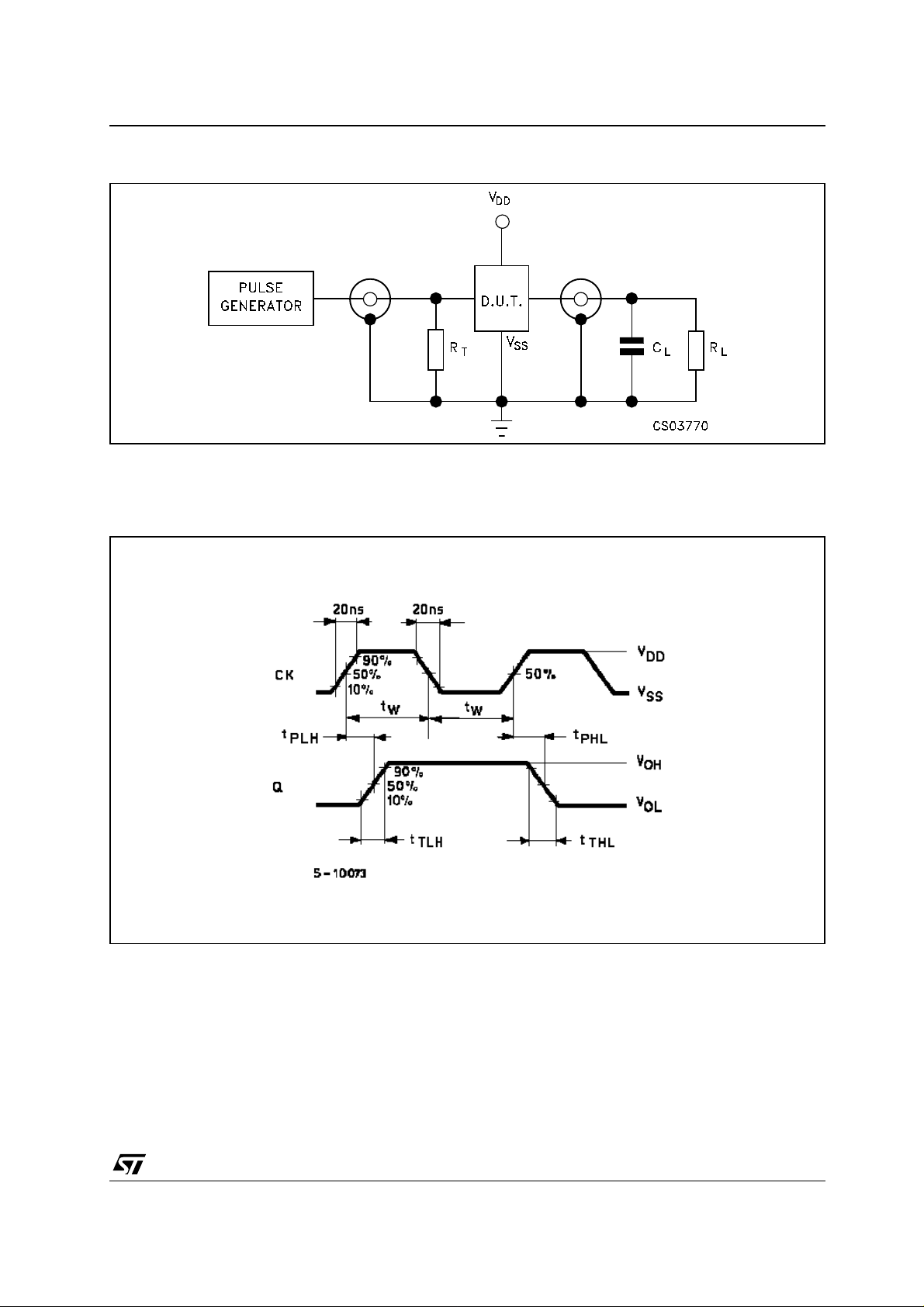

TEST CIRCUIT
CL = 50pF or equivalent (includes jig and probe capacitanc e)
R
= 200K
Ω
L
R
= Z
of pulse generator (typically 50Ω)
T
OUT
WAVEFORM 1 : CK TO Q PROPAGATION DELAY TIMES (f= 1M Hz; 5 0% duty cycl e )
HCF40194B
7/11
Page 8
HCF40194B

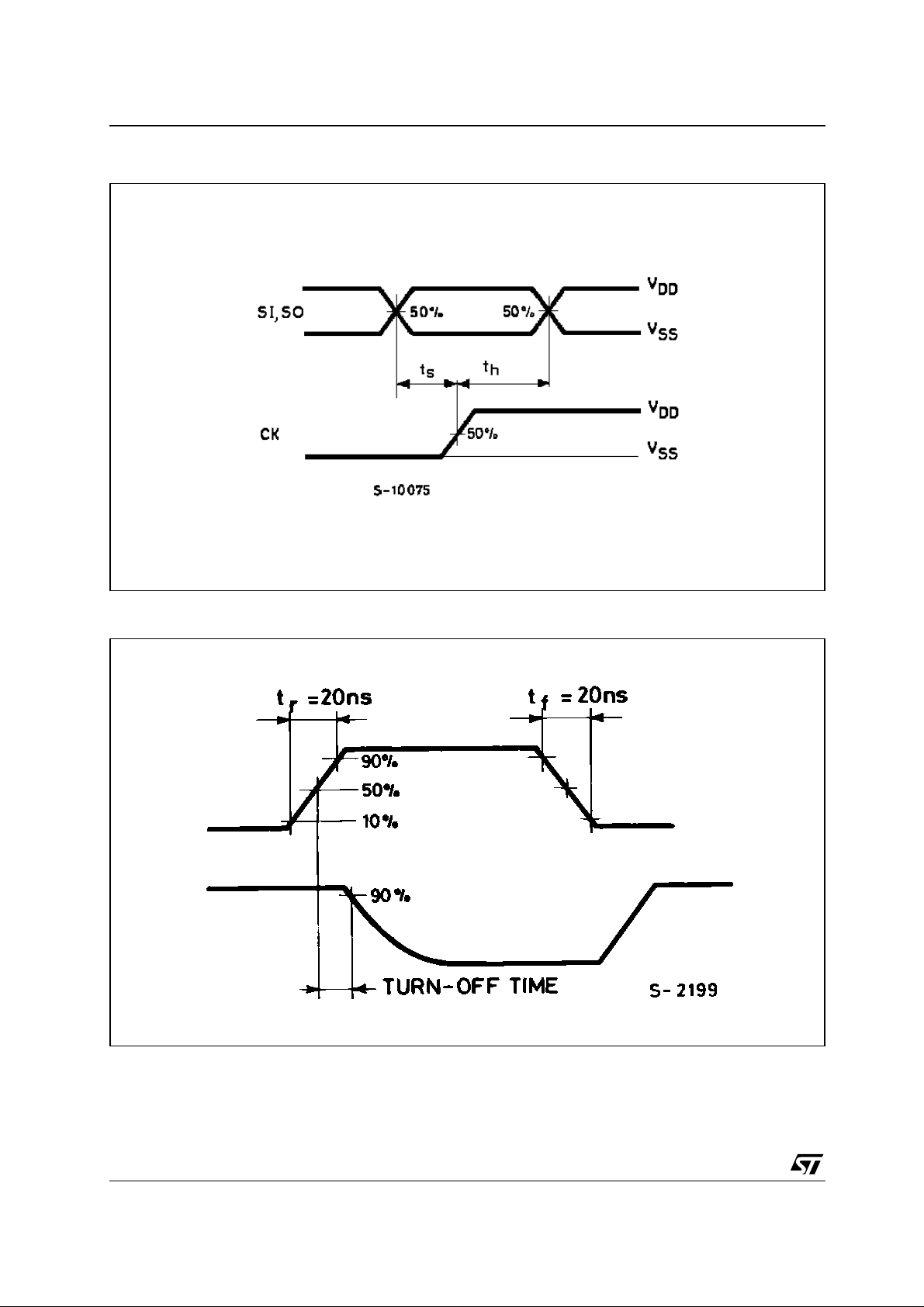

WAVEFORM 2 : SI, SO SETUP AND HOLD TIMES (f=1MHz; 50% duty cycle)
WAVEFORM 3 : PROPAGATION DELAY TIME (f=1MHz; 50% duty cycle)
8/11
Page 9
HCF40194B

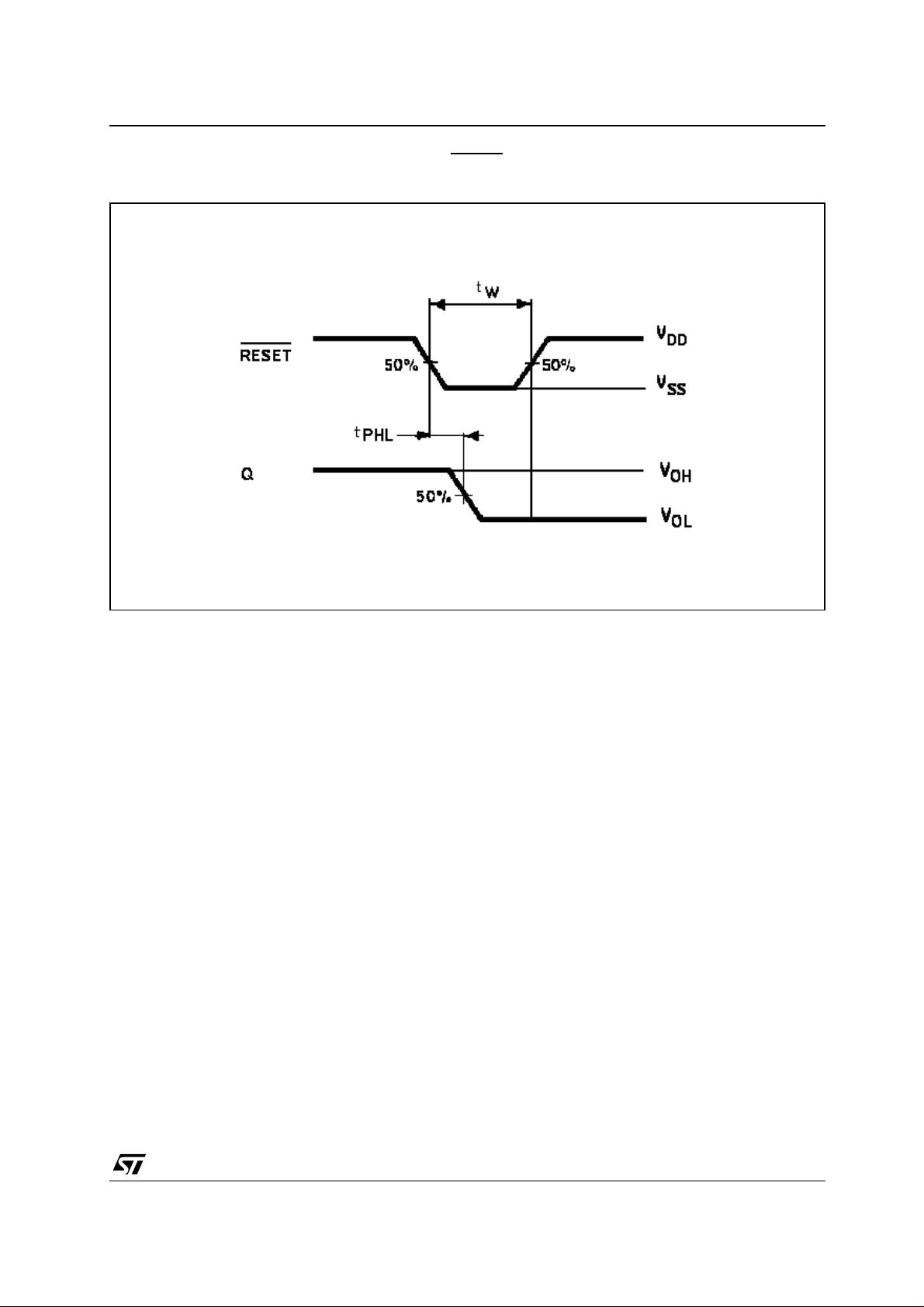

WAVEFORM 4 : PROPAGATION DELAY TIME, RESET MINIMUM PULSE WI DTH (f=1MHz; 50% duty
cycle)
9/11
Page 10
HCF40194B
Plastic DIP-16 (0.25) MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
a1 0.51 0.020
B 0.77 1.65 0.030 0.065
b 0.5 0.020
b1 0.25 0.010
D 20 0.787
E 8.5 0.335
e 2.54 0.100
e3 17.78 0.700
F 7.1 0.280
I 5.1 0.201
L 3.3 0.130
Z 1.27 0.050
10/11
P001C
Page 11
HCF40194B
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility f or the
consequences of use of such informatio n nor for any infringement of paten ts or o ther rig hts of t hird part ies which ma y result from
its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications
mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information
previousl y suppl ied. STM icroel ectronics produc ts are not auth orized for use as c ritica l compone nts in l ife s upport dev ices or
systems without express written approval of STMicroelectronics.
Australia - Brazil - Canada - China - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco
© The ST logo is a registered trademark of STMicroelectronics
© 2002 STMicroelectronics - Printed in Italy - All Rights Reserved
STMicroelectronics GROUP OF COMPANIES
Singapore - Spain - Sweden - Switzerland - United Kingdom - United States.
© http://www.st.com
11/11
