Page 1

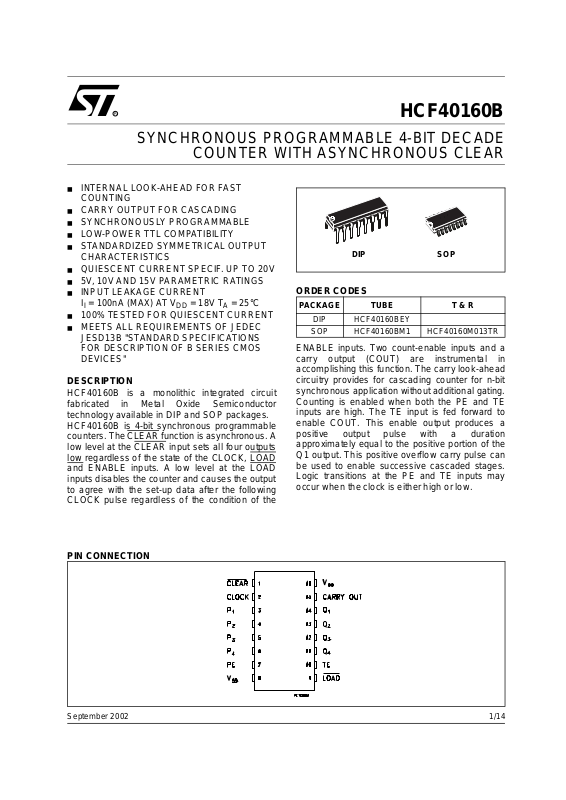

HCF40160B

SYNCHRONOUS PROGRAMMABLE 4-BIT DECADE

COUNTER WITH ASYNCHRONOUS CLEAR

■ INTERNAL LOOK-AHEAD FOR FAST

COUNTING

■ CARRY OUTPUT FOR CASCADING

■ SYNCHRONOUSLY PROGRAMMABLE

■ LOW-POWER TTL COMPATIBILITY

■ STANDARDIZED SYMMETRICAL OUTPUT

CHARACTERISTICS

■ QUIESCENT CURRENT SPECIF . UP TO 20V

■ 5V , 10V AND 15V PARAMETRIC RAT INGS

■ INPUT LEAKAGE CURRENT

= 100nA (MAX) AT VDD = 18V TA = 25°C

■ 100% TESTED FOR QUIESCENT CURRENT

■ MEETS ALL REQUIREMENTS OF JEDEC

JESD13B "STANDARD SPECIFICATIONS FOR DESCRIPTI ON OF B SERI ES CMOS DEVICES"

DESCRIPTION

HCF40160B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. HCF40160B is 4-bit synchronous programmable counters. The CLEAR low level at the CLEAR

function is asynchronous. A

input sets all four ou tputs low regardless of the st ate of the CLOCK , LOAD and ENABLE inputs. A low level at the LOAD inputs disables the counter and causes the output to agree with the set-up data after the following CLOCK pulse regardless of the condition of the

DIP SOP

ORDER CODES

PACKAGE TUBE T & R

DIP HCF40160BEY

SOP HCF40160BM1 HCF40160M013TR

ENABLE inputs. Two count-enable inputs and a carry output (COUT) are instrumental in accomplishing this function. The carry look-ahead circuitry provides for cascading counter for n-bit synchronous application without additional gating. Counting is enabled when both the PE and TE inputs are high. The TE input is fed forward to enable COUT. This enable output produces a positive output pulse with a duration approximately equa l to the positive port ion of the Q1 output. This positive ove rflow carry pulse can be used to enable suc cessive cascaded stages. Logic transitions at the PE and TE inputs may occur when the clock is either high or low.

PIN CONNECTION

1/14September 2002

Page 2

HCF40160B

IINPUT EQUIVALENT CIRCUIT PIN DESCRIPTION

PIN No SYMBOL NAME AND FUNCTION

1 CLEAR

2 CLOCK

3, 4, 5, 6 P1 to P4 Data Inputs

7 PE Count Enable Input

10 TE Count Enable Carry Input

9LOAD

14, 13, 12,

11 15 CARRY OUT Terminal Count Output

Q1 to Q4 Flip Flop Outputs

Asynchronous Master Reset

Clock Input (LOW to HIGH, Edge-trigge red)

Parallel Enable Input

Negative Supply Voltage Positive Supply Voltage

LOGIC DIAGRAM

2/14

Page 3

TRUTH TABLE

CLOCK CLR LOAD PE TE OPERATION

H L X X PRESET HHLXNC HHXLNC HHHHCOUNT

X L X X X RE SET

(X) : Don’t Care NC : No Change

TIMING DIAGRAM

HCF40160B

3/14

Page 4

HCF40160B

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied. All voltage values are referred to V

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Value Unit

Supply Voltage

DC Input Voltage -0.5 to VDD + 0.5

DC Input Current

Power Dissipation per Package 200 mW

-0.5 to +22 V

10 mA

Power Dissipation per Output Transistor 100 mW Operating Temperature

Storage Temperature

stg

pin voltage.

Supply Voltage

Input Voltage 0 to V

Operating Temperature

-55 to +125 °C

-65 to +150 °C

3 to 20 V

-55 to 125 °C

4/14

Page 5

DC SPECIFICATIONS

Test Condition Value

Symbol Parameter

Quiescent Current 0/5 5 0.04 5 150 150

(V)

(µA)

(V)

= 25°C

Min. Typ. Max. Min. Max. Min. Max.

0/10 10 0.04 10 300 300 0/15 15 0.04 20 600 600 0/20 20 0.08 100 3000 3000

High Level Output

Voltage

0/5 <1 5 4.95 4.95 4.95

0/15 <1 15 14.95 14.95 14.95

Low Level Output

Voltage

5/0 <1 5 0.05 0.05 0.05

15/0 <1 15 0.05 0.05 0.05

High Level Input

Voltage

0.5/4.5 <1 5 3.5 3.5 3.5

1.5/13.5 <1 15 11 11 11

Low Level Input Voltage

4.5/0.5 <1 5 1.5 1.5 1.5

13.5/1.5 <1 15 4 4 4

Output Drive Current

0/5 2.5 <1 5 -1.36 -3.2 -1.1 -1.1

0/5 4.6 <1 5 -0.44 -1 -0.36 -0.36 0/10 9.5 <1 10 -1.1 -2.6 -0.9 -0.9 0/15 13.5 <1 15 -3.0 -6.8 -2.4 -2.4

Output Sink Current

0/5 0.4 <1 5 0.44 1 0.36 0.36

0/15 1.5 <1 15 3.0 6.8 2.4 2.4

Input Leakage

Current

Input Capacitance

The Noi se Margin fo r bot h " 1" and "0" le vel is: 1V min. wi th VDD=5V, 2V min. with VDD=10V, 2.5V min. with VDD=15V

0/18 Any Input 18

Any Input 5 7.5 pF

-5

-40 to 85°C -55 to 125°C

0.1

HCF40160B

Unit

V0/10 <1 10 9.95 9.95 9.95

V10/0 <1 10 0.05 0.05 0.05

V1/9 <1 10 7 7 7

V9/1 <1 10 3 3 3

mA0/10 0.5 <1 10 1.1 2.6 0.9 0.9

5/14

Page 6

HCF40160B

DYNAMIC ELECTRICAL CHARACTERISTICS (T

Symbol Parameter

PLH tPHL

setup

Propagation Delay Time Clock to Q

Propagation Delay Time Clock to C

OUT

Propagation Delay Time TE to C

OUT

Setup Time Data to Clock

setup

Setup Time Load

to Clock

Setup Time PE or TE to Clock

THL tTLH

(*) Typical temperat ure coeffici ent for all VDD value is 0.3 %/°C.

Hold Time 5 0

hold

Transition Time 5 10 0 200

Clock Input Pulse Width 5 170 85

Maximum Clock Input

Frequency

Clock Input Rise or Fall

r tf

Time

Proagation Delay Time

PHL

to Q

Clear

Clear Input Pulse Width Low Level

(V)

5 200 400

15 60 120

5 225 450

15 70 140

5 125 250

15 40 80

5 240 120

15 60 30

5 240 120

15 60 30

5 340 170

15 100 50

15 0

15 40 80

15 50 25

523

15 8 12

5200

15 15

5 250 500

15 80 160

5 170 85

15 50 25

= 25°C, CL = 50pF, RL = 200KΩ, tr = tf = 20 ns)

amb

Test Condition Value (*) Unit

Min. Typ. Max.

ns10 80 160

ns10 95 190

ns10 55 110

ns10 90 45

ns10 140 70

ns10 0

ns10 50 100

ns10 70 35

MHz10 5.5 8.5

ns10 70

ns10 110 220

ns10 70 35

6/14

Page 7

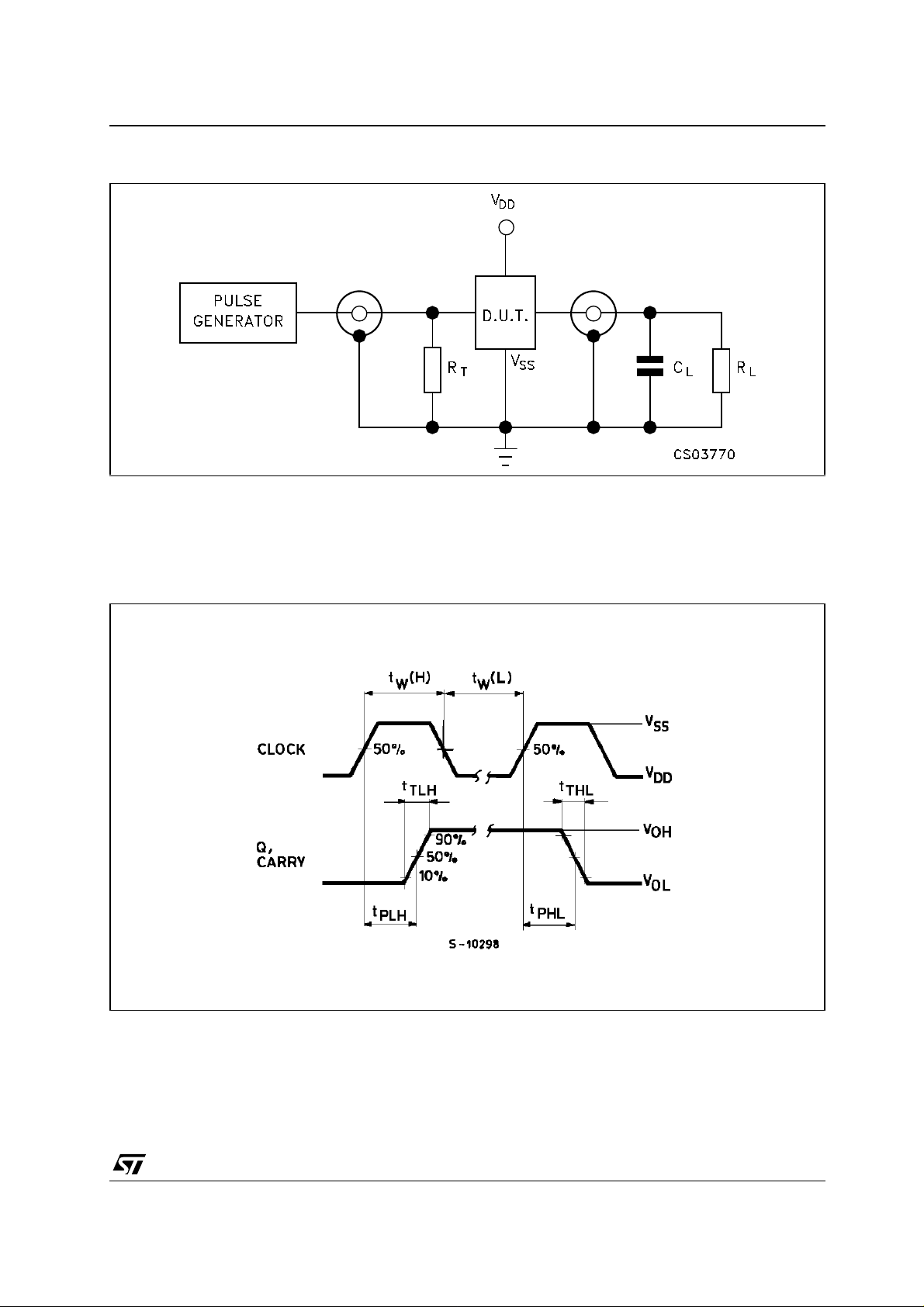

TEST CIRCUIT

CL = 50pF or equivalent (incl udes jig and p robe capacit ance)

= 200K

R R

Ω

= Z

of pulse generator (typically 50Ω)

OUT

HCF40160B

WAVEFORM 1 : PROPAGATION DELAY TIMES, MINIMUM PULSE WIDTH (CLOCK),(COUNT MODE)

(f=1MHz; 50% duty cycle)

7/14

Page 8

HCF40160B

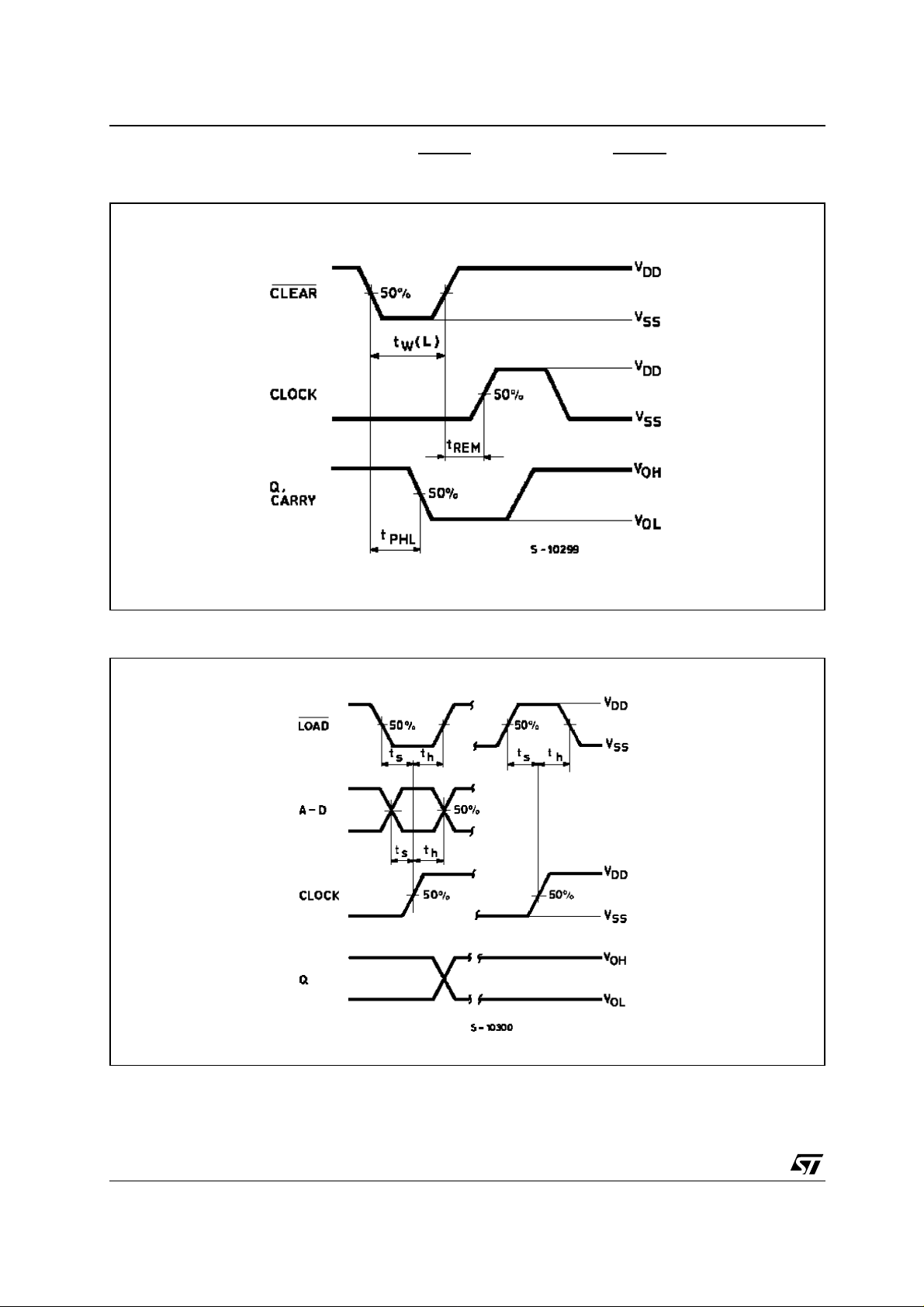

WAVEFORM 2 : MINIMUM PULSE WIDTH (CLEAR), REMO VA L TIME (C LEAR to CLOCK) (PRESE T MODE) (f=1MHz; 50% duty cycle)

WAVEFORM 3 : SETUP AND HOLD TIMES (CLEAR MODE) (f=1MHz; 50% duty cycle)

8/14

Page 9

HCF40160B

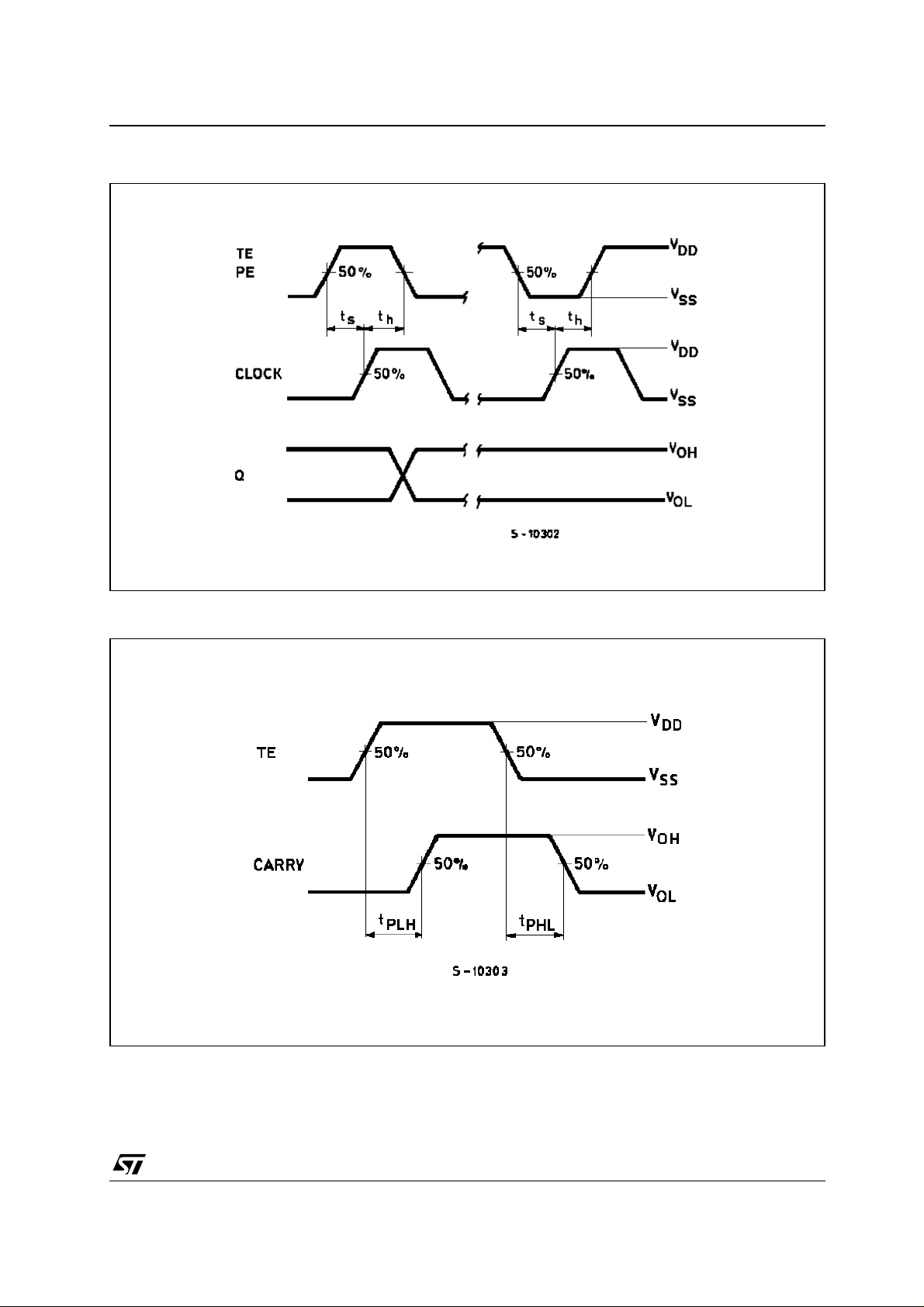

WAVEFORM 4 : SETUP AND HOLD TIMES (COUNTENABLE MODE) (f=1MHz; 50% duty cycle)

WAVEFORM 5 : PROPAGATION DELAY TIMES (CASCADE MODE) (f=1MHz; 50% duty cycle)

9/14

Page 10

HCF40160B

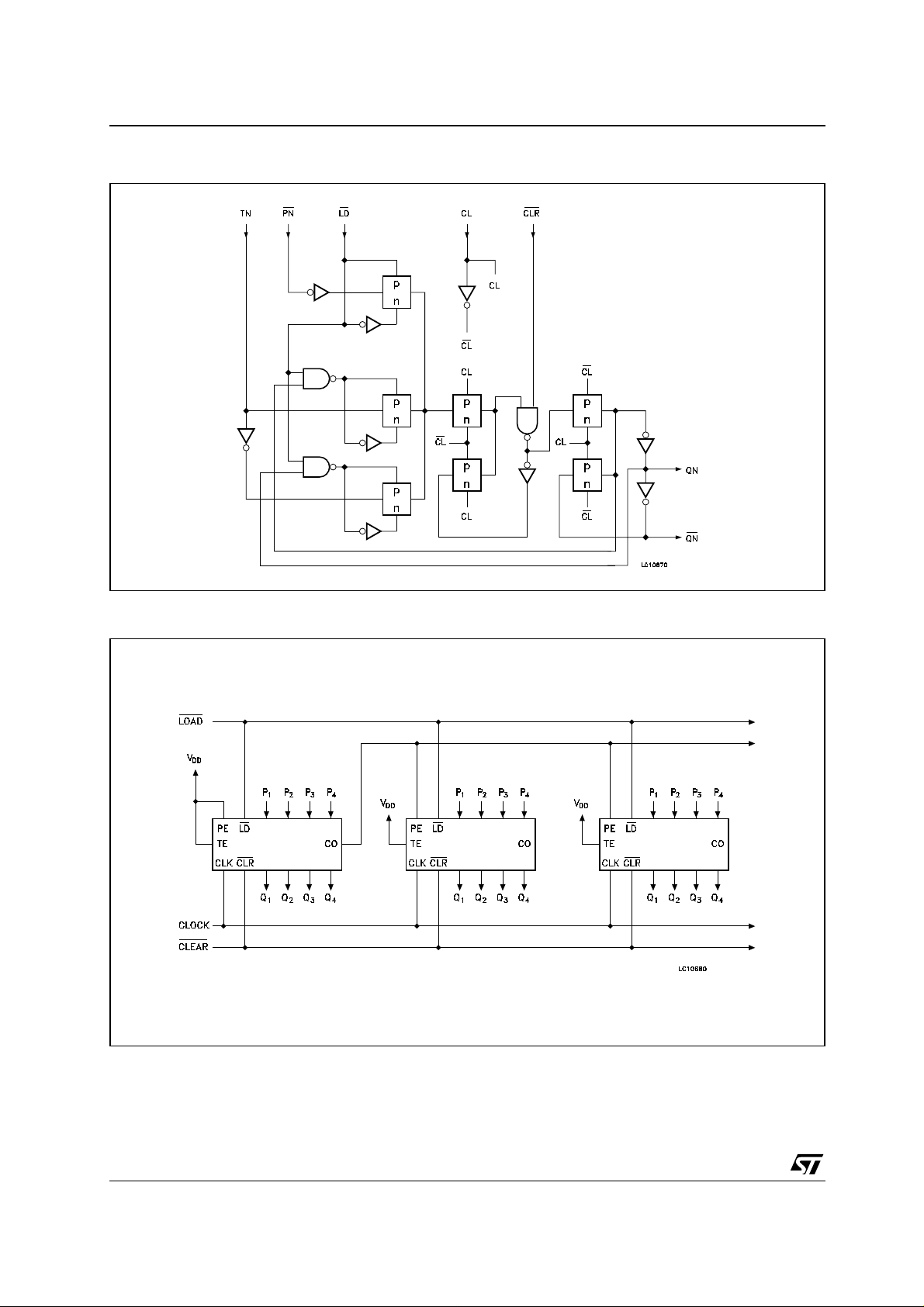

TYPICAL APPLICATION: DETAIL OF FLIP-FLOPS (Asynchronous Clear)

TYPICAL APPLICATION: CASCADING CO UNTER PACKAGES IN THE PARALLE L-CLOCKED MODE

10/14

Page 11

HCF40160B

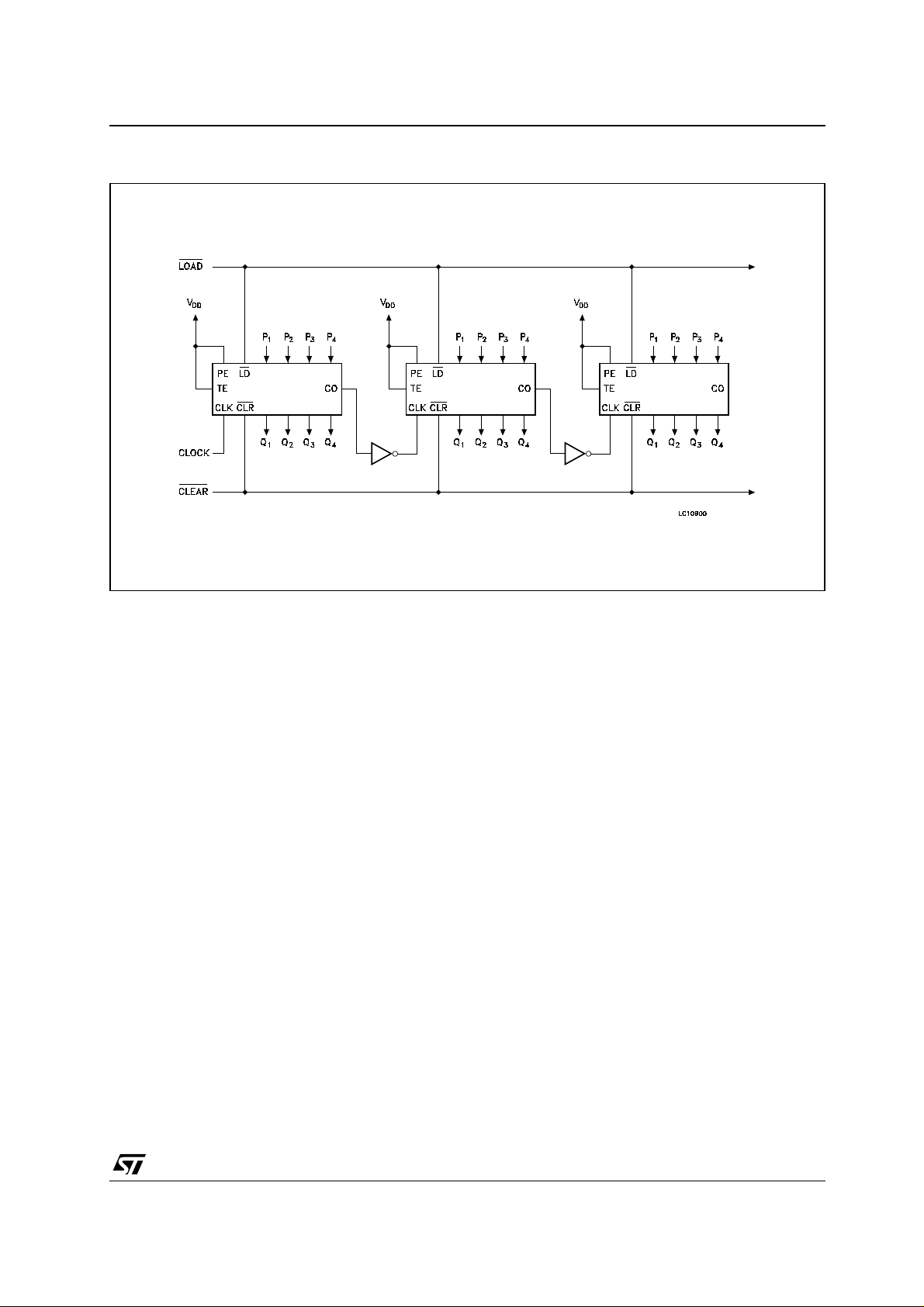

TYPICAL APPLICATION: CASCADING COUNTER PACKAGES IN THE RIPPLE-CLOCKED MODE

11/14

Page 12

HCF40160B

Plastic DIP-16 (0.25) MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

a1 0.51 0.020

B 0.77 1.65 0.030 0.065 b 0.5 0.020

b1 0.25 0.010

D 20 0.787 E 8.5 0.335 e 2.54 0.100

e3 17.78 0.700

F 7.1 0.280

I 5.1 0.201 L 3.3 0.130 Z 1.27 0.050

12/14

P001C

Page 13

SO-16 MECHANICAL DATA

HCF40160B

DIM.

A 1.75 0.068

a1 0.1 0.2 0.003 0.007 a2 1.65 0.064

b 0.35 0.46 0.013 0.018

b1 0.19 0.25 0.007 0.010

C 0.5 0.019

c1 45˚ (typ.)

D 9.8 10 0. 385 0. 393 E 5.8 6.2 0.228 0.244 e 1.27 0.050

e3 8.89 0.350

F 3.8 4.0 0.149 0.157 G 4.6 5.3 0.181 0.208 L 0.5 1.27 0.019 0. 050

M 0.62 0.024

S ˚ (max.)

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

PO13H

13/14

Page 14

HCF40160B

Information furnished is believed to be accurate and reliable. However, STMicroelect ronics assumes no responsibility for t he consequences of use of such informatio n nor for any infringement of paten ts or o ther rig hts of t hird part ies which ma y result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previousl y suppl ied. STM icroel ectronics produc ts are not auth orized for use as c ritica l compone nts in l ife s upport dev ices or systems without express written approval of STMicroelectronics.
