Page 1
2.7
10.5
E
D
C
A
XXX
B
4.0
UNIT : mm/inch
A = 10.00 / 0.394 Max.
B = 8.20 / 0.323 Max.
C = 6.00 / 0.236 Max.
D = 2.20 / 0.087
E = 2.00 / 0.079
F = 4.60 / 0.181

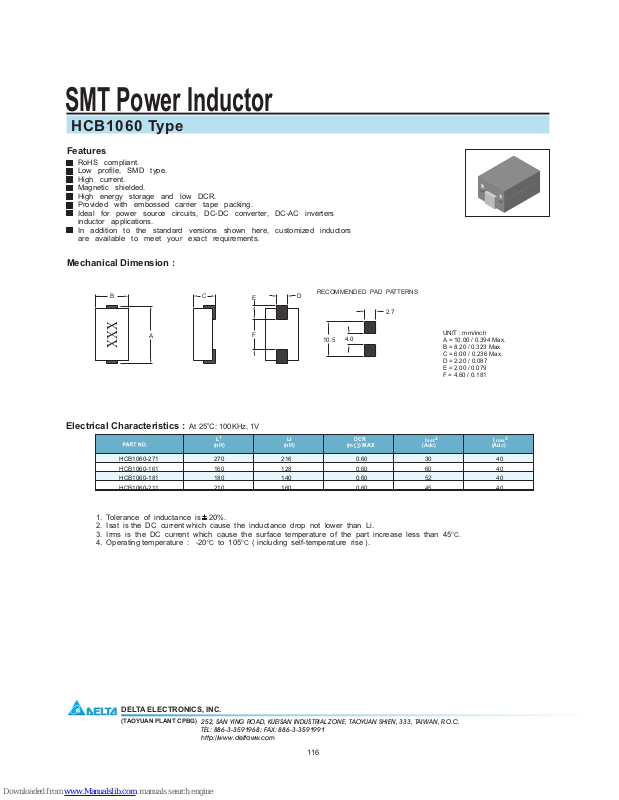

Features
SMT Power Inductor
HCB1060 Type
Mechanical Dimension :
DELTA ELECTRONICS, INC.
(TAOYUAN PLANT CPBG)
252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com
Electrical Characteristics :
At 25 : 100KHz, 1V
o
C
116
1. Tolerance of inductance is 20%.
2. Isat is the DC current which cause the inductance drop not lower than Li.
O
3. Irms is the DC current which cause the surface temperature of the part increase less than 45 C.
OO
4. Operating temperature : -20 C to 105 C ( including self-temperature rise ).
RECOMMENDED PAD PATTERNS
rms
L
(nH)
Li
(nH)
I
(Adc)
(m ) MAX
DCR
sat
I
(Adc)
1
3
2
F
RoHS compliant.
Low profile, SMD type.
High current.
Magnetic shielded.
High energy storage and low DCR.
Provided with embossed carrier tape packing.
Ideal for power source circuits, DC-DC converter, DC-AC inverters
inductor applications.
In addition to the standard versions shown here, customized inductors
are available to meet your exact requirements.
HCB1060-271 270 216 0.60 30 40
HCB1060-161 160 128 0.60 60 40
HCB1060-181 180 140 0.60 52 40
HCB1060-211 210 160 0.60 45 40
