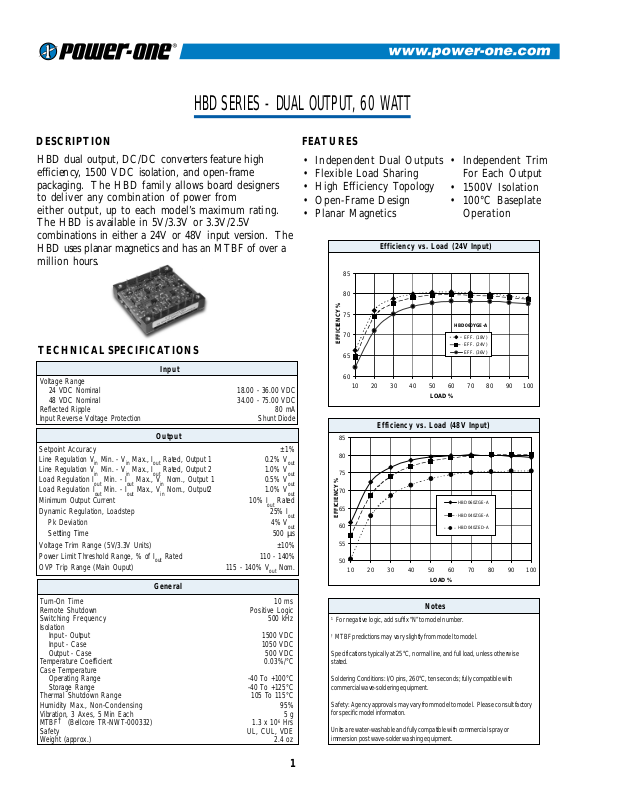

HBD SERIES - DUAL OUTPUT, 60 WATT

●

www.ipdconverters.com

DESCRIPTION

HBD dual output, DC/DC converters feature high efficiency, 1500 VDC isolation, and open-frame packaging. The HBD family allows board designers to deliver any combination of power from either output, up to each model’s maximum rating. The HBD is available in 5V/3.3V or 3.3V/2.5V combinations in either a 24V or 48V input version. The HBD uses planar magnetics and has an MTBF of over a million hours.

TECHNICAL SPECIFICA TIONS

Input

Voltage Range

24 VDC Nominal 18.00 - 36.00 VDC

48 VDC Nominal 34.00 - 75.00 VDC Reflected Ripple 80 mA Input Reverse Voltage Protection Shunt Diode

Output

Setpoint Accuracy ±1 % Line Regulation Vin Min. - Vin Max., I Line Regulation Vin Min. - Vin Max., I Load Regulation I Load Regulation I Minimum Output Current 10% I

Min. - I

out

Min. - I

out

out out

Dynamic Regulation, Loadstep 25% I

Pk Deviation 4% V

Settling Time 500 µs Voltage Trim Range (5V/3.3V Units) ±10% Power Limit Threshold Range, % of I OVP Trip Range (Main Ouput) 115 - 140% V

Turn-On Time 10 ms Remote Shutdown Positive Logic Switching Frequency 500 kHz Isolation

Input - Output 1500 VDC

Input - Case 1050 VDC

Output - Case 500 VDC Temperature Coefficient 0.03%/°C Case Temperature

Operating Range -40 To +100°C

Storage Range -40 To +125°C Thermal Shutdown Range 105 To 115°C Humidity Max., Non-Condensing 95% Vibration, 3 Axes, 5 Min Each 5 g MTBF† (Bellcore TR-NWT-000332) 1.3 x 106 Hrs Safety UL, CUL, VDE Weight (approx.) 2.4 oz

Rated, Output 1 0.2% V

out

Rated, Output 2 1.0% V

out

Max., Vin Nom., Output 1 0.5% V Max., Vin Nom., Output2 1.0% V

Rated

out

Rated 110 - 140%

out

Nom.

out

General

FEATURES

• Independent Dual Outputs

• Flexible Load Sharing

• High Efficiency Topology

• Open-Frame Design

• Planar Magnetics

Efficiency vs. Load (24V Input)

EFFICIENCY

10 20 30 40 50 60 70 80 90 100

Efficiency vs. Load (48V Input)

out out out out

out out

EFFICIENCY

10 20 30 40 50 60 70 80 90 100

For negative logic, add suffix “N” to model number.

†

MTBF predictions may vary slightly from model to model.

Specifications typically at 25°C, normal line, and full load, unless otherwise stated.

Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with commercial wave-soldering equipment.

Safety: Agency approvals may vary from model to model. Please consult factory for specific model information.

Units are water-washable and fully compatible with commercial spray or immersion post wave-solder washing equipment.

• Independent Trim For Each Output

• 1500V Isolation

• 100°C Baseplate Operation

HBD060YGE-A

EFF. (18V) EFF. (24V) EFF. (36V)

LOAD %

HBD060ZGE-A

HBD040ZGE-A

HBD040ZED-A

LOAD %

Notes

Page 2

HBD SERIES - DUAL OUTPUT, 60 WATT

MODELS - (See the last page of this file for options.)

Vin

(Volts)

24 24 24 48 48 48

Vin Range

(Volts)

18 - 36 18 - 36 18 - 36 34 - 75 34 - 75 34 - 75

Iin Max.*

(Amps)

2.89

4.54

3.02

1.51

1.62

2.27

Vout

(Volts)

3.3/ 2.5

5.0/ 3.3

3.3/ 2.5

5.0/ 3.3

Iout Rated

(Amps)

12/15 12/15

8/12

8/12 12/15 12/15

Denotes advanced product release. Consult factory for product availability. * Maximum inp ut current at mi nimum input vo ltage , max imum rated outp ut po wer. ** At nominal Vin, rated output.

Note: Current can be drawn from either output to its maximum value, or from both outputs to a combined total of 15A.

MECHANICAL DRAWING

2.28

MOUNTING INSERTS M3X.5 THROUGH 4PL

1.700"(43.2mm)

1.400"(35.6mm)

1.000"(25.4mm)

0.400"(10.2mm)

-0.300"(-7.6mm)

-0.50"(-12.7mm)

-0.19"

(-4.8mm)

(57.9mm)

BOTTOM VIEW

1.900"

(48.3mm)

1.500"(38.1mm)

1.200"(30.5mm)

0.900"(22.9mm)

0.500"(12.7mm)

0.200"(5.1mm)

-0.100"(-2.5mm)

Ripple & Noise

Pk-Pk (mV)

75/75 100/7 5 100/7 5 100/7 5

75/75 100/7 5

2.40

(61.0mm)

DIA 0.040"

(1.0mm)

.025" REF.

(0.6mm)

Effici ency

Typ. **

75% 78% 80% 80% 75% 79%

(12.7mm)

0.18"

(4.6mm)

0.50"

Model

HBD040YED-A HBD060YGE-A HBD040YGE-A HBD040ZGE-A HBD040ZED-A HBD060ZGE-A

Thermal Impedance

Natural Convection 6.6 °C/W 100 LFM 5.7 °C/W 200 LFM 4.2 °C/W 300 LFM 3.1 °C/W 400 LFM 2.6 °C/W

Note: Thermal impedance data is dependent on many environmental factors. The exact thermal performance should be validated for specific application.

Pin Function

1-V 2 Case

3On/Off 4+V 5+V 6- V 7 Trim 2 8+V 9-V 10 Trim 1

in out 2

out 2

out 1

Tolerances

Inches: (Millimeters) .XX ± 0.020 .X ± 0.5 .XXX ± 0.010 .XX ± 0.25

Pin: ± 0.002 ± 0.05

(Dimensions as listed unless otherwise specified.)

Page 3

OPTIONS

When ordering equipment options, use the following suffix information. Select the option(s) that you prefer and add them to the model number. Example ordering options are located below the options table.

OPTION SUFFIX APPLICABLE SERIES REMARKS

Negative Logic N HAS, HBD, HBS, HES, LES, QBS,

Lucent Compatible Trim T HAS, HBD, HBS, HES, QBS, QES Terminal Strip TS XWS, XWD, XWT Trim 1 IAS, LES Enable 2 I A D, IAS, LES, SMS Trim and Enable 3 I AS, LES Current Share 4 S MS Headerless Y Encapsulated EWS, IWS, OWS

PIN LENGTH AND HEATSINK OPTIONS

0.110” (2.8mm) Pin Length 8 All Units (Except SMS)

0.150” (3.8mm) Pin Length 9 All Units (Except SMS)

0.24” (6.1mm) Horizontal Heatsink 1H All Units (Except DIP, SIP, and SM

0.24” (6.1mm) Vertical Heatsink 1V All Units (Except DIP, SIP, and SM

0.45” (11.4mm) Horizontal Heatsink

0.45” (11.4mm) Vertical Heatsink 2V All Units (Except DIP, SIP, and SM

0.95” (24.1mm) Horizontal Heatsink

0.95” (24.1mm) Vertical Heatsink 3V All Units (Except DIP, SIP, and SM

2H All Units (Except DIP, SIP, and SM

3H All Units (Except DIP, SIP, and SM

QES, TES, TQD

Packages)

TTL “Low” Turns Module ON TTL “High” Turns Module OFF

Standard Pin Length is 0.180” (4.6mm)

Includes Thermal Pad

Example Options:HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent compatible trim, and

0.95” vertical heatsink. LES015YJ-3N = LES015YJ with optional trim and enable, negative logic. QBS066ZG-AT8 = QBS066ZG-A with Lucent compatible trim and 0.110” pin length.

NUCLEAR AND MEDICAL APPLICATIONS Power-One products are not authorized for use as critical components in life support systems,

equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.

TECHNICAL REVISIONS The appearance of products, including safety agency certifications pictured on labels, may change depending on the

date manufactured. Specifications are subject to change without notice.
