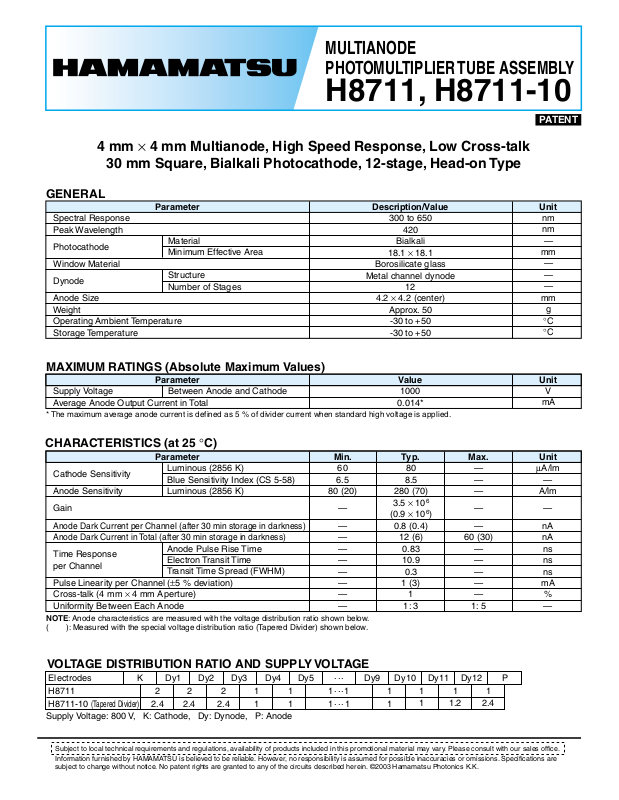

Datasheet H8711-10, H8711 Datasheet (HAMAMATSU)

4 mm × 4 mm Multianode, High Speed Response, Low Cross-talk

30 mm Square, Bialkali Photocathode, 12-stage, Head-on Type

GENERAL

Parameter Description/Value Unit

Spectral Response
Peak Wavelength

Photocathode

Window Material

Dynode

Anode Size
Weight
Operating Ambient Temperature
Storage Temperature

Material
Minimum Effective Area

Structure
Number of Stages

MULTIANODE
PHOTOMULTIPLIER TUBE ASSEMBLY

H8711, H8711-10

PATENT

300 to 650

420

Bialkali

18.1 × 18.1

Borosilicate glass

Metal channel dynode

12

4.2 × 4.2 (center)
Approx. 50

-30 to +50

-30 to +50

nm
nm

—

mm

—
—
—

mm

g

°C
°C

MAXIMUM RATINGS (Absolute Maximum Values)

Parameter Value Unit

Supply Voltage
Average Anode Output Current in Total

* The maximum average anode current is defined as 5 % of divider current when standard high voltage is applied.

Between Anode and Cathode

1000

0.014*

CHARACTERISTICS (at 25 °C)

Parameter Min. Unit

Cathode Sensitivity

Anode Sensitivity

Gain

Anode Dark Current per Channel (after 30 min storage in darkness)
Anode Dark Current in Total (after 30 min storage in darkness)

Time Response
per Channel

Pulse Linearity per Channel (±5 % deviation)
Cross-talk (4 mm × 4 mm Aperture)
Uniformity Between Each Anode

NOTE: Anode characteristics are measured with the voltage distribution ratio shown below.
( ): Measured with the special voltage distribution ratio (Tapered Divider) shown below.

Luminous (2856 K)
Blue Sensitivity Index (CS 5-58)
Luminous (2856 K)

Anode Pulse Rise Time
Electron Transit Time
Transit Time Spread (FWHM)

60

6.5

80 (20)

—

—
—
—
—
—
—
—
—

Typ.

80

8.5

280 (70)

3.5 × 10

(0.9 × 106)

0.8 (0.4)
12 (6)

0.83

10.9

0.3

1 (3)

1

1: 3

6

Max.

—
—
—

—

—

60 (30)

—
—
—
—
—

1: 5

V

mA

µA/lm

—

A/lm

—

nA
nA

ns
ns
ns

mA

%

—

VOLTAGE DISTRIBUTION RATIO AND SUPPLY VOLTAGE

Electrodes
H8711
H8711-10

Supply Voltage: 800 V, K: Cathode, Dy: Dynode, P: Anode

Subject to local technical requirements and regulations, availability of products included in this promotional material may vary. Please consult with our sales office.

Information furnished by HAMAMATSU is believed to be reliable. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications are
subject to change without notice. No patent rights are granted to any of the circuits described herein. ©2003 Hamamatsu Photonics K.K.

(Tapered Divider)

K Dy2 Dy5Dy4Dy1 Dy3

2122 1 1

2.4 12.4 2.4 1 1

...

Dy9 Dy10 Dy11 Dy12

...

11

...

11

P
111
1 1.2

2.4

MULTIANODE
PHOTOMULTIPLIER TUBE ASSEMBLIES H8711, H8711-10

Figure 1: Typical Spectral Response

TPMHB0266EA

100

10

QUANTUM
EFFICIENCY

1

QUANTUM EFFICIENCY (%)

0.1

CATHODE RADIANT SENSITIVITY (mA/W)

0.01
100 200 300 400 500 600 700 800 900

WAVELENGTH (nm)

CATHODE
RADIANT
SENSITIVITY

Figure 2: Typical Gain and Anode Dark Current
per Channel

TPMHB0690EA

8

10

7

10

6

10

GAIN

5

10

GAIN

4

10

3

10

2

10

1

10

400 600 1000800

H8711

H8711−

ANODE DARK CURRENT
PER CHANNEL

SUPPLY VOLTAGE (V)

10

711

H8

711−10

8

H

10

10

10

10

10

10

10

10

4

3

2

1

0

-1

ANODE DARK CURRENT (nA)

-2

-3

Figure 3: Typical Time Response

TPMHB0331EA

SUPPLY VOLTAGE
RISE TIME

(2 mV/div.)

FALL TIME
WIDTH

L

R

TIME (2 ns/div.)

= -800 V
= 835 ps
= 2047 ps
= 1658 ps
= 50 Ω

Figure 4: Typical T.T.S. Characteristic

TPMHB0314EB

SUPPLY VOLTAGE= - 800 V

4

FWHM= 310 ps

10

FWTM= 631 ps

3

10

2

10

1

10

RELATIVE COUNTS

0

10

TIME (0.5 ns/div.)

Figure 5: Pulse Linearity per Channel

TPMHB0691EA

10

PULSE WIDTH= 50 ns
REPETITION= 1 kHz
SUPPLY VOLTAGE= -800 V

0

Divider Ratio
2 : 2 : 2 : 1 : ⋅ ⋅ ⋅ ⋅ : 1 : 1 : 1

DEVIATION (%)

-10

-20

-2

10

-1

10

OUTPUT CURRENT (mA)

0

10

H8711

TPMHB0692EA

10

PULSE WIDTH= 50 ns
REPETITION= 1 kHz
SUPPLY VOLTAGE= -800 V

0

Divider Ratio

2.4 : 2.4 : 2.4 : 1 : ⋅ ⋅ ⋅ ⋅ : 1 : 1.2 : 2.4

DEVIATION (%)

-10

1

10

-20

-2

10

-1

10

OUTPUT CURRENT (mA)

0

10

1

10

H8711-10

Figure 6: Anode Uniformity (Example)

92

73

76

90

62

52

50

69

64

53

51

72

79

81

81

100

Supply Voltage: 800 V
Light Source: Tungsten Lamp (uniform DC light)
Full Illumination

Figure 7: Anode Cross-talk (Example)

0.1

0.8

0.5

0.1

*

100

0.3

*

0.1

0.3

0.1

*

*

*

*

*

Supply Voltage: 800 V
Light Source: Tungsten Lamp (uniform DC light)
Spot Illumination: 4 mm × 4 mm

MULTIANODE
PHOTOMULTIPLIER TUBE ASSEMBLIES H8711, H8711-10

Figure 8: Dimensional Outline and Circuit Diagram (Unit: mm)

POM CASE

DIVIDER
ASSEMBLY

2.54

2.54

DY12 OUTPUT

PIN CONNECTION

P1 P2 P3 P4 P5 P6 P7 P8

GND GNDGND GND GNDGND GND GND

P9

P10 P11 P12 P13 P14 P15 P16

GND GNDGND GND GNDGND GND GND

7.62

5.08

12.7

DY

P1 P8

P9 P16

GND

GND

-HV

GND

2.54

2.54 × 7=17.78

THROUGH HOLE
(NO CONNECTION)

-HV INPUT

NOTE 2

NOTE 3

25.7

9.3

8.7

4321

16 15 14

18.1

25.7

GUIDE
MARK

3 2

X

4- 0.3
GUIDE MARKS

0.3

0.3

13

4.54.5

Y

0.65

8.7

INSULATING
TAPE

9.3

18.1
30 ± 0.5

1 MAX. 3.2

45 ± 1 3.7

ANODE OUTPUTS (P1 to P8)

NOTE 1

TERMINAL PINS ( 0.46)
; BDL-108, SAMTEC

ANODE OUTPUTS (P9 to P16)
TERMINAL PINS ( 0.46)
; BDL-108, SAMTEC

4-SCREWS
(M2)

-HV TERMINAL PINS ( 0.46)
; BBL-TYPE, SAMTEC

DY12 OUTPUT
TERMINAL PINS ( 0.46)
; BBL-102, SAMTEC

H8711

H8711-10

R1 to R3

: 360 kΩ

R4 to R13

: 180 kΩ

R14

: 1 MΩ

R15 to R17

: 51 Ω

R18

: 10 kΩ

C1 to C4

K

F

DY1

DY2

R14

R1 R2

*NOTE: DIVIDER RATIO=2:2:2:1:1...1:1:1

K

F

DY1

DY2

R14

R1 R2

*NOTE: DIVIDER RATIO=2.4:2.4:2.4:1:1...1:1.2:2.4

: 0.01 µF

DY3R3DY4R4DY5R5DY6R6DY7R7DY8R8DY9

R1 to R3, R13

: 360 kΩ

R4 to R11

: 150 kΩ

R12

: 180 kΩ

R14

: 1 MΩ

R15 to R17

: 51 Ω

R18

: 10 kΩ

C1 to C4

: 0.01 µF

DY3R3DY4R4DY5R5DY6R6DY7R7DY8R8DY9

R9

R9

DY10

R10

DY10

R10

DY11

DY12

R15 R16 R17

R12

R11

C1 C2 C3

DY11

DY12

R15 R16 R17
R11

R12

C1 C2 C3

* Suitable sockets for all terminal pins are attached.

The suitable socket for anode output

NOTE 1

P1

P2

P8

P9

P15

P16

C4

R18

R13

P1

P2

P8

P9

P15

P16

C4

R18

R13

TERMINAL PINS (BDL-108, SAMTEC)

ANODE1 OUTPUT GND

ANODE2 OUTPUT GND

ANODE8 OUTPUT GND

TERMINAL PINS (BDL-108, SAMTEC)

ANODE9 OUTPUT GND

ANODE15 OUTPUT GND

ANODE16 OUTPUT GND

TERMINAL PINS (BBL-102, SAMTEC)
DY12 OUTPUT

TERMINAL PINS (BBL-TYPE, SAMTEC)

-HV INPUT

TERMINAL PINS (BDL-108, SAMTEC)

ANODE1 OUTPUT GND

ANODE2 OUTPUT GND

ANODE8 OUTPUT GND

TERMINAL PINS (BDL-108, SAMTEC)

ANODE9 OUTPUT GND

ANODE15 OUTPUT GND

ANODE16 OUTPUT GND

TERMINAL PINS (BBL-102, SAMTEC)
DY12 OUTPUT

TERMINAL PINS (BBL-TYPE, SAMTEC)

-HV INPUT

GND

GND

GND

GND

TPMHA0496EA

TPMHA0497EA

terminal pins is "SD-108-T-22 (SAMTEC U.S.A)"
which is commercially available.

The suitable socket for hight voltage

NOTE 2

terminal pins is "SS-102-T-22 (SAMTEC U.S.A)"
which is commercially available.

The suitable socket for DY12 output

NOTE 3

terminal pins is "ASP-24307-02 (SAMTEC U.S.A)"
which is commercially available.

WARNING ~ High Voltage ~

The product is operated at high voltage potential. Further, the metal housing of the product is connected to the photocathode
(potential) so that it becomes a high voltage potential when the product is operated at a negative high voltage (anode grounded).
Accordingly, extreme safety care must be taken for the electrical shock hazard to the operator or the damage to the other instruments.

* PATENT: USA Pat. No. 5410211 PATENTE PENDING: JAPAN 11, USA 1, EUROPE 2
