HI-SINCERITY
MICROELECTRONICS CORP.
Spec. No. : Preliminary Data
Issued Date : 1998.08.01
Revised Date : 1999.06.01
Page No. : 1/4
H31002P
BIPOLAR TONE RINGER ICS
Description
The H31002P is a bipolar integrated circuit. It is designed for
telephone bell replacement.
Features
Current consumption is small.
•
Package is compact. (DIP-8 pin)
•
Oscillation frequency is variable.
•
Built-in threshold circuits prevent false triggering due to power noise as well as 'chirps' due to
•
rotary dial.
Few external components.
•
Applications
Telecom Tone Rin ger Set
•
Absolute Maximum Rating
(Ta = 25°C)
Characteristics Symbol Rating Unit
Supply Voltage VCC 30 V
Power Dissipation PD 500 mW
Operating Temperature Topr
Storage Temperature Tstg
-40°C to +85°C
-55°C to+150°C
°
°
Block Diagram
R1 R2
C2
7
High
OSC
6
AMP
8
C1
3
Low
OSC
4
C
C
1
5
Power Supply
(With hysteresis)
2
HSMC Product Specification
Pin Connections
HI-SINCERITY
MICROELECTRONICS CORP.
Spec. No. : Preliminary Data
Issued Date : 1998.08.01
Revised Date : 1999.06.01
Page No. : 2/4
5678
Pin1 : Vcc Pin5 : Gnd
Pin2 : RSL Trigger In Pin6 : High Freq. Time Constant.
Pin3 : Low Freq. Time Constant. Pin7 : High Freq. Time Constant.
1234
Pin4 : Low Freq. Time Constant. Pin8 : Output
Electrical Characteristics
Characteristics Symbol Test Cond ition Min. Typ. Max. Unit
Operating Voltage V
Initiation Supply Voltage V
Sustaining Supply Voltage V
Initiation Current Consumption I
Sustaining Current Consumption I
Oscillator Frequency
"H" Level V
Output Voltage
"L" Level V
opr
sus
sus
f
f
H1
f
H2
OH
OL
(Note 1) 17 19 21 V
si
(Note 2) 10.5 12 - V
si
L
No Load 1.4 3.3 4.2 mA
C1=0.47uF, R1=165k
Ω
C1=6800pF, R2=191k
Vcc=24V, IOH =-10mA,
Pin 7=Gnd
Vcc=24V, IOL=10mA,
Pin 7=7V
Note 1 : Initiation Supply Voltage (Vsi) is a supply voltage required to start oscillation of the tone ringer.
Note 2 : Sustaining Supply Voltage (Vsus) is a supply voltage required to maintain oscillation of the tone ringer .
Note 3 : Oscillation frequency is determined by the following equations (1), (2) and (3) :
(1)fL=1/1.234, R1, C1 (Hz) (2) fH1=1/1.515, R2, C2 (Hz) (3) fH2=1.24 fH1 (Hz)
--29V
0.4 1.4 2.0 mA
91011
461 512 563
Ω
576 640 703
20 21.5 22.5 V
0.7 1.0 2.0 V
Hz
Method Of Using Rsl
In the H31002P, using the RSL terminal can change the initiation supply current (Isi). The
resistor RSL is connected to Gnd from Pin 2 as shown in Fig.3.
Further, the initiation supply current (Isi) can be changing the value of RSL. Fig.4 shows the
graph of Vs-Is characteristic at the time when RSL has been changed to three values. The Vs-Is
characteristic at the time when RSL=6.8 kΩ coincides with that at the time when Pin 2 of the
H31002P has been used at an open state. If Pin 7 is connected to Gnd as shown in Fig. 5, the
H31002P can stop oscillation. (the “L” level voltage is under 2V)
Fig.3
Vs
1
2
H31002P
5RSL
Gnd
Fig.4 Fig.5
8
7
6
5
4
3
2
1
0
0102030
C u r r e n t C o n s u p m p t i o n ( m A )
1 . R S L = 1 . 3 K 2 . R S L = 3 . 3 K 3 . R S L = 6 . 8 K
|
|
|
|
|
|
V s u s
1
|
|
2
|
3
|
|
V s i
|
S u p p l y V o l t a g e ( v )
HF1
Pin 7
Internal IC
HSMC Product Specification
HI-SINCERITY
MICROELECTRONICS CORP.
Application Information
Application circuits of Telecom Tone Ringer Set
•
V
I
Zener Diode (4.7~6.9V)
HMBZ5230B~HMBZ5235B
RSL
H1N4004X4
220K
220nF
Zener Diode (27V)
H 3 1 0 0 2 P
H31002P
1
2
3
Ω
45
560
8
7
180K
6
Spec. No. : Preliminary Data
Issued Date : 1998.08.01
Revised Date : 1999.06.01
Page No. : 3/4
Ringer Sw
Ω
Ω
Switch
Diode
4.7nF
H1N4148
BUZZER
Example of Output Circuit
•
15K
Ω
10K
Ω
510
Ω
1.3KΩ, 8
Ω
Ceramic Piezoelectric Buzzer
HSMC Product Specification
HI-SINCERITY
g
MICROELECTRONICS CORP.

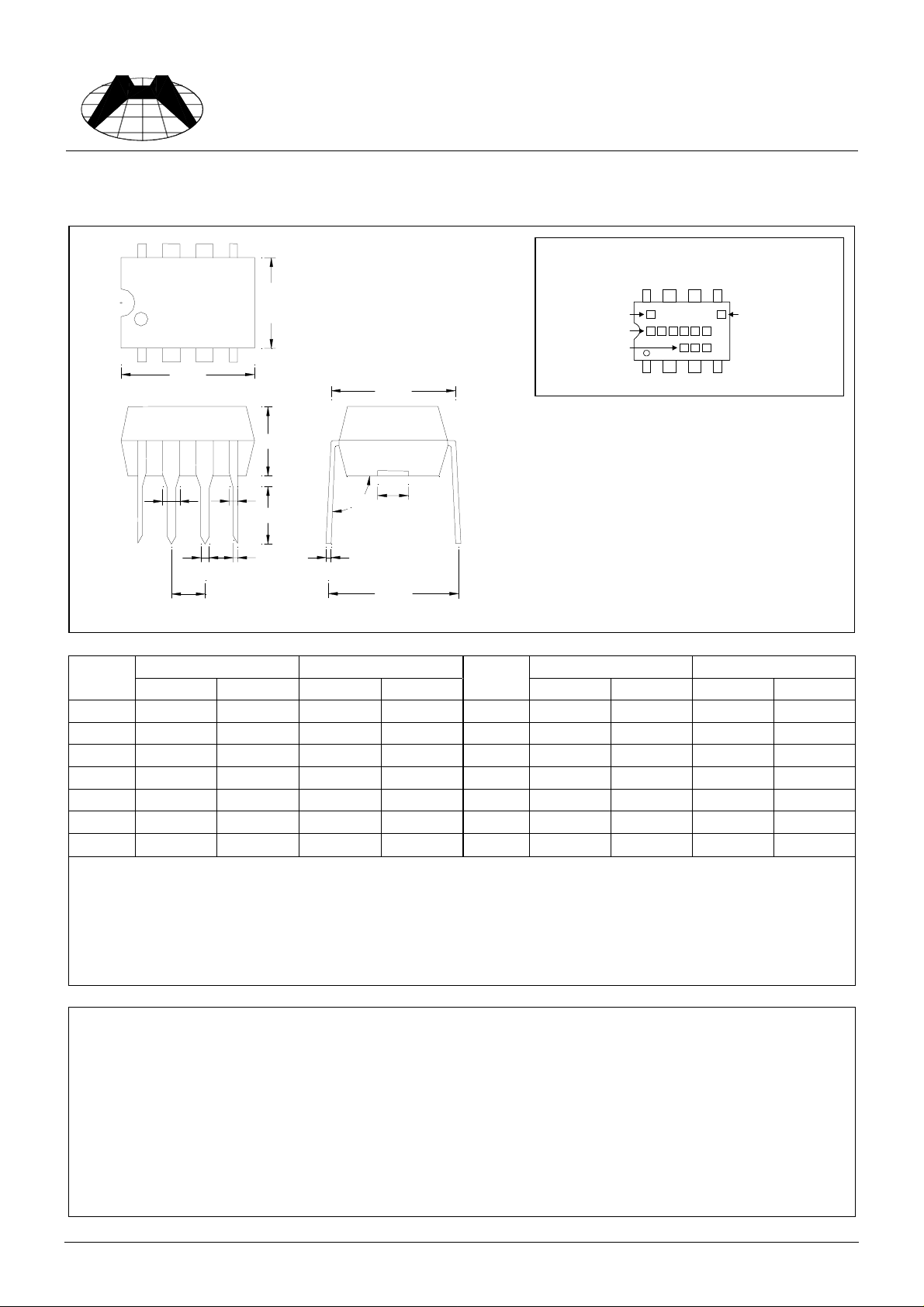

DIP-8P Dimension
Spec. No. : Preliminary Data
Issued Date : 1998.08.01
Revised Date : 1999.06.01
Page No. : 4/4
65
7
8
A
4
1
32
HSMC Logo
Part Number
Date Code
B
Package Code
Ink Mark
J
DIP-8P Plastic Package
DIM
F
α
1
C
E
G
D
H
I
M
Inches Millimeters Inches M illimeters
Min. Max. Min. Max.
K
L
DIM
Min. Max. Min. Max.
HSMC Packa
e Code : P
A 0.2480 0.2520 6.29 6.40 H 0.0150 0.0210 0.38 0.53
B 0.3630 0.3670 9.22 9.32 I 0.0898 0.1098 2.28 2.79
C-*0.0600 - *1.52 J 0.2950 0.3050 7.49 7.74
D - *0.0500 - *1.27 K - *0.1181 - *3.00
E - *0.0390 - *0.99 L 0.3370 0.7470 8.56 8.81
F 0.1280 0.1320 3.25 3.35 M 0.0090 0.0150 0.229 0.381
Marking :
G 0.1250 0.1400 3.17 3.55
Notes :
Material :
• Lead : 42 Alloy ; solder plating
• Mold Compound : Epoxy resin family, flammability solid burning class:UL94V-0
1.Dimension and tolerance based on our Spec. dated Sep. 07,1997.
2.Controlling dimension : millimeters.
3.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
4.If there is any question with packing specification or packing method, pleas e contact your l ocal HSMC sal es office.
194°97
α
°
94
°
*:Typical
97
°
Important Notice :
• All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of HSMC.
• HSMC reserves the right to make changes to its products without notice.
•
HSMC semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
• HSMC assumes no liability for any consequence of customer product design, infringem e nt of patents, or applic ati on assistance.
Head Office And Factory :
•
Head Office
Tel : 886-2-25212056 Fax : 886-2-25632712, 25368454
•
Factory 1 :
Tel : 886-3-5983621~5 Fax : 886-3-5982931
•
Factory 2 :
Tel : 886-3-5977061 Fax : 886-3-5979220
(Hi-Sincerity Microelectronics Corp.) : 10F.,No. 61, Sec. 2, Chung-Shan N. Rd. Taipei Taiwan R.O.C.
No. 38, Kuang Fu S. Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
No. 17-1, Ta-Tung Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
HSMC Product Specification
