Page 1

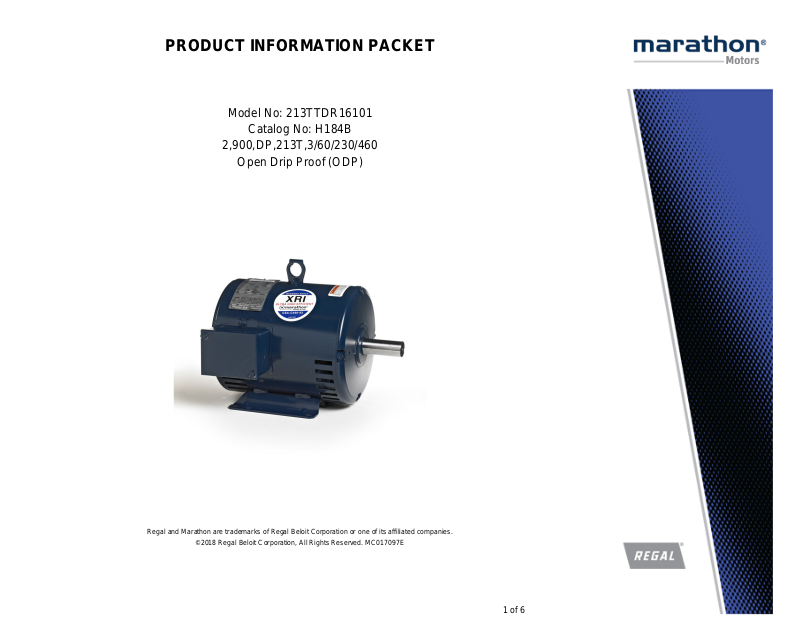

PRODUCT INFORMATION PACKET
Model No: 213TTDR16101
Catalog No: H184B
2,900,DP,213T,3/60/230/460
Open Drip Proof (ODP)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: 213TTDR16101, Catalog No:H184B 2,900,DP,213T,3/60/230/460
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 230/460 V
Current
Service Factor
Efficiency 85.5 % Duty Continous
Insulation Class
KVA Code J Frame 213T
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6206 UL Recognized
CSA
IP Code
2 Hp
8.0/4.0 A
1.15
B
40 °C
Y
12
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
1.5 kW
875 rpm
3
B
6307
Y
Technical Specifications
Electrical Type
Poles 8 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Diameter 1.375 in Shaft Extension 3.47 in
Assembly/Box Mounting

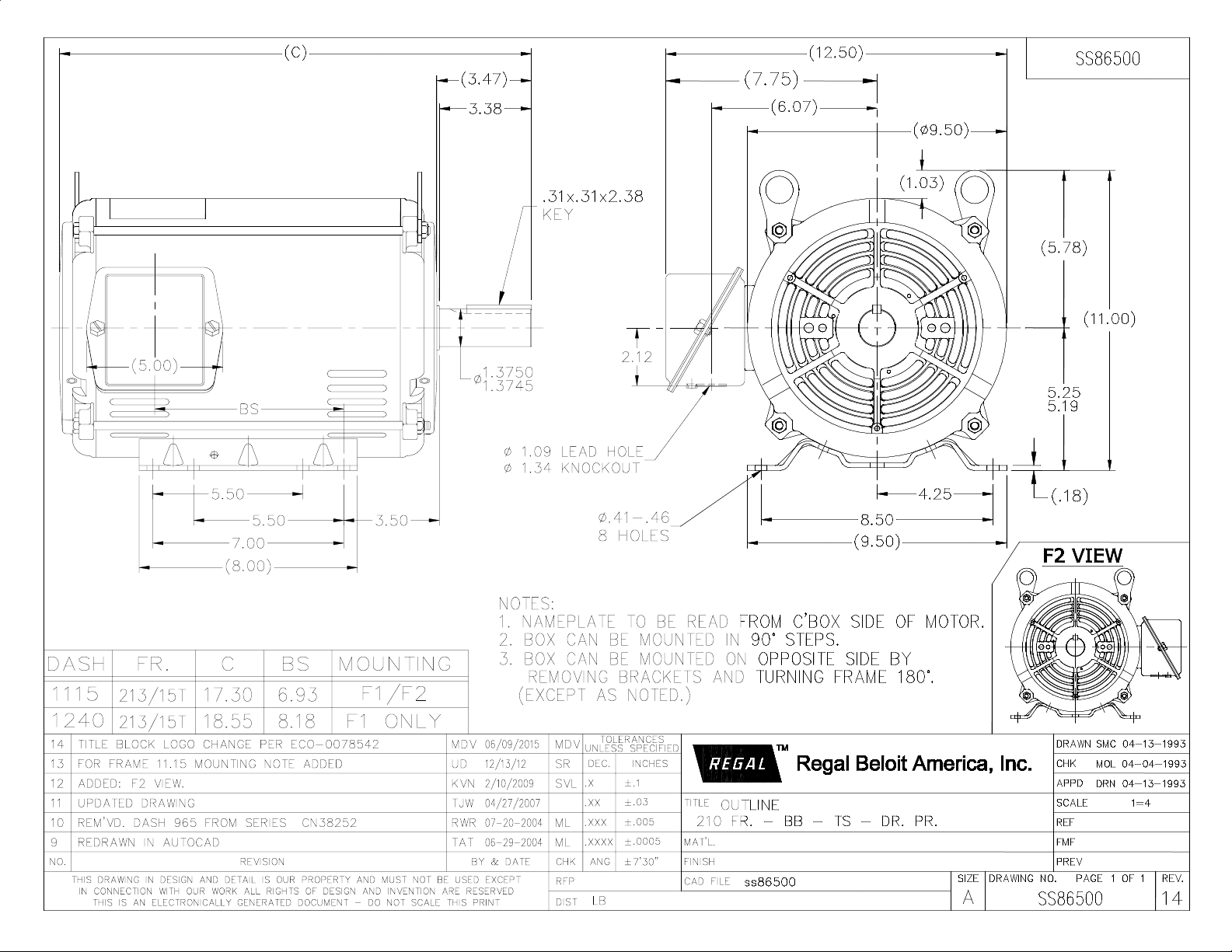

Outline Drawing
Rigid base
17.3 in
F1/F2 Capable
SS86500-1115
Motor Orientation
Frame Length

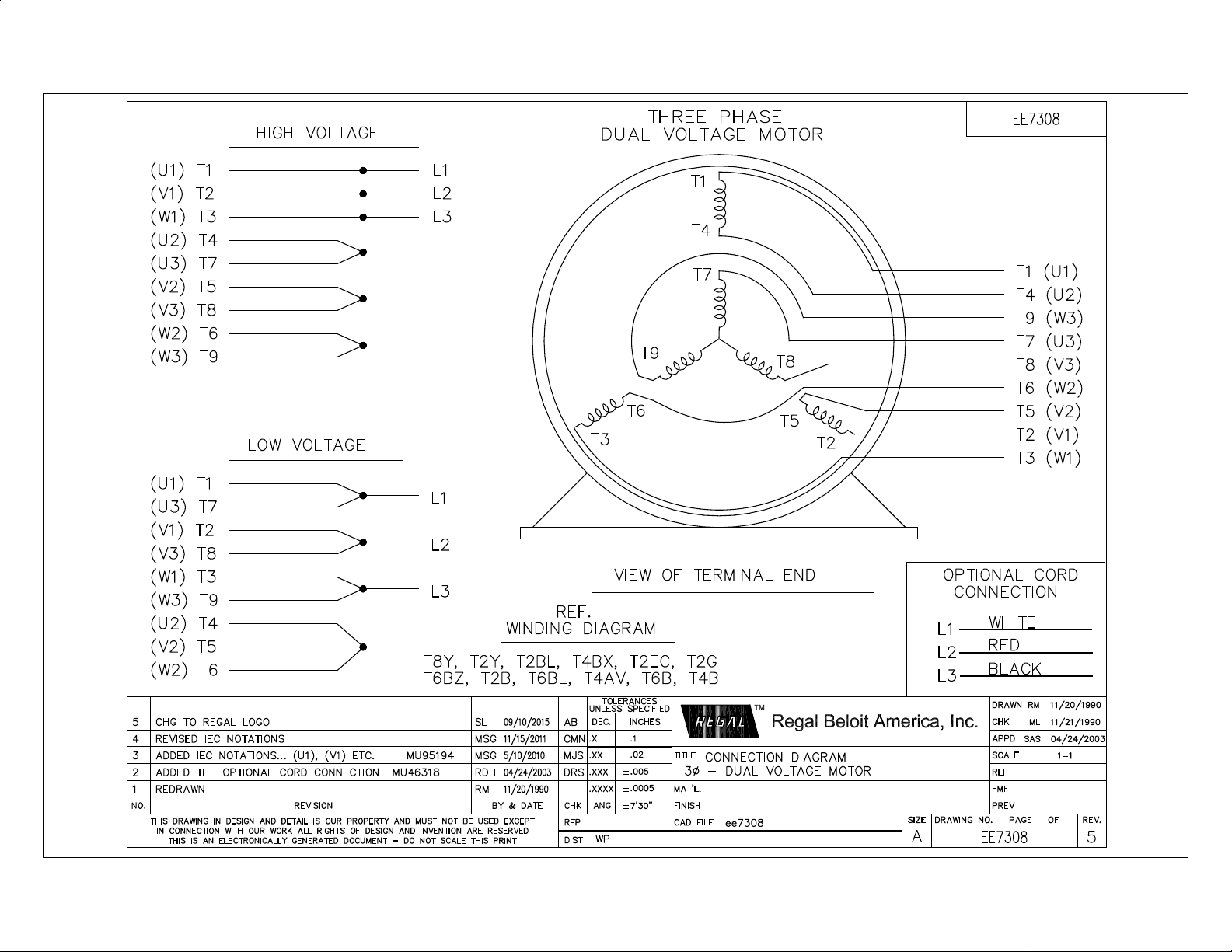

Connection Diagram
Horizontal
11.15 in
EE7308
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 6
Page 3
Uncontrolled Copy
3 of 6
Page 4
Uncontrolled Copy
4 of 6
Page 5
CERTIFICATION DATA SHEET
Model#: 213TTDR16101 AA WINDING#: 213830 NONE 1
CONN. DIAGRAM: EE7308 ASSEMBLY: F1/F2 CAPABLE
OUTLINE: SS86500-1115
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
2 1.49 900 875 213T DP J B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60 230/460 8/4 ACROSS THE
LINE
CONTINUOUSB3 1.15 40 3300
FULL LOAD EFF: 85.5 3/4 LOAD EFF: 84 1/2 LOAD EFF: 82.5 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 55 3/4 LOAD PF: 47 1/2 LOAD PF: 35 82.5 SQ CAGE IND RUN 5.4 / 2.7
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
12.2 LB-FT 40 / 20 18 LB-FT 148 28 LB-FT 230 30
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
62 dBA 72 dBA 0.75 LB-FT^2 - LB-FT^2 20 SEC. 4 105 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE GRAY
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE 1144
STRESSPROOF
(C-223)
ROLLED STEEL
6307 6206
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/22/2017 04:57:05 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 6
Page 6
Date:
Customer:
Attention:
Submitted by:
Data @
460
v
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
2.70 3.0 3.3 3.5 4.0 4.2 4.5 20.0
Torque (ft-lb)
0.00 3.0 6.0 9.0 12.2 14.0 15.4 18.0
RPM
900 895 885 880 875 872 870 0
Efficiency (%)
71.0 82.5 84.0 85.5 85.5 84.0
P.F. (%)
6.5 23.0 35.0 47.0 55.0 60.0 62.0 34.0
LR Pull-Up BD Rated Idle
Speed (RPM)
0 450 805 875 900
Information Block
Current (Amps)
20.0 18.0 14.0 4.0 2.70 2.0
Torque (ft-lb)
18.0 17.0 28.0 12.2 0.00 900
213
DP
TDW
230/460
V
60
Hz
B
J
1.15
30
°
C
CONT
40
°
C
1,000
feet
0.75
Lb-Ft²
213830 NONE
62 dBA
Additional Specifications:
R1 R2 X1 X2 Xm
2.4570 2.1160 13.1210 11.1040 85.4840
NONE
0
365THFS8036
EQUIV CKT (OHMS / PHASE)
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg SS86500-1115
Conn. Diag EE7308
Rotor/Shaft wk²
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
Duty
Ambient
Elevation
Construction
Motor Speed Data
HP
Sync. RPM
Frame
Enclosure
Motor Load Data
Submittal
FAREEDA DUDEKULA
Data Sheet
29-06-2017 213TTDR16101
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0% 20% 40% 60% 80% 100% 120% 140%
Efficiency (%) P.F. (%) Cu rrent (Amps)
LOAD
A
M
P
S
E
F
F
P
F
0.0
5.0
10.0
15.0
20.0
25.0
0.0
5.0
10.0
15.0
20.0
25.0
30.0
0 100 200 300 400 500 600 700 800 900 1000
Speed -Torque Curve
Torque Amps
RPM
T
O
R
Q
U
E
A
M
P
S
Uncontrolled Copy
6 of 6
