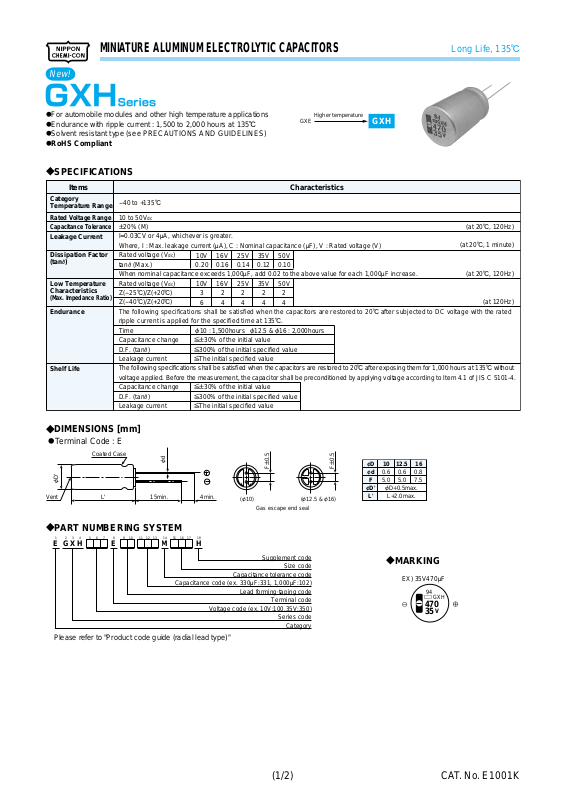

Page 1

New!

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

Long Life, 135

@For automobile modules and other high temperature applications @Endurance with ripple current : 1,500 to 2,000 hours at 135C @Solvent resistant type (see PRECAUTIONS AND GUIDELINES) @RoHS Compliant

SPECIFICATIONS

Items Characteristics

Category Temperature Range

Rated Voltage Range Capacitance Tolerance Leakage Current

Dissipation Factor (tane)

Low Temperature Characteristics (Max. Impedance Ratio)

Endurance

Shelf Life

40 to +135C

10 to 50Vdc P20% (M) I=0.03CV or 4MA, whichever is greater. Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) Rated voltage (V tanE (Max.) When nominal capacitance exceeds 1,000MF, add 0.02 to the above value for each 1,000MF increase. Rated voltage (V Z(

25C)/Z(+20C)

40C)/Z(+20C) The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated ripple current is applied for the specified time at 135C. Time F10 : 1,500hours F12.5 & F16 : 2,000hours Capacitance change [P30% of the initial value D.F. (tanE) [300% of the initial specified value Leakage current [The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 135C without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4. Capacitance change [P30% of the initial value D.F. (tanE) [300% of the initial specified value Leakage current [The initial specified value

dc)

10V

0.20

dc)

10V

3 6

16V

0.16

16V

2 4

25V

0.14

25V

2 4

35V

0.12

35V

2 4

50V

0.10

50V

2 4

Higher temperature

GXE

GXH

(at 20C, 120Hz)

(at 20C, 1 minute)

(at 20C, 120Hz)

(at 120Hz)

DIMENSIONS [mm]

@Terminal Code : E

Coated Case

FD'

Vent

PART NUMBERING SYSTEM

13426789105121311 16 17 181514

E G X H A A A E A A A A A AAA HM

L' 15min. 4min.

Please refer to "Product code guide (radial lead type)"

Capacitance code (ex. 330MF:331, 1,000MF:102)

FP0.5

(F10) (F12.5 & F16)

Gas escape end seal

Supplement code

Size code

Capacitance tolerance code

Lead forming·taping code

Terminal code

Voltage code (ex. 10V:100,35V:350)

Series code

Category

FP0.5

fD fd

fD'

12.5

0.6

5.0

5.0 FD+0.5max.

L+2.0max.

MARKING

EX) 35V470MF

0.8

7.5

94 GXH

470

(1/2)

CAT. No. E1001K

Page 2

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

New!

STANDARD RATINGS

Long Life, 135

dc)

: Enter the appropriate lead forming or taping code.

Cap (mF)

330 10B12.5 0.15 620 EGXH100ESS331MJC5H

470 10B12.5 0.15 620 EGXH100ESS471MJC5H 1,000 10B20 0.075 950 EGXH100ESS102MJ20H 2,200 12.5B25 0.040 1,350 EGXH100ESS222MK25H 3,300 16B25 0.031 1,620 EGXH100ESS332ML25H 4,700 16B31.5 0.025 1,860 EGXH100ESS472MLN3H

220 10B12.5 0.15 620 EGXH160ESS221MJC5H

330 10B12.5 0.15 620 EGXH160ESS331MJC5H

470 10B16 0.094 790 EGXH160ESS471MJ16H 1,000 12.5B20 0.058 1,080 EGXH160ESS102MK20H 2,200 16B25 0.031 1,620 EGXH160ESS222ML25H 3,300 16B31.5 0.025 1,860 EGXH160ESS332MLN3H

220 10B12.5 0.15 620 EGXH250ESS221MJC5H

330 10B16 0.094 790 EGXH250ESS331MJ16H

470 10B20 0.075 950 EGXH250ESS471MJ20H 1,000 12.5B25 0.040 1,350 EGXH250ESS102MK25H 2,200 16B31.5 0.025 1,860 EGXH250ESS222MLN3H

100 10B12.5 0.15 620 EGXH350ESS101MJC5H

220 10B16 0.094 790 EGXH350ESS221MJ16H

330 10B20 0.075 950 EGXH350ESS331MJ20H

470 12.5B20 0.058 1,080 EGXH350ESS471MK20H 1,000 16B25 0.031 1,620 EGXH350ESS102ML25H

100 10B12.5 0.20 520 EGXH500ESS101MJC5H

220 10B20 0.098 880 EGXH500ESS221MJ20H

330 12.5B20 0.081 990 EGXH500ESS331MK20H

470 12.5B25 0.059 1,150 EGXH500ESS471MK25H 1,000 16B31.5 0.032 1,590 EGXH500ESS102MLN3H

Case size

fDbL(mm)

Impedance

(omax/20c, 100kHz)

Rated ripple current

(mArms/135c, 100kHz)

Part No.

RATED RIPPLE CURRENT MULTIPLIERS

@Frequency Mul ti pli ers

Capacitance (mF)

100 220 to 470 1,000 2,200 to 3,300 4,700

Frequency (Hz)

0.40

0.50

0.60

0.75

0.85

120

0.75

0.85

0.87

0.90

0.95

10k

0.90

0.94

0.95

0.98

100k

1.00

The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise. When long life performance is required in actual use, the rms ripple current has to be reduced.

(2/2)

CAT. No. E1001K
