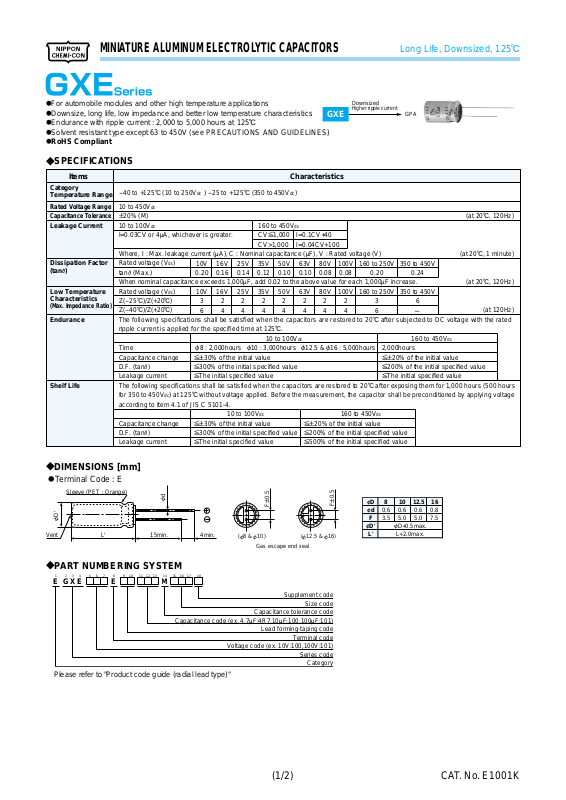

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

Long Life, Downsized, 125

@For automobile modules and other high temperature applications @Downsize, long life, low impedance and better low temperature characteristics @Endurance with ripple current : 2,000 to 5,000 hours at 125C @Solvent resistant type except 63 to 450V (see PRECAUTIONS AND GUIDELINES) @RoHS Compliant

SPECIFICATIONS

Items Characteristics

Category Temperature Range

Rated Voltage Range Capacitance Tolerance Leakage Current

Dissipation Factor (tane)

Low Temperature Characteristics (Max. Impedance Ratio)

Endurance

Shelf Life

40 to +125C (10 to 250Vdc ) -25 to +125C (350 to 450Vdc)

10 to 450V P20% (M) 10 to 100V I=0.03CV or 4MA, whichever is greater.

Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) Rated voltage (V tanE (Max.) When nominal capacitance exceeds 1,000MF, add 0.02 to the above value for each 1,000MF increase. Rated voltage (V Z( Z( The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated ripple current is applied for the specified time at 125C.

Time F8 : 2,000hours F10 : 3,000hours F12.5 & F16 : 5,000hours 2,000hours Capacitance change [P30% of the initial value [P20% of the initial value D.F. (tanE) [300% of the initial specified value [200% of the initial specified value Leakage current [The initial specified value [The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours (500 hours for 350 to 450V according to Item 4.1 of JIS C 5101-4.

Capacitance change [P30% of the initial value [P20% of the initial value D.F. (tanE) [300% of the initial specified value [200% of the initial specified value Leakage current [The initial specified value [500% of the initial specified value

25C)/Z(+20C)

40C)/Z(+20C)

160 to 450Vdc CV[1,000 I=0.1CV+40 CV>1,000 I=0.04CV+100

dc)

10V

0.20

dc)

10V

3 6

dc) at 125C without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage

25V

16V

0.14

0.16

25V

16V

10 to 100Vdc 160 to 450Vdc

35V

0.12

35V

2 4

10 to 100V

50V

0.10

50V

2 4

80V

63V

0.08

0.10

80V

63V

2 4

dc 160 to 450Vdc

GXE

100V

100V 2 4

Downsized Higher ripple current

160 to 250V

0.08

160 to 250V 2 4

0.20

3 6

GPA

350 to 450V

0.24

350 to 450V

(at 20C, 120Hz)

(at 20C, 1 minute)

(at 20C, 120Hz)

(at 120Hz)

DIMENSIONS [mm]

@Terminal Code : E

Sleeve (PET : Orange)

FD'

Vent

PART NUMBERING SYSTEM

13426789105121311 16 17 181514

E GX E A A A E A A AA A A A A NM

L' 15min. 4min.

Please refer to "Product code guide (radial lead type)"

Capacitance code (ex. 4.7MF:4R7,10MF:100,100MF:101)

FP0.5

(F8 & F10) (F12.5 & F16)

Gas escape end seal

Supplement code

Size code

Capacitance tolerance code

Lead forming·taping code

Terminal code

Voltage code (ex. 10V:100,100V:101)

Series code

Category

FP0.5

fD fd

fD'

0.6

3.5 FD+0.5max.

5.0

L+2.0max.

0.6

5.0

0.8

7.5

12.5

(1/2)

CAT. No. E1001K

Page 2

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

STANDARD RATINGS

20c,

100kHz)

Rated ripple

current

(mArms/

125c,

Note1)

Cap

dc)

: Enter the appropriate lead forming or taping code.

Case size

(mF)

fDbL(mm)

220 8B12 0.32 340 EGXE100ESS221MH12D 330 10B12.5 0.15 620 EGXE100ESS331MJC5S

470 10B12.5 0.15 620 EGXE100ESS471MJC5S 1,000 10B20 0.075 950 EGXE100ESS102MJ20S 2,200 12.5B25 0.040 1,350 EGXE100ESS222MK25S 3,300 16B25 0.031 1,620 EGXE100ESS332ML25S 4,700 16B31.5 0.025 1,860 EGXE100ESS472MLN3S

100 8B12 0.32 340 EGXE160ESS101MH12D

220 10B12.5 0.15 620 EGXE160ESS221MJC5S

330 10B12.5 0.15 620 EGXE160ESS331MJC5S

470 10B16 0.094 790 EGXE160ESS471MJ16S 1,000 12.5B20 0.058 1,080 EGXE160ESS102MK20S 2,200 16B25 0.031 1,620 EGXE160ESS222ML25S 3,300 16B31.5 0.025 1,860 EGXE160ESS332MLN3S

100 8B12 0.32 340 EGXE250ESS101MH12D

220 10B12.5 0.15 620 EGXE250ESS221MJC5S

330 10B16 0.094 790 EGXE250ESS331MJ16S

470 10B20 0.075 950 EGXE250ESS471MJ20S 1,000 12.5B25 0.040 1,350 EGXE250ESS102MK25S 2,200 16B31.5 0.025 1,860 EGXE250ESS222MLN3S

100 8B12 0.32 340 EGXE350ESS101MH12D

100 10B12.5 0.15 620 EGXE350ESS101MJC5S

220 10B16 0.094 790 EGXE350ESS221MJ16S

330 10B20 0.075 950 EGXE350ESS331MJ20S

470 12.5B20 0.058 1,080 EGXE350ESS471MK20S 1,000 16B25 0.031 1,620 EGXE350ESS102ML25S

10 8B12 0.75 180 EGXE500ESS100MH12D 22 8B12 0.50 250 EGXE500ESS220MH12D 33 8B12 0.50 280 EGXE500ESS330MH12D

47 8B12 0.50 280 EGXE500ESS470MH12D 100 10B12.5 0.20 520 EGXE500ESS101MJC5S 220 10B20 0.098 880 EGXE500ESS221MJ20S 330 12.5B20 0.081 990 EGXE500ESS331MK20S 470 12.5B25 0.059 1,150 EGXE500ESS471MK25S

1,000 16B31.5 0.032 1,590 EGXE500ESS102MLN3S

33 8B12 1.5 150 EGXE630ESS330MH12D

47 10B12.5 0.59 530 EGXE630ESS470MJC5S 100 10B16 0.41 690 EGXE630ESS101MJ16S 220 12.5B20 0.16 1,050 EGXE630ESS221MK20S 330 12.5B25 0.12 1,290 EGXE630ESS331MK25S 470 12.5B30 0.097 1,460 EGXE630ESS471MK30S

1,000 16B31.5 0.059 1,850 EGXE630ESS102MLN3S

22 8B12 1.5 150 EGXE800ESS220MH12D

33 10B12.5 0.8 480 EGXE800ESS330MJC5S

Impedance (omax/

(Note1) Ripple current frequency 10 to 100V = 100kHz 160 to 450V = 120Hz

Part No.

Long Life, Downsized, 125

is not solvent resistant.

Rated ripple

Cap

dc)

100

160

200

250

350

400

450

Case size

(mF)

fDbL(mm)

47 10B12.5 0.80 480 EGXE800ESS470MJC5S 100 10B20 0.39 790 EGXE800ESS101MJ20S 220 12.5B25 0.18 1,240 EGXE800ESS221MK25S 330 12.5B30 0.16 1,390 EGXE800ESS331MK30S 470 16B25 0.11 1,500 EGXE800ESS471ML25S

4.7 8B12 2.0 130 EGXE101ESS4R7MH12D 10 8B12 1.5 150 EGXE101ESS100MH12D 22 10B12.5 0.80 480 EGXE101ESS220MJC5S 33 10B12.5 0.80 480 EGXE101ESS330MJC5S 47 10B16 0.55 630 EGXE101ESS470MJ16S

100 12.5B20 0.25 990 EGXE101ESS101MK20S 220 16B25 0.11 1,500 EGXE101ESS221ML25S 330 16B31.5 0.079 1,790 EGXE101ESS331MLN3S

22 10B20 33 10B25 47 12.5B20 68 12.5B25

100 16B25 150 16B31.5

10 10B20 22 10B25 33 12.5B20 47 12.5B25 68 16B20

100 16B25

10 10B20 22 12.5B20 33 12.5B25 47 16B25 68 16B31.5

4.7 10B20 10 10B25 22 12.5B25 33 16B25 47 16B31.5

4.7 10B20 10 10B25 22 12.5B30 33 16B25 47 16B31.5

4.7 10B25 10 12.5B20 22 16B25 33 16B31.5

Impedance (omax/

100kHz)

20c,

current

(mArms/

125c,

Note1)

115 EGXE161ESS220MJ20S 154 EGXE161ESS330MJ25S 187 EGXE161ESS470MK20S 245 EGXE161ESS680MK25S 329 EGXE161ESS101ML25S 434 EGXE161ESS151MLN3S

78 EGXE201ESS100MJ20S 126 EGXE201ESS220MJ25S 157 EGXE201ESS330MK20S 204 EGXE201ESS470MK25S 250 EGXE201ESS680ML20S 329 EGXE201ESS101ML25S

78 EGXE251ESS100MJ20S 128 EGXE251ESS220MK20S 171 EGXE251ESS330MK25S 225 EGXE251ESS470ML25S 292 EGXE251ESS680MLN3S

53 EGXE351ESS4R7MJ20S

85 EGXE351ESS100MJ25S 139 EGXE351ESS220MK25S 189 EGXE351ESS330ML25S 243 EGXE351ESS470MLN3S

53 EGXE401ESS4R7MJ20S

86 EGXE401ESS100MJ25S 142 EGXE401ESS220MK30S 189 EGXE401ESS330ML25S 243 EGXE401ESS470MLN3S

58 EGXE451ESS4R7MJ25S

86 EGXE451ESS100MK20S 154 EGXE451ESS220ML25S 203 EGXE451ESS330MLN3S

Part No.

RATED RIPPLE CURRENT MULTIPLIERS

@(10 to 100Vdc) Frequency Mul ti pli ers

Capacitance (mF)

4.7 to 100 220 to 470 1,000 2,200 to 3,300 4,700

Frequency (Hz)

0.40

0.50

0.60

0.75

0.85

120

0.75

0.85

0.87

0.90

0.95

10k

0.90

0.94

0.95

0.98

100k

1.00

@(160 to 450Vdc) Frequency Mul ti pli ers

Capacitance (mF)

4.7 to 33 47 to 150

Frequency (Hz)

0.75

0.80

120

1.00

300

1.25

1.15

1.50

1.30

10k

1.75

1.40

100k

1.80

1.50

The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise. When long life performance is required in actual use, the rms ripple current has to be reduced.

(2/2)

CAT. No. E1001K
