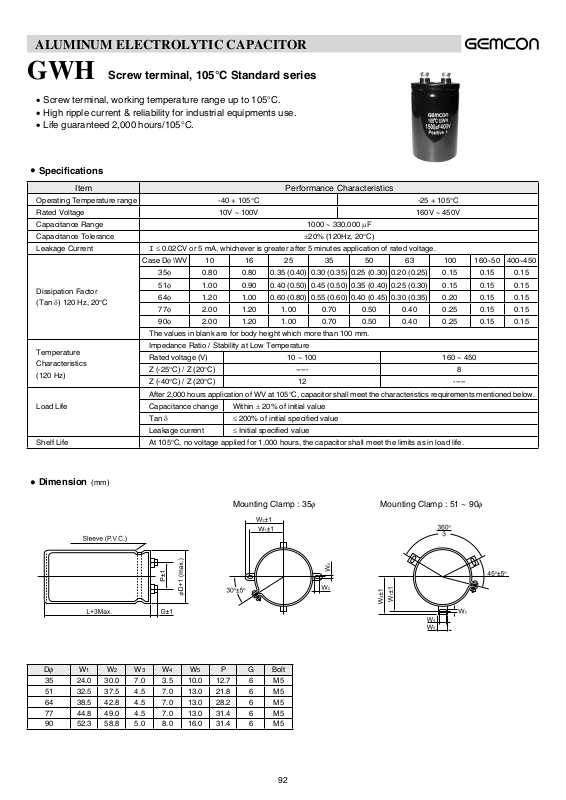

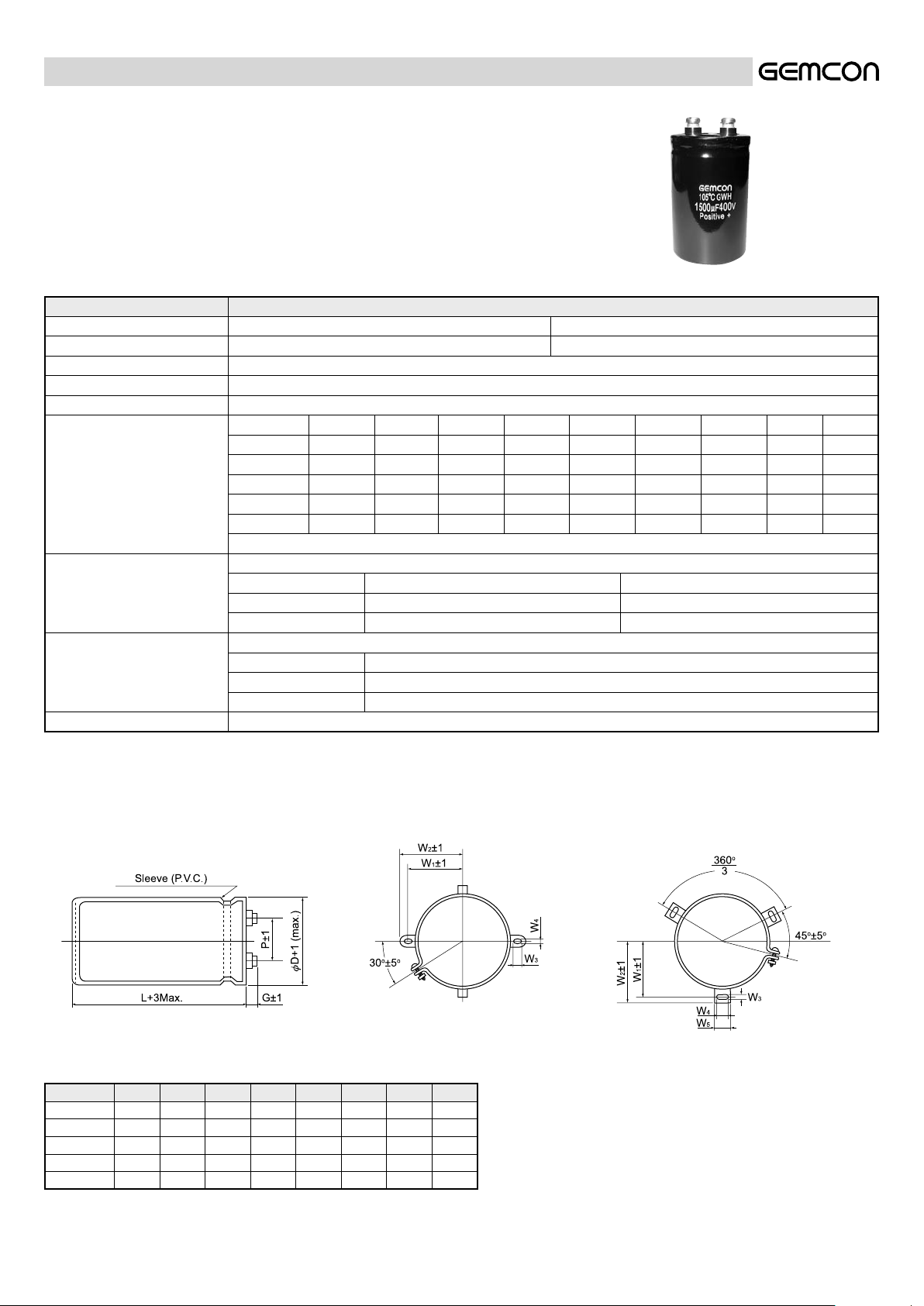

GWH Screw terminal, 105°C Standard series

• Screw terminal, working temperature range up to 105°C.

• High ripple current & reliability for industrial equipments use.

• Life guaranteed 2,000 hours/105°C.

●

Specications

Item Performance Characteristics

Operating Temperature range -40 + 105°C -25 + 105°C

Rated Voltage 10V ∼ 100V 160V ∼ 450V

Capacitance Range 1000 ∼ 330,000 µF

Capacitance Tolerance

Leakage Current

Dissipation Factor

(Tan δ) 120 Hz, 20°C

Temperature

Characteristics

(120 Hz)

Load Life

Shelf Life At 105°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life.

I ≤ 0.02CV or 5 mA, whichever is greater after 5 minutes application of rated voltage.

Case Dφ \ WV 10 16 25 35 50 63 100 160∼50 400∼450

35φ 0.80 0.80 0.35 (0.40) 0.30 (0.35) 0.25 (0.30) 0.20 (0.25) 0.15 0.15 0.15

51φ 1.00 0.90 0.40 (0.50) 0.45 (0.50) 0.35 (0.40) 0.25 (0.30) 0.15 0.15 0.15

64φ 1.20 1.00 0.60 (0.80) 0.55 (0.60) 0.40 (0.45) 0.30 (0.35) 0.20 0.15 0.15

77φ 2.00 1.20 1.00 0.70 0.50 0.40 0.25 0.15 0.15

90φ 2.00 1.20 1.00 0.70 0.50 0.40 0.25 0.15 0.15

The values in blank are for body height which more than 100 mm.

Impedance Ratio / Stability at Low Temperature

Rated voltage (V) 10 ∼ 100 160 ∼ 450

Z (-25°C) / Z (20°C) ----- 8

Z (-40°C) / Z (20°C) 12 -----

After 2,000 hours application of WV at 105°C, capacitor shall meet the characteristics requirements mentioned below.

Capacitance change Within ± 20% of initial value

Tan δ

Leakage current

≤ 200% of initial specied value

≤ Initial specied value

±20% (120Hz, 20°C)

●

Dimension (mm)

Mounting Clamp : 35f Mounting Clamp : 51 ~ 90f

Df W1 W2 W3 W4 W5 P G Bolt

35 24.0 30.0 7.0 3.5 10.0 12.7 6 M5
51 32.5 37.5 4.5 7.0 13.0 21.8 6 M5
64 38.5 42.8 4.5 7.0 13.0 28.2 6 M5
77 44.8 49.0 4.5 7.0 13.0 31.4 6 M5
90 52.3 58.8 5.0 8.0 16.0 31.4 6 M5

92

ALUMINUM ELECTROLYTIC CAPACITOR

●

Standard Products Table

WV(SV)

Cap (µF)

8200 35 x 60 3.18

10000 35 x 70 3.75

15000 35 x 60 4.09 35 x 80 4.88

22000 35 x 50 3.25 35 x 60 4.59 35 x 80 5.63 51 x 70 5.57
33000 35 x 50 3.72 35 x 60 4.31 35 x 80 6.39 51 x 70 6.56 51 x 90 7.60
47000 35 x 60 4.81 35 x 80 5.84 35 x 90 8.04 51 x 80 8.29 64 x 96 9.48
56000 35 x 70 5.61 35 x 90 6.72 51 x 70 8.31 51 x 90 9.53 64 x 96 10.34

68000 35 x 80 6.57 51 x 70 6.66 51 x 90 10.21 51 x 115 11.11 64 x 115 11.62
100000 51 x 70 7.67 51 x 90 9.00 64 x 96 11.28 64 x 115 12.20 77 x 115 14.14
150000 51 x 90 10.46 64 x 96 11.22 64 x 115 12.94 77 x 115 13.90 90 x 130 19.02
220000 64 x 96 13.53 64 x 115 14.69 77 x 115 14.83 90 x 130 17.42

330000 64 x 115 17.92 77 x 115 18.24 90 x 130 19.94 Case size Ripple

10

(13)

16

(20)

25

(32)

35

(44)

Df x L (mm)

50

(63)

WV(SV)

Cap (µF)

1000 35 x 60 1.50 35 x 60 1.62 35 x 70 1.73

1500 35 x 60 1.98 35 x 70 2.12 35 x 90 2.38

2200 35 x 70 2.57 35 x 90 2.88 51 x 70 2.94

3300 35 x 90 3.52 51 x 80 3.49 51 x 90 4.01

4700 51 x 80 4.54 51 x 90 4.38 64 x 115 5.29

5600 35 x 90 4.59 51 x 90 5.22 64 x 96 5.34 77 x 96 5.94
6800 35 x 70 3.31 51 x 70 5.16 64 x 96 5.89 64 x 115 6.37 77 x 115 7.07

8200 35 x 80 3.86 51 x 80 6.00 64 x 96 6.46 77 x 96 6.85 77 x 130 8.18
10000 35 x 90 4.50 51 x 90 6.97 77 x 96 7.56 77 x 115 8.16 77 x 155 9.76
15000 51 x 70 4.95 64 x 96 7.57 77 x 130 10.54 90 x 130 10.98 90 x 157 11.87
22000 51 x 90 6.68 77 x 96 8.69 90 x 130 13.30

33000 64 x 96 8.73 77 x 130 12.11

47000 64 x 115 10.43 90 x 130 15.05

56000 77 x 96 10.96

68000 77 x 115 13.03

100000 90 x 130 17.36 Case size Ripple

WV(SV)

Cap (µF)

1000 51 x 65 2.40 51 x 70 2.47 51 x 90 2.94

1500 51 x 70 3.03 51 x 90 3.38 51 x 115 4.02

2200 51 x 96 4.21 64 x 96 4.46 64 x 115 5.17

3300 64 x 96 5.47 64 x 130 6.24 64 x 130 6.69

3900 64 x 115 6.43 64 x 155 7.34 77 x 120 7.82

4700 64 x 130 7.45 77 x 130 7.97 77 x 144 9.26

5600 77 x 115 7.94 77 x 155 9.39 90 x 145 11.06

6800 77 x 130 9.23 90 x 157 10.94 90 x 196 13.93

8200 77 x 155 10.95 90 x 157 12.01
10000 90 x 157 12.25 90 x 196 14.64 Case size Ripple

63

(75)

350

(400)

100

(125)

400

(450)

Allowable ripple current (A rms) at 105°C 120Hz

160

(200)

450

(500)

200

(250)

250

(300)

• Frequency coefcient of allowable ripple current • Allowable ripple vs. Ambient temperature

Frequency

6.3 ~ 35V

50 ~ 100V

160 ~ 450V

60 Hz 120 Hz 1 KHz 10 KHz 100 KHz

0.90 1.00 1.05 1.10 1.10

0.90 1.00 1.10 1.15 1.15

0.80 1.00 1.20 1.30 1.35

Ambient Temp. (°C) 45 55 70 85 105

Multiplier

≤ 250V 3.00 2.50 2.00 1.40 1.00
≥ 350V 2.50 2.00 1.50 1.20 1.00
