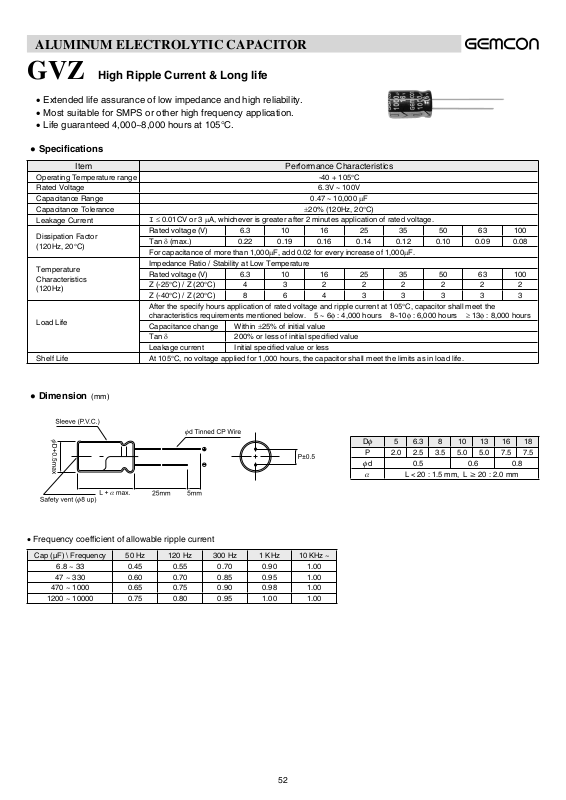

Page 1

ALUMINUM ELECTROLYTIC CAPACITOR

GVZ High Ripple Current & Long life

• Extended life assurance of low impedance and high reliability.

• Most suitable for SMPS or other high frequency application.

• Life guaranteed 4,000~8,000 hours at 105°C.

●

Specications

Item Performance Characteristics

Operating Temperature range -40 + 105°C Rated Voltage 6.3V ∼ 100V Capacitance Range 0.47 ∼ 10,000 µF Capacitance Tolerance Leakage Current

Dissipation Factor (120Hz, 20°C)

Temperature Characteristics (120Hz)

Load Life

Shelf Life At 105°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life.

I ≤ 0.01CV or 3 µA, whichever is greater after 2 minutes application of rated voltage. Rated voltage (V) 6.3 10 16 25 35 50 63 100 Tan δ (max.) 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08 For capacitance of more than 1,000µF, add 0.02 for every increase of 1,000µF. Impedance Ratio / Stability at Low Temperature Rated voltage (V) 6.3 10 16 25 35 50 63 100 Z (-25°C) / Z (20°C) 4 3 2 2 2 2 2 2 Z (-40°C) / Z (20°C) 8 6 4 3 3 3 3 3 After the specify hours application of rated voltage and ripple current at 105°C, capacitor shall meet the

characteristics requirements mentioned below. 5 ∼ 6φ : 4,000 hours 8∼10φ : 6,000 hours ≥ 13φ : 8,000 hours Capacitance change Within ±25% of initial value Tan δ 200% or less of initial specied value Leakage current Initial specied value or less

±20% (120Hz, 20°C)

●

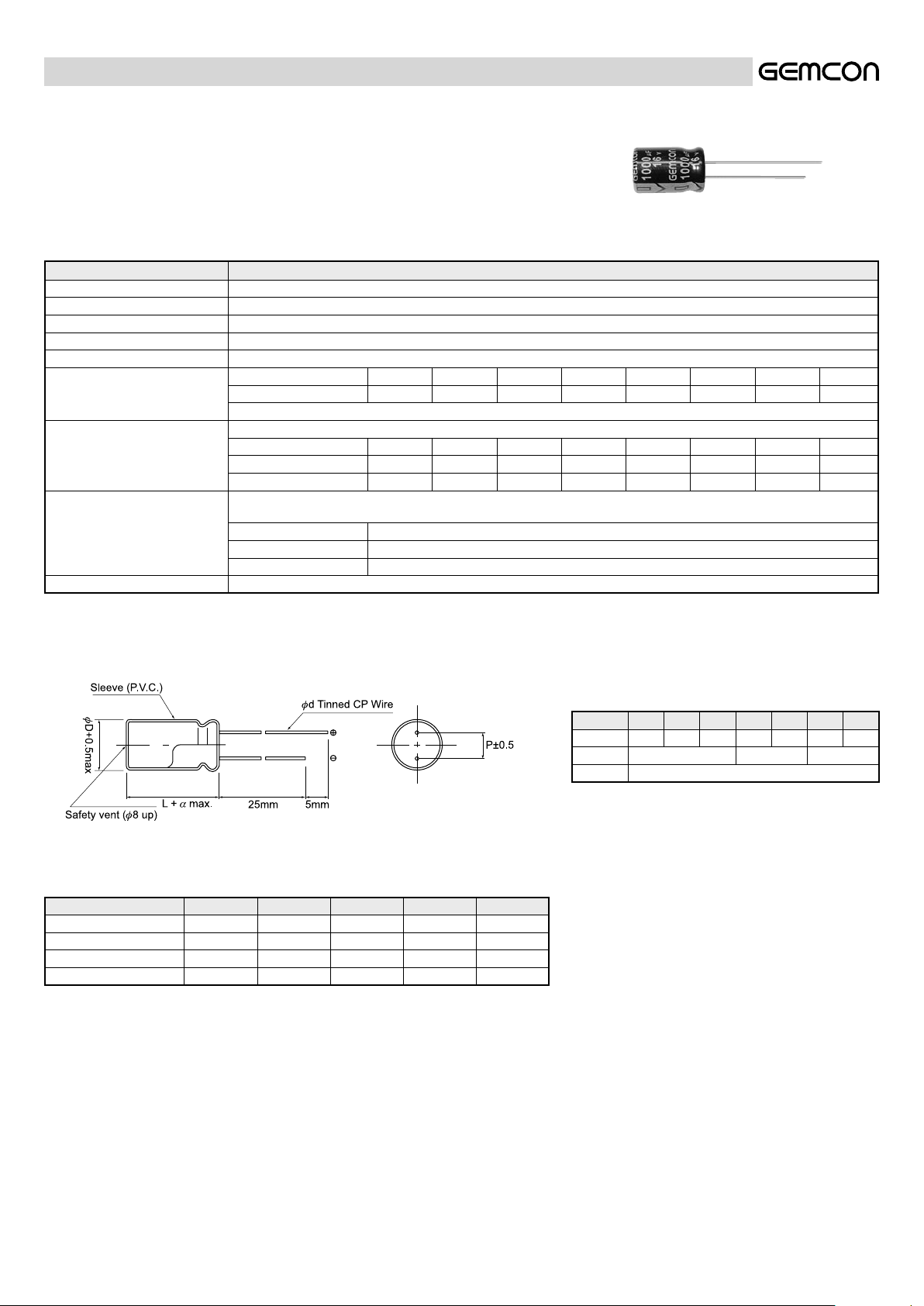

Dimension (mm)

• Frequency coefcient of allowable ripple current

Cap (µF) \ Frequency 50 Hz 120 Hz 300 Hz 1 KHz 10 KHz ~

6.8 ~ 33 0.45 0.55 0.70 0.90 1.00

47 ~ 330 0.60 0.70 0.85 0.95 1.00

470 ~ 1000 0.65 0.75 0.90 0.98 1.00

1200 ~ 10000 0.75 0.80 0.95 1.00 1.00

Df 5 6.3 8 10 13 16 18

P 2.0 2.5 3.5 5.0 5.0 7.5 7.5

0.5 0.6 0.8

L < 20 : 1.5 mm, L ≥ 20 : 2.0 mm

Page 2

ALUMINUM ELECTROLYTIC CAPACITOR

●

Standard Products Table

Cap (µF)

47 5 x 11 0.58 210 5 x 11 0.58 210

100 5 x 11 0.58 210 6.3 x 11 0.22 340 6.3 x 11 0.22 340

220 6.3 x 11 0.22 340 6.3 x 11 0.22 340 8 x 11 0.13 640

330 6.3 x 11 0.22 340 8 x 11 0.13 640 8 x 16 0.087 840

470

680

820 10 x 12 0.080 865 10 x 20 0.046 1400 10 x 25 0.042 1650

1000

1200 8 x 20 0.069 1050 10 x 20 0.046 1400 10 x 25 0.042 1650 13 x 25 0.027 2230 1500 10 x 20 0.046 1400 10 x 25 0.042 1650 13 x 20 0.035 1900 13 x 25 0.027 2230 1800 10 x 25 0.042 1650 13 x 25 0.027 2230 13 x 30 0.024 2650 2200 10 x 25 0.042 1650 10 x 30 0.031 1910 13 x 25 0.027 2230 13 x 35 0.020 2880 2700 10 x 30 0.031 1910 13 x 25 0.043 2210 13 x 30 0.024 2650 13 x 40 0.017 3350 3300 13 x 20 0.035 1900 13 x 25 0.027 2230 13 x 35 0.020 2880 16 x 31 0.017 3450 3900 13 x 25 0.027 2230 13 x 30 0.024 2650 13 x 40 0.017 3350 16 x 36 0.015 3610 4700 13 x 30 0.024 2650 13 x 35 0.020 2880 16 x 31 0.017 3450 16 x 40 0.013 4080 5600 13 x 35 0.020 2880 13 x 40 0.017 3350 16 x 36 0.015 3610 18 x 40 0.012 4280 6800 13 x 40 0.017 3350 16 x 31 0.017 3450 16 x 40 0.013 4080

8200 16 x 31 0.017 3450 16 x 36 0.015 3610 18 x 36 0.014 4220

10000 16 x 36 0.015 3610 16 x 40 0.013 4080 18 x 40 0.012 4280

Size Imp. Ripple Size Imp. Ripple Size Imp. Ripple Size Imp. Ripple

8 x 11 0.13 640 8 x 16 0.087 840 8 x 20 0.069 1050 10 x 20 0.046 1400

8 x 16 0.087 840 8 x 20 0.069 1050 10 x 20 0.046 1400 10 x 30 0.031 1910

6.3 10 16 25

8 x 11 0.13 640 8 x 16 0.087 840 8 x 20 0.069 1050

10 x 12 0.080 865 10 x 16 0.060 1210

10 x 16 0.060 1210 13 x 20 0.035 1900

Df x L (mm)

Cap (µF)

0.47 5 x 11 5.5 17

1 5 x 11 4.0 30

2.2 5 x 11 2.5 43

3.3 5 x 11 2.2 53

4.7 5 x 11 1.9 88

10 5 x 11 1.90 88 5 x 11 1.5 100

22 5 x 11 1.50 100 5 x 11 0.70 180

33 5 x 11 0.58 210 6.3 x 11 0.55 210 6.3 x 11 1.20 126

47 6.3 x 11 0.50 220 6.3 x 11 0.45 240 10 x 12 0.43 325 56 6.3 x 11 0.22 340 6.3 x 11 0.30 295 8 x 11 0.63 260 8 x 20 0.33 408 82 8 x 11 0.17 520 8 x 16 0.45 335 10 x 20 0.21 518

100 8 x 11 0.13 640 8 x 11 0.17 555 10 x 25 0.20 595

120 8 x 16 0.12 730 10 x 16 0.31 400 13 x 20 0.16 765

150 8 x 11 0.13 640 10 x 12 0.12 760 13 x 25 0.14 795

180 8 x 20 0.091 910 10 x 20 0.21 518 13 x 25 0.12 875 220 8 x 16 0.087 840 10 x 16 0.084 1050 10 x 25 0.20 595 13 x 30 0.10 1010 270 8 x 20 0.069 1050 10 x 20 0.060 1220 13 x 20 0.16 765 16 x 25 0.073 1350 330 10 x 16 0.060 1210 10 x 25 0.055 1440 13 x 25 0.12 875 16 x 25 0.071 1180 470 10 x 20 0.046 1400 13 x 20 0.045 1660 13 x 30 0.10 1010 16 x 36 0.045 1900 560 10 x 25 0.042 1650 13 x 25 0.034 1950 13 x 35 0.083 1140 16 x 40 0.040 2130 680 13 x 20 0.035 1900 13 x 30 0.030 2310 13 x 40 0.071 1280 18 x 36 0.040 1890

820 13 x 25 0.030 2100 13 x 35 0.034 2210 16 x 31 0.054 1650 18 x 40 0.036 2470 1000 13 x 25 0.027 2230 16 x 25 0.025 2555 16 x 36 0.045 1900

1200 13 x 30 0.024 2650 16 x 31 0.022 3010 16 x 40 0.040 2130

1500 13 x 35 0.020 2880 16 x 36 0.019 3150 18 x 40 0.036 2470

1800 16 x 25 0.021 2930 16 x 40 0.016 3710

2200 16 x 31 0.017 3450 18 x 36 0.017 3680

2700 16 x 36 0.015 3610 18 x 40 0.014 3800

3300 18 x 36 0.014 4220

3900 18 x 40 0.012 4280

Size Imp. Ripple Size Imp. Ripple Size Imp. Ripple Size Imp. Ripple

35V 50V 63V 100V

• Impedance: (Ω) Max. 20°C 100 KHz • Allowable ripple current: (mA) at 105°C 100 KHz
