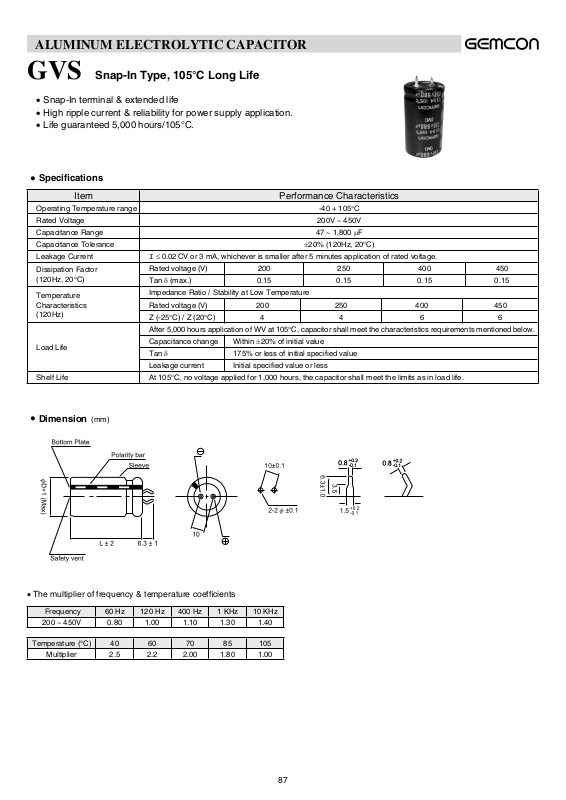

ALUMINUM ELECTROLYTIC CAPACITOR
GVS Snap-In Type, 105°C Long Life
• Snap-In terminal & extended life
• High ripple current & reliability for power supply application.
• Life guaranteed 5,000 hours/105°C.
●
Specications
Item Performance Characteristics
Operating Temperature range -40 + 105°C
Rated Voltage 200V ∼ 450V
Capacitance Range 47 ∼ 1,800 µF
Capacitance Tolerance
Leakage Current
Dissipation Factor
(120Hz, 20°C)
Temperature
Characteristics
(120Hz)
Load Life
Shelf Life At 105°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life.
I ≤ 0.02 CV or 3 mA, whichever is smaller after 5 minutes application of rated voltage.
Rated voltage (V) 200 250 400 450
Tan δ (max.) 0.15 0.15 0.15 0.15
Impedance Ratio / Stability at Low Temperature
Rated voltage (V) 200 250 400 450
Z (-25°C) / Z (20°C) 4 4 6 6
After 5,000 hours application of WV at 105°C, capacitor shall meet the characteristics requirements mentioned below.
Capacitance change Within ±20% of initial value
Tan δ 175% or less of initial specied value
Leakage current Initial specied value or less
±20% (120Hz, 20°C)
●

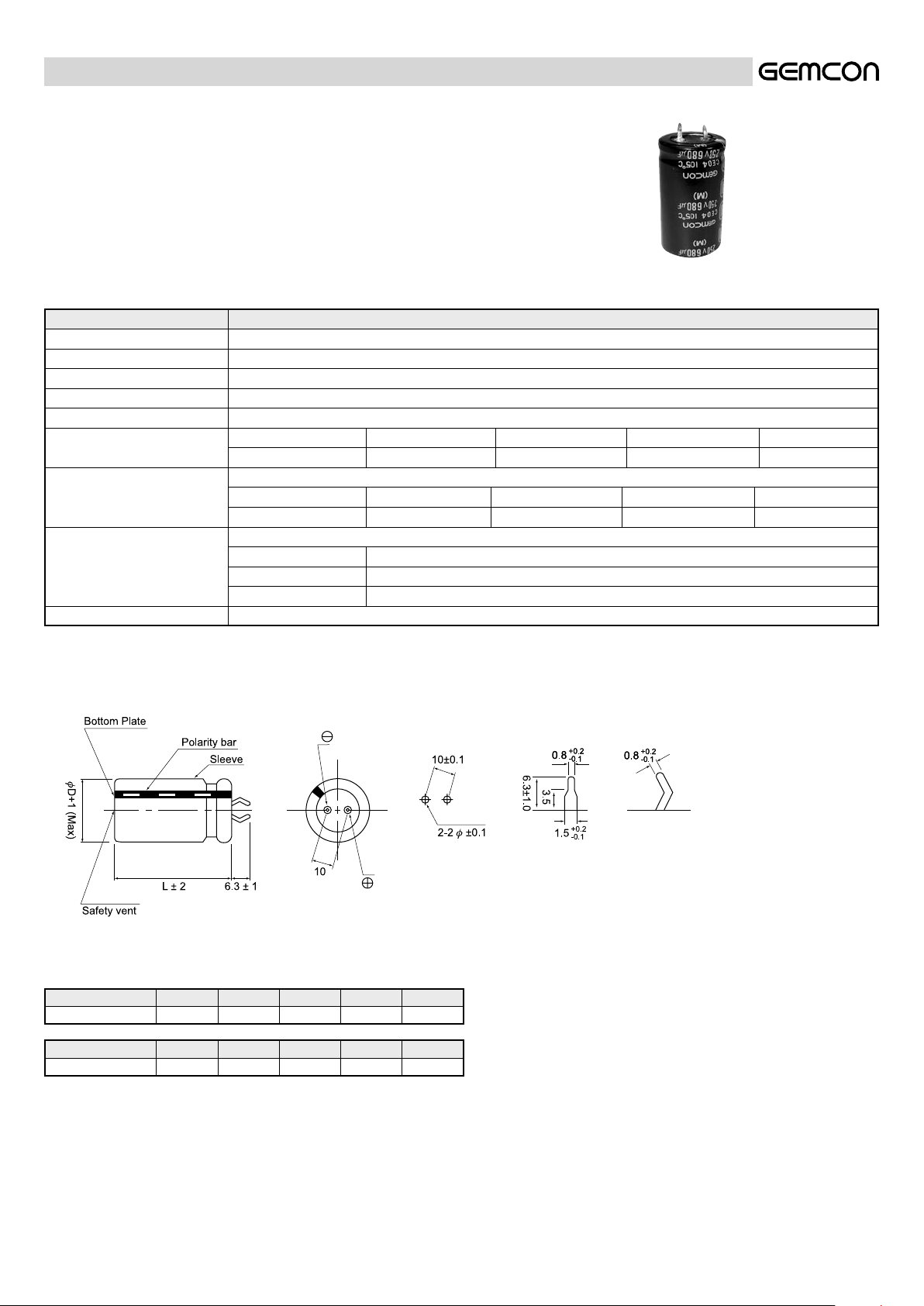

Dimension (mm)
• The multiplier of frequency & temperature coefcients
Frequency 60 Hz 120 Hz 400 Hz 1 KHz 10 KHz
200 ~ 450V 0.80 1.00 1.10 1.30 1.40
Temperature (°C) 40 60 70 85 105
Multiplier 2.5 2.2 2.00 1.80 1.00
87
Page 2
ALUMINUM ELECTROLYTIC CAPACITOR
ALUMINUM ELECTROLYTIC CAPACITOR
89
●
Standard Products Table
WV(SV)
Cap (µF)
47 22 x 25 0.39
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800 35 x 50 4.10 Case size Ripple
200V
(250V)
22 x 25 0.85 22 x 30 0.91 22 x 50 1.14 30 x 40 1.22
22 x 30 1.02 22 x 30 1.01 25 x 45 1.29 30 x 45 1.43
25 x 30 1.02 25 x 25 1.01 30 x 35 1.29 35 x 35 1.41
22 x 30 1.12 22 x 35 1.19 30 x 40 1.51 30 x 50 1.65
25 x 25 1.12 25 x 30 1.20 35 x 35 1.56 35 x 40 1.64
22 x 35 1.31 22 x 40 1.37 30 x 45 1.72 35 x 45 1.87
25 x 30 1.32 25 x 35 1.39 35 x 35 1.70
22 x 40 1.52 22 x 50 1.66 35 x 40 1.97
25 x 30 1.45 25 x 40 1.61 35 x 50 2.16
22 x 45 1.75 25 x 45 1.85 35 x 45 2.26
25 x 35 1.68 30 x 35 1.85
25 x 40 1.96 25 x 50 1.94
30 x 30 1.94 30 x 40 2.15
25 x 45 2.27 30 x 45 2.49
30 x 35 2.26 35 x 35 2.45
30 x 40 2.64 30 x 55 3.00
35 x 35 2.74 35 x 40 2.86
30 x 45 3.04 35 x 50 3.44
35 x 40 3.17 35 x 55 3.58
35 x 45 3.72 35 x 55 4.00
35 x 50 3.75
250V
(300V)
22 x 25 0.69 22 x 40 0.85 22 x 50 0.94
22 x 25 0.76 22 x 45 0.98 25 x 45 1.05
25 x 25 0.82 25 x 35 0.95 30 x 35 1.05
25 x 30 0.98 25 x 40 1.11 35 x 30 1.19
400V
(450V)
22 x 25 0.47 22 x 30 0.50
22 x 25 0.52 22 x 30 0.55
22 x 30 0.56 25 x 25 0.55
22 x 30 0.62 22 x 35 0.65
25 x 30 0.66 25 x 30 0.66
22 x 35 0.72 22 x 40 0.76
25 x 30 0.73 25 x 35 0.77
25 x 30 0.81 25 x 40 0.91
Allowable ripple current (A) at 105°C 120Hz
450V
(500V)
22 x 25 0.42
25 x 30 0.40
25 x 25 0.50
Df x L (mm)
