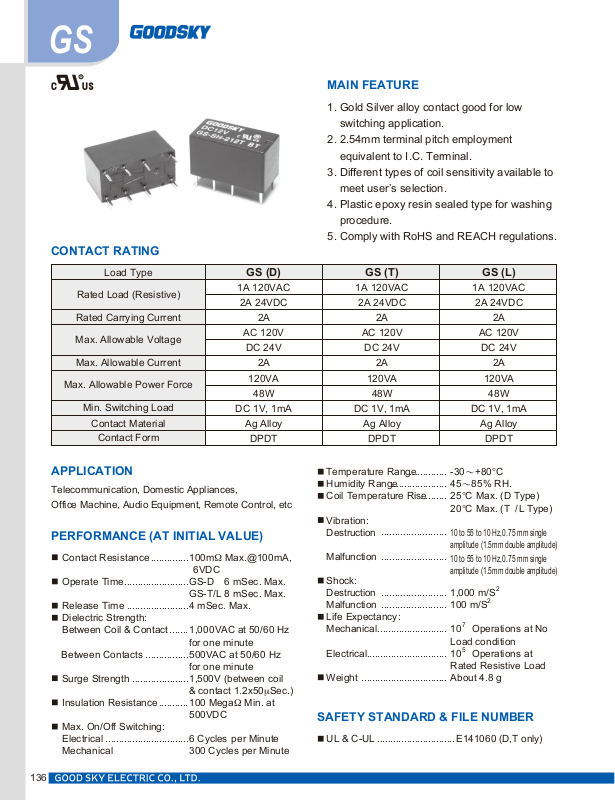

Page 1
GS
CONTACT RATING
MAIN FEATURE
1. Gold Silver alloy contact good for low
switching application.
2. 2.54mm terminal pitch employment
equivalent to I.C. Terminal.
3. Different types of coil sensitivity available to
meet user’s selection.
4. Plastic epoxy resin sealed type for washing
procedure.
5. Comply with RoHS and REACH regulations.
Load Type
Rated Load (Resistive)
Rated Carrying Current
Max. Allowable Voltage
Max. Allowable Current
Max. Allowable Power Force
Min. Switching Load
Contact Material
Contact Form
GS (D)
1A 120VAC
2A 24VDC
2A
AC 120V
DC 24V
2A
120VA
48W
DC 1V, 1mA
Ag Alloy
DPDT
APPLICATION
Telecommunication, Domestic Appliances,
Office Machine, Audio Equipment, Remote Control, etc
PERFORMANCE (AT INITIAL VALUE)
Contact Resistance .............. 100m Max.@100mA,
6VDC
Operate Time........................GS-D 6 mSec. Max.
GS-T/L 8 mSec. Max.
Release Time ....................... 4 mSec. Max.
Dielectric Strength:
Between Coil & Contact ....... 1,000VAC at 50/60 Hz
for one minute
Between Contacts ................500VAC at 50/60 Hz
for one minute
Surge Strength .....................1,500V (between coil
& contact 1.2x50μSec.)
Insulation Resistance ........... 100 Mega Min. at
500VDC
Max. On/Off Switching:
Electrical ...............................6 Cycles per Minute
Mechanical 300 Cycles per Minute
GS (T)
1A 120VAC
2A 24VDC
2A
AC 120V
DC 24V
2A
120VA
48W
DC 1V, 1mA
Ag Alloy
DPDT
Temperature Range.............. -30 +80°C
Humidity Range..................... 45 85% RH.
Coil Temperature Rise.......... 25°C Max. (D Type)
20°C Max. (T /L Type)
Vibration:
Destruction
Malfunction
Shock:
Destruction
Malfunction
Life Expectancy:
Mechanical .......................... 10
Electrical .............................. 10
Weight .................................... About 4.8 g
........................
........................
........................
........................
10 to 55 to 10 Hz,0.75 mm single
amplitude (1.5mm double amplitude)
10 to 55 to 10 Hz,0.75 mm single
amplitude (1.5mm double amplitude)
1,000 m/S
100 m/S
Load condition
Rated Resistive Load
GS (L)
1A 120VAC
2A 24VDC
2A
AC 120V
DC 24V
2A
120VA
48W
DC 1V, 1mA
Ag Alloy
DPDT
2
2
7
Operations at No
5
Operations at
SAFETY STANDARD & FILE NUMBER
UL & C-UL ............................. E141060 (D,T only)
136
Page 2
COIL SPECIFICATION (AT 20°C)
Coil Sensitivity
GS - D
GS - T
GS - L
Nominal
Voltage (VDC)
3
5
6
9
12
24
48
3
5
6
9
12
24
3
5
6
9
12
24
Nominal
Current (mA)
120
71.4
60.0
40.0
30.0
15.0
7.5
66.7
40.0
33.3
22.2
16.7
8.3
50.0
30.0
25.0
16.7
12.5
6.25
ORDERING INFORMATION
Coil Resistance
(Ω±10%)
25
70
100
225
400
1,600
6400
45
125
180
405
720
2,880
60
167
240
540
960
3840
Power
Consumption
(W)
Abt. 0.36
Abt. 0.20
Abt. 0.15
Pull-In Voltage
(VDC)
75%
Maximum
75%
Maximum
80%
Maximum
Drop-Out
Voltage (VDC)
10%
Minimum
10%
Minimum
10%
Minimum
GS
Maximum
Allowable
Voltage (VDC)
150%
150%
GS
150%
GS - SH - 2 12 D
Coil Sensitivity: D: Standard DC
T: Medium DC
L: High DC
Coil Voltage: 03: 3V, 05: 5 V, 06: 6V, 09: 9V, 12: 12V, 24: 24V, 48: 48V
Number of Pole: 2: Two Poles
Type of Sealing: SH: RT III Wash Tight
Type: GS
CLASSIFICATION
Model
Coil Sensitivity
Wash Tight
Standard DC Medium DC High DC
GS-SH-2 D GS-SH-2 T GS-SH-2 L
GS
DIMENSION ( ≤ 5mm ± 0.2mm, > 5mm ± 0.3mm, the tolerance of PCB thru hole: +0.1mm)
P.C.B Layout Bottom View
Bottom View
REFERENCE DATA
Coil temp. rise
Temp. rise (deg.)
Coil Power (W)
Operate time
Time (msec.)
Coil Power (W)
Life expectancy
4
Operation (x10 )
Current of load(A)
V.01EZ
www.goodsky.com.tw
137
