Page 1

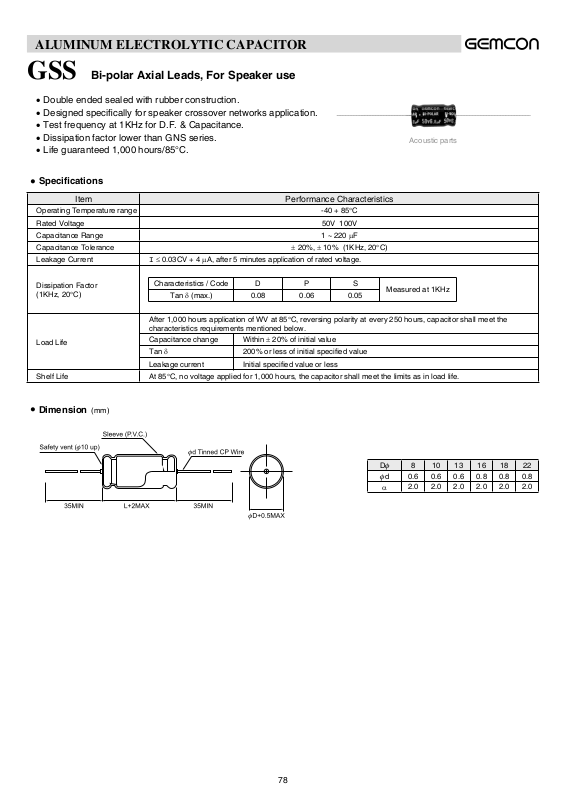

ALUMINUM ELECTROLYTIC CAPACITOR

GSS Bi-polar Axial Leads, For Speaker use

• Double ended sealed with rubber construction.

• Designed specically for speaker crossover networks application.

• Test frequency at 1KHz for D.F. & Capacitance.

• Dissipation factor lower than GNS series.

• Life guaranteed 1,000 hours/85°C.

●

Specications

Item Performance Characteristics

Operating Temperature range -40 + 85°C

Rated Voltage 50V 100V

Capacitance Range 1 ∼ 220 µF

Capacitance Tolerance

Leakage Current

I ≤ 0.03CV + 4 µA, after 5 minutes application of rated voltage.

± 20%, ± 10% (1KHz, 20°C)

Acoustic parts

Dissipation Factor (1KHz, 20°C)

Load Life

Shelf Life At 85°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life.

●

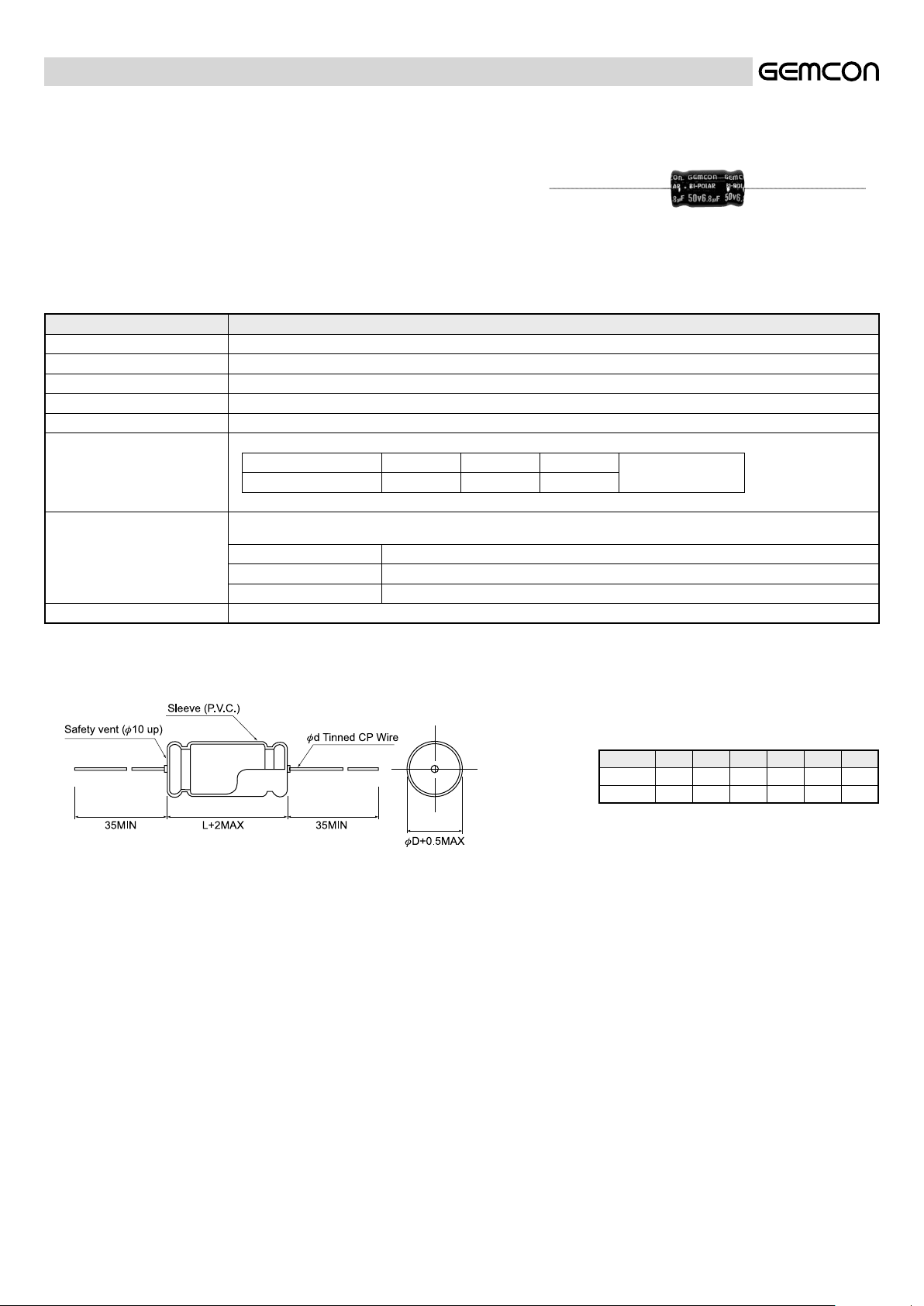

Dimension (mm)

Characteristics / Code D P S

Tan δ (max.) 0.08 0.06 0.05

After 1,000 hours application of WV at 85°C, reversing polarity at every 250 hours, capacitor shall meet the characteristics requirements mentioned below.

Capacitance change Within ± 20% of initial value

Tan δ 200% or less of initial specied value

Leakage current Initial specied value or less

Measured at 1KHz

Df 8 10 13 16 18 22 fd

0.6 0.6 0.6 0.8 0.8 0.8

2.0 2.0 2.0 2.0 2.0 2.0

Page 2

ALUMINUM ELECTROLYTIC CAPACITOR

●

Standard Products Table

Cap (µF)

1 8 x 17 10 x 19 13 x 26 10 x 19 10 x 19 13 x 26

1.5 8 x 17 10 x 19 13 x 26 10 x 19 10 x 19 13 x 26

2.2 8 x 17 10 x 19 13 x 26 10 x 19 10 x 19 13 x 26

2.7 8 x 17 10 x 19 13 x 26 10 x 19 10 x 19 13 x 26

3.3 8 x 17 10 x 19 13 x 26 10 x 19 10 x 19 13 x 26

3.9 10 x 19 10 x 19 13 x 26 10 x 19 13 x 26 13 x 26

4.7 10 x 19 10 x 19 13 x 26 10 x 19 13 x 26 13 x 31

5.6 10 x 19 10 x 19 13 x 26 10 x 19 13 x 26 13 x 31

6.8 10 x 19 13 x 26 13 x 31 13 x 26 13 x 26 13 x 31

7.5 10 x 19 13 x 26 13 x 31 13 x 26 13 x 26 13 x 31

8.2 10 x 19 13 x 26 13 x 31 13 x 26 13 x 26 13 x 31 10 13 x 26 13 x 26 13 x 31 13 x 26 13 x 31 13 x 31 12 13 x 26 13 x 26 13 x 31 13 x 26 13 x 31 13 x 31 15 13 x 26 13 x 26 13 x 31 13 x 26 13 x 31 13 x 31 18 13 x 26 13 x 26 13 x 31 13 x 26 13 x 31 13 x 31 22 13 x 26 13 x 31 13 x 31 13 x 31 13 x 31 13 x 31 27 13 x 26 13 x 31 13 x 31 13 x 31 13 x 31 13 x 31 33 13 x 31 13 x 31 13 x 31 13 x 31 13 x 31 16 x 34 39 13 x 31 13 x 31 16 x 34 13 x 31 16 x 34 16 x 34 47 13 x 31 16 x 34 16 x 34 13 x 31 16 x 34 16 x 34 56 16 x 34 16 x 34 16 x 34 16 x 34 16 x 34 16 x 42 68 16 x 34 16 x 34 16 x 34 16 x 34 16 x 34 16 x 42 75 16 x 34 16 x 34 16 x 42 16 x 34 16 x 42 18 x 42 82 16 x 34 16 x 34 16 x 42 16 x 34 16 x 42 18 x 42

100 16 x 34 16 x 34 18 x 42 16 x 42 18 x 42 18 x 42 120 16 x 34 16 x 34 18 x 42 18 x 42 18 x 42 22 x 44 150 16 x 34 16 x 42 18 x 42 18 x 42 22 x 44 22 x 44 180 16 x 42 18 x 42 22 x 44 18 x 42 22 x 44

220 18 x 42 22 x 44 22 x 44 22 x 44 25 x 46

D (8%) P (6%) S (5%) D (8%) P (6%) S (5%)

• Specic capacitance value or size may acceptable per request.

• Indicating the right P/N :

Example : GSS100M050-1634BP (The last digit stands for characteristic/DF code)

50V 100V

Df x L (mm)
