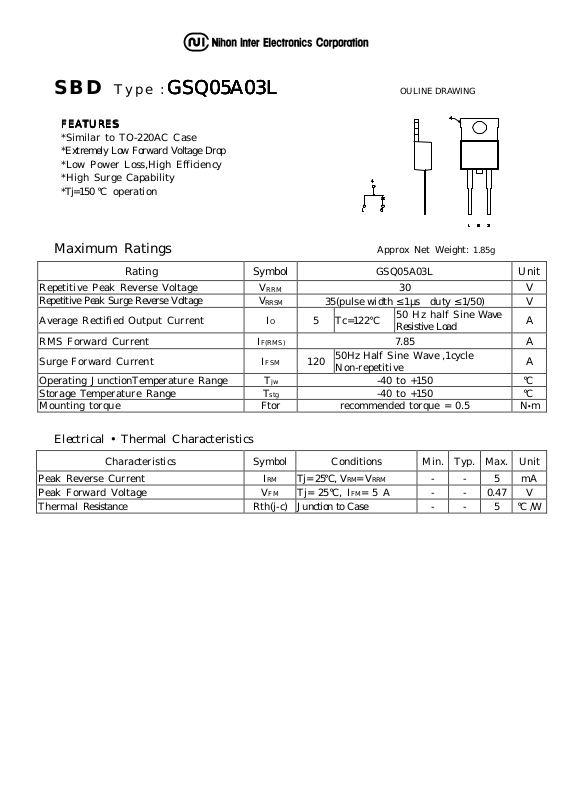

SBD Type : GGGGSSSSQQQQ00005555A03L
A03L OULINE DRAWING
A03LA03L
FEATURES
FEATURES
FEATURESFEATURES
*Similar to TO-220AC Case
*Extremely Low Forward Voltage Drop
*Low Power Loss,High Efficiency
*High Surge Capability
*Tj=150 °C
operation
Maximum Ratings Approx Net Weight: 1.85g
Rating Symbol
Repetitive Peak Reverse Voltage
Repetitive Peak Surge Reverse Voltage
Average Rectified Output Current IO 5
RMS Forward Current I
Surge Forward Current I
V
30
RRM
V
RRSM
35(pulse width ≤ 1µs duty ≤ 1/50)
Tc=122°C
7.85
F(RMS)
120
FSM
50Hz Half Sine Wave ,1cycle
Non-repetitive
Operating JunctionTemperature Range Tjw -40 to +150
Storage Temperature Range T
-40 to +150
stg
Mounting torque Ftor recommended torque = 0.5 N•m
GSQ05A03L
50 Hz half Sine Wave
Resistive Load
Unit
V
V
A
A
A
°C
°C
Electrical • Thermal Characteristics
Characteristics Symbol Conditions Min. Typ. Max. Unit
Peak Reverse Current IRM
Peak Forward Voltage VFM
Tj= 25°C, V
Tj= 25°C, I
RM
= V
FM
RRM
= 5 A
T he r m al Resistance R th ( j -c ) Junction to Case - - 5
- - 5 mA
- - 0.47 V
°C
/W
Page 2
GSQ05A03L OUTLINE DRAWING (Dimention in mm)
