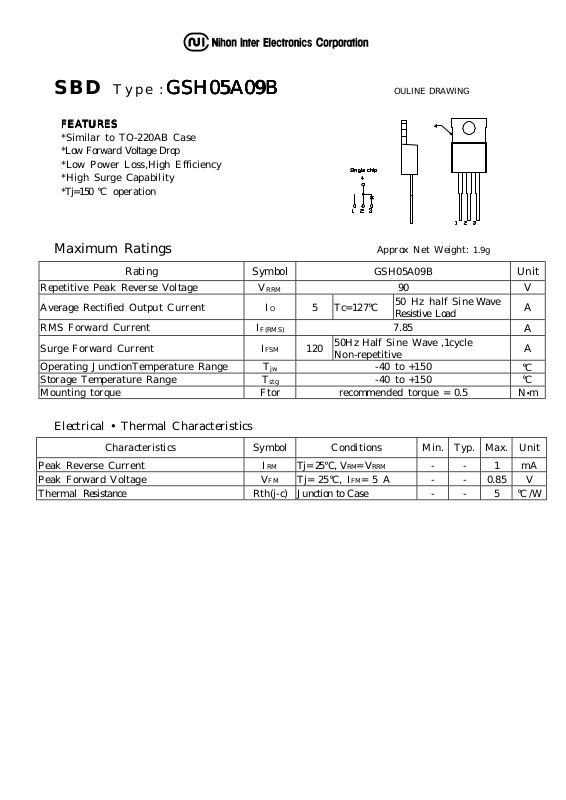

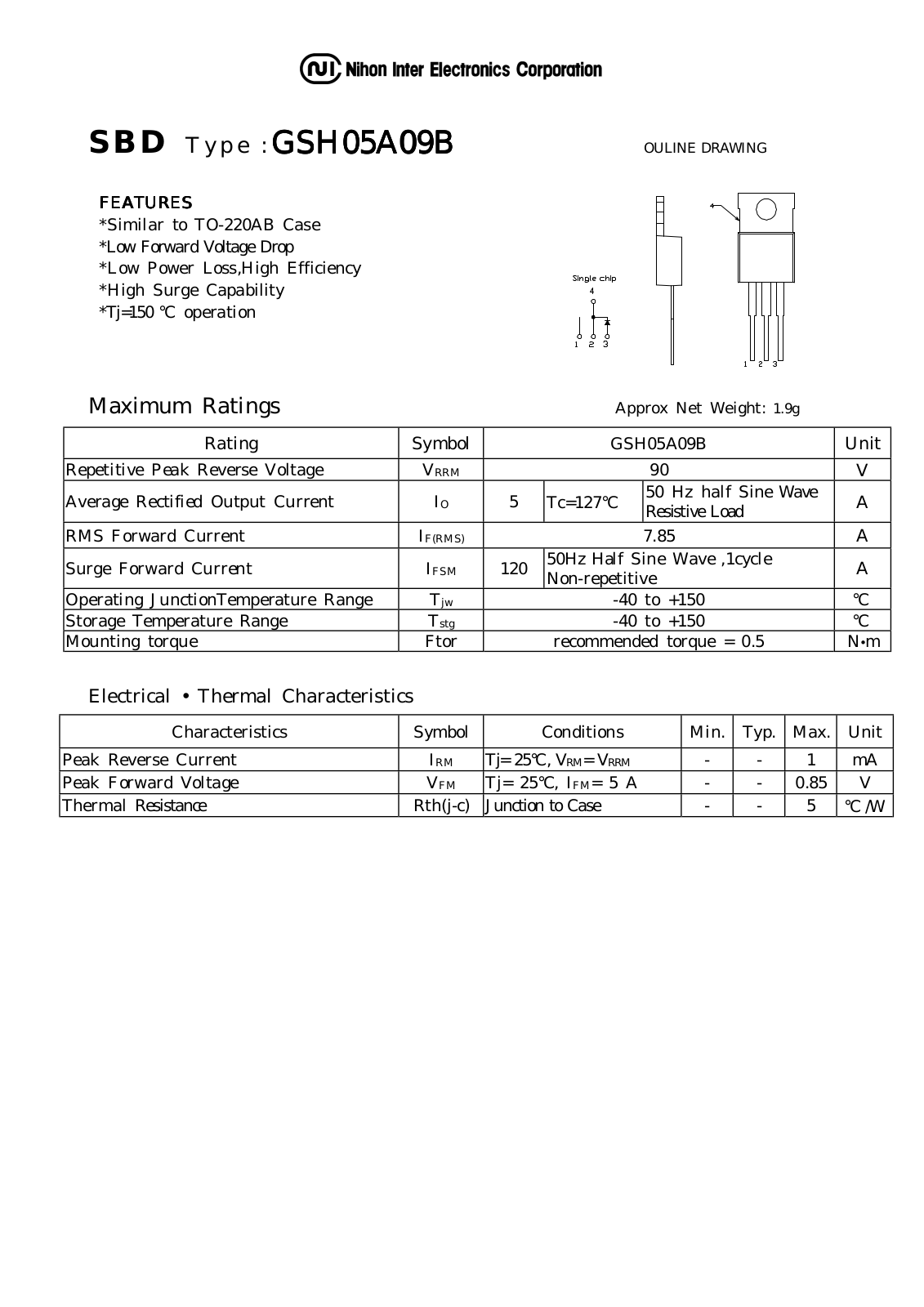

Page 1
SBD
Type :
GGGGSH0
SH05555A0
SH0SH0
A09B
A0A0
9B
9B9B
OULINE DRAWING
FEATURES
FEATURES
FEATURESFEATURES
*Similar to TO-220AB Case
*Low Forward Voltage Drop
*Low Power Loss,High Efficiency
*High Surge Capability
*Tj=150 °C
operation
Maximum Ratings
Rating Symbol
Repetitive Peak Reverse Voltage
Average Rectified Output Current IO 5
RMS Forward Current I
Surge Forward Current I
Operating JunctionTemperature Range Tjw -40 to +150
Storage Temperature Range T
Mounting torque Ftor recommended torque = 0.5 N•m
V
90
RRM
Tc=127°C
7.85
F(RMS)
120
FSM
-40 to +150
stg
50Hz Half Sine Wave ,1cycle
Non-repetitive
Approx Net Weight:
GSH05A09B
50 Hz half Sine Wave
Resistive Load
1.9g
Unit
V
A
A
A
°C
°C
Electrical • Thermal Characteristics
Characteristics Symbol Conditions Min. Typ. Max. Unit
Peak Reverse Current IRM
Peak Forward Voltage VFM
T he r m al Resistance R th ( j -c ) Junction to Case - - 5
Tj= 25°C, V
Tj= 25°C, I
RM
= V
FM
RRM
= 5 A
- - 1 mA
- - 0.85 V
°C
/W
Page 2

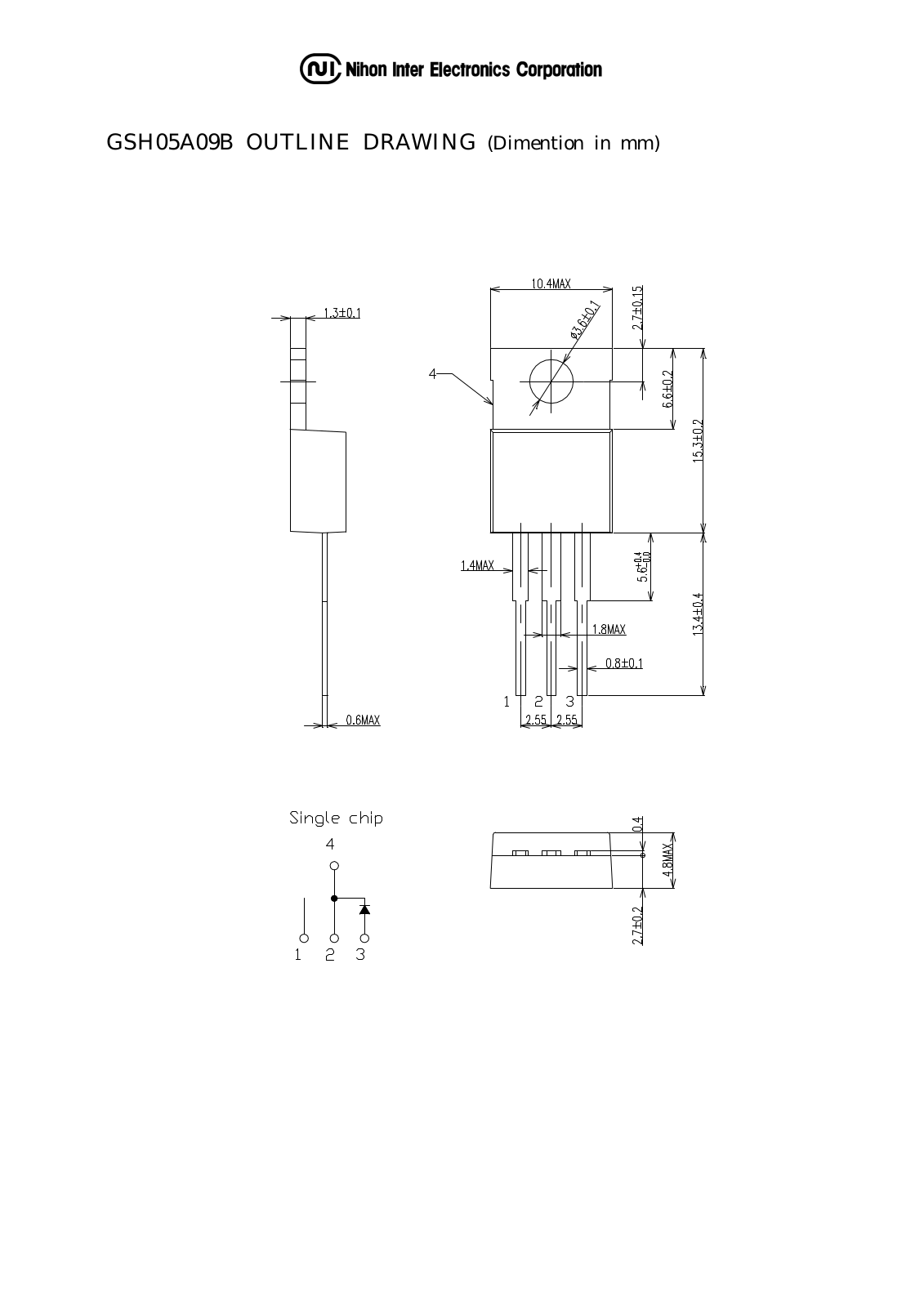

GSH05A09B OUTLINE DRAWING
(Dimention in mm)
