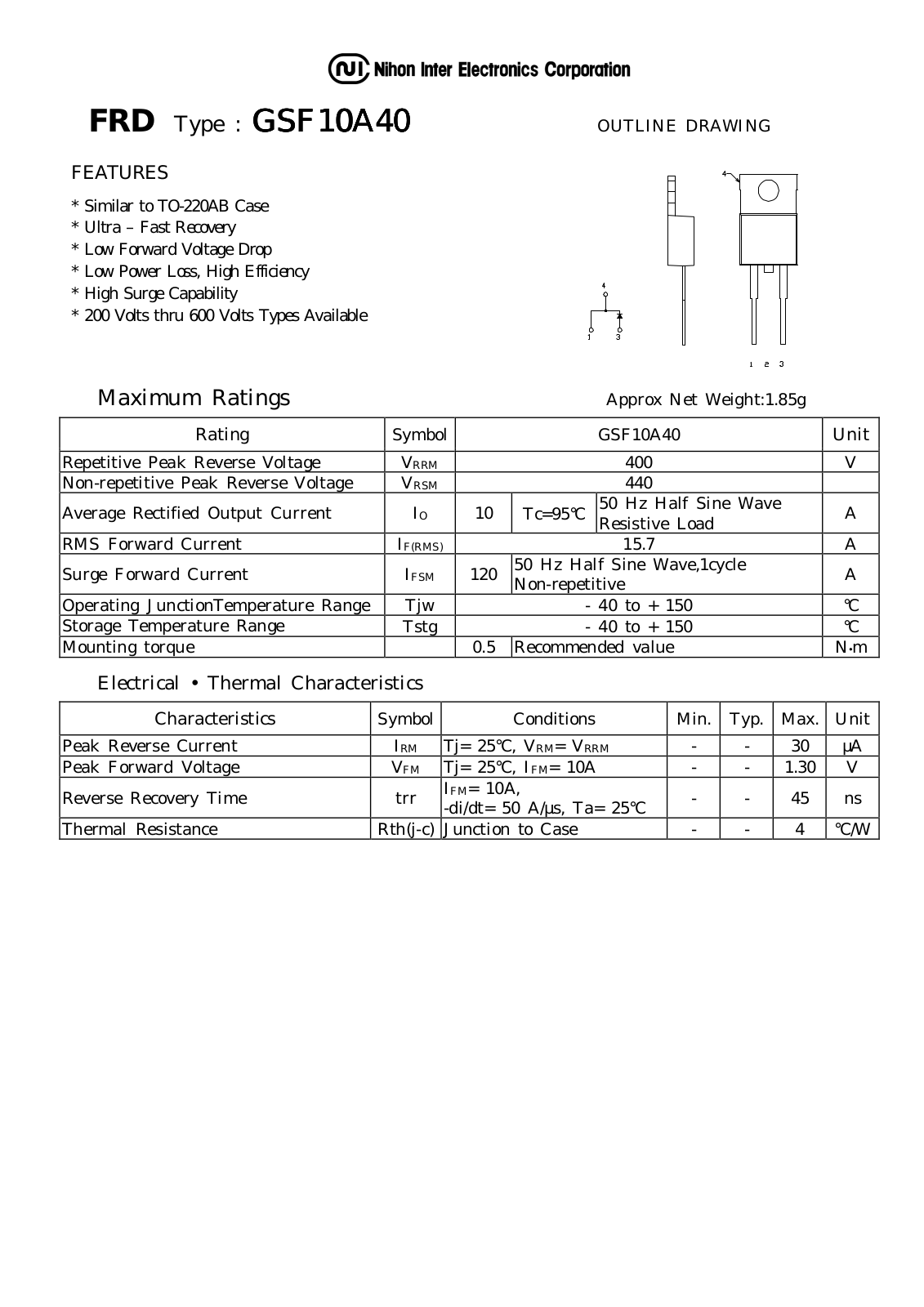

FRD Type : GSF10A40

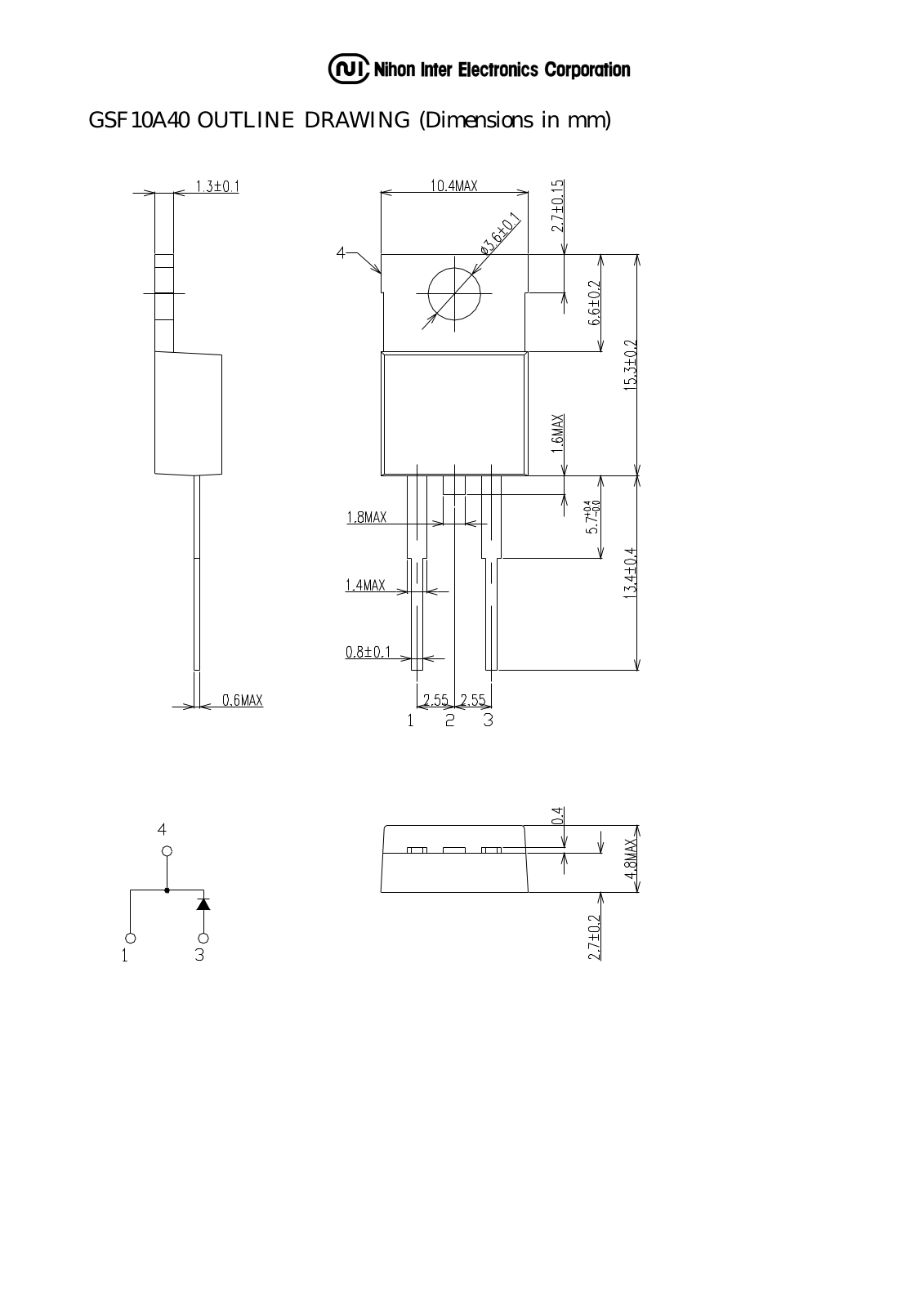

GSF10A40 OUTLINE DRAWING
GSF10A40 GSF10A40
FEATURES
* Similar to TO-220AB Case
* Ultra – Fast Recovery
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Capability
* 200 Volts thru 600 Volts Types Available
Maximum Ratings Approx Net Weight:1.85g
Rating
Repetitive Peak Reverse Voltage V
Non-repetitive Peak Reverse Voltage V
Average Rectified Output Current IO 10
RMS Forward Current I
Surge Forward Current I
Operating JunctionTemperature Range
Storage Temperature Range
Mounting torque 0.5 Recommended value N•m
Symbol GSF10A40
400 V
RRM
440
RSM
Tc=95°C
15.7 A
F(RMS)
120
FSM
50 Hz Half Sine Wave,1cycle
Non-repetitive
50 Hz Half Sine Wave
Resistive Load
Tjw - 40 to + 150
Tstg - 40 to + 150
Unit
A
A
°C
°C
Electrical • Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Reverse Recovery Time trr
Symbol Conditions Min. Typ. Max. Unit
I
V
RM
FM
Tj= 25°C, V
Tj= 25°C, I
= 10A,
I
FM
= V
RM
= 10A
FM
RRM
-di/dt= 50 A/µs, Ta= 25°C
- - 30
- - 1.30 V
- - 45 ns
Thermal Resistance Rth(j-c) Junction to Case - - 4
µA
°C/W
