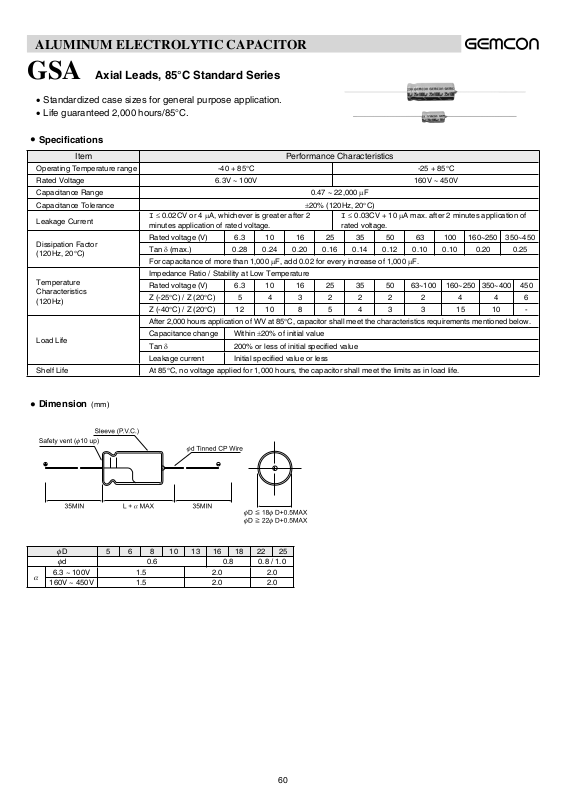

Page 1

ALUMINUM ELECTROLYTIC CAPACITOR

GSA Axial Leads, 85°C Standard Series

• Standardized case sizes for general purpose application.

• Life guaranteed 2,000 hours/85°C.

●

Specications

Item Performance Characteristics

Operating Temperature range -40 + 85°C -25 + 85°C

Rated Voltage 6.3V ∼ 100V 160V ∼ 450V

Capacitance Range 0.47 ∼ 22,000 µF

Capacitance Tolerance

Leakage Current

Dissipation Factor (120Hz, 20°C)

Temperature Characteristics (120Hz)

Load Life

Shelf Life At 85°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life.

I ≤ 0.02CV or 4 µA, whichever is greater after 2 minutes application of rated voltage.

Rated voltage (V) 6.3 10 16 25 35 50 63 100 160∼250 350∼450

Tan δ (max.) 0.28 0.24 0.20 0.16 0.14 0.12 0.10 0.10 0.20 0.25

For capacitance of more than 1,000 µF, add 0.02 for every increase of 1,000 µF.

Impedance Ratio / Stability at Low Temperature

Rated voltage (V) 6.3 10 16 25 35 50 63∼100 160∼250 350∼400 450

Z (-25°C) / Z (20°C) 5 4 3 2 2 2 2 4 4 6

Z (-40°C) / Z (20°C) 12 10 8 5 4 3 3 15 10 -

After 2,000 hours application of WV at 85°C, capacitor shall meet the characteristics requirements mentioned below.

Capacitance change Within ±20% of initial value

Tan δ 200% or less of initial specied value

Leakage current Initial specied value or less

±20% (120Hz, 20°C)

I ≤ 0.03CV + 10 µA max. after 2 minutes application of rated voltage.

●

Dimension (mm)

fD fd

6.3 ~ 100V 1.5 2.0 2.0

160V ~ 450V 1.5 2.0 2.0

5 6 8 10 13 16 18 22 25

0.6 0.8 0.8 / 1.0

Page 2

ALUMINUM ELECTROLYTIC CAPACITOR

●

Standard Products Table

WV(SV)

Cap (µF)

0.47 5 x 13 5 5 x 13 10

1 5 x 13 10 5 x 13 18

2.2 5 x 13 23 5 x 13 27

3.3 5 x 13 30 5 x 13 34

4.7 5 x 13 36 5 x 13 40

10 5 x 13 37 5 x 13 41 5 x 13 50 5 x 13 55 6.3 x 13 65

22 5 x 13 50 5 x 13 58 5 x 13 70 6.3 x 13 85 6.3 x 13 90 8 x 16 120

33 5 x 13 60 5 x 13 80 6.3 x 13 95 6.3 x 13 105 6.3 x 16 125 8 x 16 145

47 5 x 13 70 5 x 13 90 6.3 x 13 105 6.3 x 13 115 6.3 x 16 140 8 x 16 165 8 x 20 190 100 5 x 13 110 6.3 x 13 130 6.3 x 13 145 6.3 x 16 170 8 x 16 200 8 x 16 220 8 x 20 260 10 x 21 310 220 6.3 x 13 180 6.3 x 16 220 8 x 16 260 8 x 16 280 8 x 20 340 8 x 20 370 10 x 21 440 13 x 26 560 330 6.3 x 16 250 8 x 16 300 8 x 16 320 8 x 16 350 8 x 20 410 10 x 21 510 13 x 26 650 13 x 31 730 470 8 x 16 330 8 x 16 350 8 x 16 390 8 x 20 460 10 x 21 550 13 x 26 740 13 x 26 780 16 x 31 960

1000 8 x 20 530 8 x 20 570 10 x 21 700 10 x 26 830 13 x 26 980 13 x 31 1130 16 x 31 1330 18 x 41 1640 2200 10 x 21 850 13 x 26 1100 13 x 26 1190 13 x 31 1330 16 x 31 1580 16 x 41 1930 18 x 41 2080 25 x 51 2560 3300 13 x 26 1210 13 x 26 1290 13 x 31 1460 16 x 31 1700 16 x 41 1810 18 x 41 2260 22 x 51 2370

4700 13 x 26 1400 13 x 31 1550 16 x 31 1840 16 x 41 2190 18 x 41 2380 22 x 51 2510 25 x 41 3970

6800 13 x 31 1650 16 x 31 1930 16 x 41 2310 18 x 41 2480 22 x 51 2760

10000 16 x 31 1990 16 x 41 2350 18 x 41 2520 22 x 51 3240 25 x 51 3500

15000 16 x 41 2480 18 x 41 2630 22 x 51 3310

22000 18 x 41 2730 22 x 51 3390 25 x 51 3500

6.3 (8)

(13)

(20)

(32)

(44)

(63)

(75)

Df x L (mm)

100

(125)

WV(SV)

Cap (µF)

1 6.3 x 13 16 6.3 x 16 20 6.3 x 16 20 8 x 16 19

2.2 6.3 x 13 24 6.3 x 16 30 8 x 16 33 8 x 16 33 8 x 16 28

3.3 6.3 x 16 37 6.3 x 16 37 8 x 16 40 8 x 16 40 8 x 20 45 8 x 20 38

4.7 8 x 16 50 8 x 16 50 8 x 16 50 8 x 20 55 10 x 21 60 10 x 21 50 10 8 x 20 80 8 x 20 80 10 x 21 90 10 x 26 100 13 x 26 110 13 x 26 90 22 10 x 21 130 10 x 26 145 13 x 26 160 13 x 26 160 13 x 31 170 16 x 31 160 33 10 x 26 180 13 x 26 195 13 x 26 195 13 x 31 200 16 x 31 230 16 x 31 190 47 13 x 26 230 13 x 31 230 13 x 31 240 16 x 31 270 16 x 41 310 16 x 41 270

100 16 x 31 400 16 x 31 400 16 x 41 450 18 x 41 460 22 x 51 370 220 16 x 41 670 18 x 41 690 22 x 41 764

160

(200)

200

(250)

250

(300)

350

(400)

400

(450)

Ripple current (mA) at 85°C 120 Hz

• Frequency coefcient of allowable ripple current

WV Cap(µF) \ Frequency 50 Hz 120 Hz 300 Hz 1 KHz 10 KHz~

~ 47 0.75 1 1.35 1.57 2.00

6.3~100

160~450 1 ~ 220 0.80 1 1.25 1.40 1.60

100 ~ 470 0.80 1 1.23 1.34 1.50

1,000 ~ 22,000 0.85 1 1.10 1.13 1.15

450

(500)

Case size

Ripple
