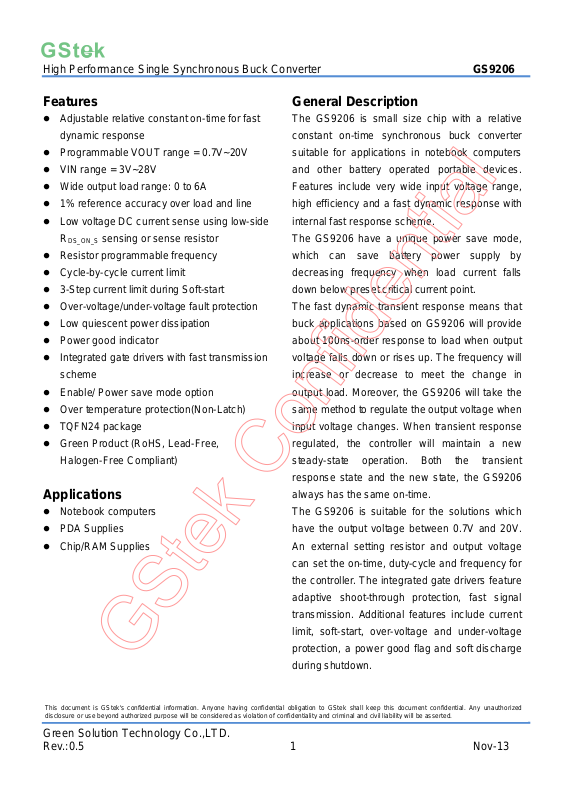

High Performance Single Synchronous Buck Converter GS9206
Features
Adjustable relative constant on-time for fast
General Description
The GS9206 is small size chip with a relative
dynamic response
Programmable VOUT range = 0.7V~20V
VIN range = 3V~28V
Wide output load range: 0 to 6A
1% reference accuracy over load and line
Low voltage DC current sense using low-side
R
DS_ON_S
Resistor programmable frequency
Cycle-by-cycle current limit
3-Step current limit during Soft-start
Over-voltage/under-voltage fault protection
Low quiescent power dissipation
Power good indicator
Integrated gate drivers with fast transmission
sensing or sense resistor
scheme
Enable/ Power save mode option
Over temperature protection(Non-Latch)
constant on-time synchronous buck converter
suitable for applications in notebook computers
and other battery operated portable devices.
Features include very wide input voltage range,
high efficiency and a fast dynamic response with
internal fast response scheme.
The GS9206 have a unique power save mode,
which can save battery power supply by
decreasing frequency when load current falls
down below preset critical current point.
The fast dynamic transient response means that
buck applications based on GS9206 will provide
about 100ns-order response to load when output
voltage falls down or rises up. The frequency will
increase or decrease to meet the change in
output load. Moreover, the GS9206 will take the
same method to regulate the output voltage when
TQFN24 package
Green Product (RoHS, Lead-Free,
Halogen-Free Compliant)
Applications
Notebook computers
PDA Supplies
Chip/RAM Supplies
input voltage changes. When transient response
regulated, the controller will maintain a new
steady-state operation. Both the transient
response state and the new state, the GS9206
always has the same on-time.
The GS9206 is suitable for the solutions which
have the output voltage between 0.7V and 20V.
An external setting resistor and output voltage
can set the on-time, duty-cycle and frequency for
the controller. The integrated gate drivers feature
adaptive shoot-through protection, fast signal
transmission. Additional features include current
limit, soft-start, over-voltage and under-voltage
protection, a power good flag and soft discharge
during shutdown.
Green Solution Technology Co.,LTD.
Rev.:0.5 1 Nov-13
