Page 1
VOUT
GND
1
2
4
3
GS7119
EN
VDD
VDD
1uF EN
1uF
VOUT
This document is GStek's confidential information. Anyone having confidential obligation to GStek shall keep this document confidential. Any unauthorized disclosure or use beyond authorized purpose will be considered as violation of confidentiality and criminal and civil liability will be asserted.

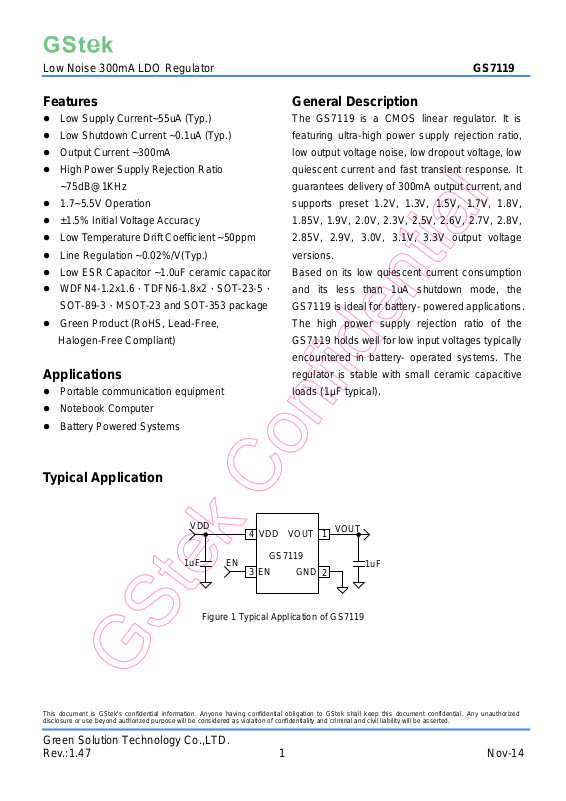

Low Noise 300mA LDO Regulator GS7119
Features
General Description
The GS7119 is a CMOS linear regulator. It is
Low Shutdown Current ~0.1uA (Typ.) Output Current ~300mA High Power Supply Rejection Ratio
~75dB@1KHz
1.7~5.5V Operation ±1.5% Initial Voltage Accuracy Low Temperature Drift Coefficient ~50ppm Line Regulation ~0.02%/V(Typ.) Low ESR Capacitor ~1.0uF ceramic capacitor WDFN4-1.2x1.6、TDFN6-1.8x2、SOT-23-5、
SOT-89-3、MSOT-23 and SOT-353 package
Green Product (RoHS, Lead-Free,
Halogen-Free Compliant)
Applications
Portable communication equipment Notebook Computer
featuring ultra-high power supply rejection ratio, low output voltage noise, low dropout voltage, low quiescent current and fast transient response. It guarantees delivery of 300mA output current, and supports preset 1.2V, 1.3V, 1.5V, 1.7V, 1.8V,
1.85V, 1.9V, 2.0V, 2.3V, 2.5V, 2.6V, 2.7V, 2.8V,
2.85V, 2.9V, 3.0V, 3.1V, 3.3V output voltage versions. Based on its low quiescent current consumption and its less than 1uA shutdown mode, the GS7119 is ideal for battery- powered applications. The high power supply rejection ratio of the GS7119 holds well for low input voltages typically encountered in battery- operated systems. The regulator is stable with small ceramic capacitive loads (1µF typical).
Battery Powered Systems
Typical Application

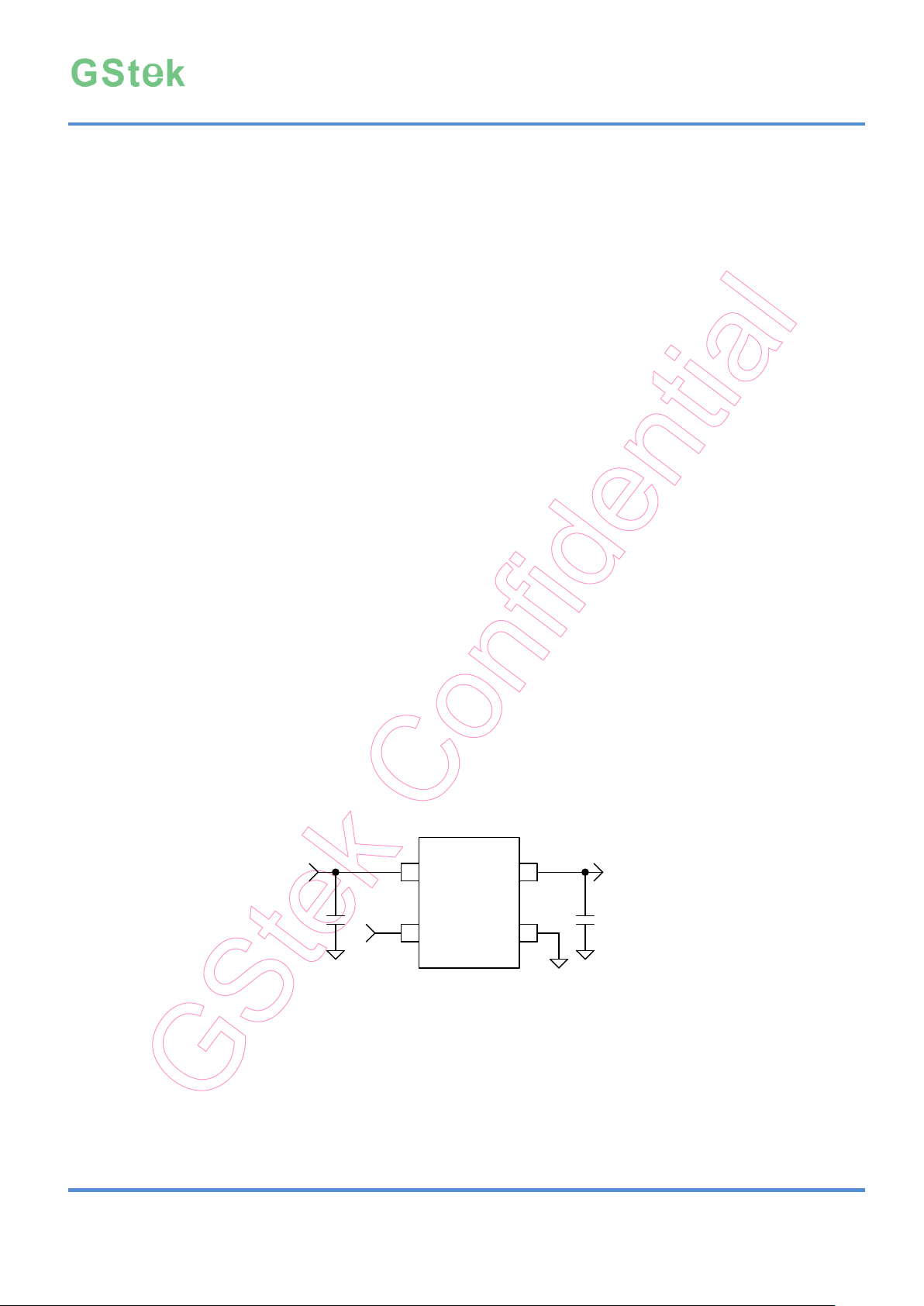

Figure 1 Typical Application of GS7119
Green Solution Technology Co.,LTD. Rev.:1.47 1 Nov-14
Page 2
Current Limit
Vref
EN
+
-
EN Control
VDD
EN
GND
VOUT
0.3uA
Current Limit
Vref
EN
+
-
EN Control
VDD
EN
GND
VOUT
0.3uA
Low Noise 300mA LDO Regulator GS7119

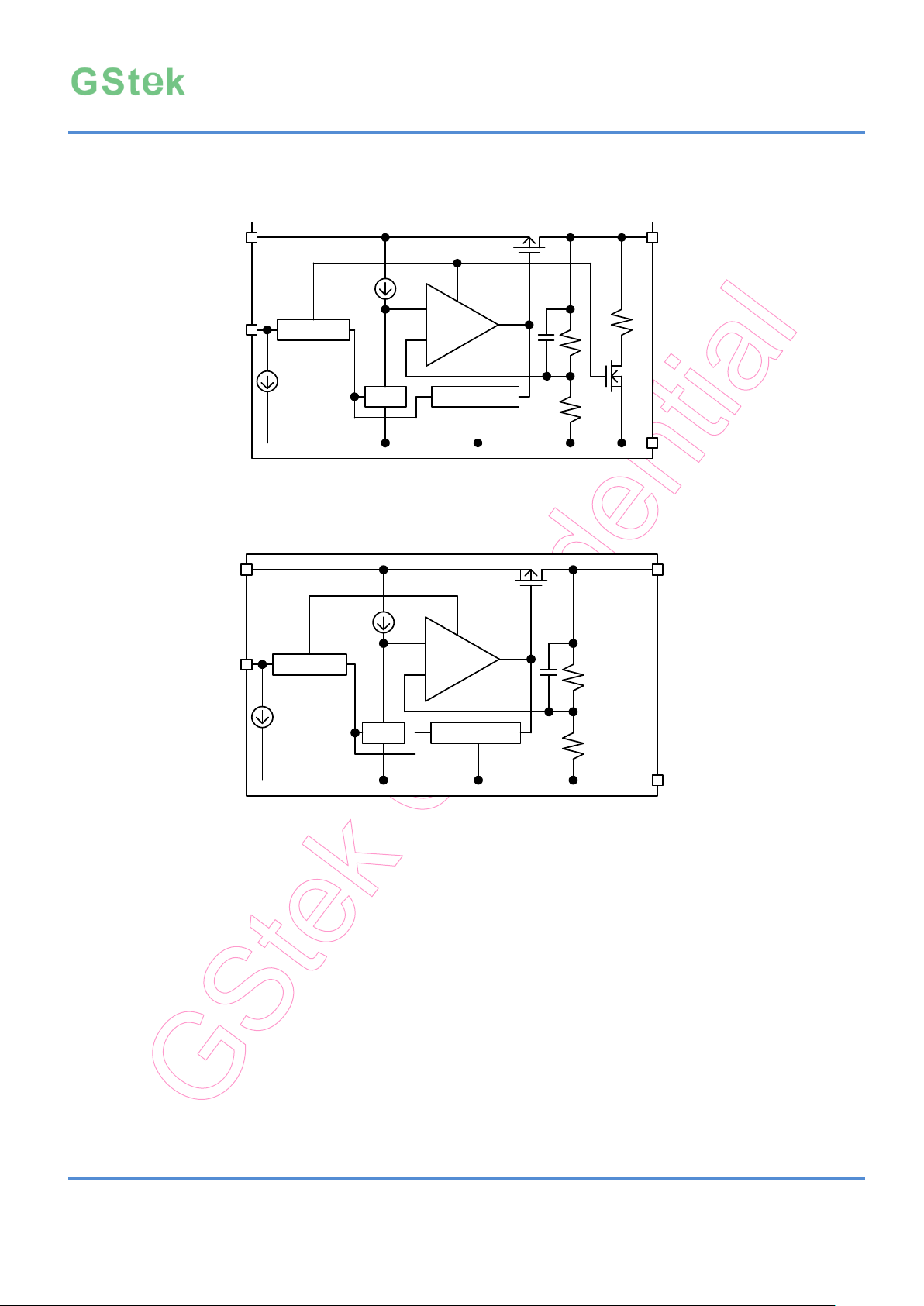

Function Block Diagram
Figure 2a with auto discharge function (default)
Figure 2b without auto discharge function (special order)
Figure 2 Function Block Diagram
Green Solution Technology Co.,LTD. Rev.:1.47 2 Nov-14
Page 3
VOUT
GND
VDD
EN
1
2
4
3
GND
5
1
3
45
6
2
EN
VDD
GNDVOUT VOUT
7 NC
VDD
Figure 3a WDFN4-1.2x1.6 Package
Figure 3b TDFN6-1.8x2 package
VDD GND EN
NCVOUT
1 2 3
45
1
2
3
GND VDD VOUT
GND
1
2
3
VOUT
VDD
Figure 3c SOT-23-5
/SOT-353 Package
Figure 3d SOT-89-3 Package
Figure 3e MSOT-23 Package
No
Name
I/O type
Description
WDFN4-1.2x1.6
TDFN6-1.8x2
SOT-23-5/
SOT-353
SOT-89-3
MSOT-23
1
1, 2
5 3 2
VOUT
O
Output pin
2, 5
3 2 1 1 GND
O
Ground pin
3 4 3
EN
I
Enable Pin
4
5,6
1 2 3
VDD
I
Input Pin
7 4
NC
Low Noise 300mA LDO Regulator GS7119

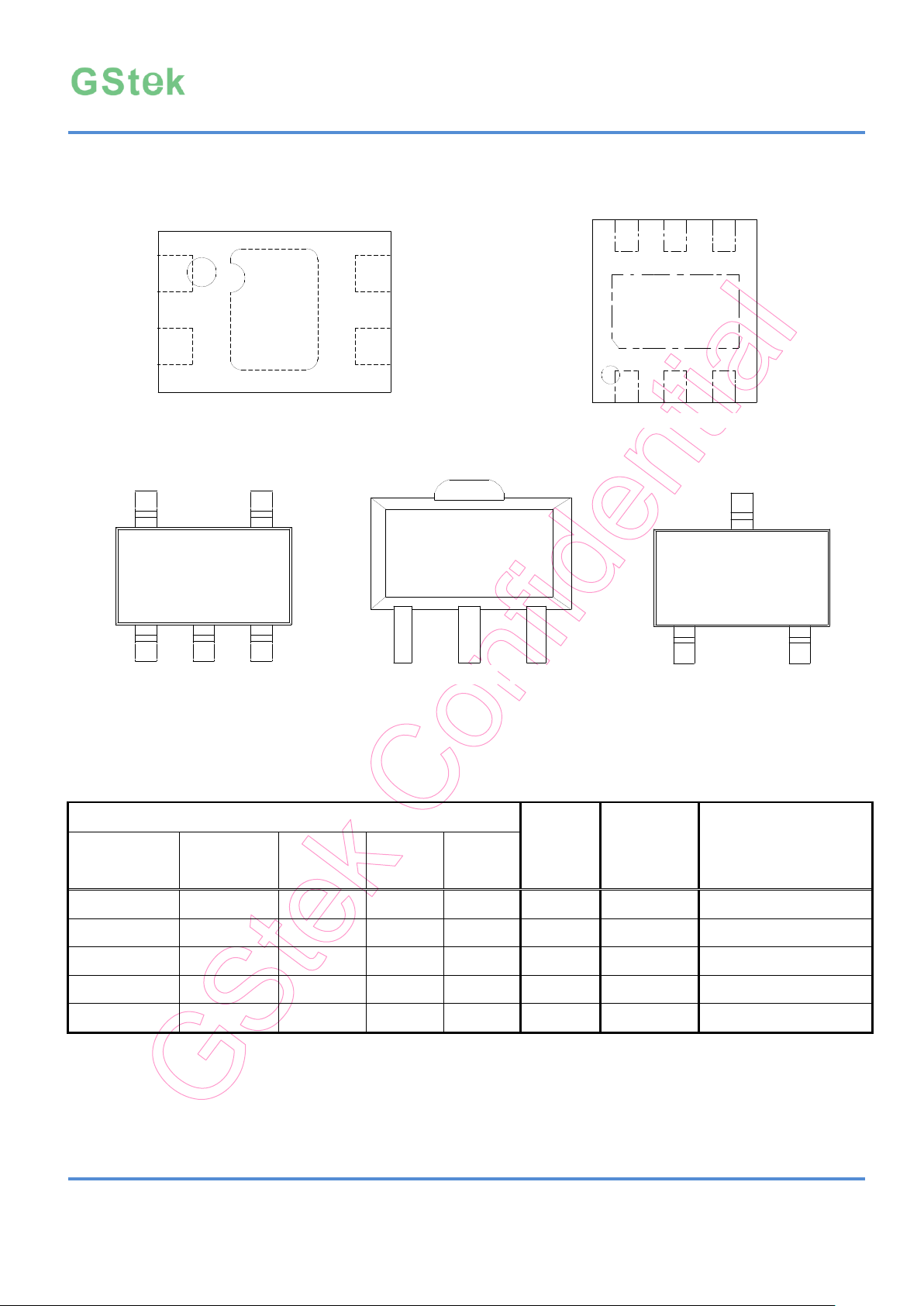

Pin Configuration
Pin Descriptions
Green Solution Technology Co.,LTD. Rev.:1.47 3 Nov-14
Page 4
No
Item
Contents
1
Package
UD: WDFN4-1.2x1.6 TD: TDFN6-1.8x2 ST: SOT-23-5 S9: SOT-89-3 SR: MSOT-23 C5: SOT-353(SC-75)
2
Output Voltage
1P2: 1.2V, 1P3: 1.3V, 1P5: 1.5V, 1P7:1.7V, 1P8: 1.8V, 185: 1.85V, 1P9: 1.9V, 2P0: 2.0V, 2P3: 2.3V, 2P5: 2.5V, 2P6: 2.6V, 2P7: 2.7V, 2P8: 2.8V, 285: 2.85V, 2P9: 2.9V, 3P0: 3.0V, 3P1: 3.1V, 3P3: 3.3V
3
Shipping
R: Tape & Reel
GS7119PP-XXX- R
3. Shipping
1. Package
2. Output Voltage
Low Noise 300mA LDO Regulator GS7119
Ordering Information
Example: GS7119 2.5V SOT-23-5 Tape & Reel ordering information is “GS7119ST-2P5-R”
Green Solution Technology Co.,LTD. Rev.:1.47 4 Nov-14
Page 5
Parameter
Symbol
Limits
Units
VIN to GND
VIN
-0.3 < VIN< 6
V
VEN to GND
VEN
-0.3 < VEN< 6
V
Output Voltage
V
OUT
-0.3 < V
OUT<VIN
+0.3
V
Output Current
I
OUT
300
mA
Package Power Dissipation at TA≦25°C
P
D_WDFN4-1.2x1.6
500
mW
Package Power Dissipation at TA≦25°C
P
D_TDFN6-1.8x2
880
mW
Package Power Dissipation at TA≦25°C
P
D_SOT-23-5
420
mW
Package Power Dissipation at TA≦25°C
P
D_SOT-89-3
571
mW
Package Power Dissipation at TA≦25°C
P
D_MSOT-23
380
mW
Package Power Dissipation at TA ≦25°C
P
D_SOT-353
300
mW
Storage Temperature
T
STG
- 65 ~ 150
°C
Lead Temperature (Soldering) 10S
T
LEAD
260
°C
ESD (Human Body Mode) (Note 2)
V
ESD_HBM
2K
V
ESD (Machine Mode) (Note 2)
V
ESD_MM
200
V
Parameter
Symbol
Limits
Units
Thermal Resistance Junction to Ambient
θ
JA_WDFN4-1.2x1.6
200
°C/W
Thermal Resistance Junction to Ambient
θ
JA_TDFN6-1.8x2
114
°C/W
Thermal Resistance Junction to Ambient
θ
JA_SOT-23-5
238
°C/W
Thermal Resistance Junction to Ambient
θ
JA_SOT-89-3
182
°C/W
Thermal Resistance Junction to Ambient
θ
JA_MSOT-23
263
°C/W
Thermal Resistance Junction to Ambient
θ
JA_SOT-353
333
°C/W
Parameter
Symbol
Limits
Units
VIN to GND
VIN
1.7 to 5.5
V
Junction Temperature
TJ
- 40 ~ 125
°C
Operating Temperature Range
TA
-40 ~ 85
°C
Low Noise 300mA LDO Regulator GS7119
Absolute Maximum Rating (Note 1)
Thermal Information (Note 3)
Recommend Operating Condition (Note 4)
Green Solution Technology Co.,LTD. Rev.:1.47 5 Nov-14
Page 6
Parameter
Symbol
Conditions
Min
Typ
Max
Units
SUPPLY VOLTAGE SECTION
Supply Voltage
VIN
1.7 5.5
V
Supply Current
I
VIN
Unload
55
70
uA
Standby Current
I
STBY
VEN=0
0.1
1.0
uA
EN Input Current
IEN
VEN=VIN=5.5V
0.3 uA
Output Current(Note 5)
I
OUT
300
(Note 6)
mA
OUTPUT SECTION
Output Voltage
V
OUT
TA = 25°C
-1.5
+1.5
%
Dropout Voltage (Note 7)
V
DROP
I
OUT
=300mA
(For WDFN4-1.2x1.6, , SOT-23-5, SOT-89-3 package)
V
OUT
=1.2V
495
650
mV
V
OUT
=1.5V
375
490
V
OUT
=2.5V
235
295
V
OUT
=2.8V
220
275
V
OUT
=3.3V
195
245
I
OUT
=300mA
(For MSOT-23 package)
V
OUT
=1.5V
500
680
V
OUT
=1.8V
400
490
V
OUT
=2.8V
260
340
Line Regulation
△V
LNR
VIN = V
OUT
+0.5V to 5.5V, I
OUT
=1mA
0.02
0.20
%/V
Load Regulation
△V
LDR
VIN = V
OUT
+1V,
I
OUT
=1mA to 150mA
15
40
mV
Ripple Rejection Rate
PSRR
VIN=MAX{V
OUT
+1.0V, 3V}, Ripple
0.2Vp-p, I
OUT
=30mA, f=1KHz
78 dB
Limit Current
Ilim
VEN=VIN
460 mA
Short Current
Ishort
V
OUT
=0V
40 mA
EN Input Voltage High
V
ENH
1.2 V EN Input Voltage Low
V
ENL
0.3
V
CL Auto-Discharge Resistance (Note 8)
Rdischg
VIN=5.0V, VEN=0V
95 Ω
Temperature Drift
△V
OUT
/△TA
I
OUT
=1mA,
TA = -40°C to +85°C
40
ppm/°C
Low Noise 300mA LDO Regulator GS7119
Electrical Characteristics
(VIN = V
+ 1V, TA = 25°C, CIN=CL=0.47uF, I
OUT
=1mA, unless otherwise specified)
OUT
Green Solution Technology Co.,LTD. Rev.:1.47 6 Nov-14
Page 7
Thermal Shutdown Temperature
TSD
T
J
Rising
165 °C
Thermal Shutdown Returned Temperature
145 °C
Low Noise 300mA LDO Regulator GS7119
Note 1. Stresses listed as the above “Absolute Maximum Ratings” may cause permanent damage to the
device. These are for stress ratings. Functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may remain possibility to affect device reliability.
Note 2. Devices are ESD sensitive. Handling precaution recommended. Note 3. θJA is measured in the natural convection at TA=25°C on a high effective thermal conductivity
test board (40mm x 40mm x 1.6mm double sided board with 2oz, copper ratio: approx. 50%) of JEDEC 51-7 thermal measurement standard.
Note 4. The device is not guaranteed to function outside its operating conditions. Note 5. The output current at which the output voltage becomes 95% of V
after gradually increasing
OUT
the output current.
Note 6. The output current can be at least this value. Due to restrictions on the package power
dissipation, this value may not be satisfied. Attention should be paid to the power dissipation of the package when the output current is large. The specification is guaranteed by design.
Note 7. The dropout voltage is defined as VIN - V
, which is measured when V
OUT
is 98%*V
OUT
OUT
.
Note 8. The output voltage Auto discharge function is optional.
Green Solution Technology Co.,LTD. Rev.:1.47 7 Nov-14
Page 8

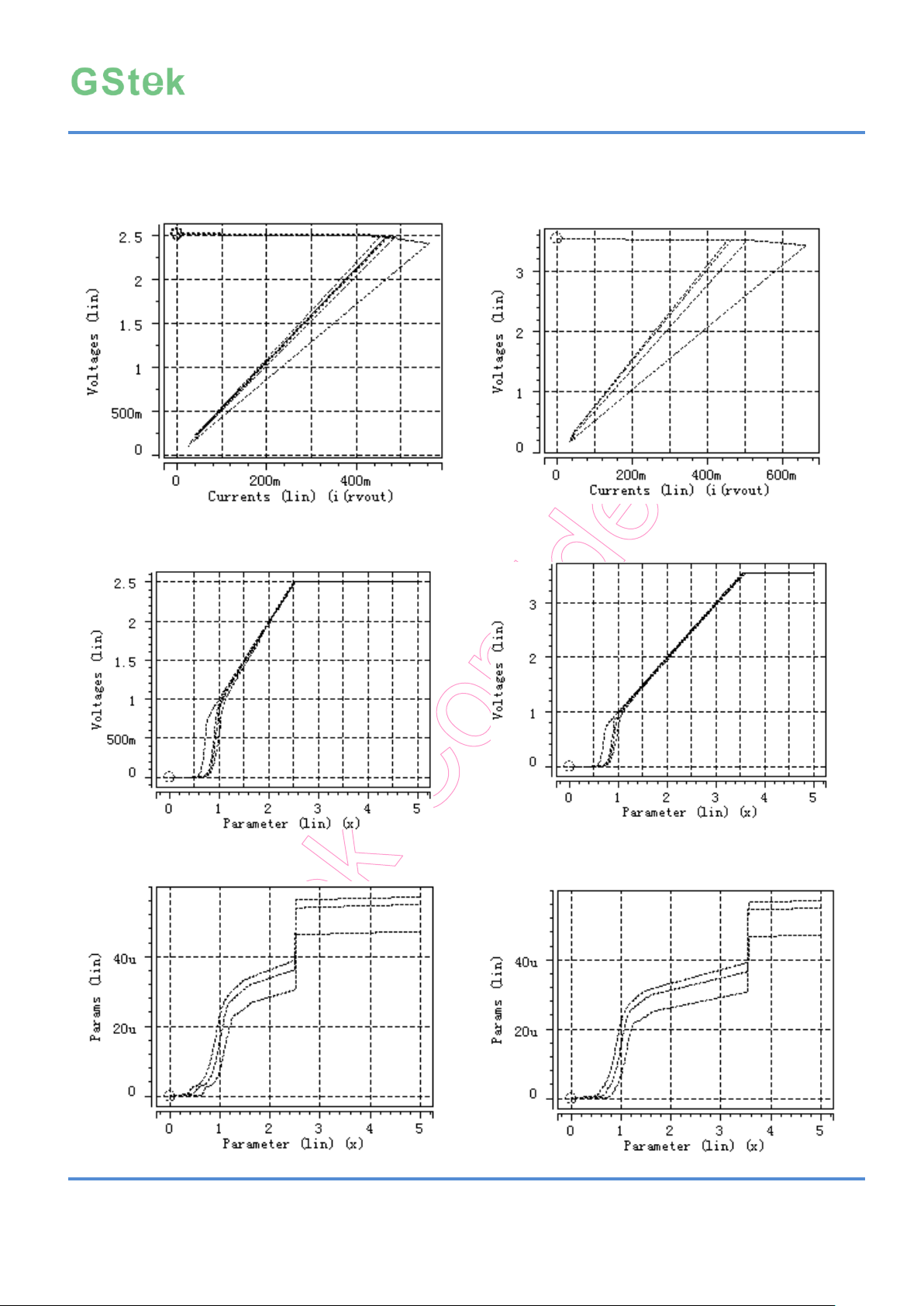

Output Voltage vs. Output Current (Cin=1.0uF,Cout=1.0uF,Temp=25℃)
V
OUT
=2.5V, VDD=1.3V,1.5V,2.0V,3.0V,5.0V
V
OUT
=3.5V, VDD=3.8V,4.0V,4.5V,5.0V
Output Voltage vs. Input Voltage (Cin=1.0uF,Cout=1.0uF,Temp=25℃)
V
OUT
=2.5V, I
OUT
=1mA,30mA,50mA
V
OUT
=3.5V, I
OUT
=1mA,30mA,50mA
Supply Current vs. Input Voltage (Cin=1.0uF,Cout=1.0uF,Temp=25℃)
V
OUT
=2.5V, no load
V
OUT
=3.5V, no load
Low Noise 300mA LDO Regulator GS7119
Typical Characteristics
Green Solution Technology Co.,LTD. Rev.:1.47 8 Nov-14
Page 9

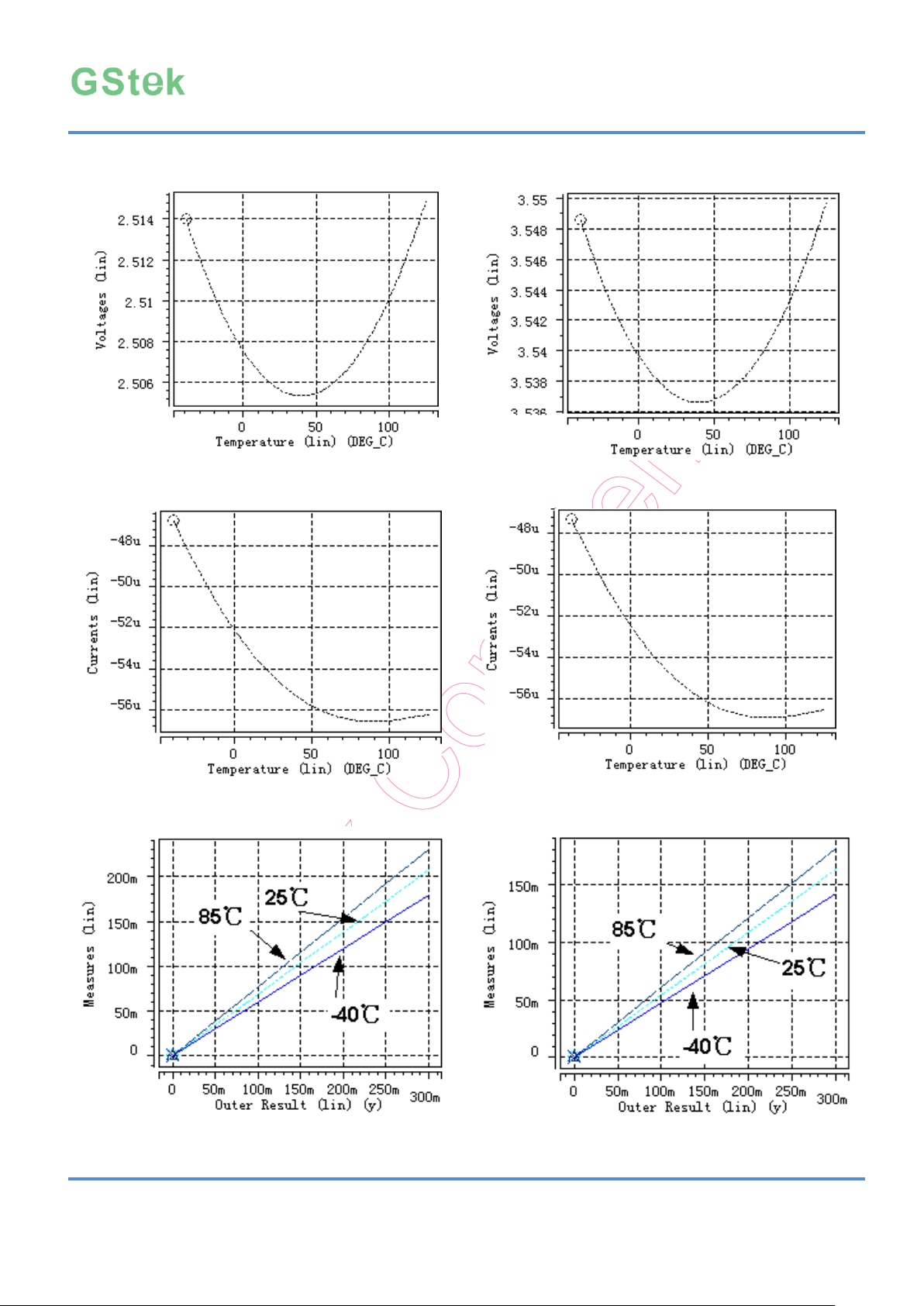

Output Voltage vs. Temperature (Cin=1.0uF,Cout=1.0uF,Iout=1mA)
V
OUT
=2.5V, VDD=3.5V, no load
V
OUT
=3.5V, VDD=4.5V, no load
Supply Current vs. Temperature (Cin=1.0uF,Cout=1.0uF,Iout=0mA)
V
OUT
=2.5V, VDD=3.5V, no load
V
OUT
=3.5V, VDD=4.5V, no load
Dropout Voltage vs. Output Current (Cin=1.0uF,Cout=1.0uF)
V
OUT
=2.5V
V
OUT
=3.5V
Low Noise 300mA LDO Regulator GS7119
Green Solution Technology Co.,LTD. Rev.:1.47 9 Nov-14
Page 10

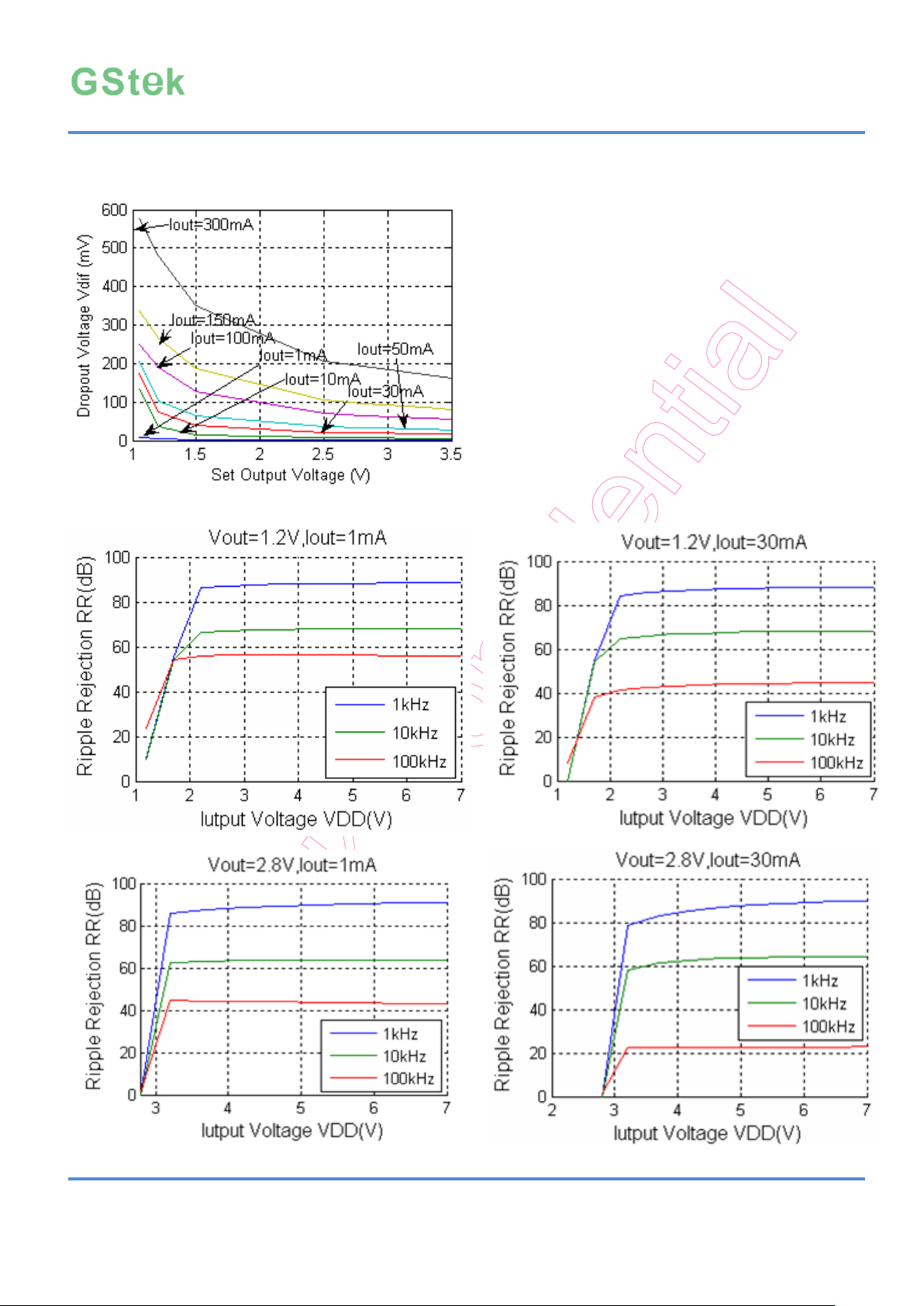

Dropout Voltage vs. Set Output Voltage (Cin=1.0uF,Cout=1.0uF,Temp=25℃)
Ripple Rejection vs. Input Bias Voltage (Cin=none, Cout=1.0uF, Ripple=0.2Vp-p, Temp=25℃)
Low Noise 300mA LDO Regulator GS7119
Green Solution Technology Co.,LTD. Rev.:1.47 10 Nov-14
Page 11
Ripple Rejection vs. Frequency (Cin=none, Cout=1.0uF, Ripple=0.2Vp-p)
V
OUT
=1.8V,VDD=2.8V,I
OUT
=30mA
V
OUT
=1.8V,VDD=4.8V,I
OUT
=30mA
V
OUT
=2.5V,VDD=3.5V,I
OUT
=30mA
V
OUT
=2.5V,VDD=5.5V,I
OUT
=30mA
Input Transient Response (Iout=30mA, tr=tf=5us, Temp=25℃)
V
OUT
=2.5V, VDD=3.5V~4.5V~3.5V
V
OUT
=3.0V, VDD=4.0V~5.0V~4.0V
Low Noise 300mA LDO Regulator GS7119
Green Solution Technology Co.,LTD. Rev.:1.47 11 Nov-14
Page 12

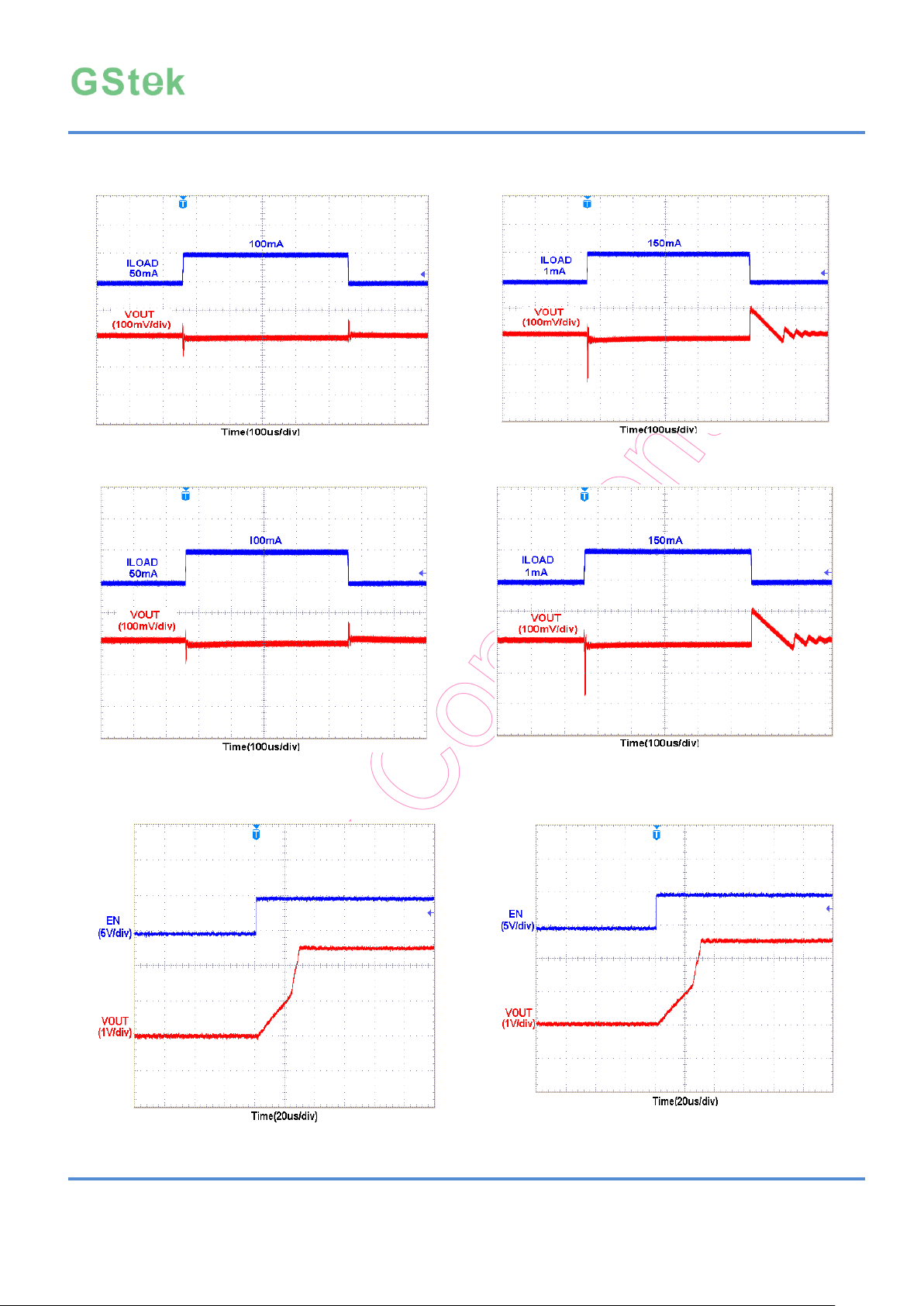

Load Transient Response (Cout=1.0uF, Temp=25℃)
V
OUT
=2.5V, I
OUT
=50mA~100mA~50mA, VDD=3.5V
tr=tf=0.5us
V
OUT
=2.5V, I
OUT
=1mA~150mA~1mA, VDD=3.5V
tr=tf=0.5us
V
OUT
=3.0V, I
OUT
=50mA~100mA~50mA, VDD=4.0V
tr=tf=0.5us
V
OUT
=3.0V, I
OUT
=1mA~150mA~1mA, VDD=4.0V
tr=tf=0.5us

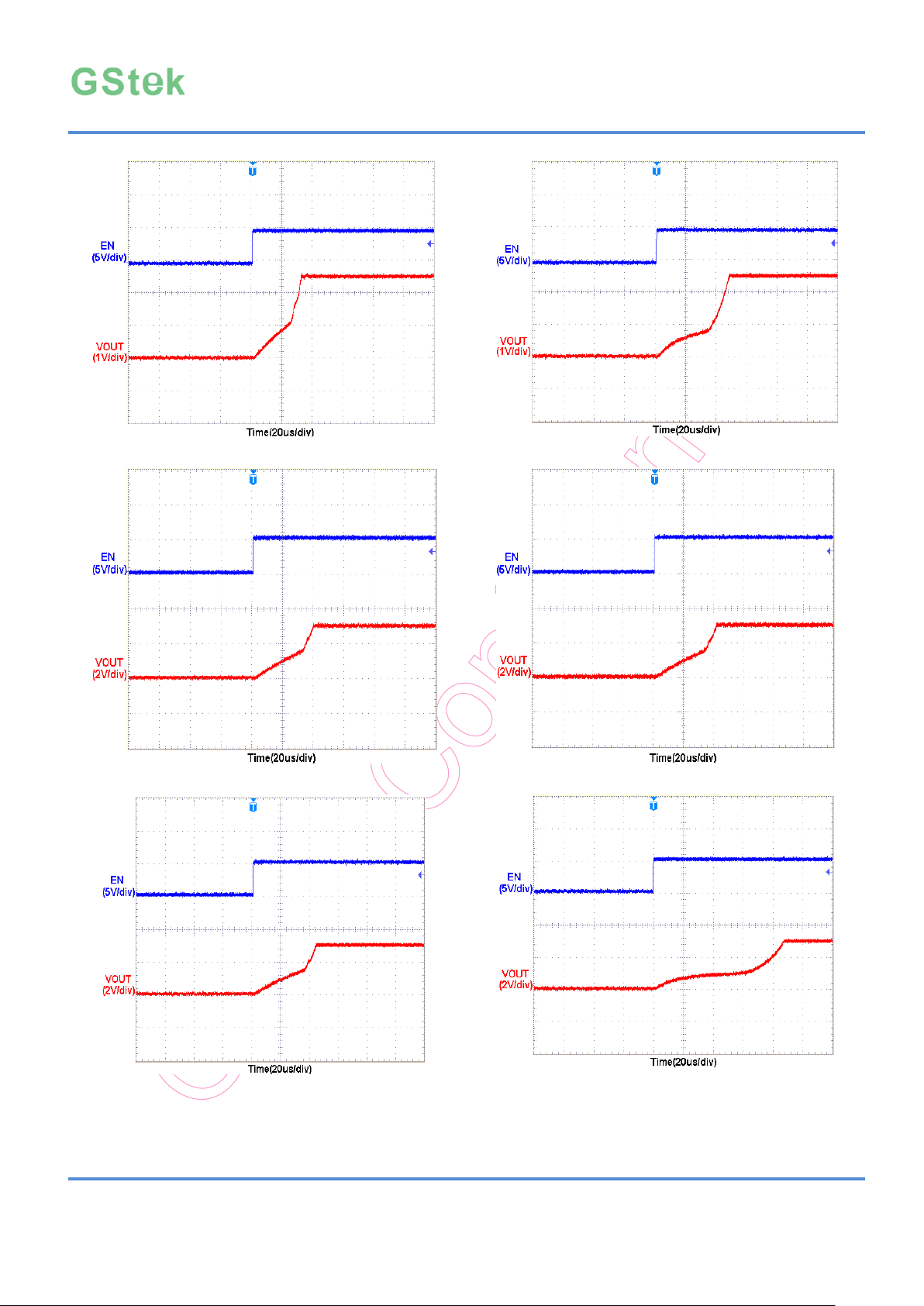

Turn On Speed with EN pin (Cin=1.0uF,Cout=1.0uF, Temp=25℃)
V
OUT
=2.5V, I
OUT
=0mA, VDD=3.5V
V
OUT
=2.5V, I
OUT
=10mA, VDD=3.5V
Low Noise 300mA LDO Regulator GS7119
Green Solution Technology Co.,LTD. Rev.:1.47 12 Nov-14
Page 13
V
OUT
=2.5V, I
OUT
=30mA, VDD=3.5V
V
OUT
=2.5V, I
OUT
=150mA, VDD=3.5V
V
OUT
=3.0V, I
OUT
=0mA, VDD=4.0V
V
OUT
=3.0V, I
OUT
=10mA, VDD=4.0V
V
OUT
=3.0V, I
OUT
=30mA, VDD=4.0V
V
OUT
=3.0V, I
OUT
=150mA, VDD=4.0V
Low Noise 300mA LDO Regulator GS7119
Green Solution Technology Co.,LTD. Rev.:1.47 13 Nov-14
Page 14

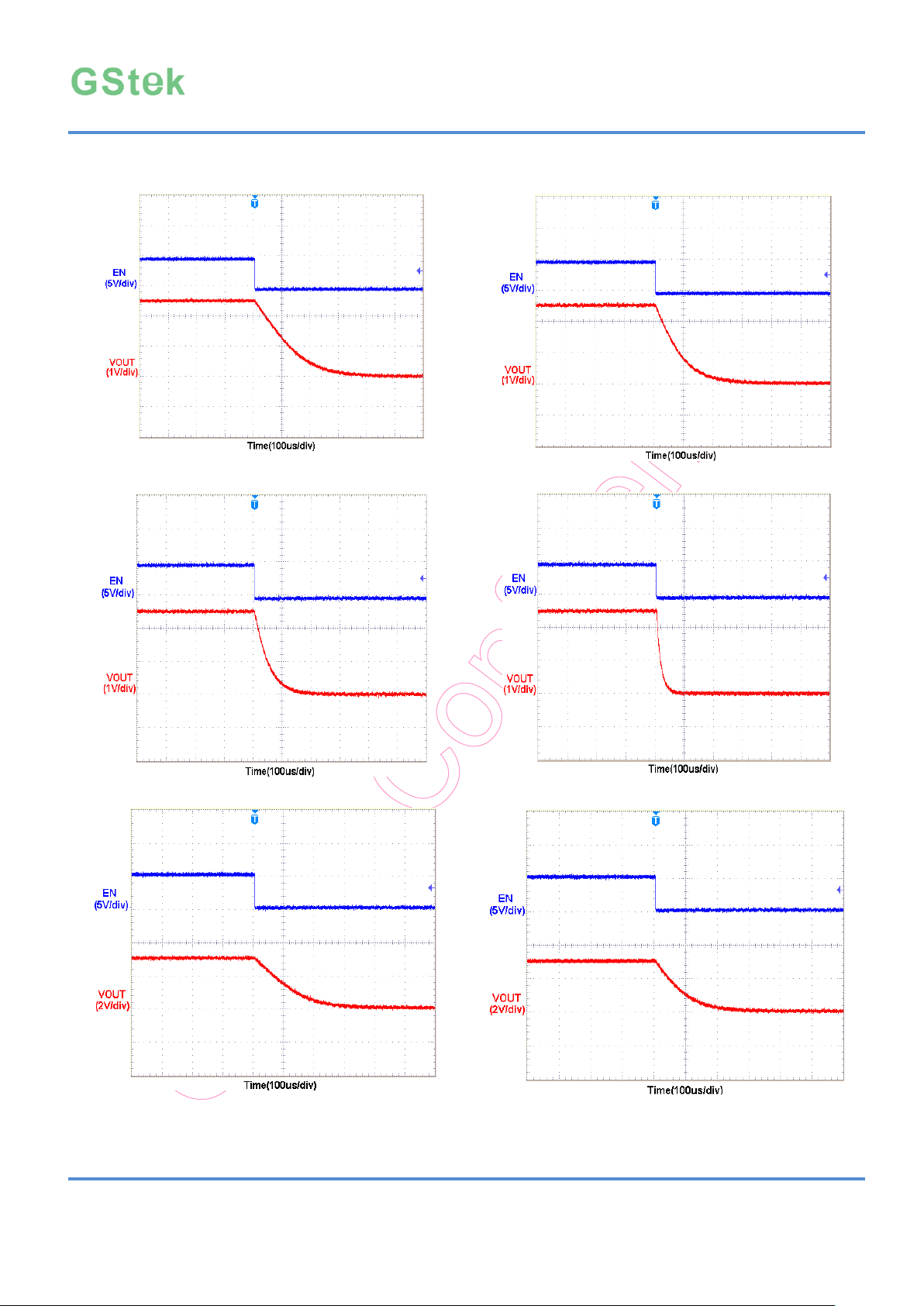

Turn Off Speed with EN pin (Auto Discharge) (Cin=1.0uF,Cout=1.0uF, Temp=25℃)
V
OUT
=2.5V, I
OUT
=0mA, VDD=3.5V
V
OUT
=2.5V, I
OUT
=10mA, VDD=3.5V
V
OUT
=2.5V, I
OUT
=30mA, VDD=3.5V
V
OUT
=2.5V, I
OUT
=150mA, VDD=3.5V
V
OUT
=3.0V, I
OUT
=0mA, VDD=4.0V
V
OUT
=3.0V, I
OUT
=10mA, VDD=4.0V
Low Noise 300mA LDO Regulator GS7119
Green Solution Technology Co.,LTD. Rev.:1.47 14 Nov-14
Page 15

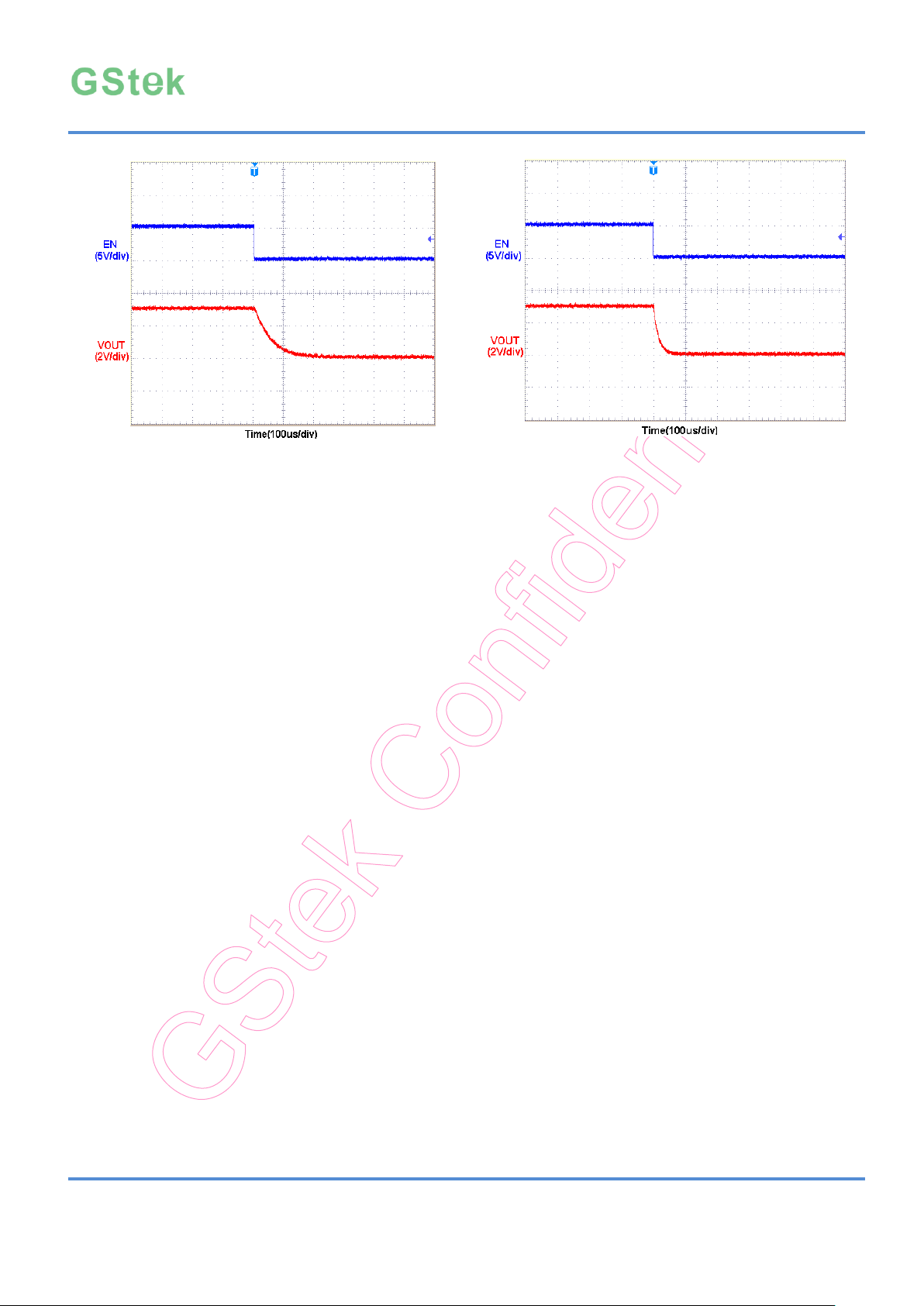

V
OUT
=3.0V, I
OUT
=30mA, VDD=4.0V
V
OUT
=3.0V, I
OUT
=150mA, VDD=4.0V
Low Noise 300mA LDO Regulator GS7119
Green Solution Technology Co.,LTD. Rev.:1.47 15 Nov-14
Page 16
Low Noise 300mA LDO Regulator GS7119
Application Information
Enable
the setting voltage is 2.5V or more and the The GS7119 has a dedicated enable pin(EN). When the EN pin is in the logic low (VEN<0.3V), the regulator will be turned off, reducing the supply current to less than 1uA. When the EN pin is in the logic high (VEN>1.2V), the regulator will be turned on. Left open, the EN pin is pulled down by a internal resistor to shut down the regulator.
Current Limit and Short circuit current protection
The GS7119 use a current mirror to monitor the output current. A small portion of the PMOS output transistor’s current is mirrored onto a resistor such that the voltage across this resistor is proportional to the output current; this voltage is compared against the feedback voltage. Once the output current cannot exceeds the limit. The
capacitor’s dimensions for V
equal to 1.0mm
OUT
by 0.5mm or smaller than that, the capacitance
value might be extremely low. As a result, the
capacitance might be much less than expected
value. In such cases, the operation might be
unstable at low temperature (-25°C or less). In
that case, use a larger capacity, or a large
dimensions’ capacitor. (For example 1.6mm by
0.8mm)
Input Capacitor
Good bypassing is recommended from input to
ground to help improve AC performance. A 1uF
(X7R) input capacitor or greater located as close
as possible to the IC is recommended. Place the
capacitors physically as close as possible to the
device with wide and direct PCB traces.
Power Dissipation and Layout Considerations
current is set to 480mA typically. When the output voltage is less than 0.2V, the short circuit current protection starts and maintains the loading current to 40mA. The output can be shorted to ground without damaging the device.
Output Capacitor
The GS7119 is specifically designed to employ ceramic output capacitors as low as 1uF (X7R). The ceramic capacitors offer significant cost and space savings, along with high frequency noise filtering. Place the capacitors physically as close as possible to the device with wide and direct PCB traces. Ceramic capacitors have different temperature characteristics and bias characteristics which depend on their dimensions and manufacturers. If
Excessive power dissipation may cause thermal
overload, and hence the increase of the IC
junction temperature beyond a safe operating
level. For continuous operation, it is highly
recommended to keep the junction temperature
below the maximum operation junction
temperature 125°C for maximum reliability.
The relationship between θ
and T
JA
J(MAX)
can be calculated as: P Where T
D(MAX)
= ( T
J(MAX)
− TA ) / θJA
J(MAX)
is the maximum operation junction
temperature 125°C, TA is the ambient
temperature and the θ
is the junction to ambient
JA
thermal resistance. The power dissipation definition in device is: PD = (VIN − V
OUT
) x I
+ VDD x IQ
OUT
As the above equations indicate, it is desirable to
Green Solution Technology Co.,LTD. Rev.:1.47 16 Nov-14
Page 17
Low Noise 300mA LDO Regulator GS7119
work ICs whose θJA values are small such that T
does not increase strongly with PD. To
J(MAX)
avoid thermally overloading the GS7119, refrain from exceeding the absolute maximum junction temperature rating of 150°C under continuous operating condition. Overstressing the regulator with high loading currents and elevated input-to-output differential voltages can increase the IC die temperature significantly.
Green Solution Technology Co.,LTD. Rev.:1.47 17 Nov-14
Page 18
E
D
D1
b
e
L
E1
A
A1
Top View
Bottom View
pin 1 dot
Detail A
Pin #1 ID Options Note:The configuration of the Pin#1 identifier is optional,but must be located within the zone indicated.
Side View
See Detail A
A3
Symbol
Dimensions in
Millimeters
Min.
Max.
A
0.45
0.55
A1
0.00
0.05
A3
0.203 REF
b
0.25
0.35 e 0.60 REF.
D
1.15
1.25
E
1.55
1.65
D1
1.00 REF.
E1
0.70 REF.
L
0.25
0.35
Low Noise 300mA LDO Regulator GS7119

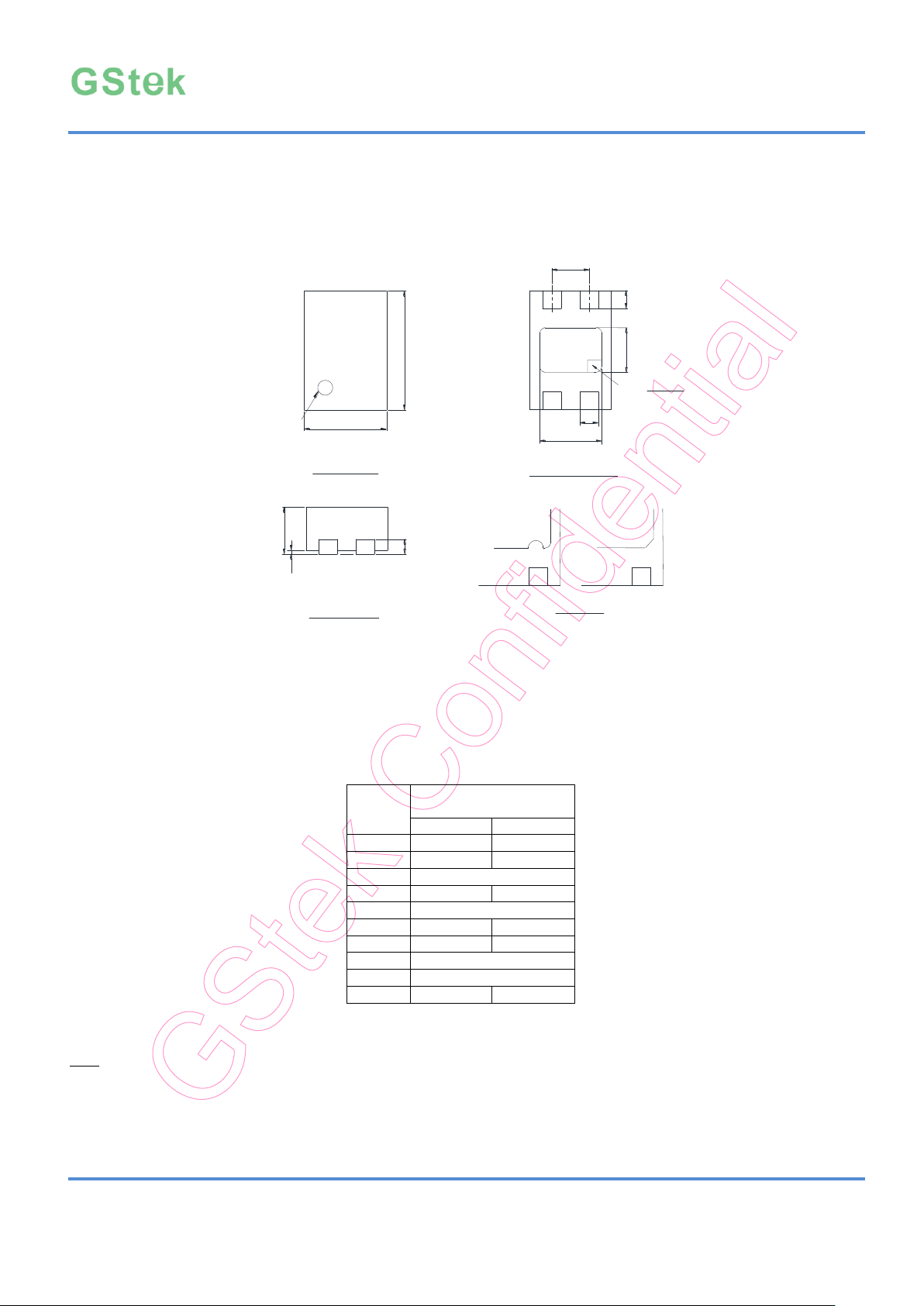

Package Dimensions,WDFN4-1.2x1.6
Note˙
1.Min.: Minimum dimension specified.
2.Max.: Maximum dimension specified.
3.REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.47 18 Nov-14
Page 19
E
D
Top View
E1
Bottom View
D1
b
e
L
Side View
A1
A3
pin 1 dot
A
See Detail A
Detail A
Pin #1 ID Options Note:The configuration of the Pin#1 identifier is optional,but must be located within the zone indicated.
Symbol
Dimensions in
Millimeters
Min.
Max.
A
0.45
0.60
A1
0.00
0.05
A3
0.15 REF.
b
0.15
0.28 e 0.50 REF.
D
1.70
1.90
E
1.90
2.10
D1
1.45 REF.
E1
0.95 REF.
L
0.17
0.33
Low Noise 300mA LDO Regulator GS7119

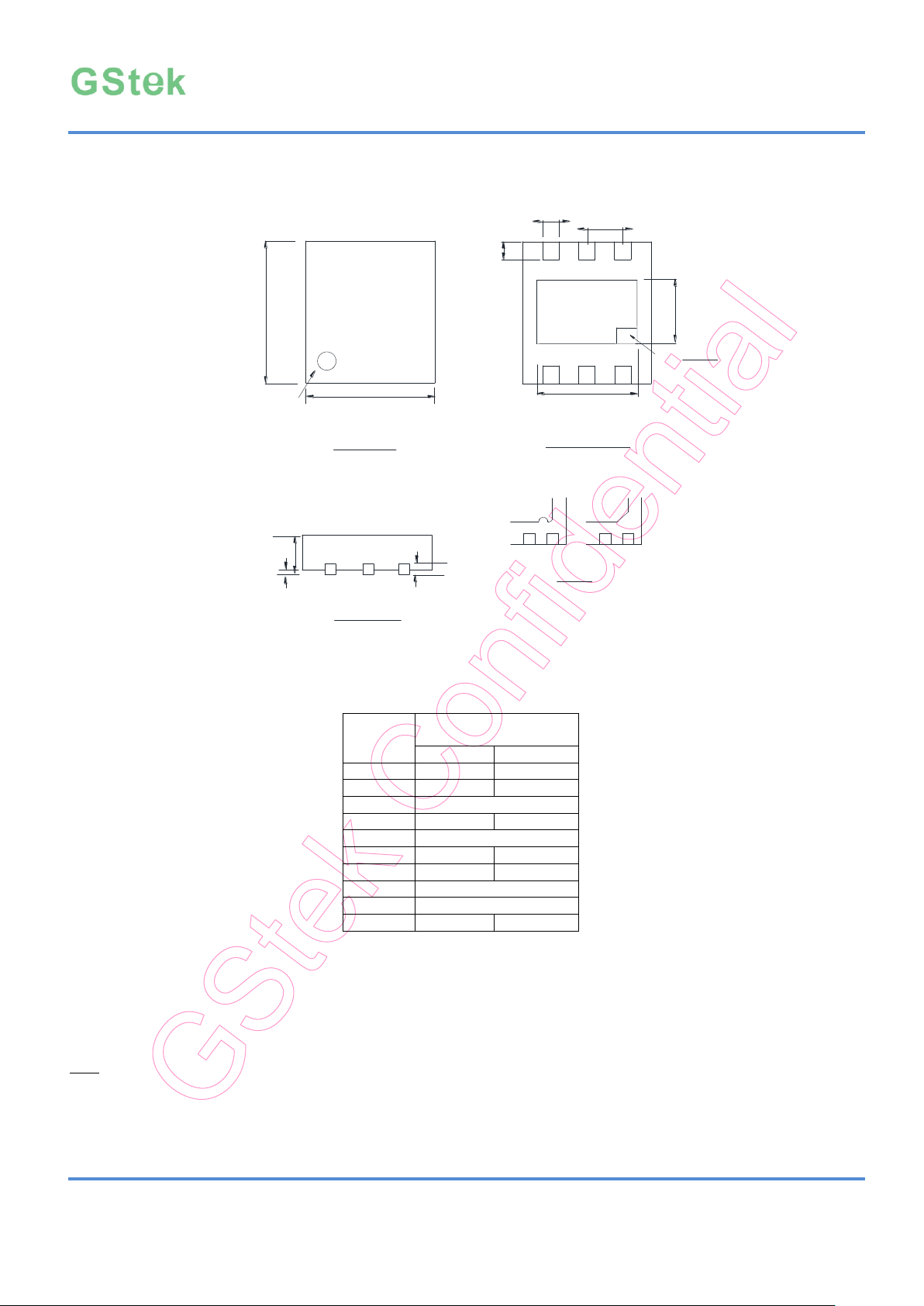

Package Dimensions, TDFN6-1.8x2
Note:
1. Min.: Minimum dimension specified.
2. Max.: Maximum dimension specified.
3. REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.47 19 Nov-14
Page 20
A
L
DETAIL A
DETAIL A
c
A3 A1
e1
e
E
E1
D
b
5
4
1
2
3
Symbol
Dimensions in
Millimeters
Min.
Max. A 0.90
1.45
A1
0.00
0.15
A3
0.90
1.30
b
0.30
0.50
c
0.08
0.25
e
0.95 REF.
e1
1.90 REF.
D
2.90 REF.
E
2.80 REF.
E1
1.60 REF.
L
0.30
0.60 θ 0o
8o
Low Noise 300mA LDO Regulator GS7119
Package Dimensions, SOT-23-5
˙
Note
1.Min.: Minimum dimension specified.
2.Max.: Maximum dimension specified.
3.REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.47 20 Nov-14
Page 21
b
b1
L
E
H
c
D
D1
A
e
e1
1
2
3
Symbol
Dimensions in
Millimeters
Min.
Max. A 1.40
1.60
b
0.40
0.58
b1
0.32
0.52
c
0.35
0.44 e 1.50 REF.
e1
3.00 REF.
D
4.40
4.60
D1
1.60 REF.
E
2.29
2.60
H
3.94
4.25
L
0.80
1.20
Low Noise 300mA LDO Regulator GS7119

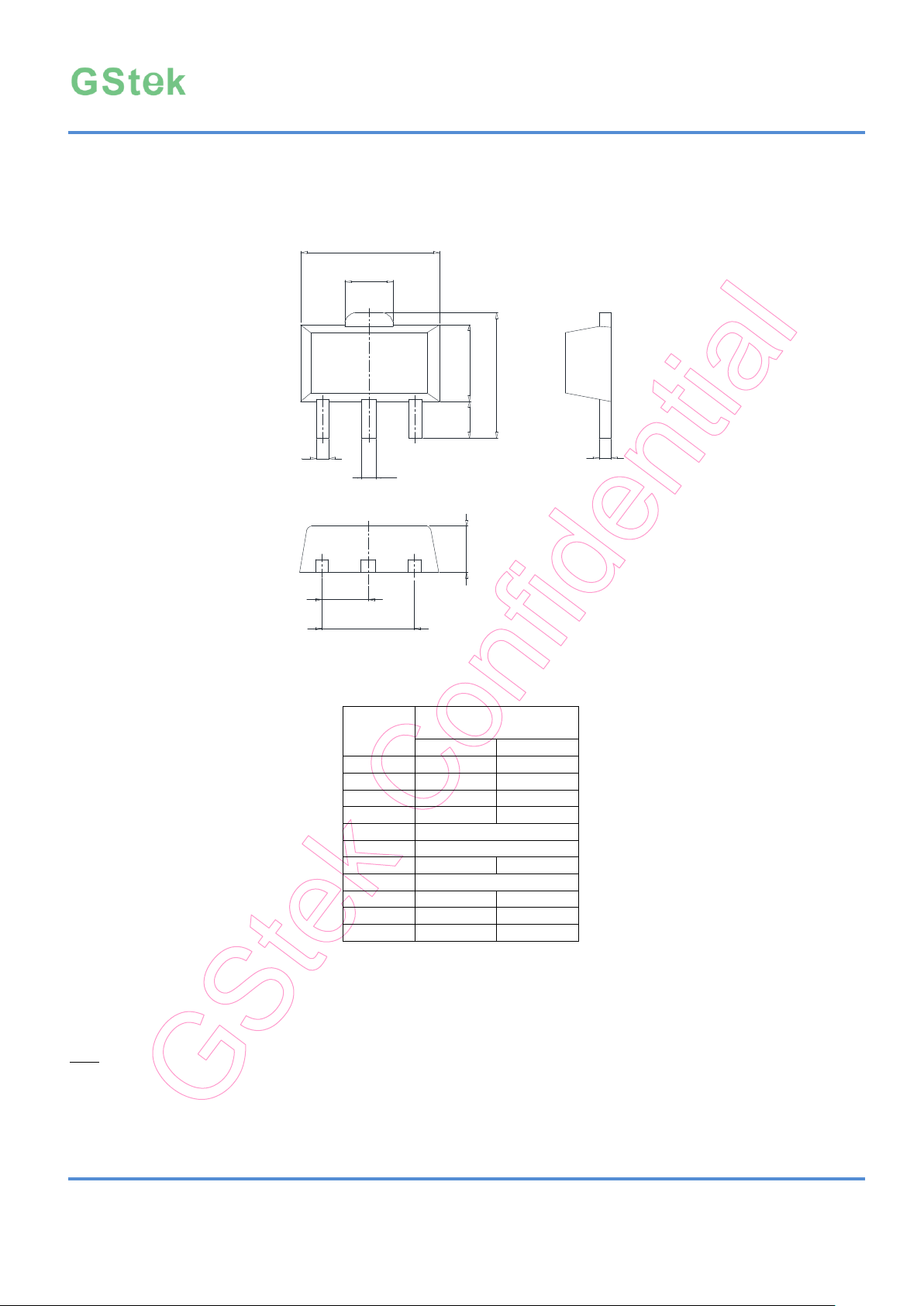

Package Dimensions, SOT-89-3
Note˙
1.Min.: Minimum dimension specified.
2.Max.: Maximum dimension specified.
3.REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.47 21 Nov-14
Page 22
A
L
DETAIL A
DETAIL A
c
A3 A1
e1
e
E
E1
D
b
1
2
3
Symbol
Dimensions in
Millimeters
Min.
Max.
A
0.90
1.15
A1
0.00
0.10
A2
0.90
1.05
b
0.30
0.50
c
0.08
0.15
e
0.95 REF.
e1
1.90 REF.
D
2.90 REF.
E
2.40 REF.
E1
1.30 REF.
L
0.30
0.50
θ
0o
8o
Low Noise 300mA LDO Regulator GS7119

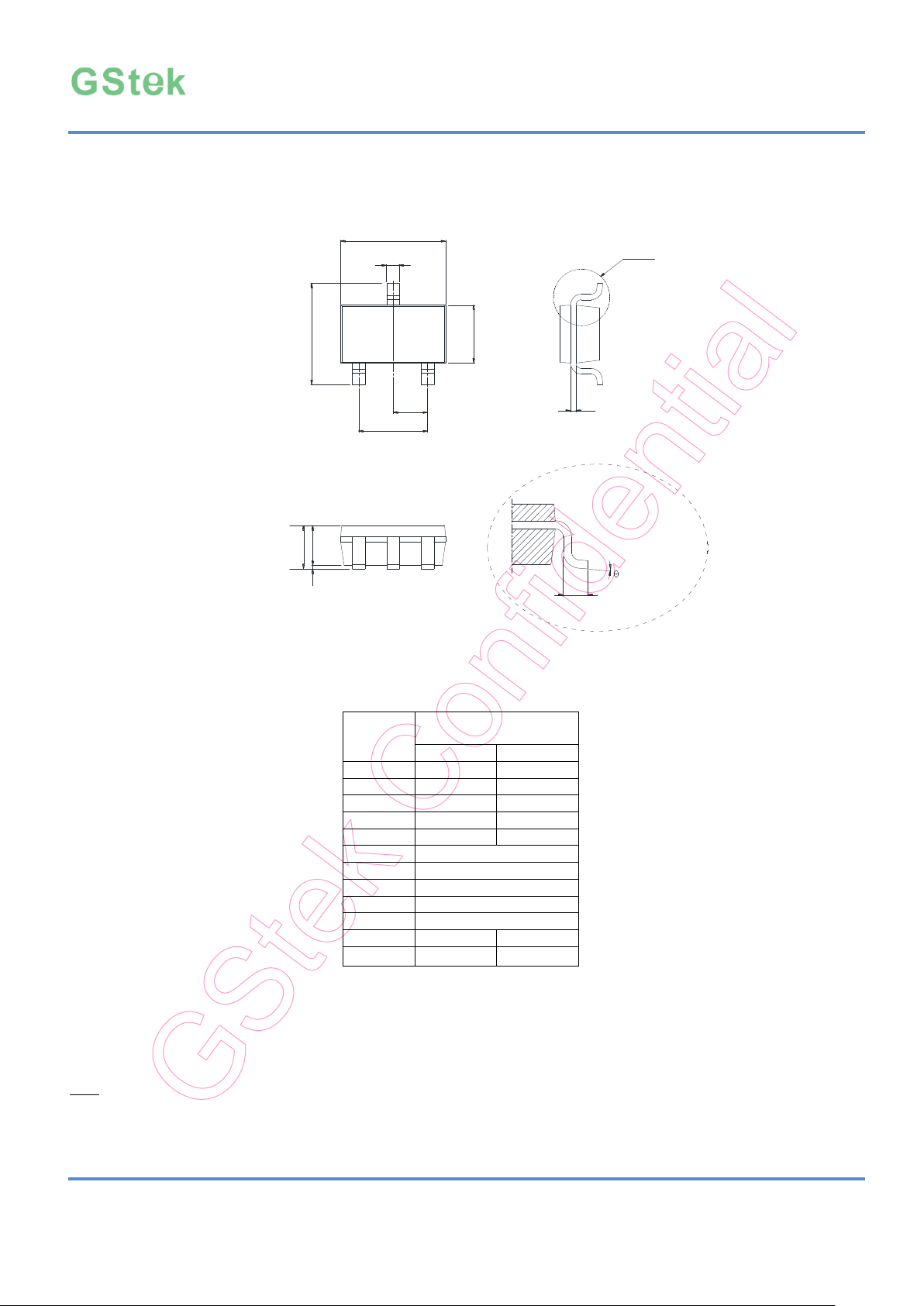

Package Dimensions, MSOT-23
Note:
1. Min.: Minimum dimension specified.
2. Max.: Maximum dimension specified.
3. REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.47 22 Nov-14
Page 23
A
L
DETAIL A
DETAIL A
c
A3 A1
e1
e
E
E1
D
b
5
4
1
2
3
Symbol
Dimensions in
Millimeters
Min.
Max. A 0.85
1.10
A1
0.00
0.10
A3
0.80
1.00
b
0.15
0.35
c
0.08
0.15
e
0.65 REF.
e1
1.30 REF.
D
2.10 REF.
E
2.30 REF.
E1
1.25 REF.
L
0.26
0.46 θ 0o
8o
Low Noise 300mA LDO Regulator GS7119

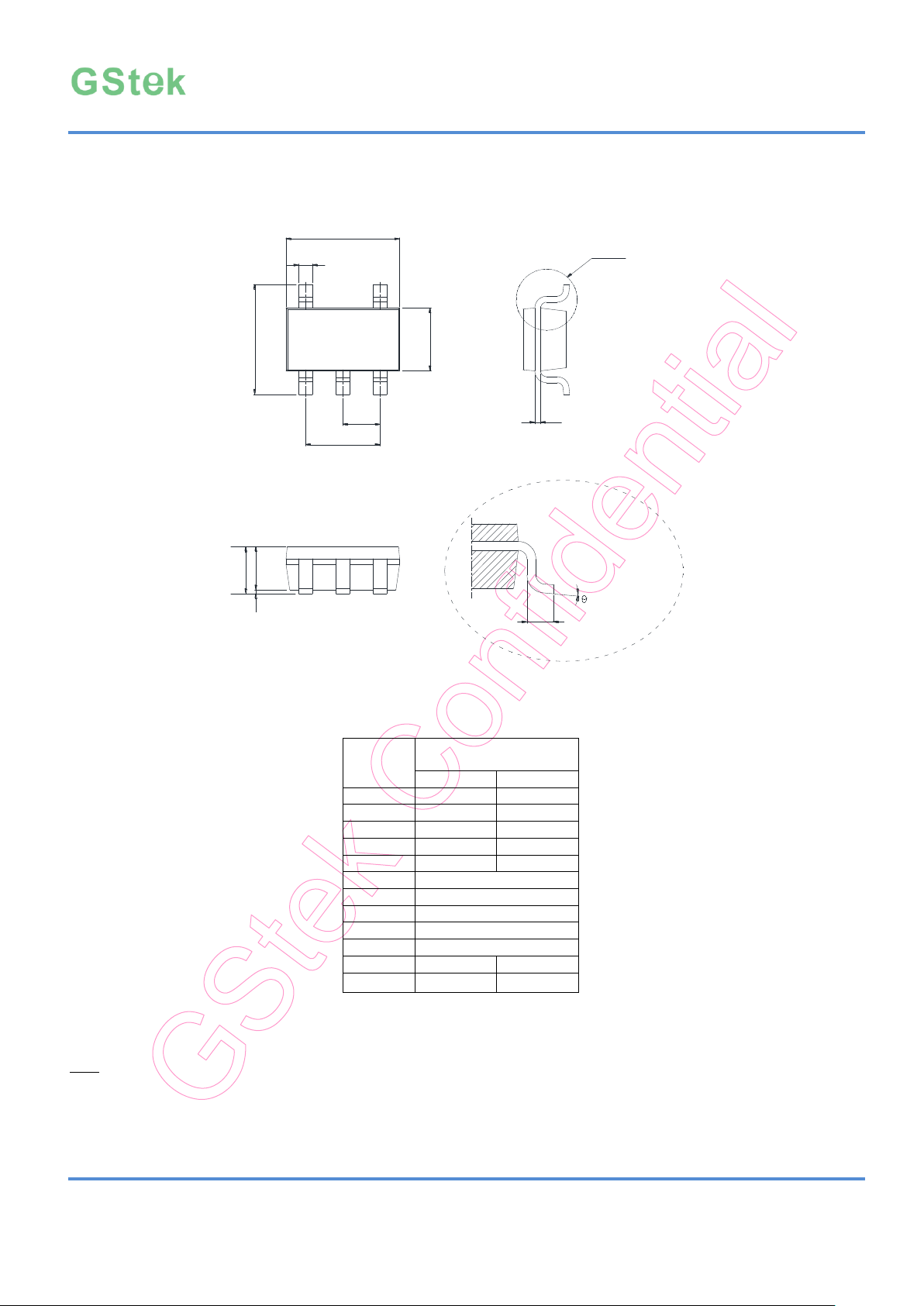

Package Dimensions, SOT-353(SC-75)
Note˙
1.Min.: Minimum dimension specified.
2.Max.: Maximum dimension specified.
3.REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.47 23 Nov-14
Page 24
Low Noise 300mA LDO Regulator GS7119
DISCLAIMERS
Please read the notice stated in this preamble carefully before Admission e accessing any contents of the
document attached. Admission of GStek’s statement therein is presumed once the document is released
to the receiver.
Notice:
Firstly, GREEN SOLUTION CO., LTD. (GStek) reserves the right to make corrections, modifications, enhancements, improvements, and
other changes to its information herein without notice.. And the aforesaid information does not form any part or parts of any quotation or contract between GStek and the information receiver.
Further, no responsibility is assumed for the usage of the aforesaid information. GStek makes no representation that the interconnect of its circuits as described herein will not infringe on exiting or future patent rights and other intellectual property rights, nor do the descriptions contained herein express or imply that any licenses under any GStek patent right, copyright, mask work right, or other GStek intellectual property right relating to any combination, machine, or process in which GStek products or services are used.
Besides, the product in this document is not designed for use in life support appliances, devices, or systems where malfunction of this product can reasonably be expected to result in personal injury. GStek customers’ using or selling this product for use in such applications shall do so at their own risk and agree to fully indemnify GStek for any damage resulting from such improper use or sale.
At last, the information furnished in this document is the property of GStek and shall be treated as highly confidentiality; any kind of distribution, disclosure, copying, transformation or use of whole or parts of this document without duly authorization from GStek by prior written consent is strictly prohibited. The receiver shall fully compensate GStek without any reservation for any losses thereof due to its violation of GStek’s confidential request. The receiver is deemed to agree on GStek’s confidential request therein suppose that said receiver receives this document without making any expressly opposition. In the condition that aforesaid opposition is made, the receiver shall
return this document to GStek immediately without any delay.
Green Solution Technology Co.,LTD. Rev.:1.47 24 Nov-14
Loading...
