4uA supply current low drop linear Regulator GS7118
Features
General Description
The GS7118 is a three terminal voltage regulator
~4uA (Typ.)
3.8V to 24V Operation
±2% Initial Voltage Accuracy
Available in 1.5V, 1.8V, 2.5V, 2.8V, 3.0V,
3.3V, 4.0V, 4.4V,5.0V, 12V and 13V
Internal Over Temperature Protection
SOT-23-3,MSOT-23,SOT-23-5,SOT-353, TSOT-23-5,SOT-89-3,SOT-223,TO-252, PSOP-8 and TDFN4-1x1.2 package
Green Product (RoHS, Lead-Free,
Halogen-Free Compliant)
Applications
Portable/battery powered equipments Electronic sensors Microcontroller power Real time clock backup power
works in a wide operation range from 3.8V to 24V with a ~ 4uA (typical case) quiescent current. GS7118 includes essential features for the applications of portable devices with high voltage batteries, especially for supplying the always-on, keep-alive power circuitries.
Typical Application

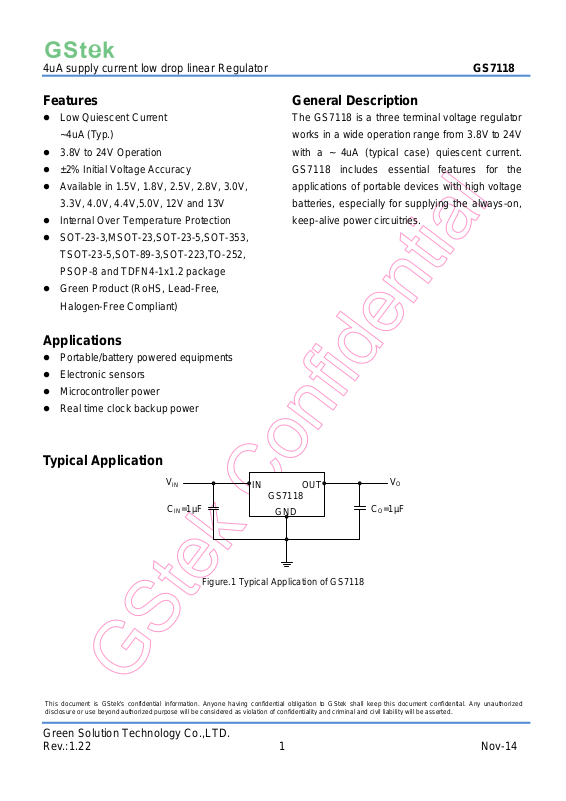

Figure.1 Typical Application of GS7118
Green Solution Technology Co.,LTD. Rev.:1.22 1 Nov-14
Page 2
OTP
Pre
regulator
VIN VOUT
GND
Error AMP
Error
Amplifier
Bias Band Gap
4uA supply current low drop linear Regulator GS7118
Function Block Diagram
Figure.2 Function Block Diagram
Green Solution Technology Co.,LTD. Rev.:1.22 2 Nov-14
Page 3
VIN
1
2
3
VOUT
GND
VIN
1
2
3
VOUT GND
VIN
1
2
3
VOUTGND
Figure 3a SOT-23-3 / MSOT-23
Figure 3b SOT-23*
Figure 3c SOT-23-3
+
Package
1
2 3
4
5
VIN GND NC
NCVOUT
1
2 3
4
5
VIN GND VOUT
NC
NC
1
2 3
4
5
NC GND NC
VIN
VOUT
Figure 3d TSOT23-5 / SOT-23-5
Figure 3e SOT-353
Figure 3f SOT-353*
1
2
3
GND VIN VOUT
1
2
3
GND VINVOUT
1 2
3
GND VOUT VIN
Figure 3g SOT-89-3 Package
Figure 3h SOT-89-3*
Figure 3i SOT-223
1
2
3
GND
VOUT
VIN
1 2
34
NCGND
VOUTVIN
Figure 3j TO-252
Figure 3k PSOP-8
Figure 3l TDFN4-1x1.2
VOUT
GND
NC
NC
NC
NC
NC
VIN
9 GND
4uA supply current low drop linear Regulator GS7118
Pin Configuration
Green Solution Technology Co.,LTD. Rev.:1.22 3 Nov-14
Page 4
No
Name
I/O
type
Description
SOT-23-3/
MSOT-23/
SOT-23-5/
TSOT-23-5
SOT-23-3+
SOT-353
SOT-353*
SOT-89-3
SOT-89-3*/
SOT-23*
PSOP-8
SOT-223/
TO-252
TDFN4-
1x1.2
1 1 3 1 4 2 3 8 3 4 VIN I Input pin
2 5 2 3 5 3 1 1 2
3
VOUT
O
Output pin
3 2 1 2 2 1 2
4,9 1 1
GND
O
Ground pin
3、4
4、5
1、3
2、3、5~7
2 NC
No
Item
Contents
1
Package
ST:SOT-23-3 S1:SOT-23-3* S2:SOT-23-3+ SR:MSOT-23 T5:TSOT-23-5 S5:SOT-23-5 C5:SOT-353
C7:SOT-353* S9:SOT-89-3 S3:SOT-89-3* SP:PSOP-8 T3:SOT-223 O5:TO-252 TD:TDFN4-1x1.2
2
Output Voltage
1P5: 1.5V, 1P8:1.8V, 2P5: 2.5V,2P8:2.8V, 3P0:3.0V, 3P3: 3.3V, 4P0: 4.0V, 4P4:
4.4V, 5P0: 5.0V, 012:12V, 013:13V
3
Shipping
R: Tape & Reel
3. Shipping
2. Output Voltage
1. Package
GS7118PP-XXX- R
4uA supply current low drop linear Regulator GS7118
Pin Descriptions
Ordering Information
Example: GS7118 SOT-23-3 2.5V Tape & Reel ordering information is “GS7118ST-2P5-R”
Green Solution Technology Co.,LTD. Rev.:1.22 4 Nov-14
Page 5
Parameter
Symbol
Limits
Units
VIN to GND
VIN
-0.3 < VIN<24
V
Package Power Dissipation at TA ≦25°C
P
D_SOT-23-3
400
mW
Package Power Dissipation at TA ≦25°C
P
D_MSOT-23
380
mW
Package Power Dissipation at TA ≦25°C
P
D_TSOT-23-5
400
mW
Package Power Dissipation at TA ≦25°C
P
D_SOT-23-5
400
mW
Package Power Dissipation at TA ≦25°C
P
D_SOT-353
300
mW
Package Power Dissipation at TA ≦25°C
P
D_SOT-89-3
571
mW
Package Power Dissipation at TA ≦25°C
P
D_PSOP-8
1333
mW
Package Power Dissipation at TA ≦25°C
P
D_SOT-223
741
mW
Package Power Dissipation at TA ≦25°C
P
D_TO-252
1471
mW
Package Power Dissipation at TA ≦25°C
P
D_TDFN4-1x1.2
360
mW
Storage Temperature
T
STG
- 65 ~ 150
°C
Lead Temperature (Soldering) 10S
T
LEAD
260
°C
ESD (Human Body Mode) (Note 2)
V
ESD_HBM
2K
V
ESD (Machine Mode) (Note 2)
V
ESD_MM
200
V
Parameter
Symbol
Limits
Units
Thermal Resistance Junction to Ambient
θ
JA_SOT-23-3
250
°C/W
Thermal Resistance Junction to Ambient
θ
JA_MSOT-23
263
°C/W
Thermal Resistance Junction to Ambient
θ
JA_TSOT-23-5
250
°C/W
Thermal Resistance Junction to Ambient
θ
JA_SOT-23-5
250
°C/W
Thermal Resistance Junction to Ambient
θ
JA_SOT-353
333
°C/W
Thermal Resistance Junction to Ambient
θ
JA_SOT-89-3
182
°C/W
Thermal Resistance Junction to Ambient
θ
JA_PSOP-8
75
°C/W
Thermal Resistance Junction to Ambient
θ
JA_SOT-223
135
°C/W
Thermal Resistance Junction to Ambient
θ
JA_TO-252
68
°C/W
Thermal Resistance Junction to Ambient
θ
JA_TDFN4-1x1.2
278
°C/W
4uA supply current low drop linear Regulator GS7118
Absolute Maximum Rating (Note 1)
Thermal Information (Note 3)
Green Solution Technology Co.,LTD. Rev.:1.22 5 Nov-14
Page 6
Parameter
Symbol
Limits
Units
VIN to GND
VIN
3.8 to 24
V
Junction Temperature
TJ
- 40 ~ 125
°C
Operating Temperature Range
TA
-40 ~ 85
°C
Parameter
Symbol
Test Conditions
Min.
Typ.
Max.
Units
Input Voltage
VIN
IO=20mA, V
O(NOM)
=3.3V
3.8 24
V
IO=50mA, V
O(NOM)
=3.3V
4.3 24
Quiescent Current
IQ
VIN=MAX{V
O(NOM)
+1V, 4.3V}
2.9
3.9
7.0
μA
VIN=24V
2.9
4.0
7.0
Output Voltage accuracy
VO
-2 2
%
Dropout Voltage (Note 5)
V
DROP
IO=50mA, V
O(NOM)
=5.0V
0.46
0.56
0.70
V
Load Regulation
△V
OUT
1mA<IO<50mA
0.15
%/mA
Line Regulation
△V
OUT
VIN=MAX{V
O(NOM)
+1V, 4.3V} to 24V
0.3
%/V
Power supply rejection
PSRR
V
RIPPLE
=0.1V, IO=20mA, f=120Hz
50 dB
Output noise voltage
eN
BW from 200Hz to 100kHz, IO=10mA
170
μV
RMS
Thermal shutdown
OTP
170 °C
Return temperature
OTH
140 °C
Maximum output current
I
OMAX
VIN≥5V, V
OUT
<0.2V
120
160
200
mA
4uA supply current low drop linear Regulator GS7118
Recommend Operating Condition (Note 4)
Electrical Characteristics
(CIN=1µF, C
=1µF, VIN=MAX{V
OUT
+1V, 4.3V}, TA = 25°C, I
O(NOM)
=1mA, unless otherwise specified)
OUT
Note 1. Stresses listed as the above “Absolute Maximum Ratings” may cause permanent damage to the
device. These are for stress ratings. Functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may remain possibility to affect device reliability.
Note 2. Devices are ESD sensitive. Handling precaution recommended. Note 3. θJA is measured in the natural convection at TA=25°C on a high effective thermal conductivity
test board (4 Layers, 2S2P) of JEDEC 51-7 thermal measurement standard.
Note 4. The device is not guaranteed to function outside its operating conditions. Note 5. The dropout voltage is defined as VIN - V
Green Solution Technology Co.,LTD. Rev.:1.22 6 Nov-14
, which is measured when V
OUT
is 98%*V
OUT
OUT
.
Page 7

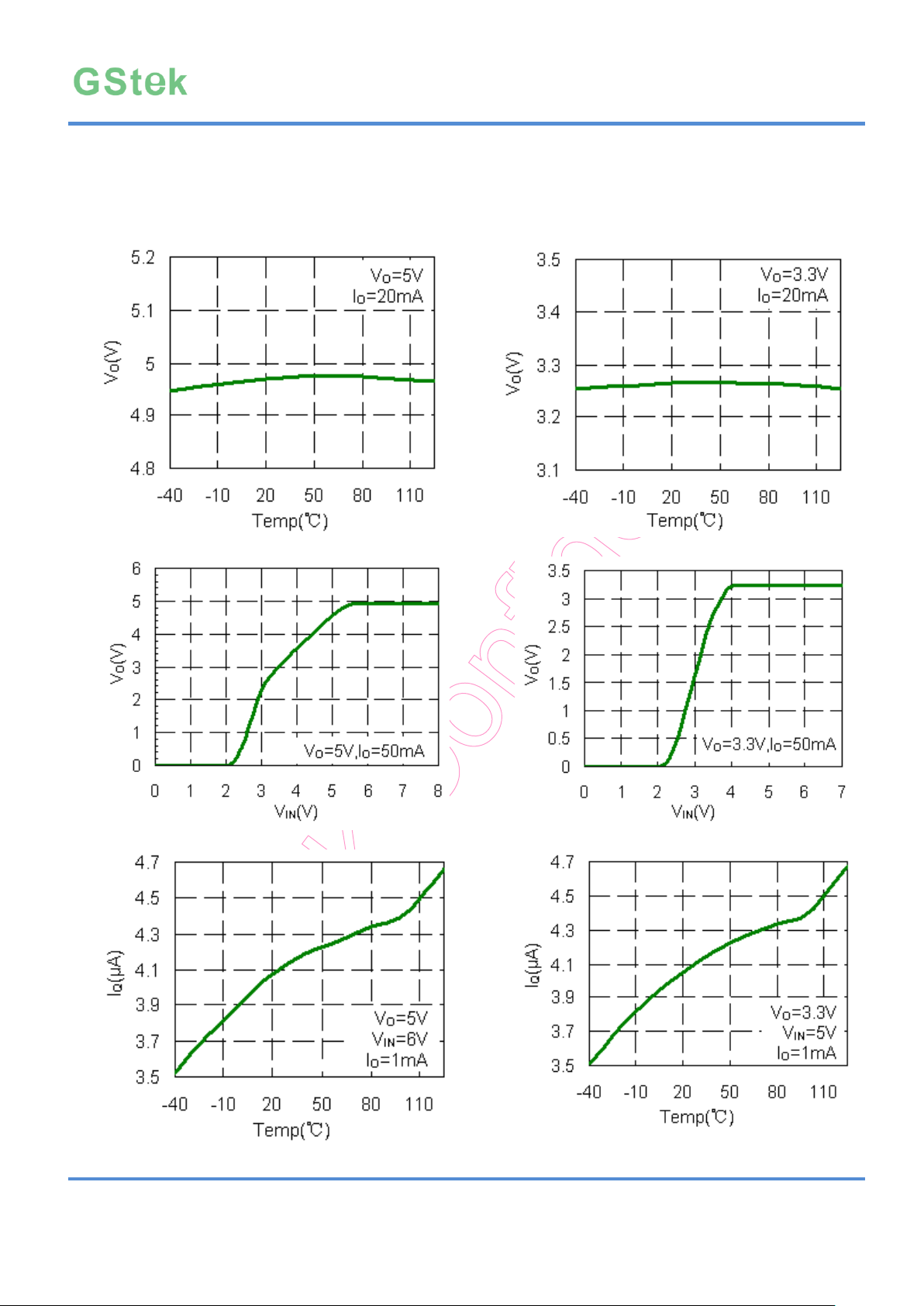

Output Voltage vs. Temperature
Output Voltage vs. Temperature
Output Voltage vs. Input Voltage
Output Voltage vs. Input Voltage
Quiescent Current vs. Temperature
Quiescent Current vs. Temperature
4uA supply current low drop linear Regulator GS7118
Typical Characteristics
(VIN=MAX{V
+1V, 4.3V}, I
O(NOM)
=1mA, CIN=1uF, C
OUT
=1uF, TA=25°C unless otherwise specified)
OUT
Green Solution Technology Co.,LTD. Rev.:1.22 7 Nov-14
Page 8

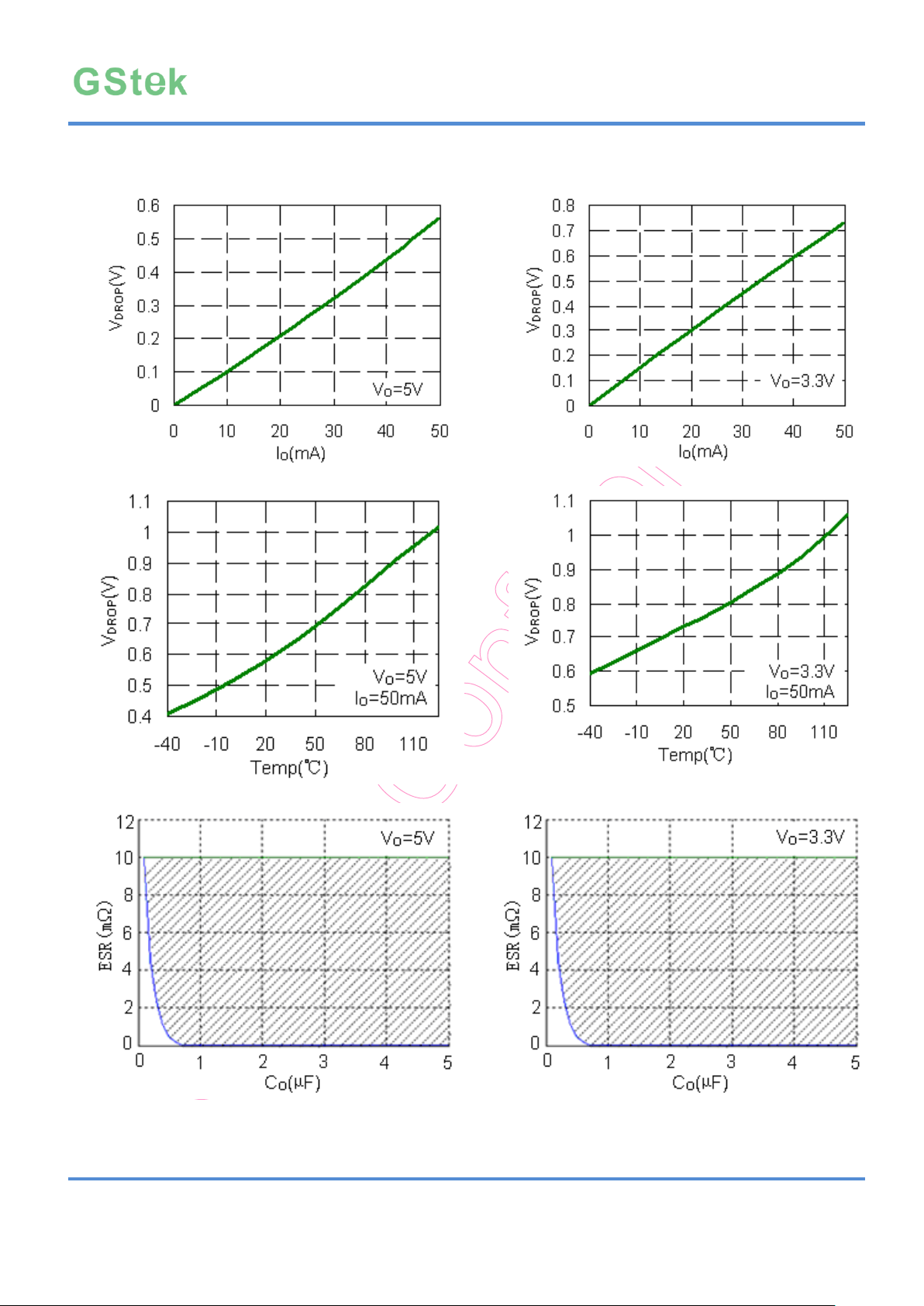

Dropout Voltage vs. Output Current
Dropout Voltage vs. Output Current
Dropout Voltage vs. Temperature
Dropout Voltage vs. Temperature
Stability
Stability
4uA supply current low drop linear Regulator GS7118
Green Solution Technology Co.,LTD. Rev.:1.22 8 Nov-14
Page 9

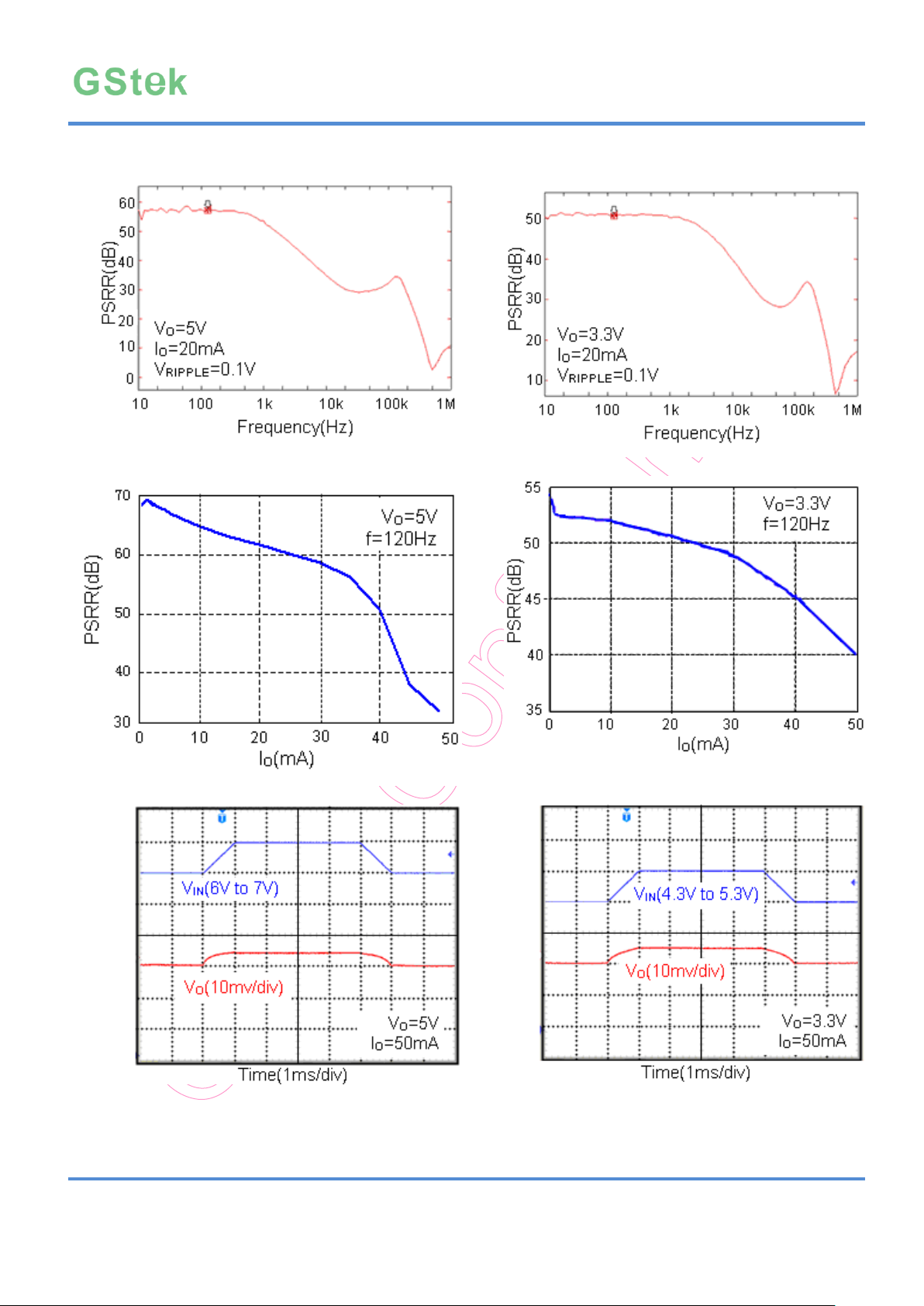

PSRR vs. Frequency
PSRR vs. Frequency
PSRR vs. Output Current
PSRR vs. Output Current
Line Transient Response
Line Transient Response
4uA supply current low drop linear Regulator GS7118
Green Solution Technology Co.,LTD. Rev.:1.22 9 Nov-14
Page 10

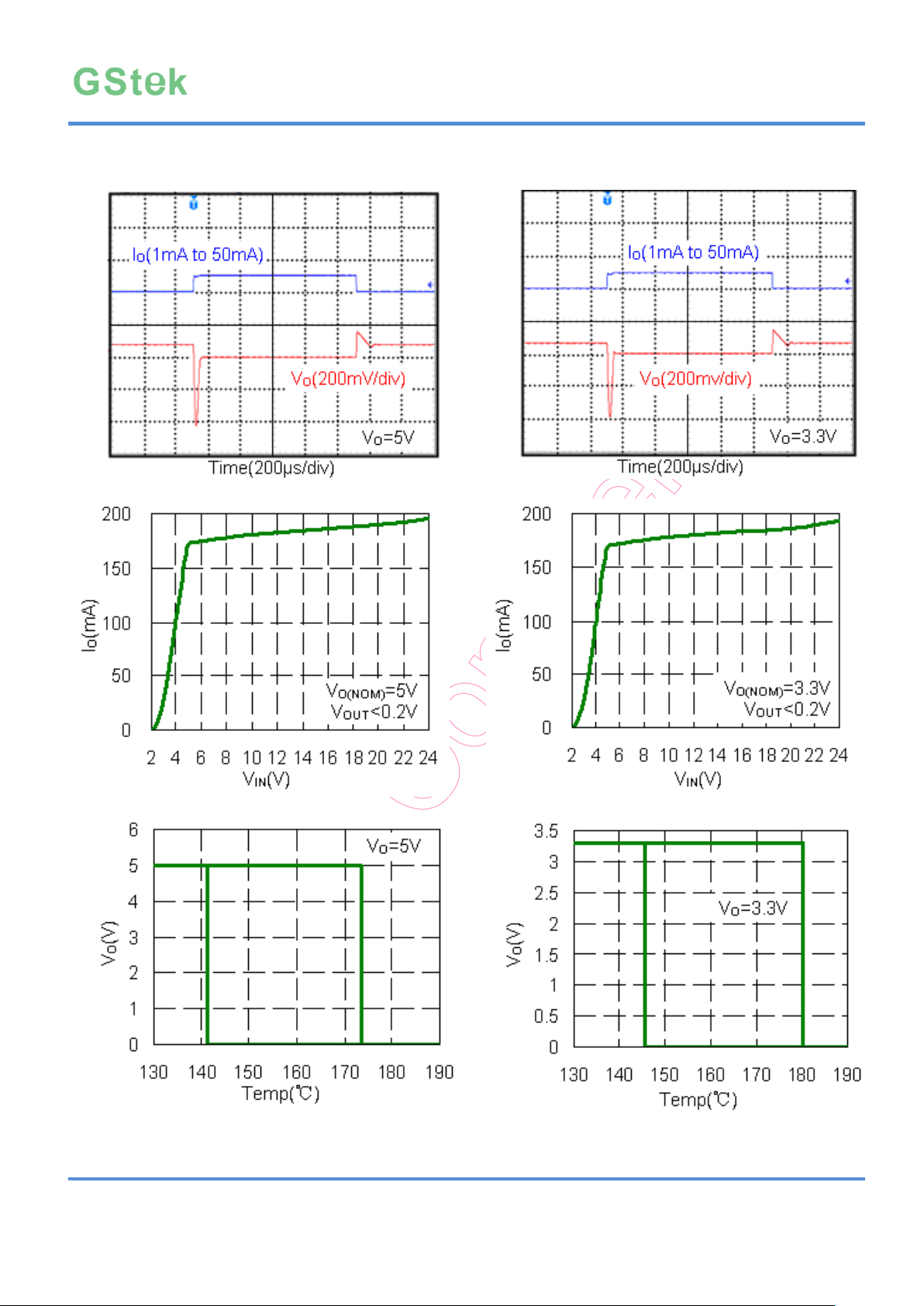

Load Transient Response
Load Transient Response
Short Circuit Current
Short Circuit Current
Thermal Protection
Thermal Protection
4uA supply current low drop linear Regulator GS7118
Green Solution Technology Co.,LTD. Rev.:1.22 10 Nov-14
Page 11

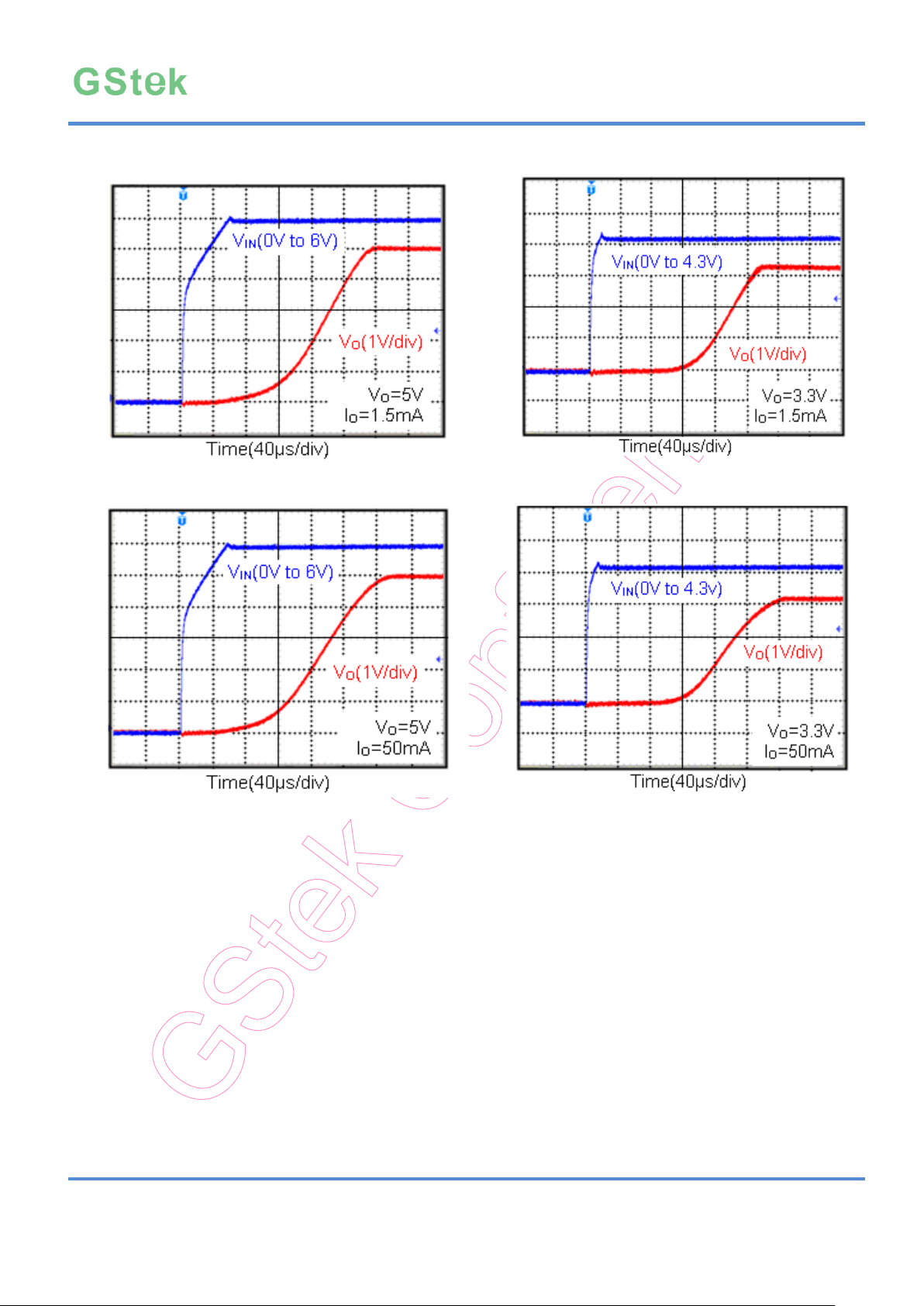

Power On from VIN
Power On from VIN
Power On from VIN
Power On from VIN
4uA supply current low drop linear Regulator GS7118
Green Solution Technology Co.,LTD. Rev.:1.22 11 Nov-14
Page 12
4uA supply current low drop linear Regulator GS7118
Application Information
Thermal Considerations
Although internal thermal limiting function is
P (MSOT-23)
= (125°C - 25°C)/263 = 380mW
D(MAX)
integrated in GS7118, continuously keeping the junction near the thermal shutdown temperature may possibly affect device reliability. For continuous operation, it is highly recommended to keep the junction temperature below the maximum operation junction temperature 125°C for maximum reliability. The power dissipation definition in device is: PD = (VIN - V
OUT
) x I
+ VIN x IQ
OUT
The maximum power dissipation depends on the thermal resistance of IC package, PCB layout, the rate of surroundings airflow and temperature difference between junction to ambient. The maximum power dissipation can be calculated by following formula: P Where T
D(MAX)
= ( T
J(MAX)
- TA ) / θJA
J(MAX)
is the maximum operation junction temperature 125°C, TA is the ambient temperature and the θJA is the junction to ambient
P
= (125°C - 25°C)/333 = 300mW
D(MAX)
(SOT-353) P
= (125°C - 25°C)/250 = 400mW
D(MAX)
(TSOT-23-5) P
= (125°C - 25°C)/250 = 400mW
D(MAX)
(SOT-23-5) P
= (125°C - 25°C)/182 = 571mW
D(MAX)
(SOT-89-3) P
= (125°C - 25°C)/75 = 1333mW
D(MAX)
(PSOP-8) P
= (125°C - 25°C)/135 = 741mW
D(MAX)
(SOT-223) P
= (125°C - 25°C)/68 = 1471mW
D(MAX)
(TO-252) P
= (125°C - 25°C)/278 = 360mW
D(MAX)
(TDFN4-1x1.2) The maximum power dissipation depends on operating ambient temperature or fixed T
J(MAX)
and thermal resistance θJA. For GS7118 thermal resistance. For recommended operating conditions specification of GS7118, where T
J(MAX)
is the
maximum junction temperature of the die (125°C)
packages, the Figure 4. of derating curves allows
the designer to see the effect of rising ambient
temperature on the maximum power allowed.
and TA is the maximum ambient temperature. The junction to ambient thermal resistance (θJA is layout dependent) for SOT-23-3 package is 250°C/W ,MSOT-23 package is 263°C/W and SOT-323 package is 333°C/W on standard JEDEC 51-3 thermal test board. The maximum power dissipation at TA = 25°C can be calculated by following formula: P
= (125°C - 25°C)/250 = 400mW
D(MAX)
(SOT-23-3)
Green Solution Technology Co.,LTD. Rev.:1.22 12 Nov-14
Page 13
Power Dissipation (mW)
700
600
500
400
300
200
100
0
0 25 50 75 100 125 150
Ambient Tempe rature (°C)
450
400
350
300
250
200
150
100
50
0
MSOT-23
SOT-23-5
4uA supply current low drop linear Regulator GS7118
Figure 4 Derating Curve for Packages
Green Solution Technology Co.,LTD. Rev.:1.22 13 Nov-14
Page 14
A
L
DETAIL A
DETAIL A
c
A3 A1
e1
e
E
E1
D
b
1
2
3
Symbol
Dimensions in
Millimeters
Min.
Max.
A
0.90
1.45
A1
0.00
0.15
A3
0.90
1.30
b
0.30
0.50
c
0.08
0.25 e 0.95 REF.
e1
1.90 REF.
D
2.90 REF.
E
2.80 REF.
E1
1.60 REF.
L
0.30
0.60
θ
0o
8o
4uA supply current low drop linear Regulator GS7118
Package Dimensions, SOT-23
Note:
1.Min.: Minimum dimension specified.
2.Max.: Maximum dimension specified.
3.REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.22 14 Nov-14
Page 15
A
L
DETAIL A
DETAIL A
c
A3 A1
e1
e
E
E1
D
b
1
2
3
Symbol
Dimensions in
Millimeters
Min.
Max.
A
0.90
1.15
A1
0.00
0.10
A2
0.90
1.05
b
0.30
0.50
c
0.08
0.15 e 0.95 REF.
e1
1.90 REF.
D
2.90 REF.
E
2.40 REF.
E1
1.30 REF.
L
0.30
0.50
θ
0o
8o
4uA supply current low drop linear Regulator GS7118
Package Dimensions, MSOT-23
Note:
1.Min.: Minimum dimension specified.
2.Max.: Maximum dimension specified.
3.REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.22 15 Nov-14
Page 16
A
L
DETAIL A
DETAIL A
c
A3 A1
e1
e
E
E1
D
b
5
4
1
2
3
Symbol
Dimensions in
Millimeters
Min.
Max.
A
0.85
1.10
A1
0.00
0.10
A3
0.80
1.00
b
0.15
0.35
c
0.08
0.15
e
0.65 REF.
e1
1.30 REF.
D
2.00
2.20
E
2.15
2.45
E1
1.15
1.35
L
0.26
0.46 θ 0o
8o
4uA supply current low drop linear Regulator GS7118
Package Dimensions, SOT-353(SC-75)
Note:
1.Min.: Minimum dimension specified.
2.Max.: Maximum dimension specified.
3.REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.22 16 Nov-14
Page 17
A
L
DETAIL A
DETAIL A
c
A3 A1
e1
e
E
E1
D
b
5
4
1
2
3
Symbol
Dimensions in
Millimeters
Min.
Max.
A
0.90
1.45
A1
0.00
0.15
A3
0.90
1.30
b
0.30
0.50
c
0.08
0.25
e
0.95 REF.
e1
1.90 REF.
D
2.90 REF.
E
2.80 REF.
E1
1.60 REF.
L
0.30
0.60 θ 0o
8o
4uA supply current low drop linear Regulator GS7118
Package Dimensions, SOT-23-5
˙
Note
1.Min.: Minimum dimension specified.
2.Max.: Maximum dimension specified.
3.REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.22 17 Nov-14
Page 18
A
L
DETAIL A
DETAIL A
c
A3 A1
e1
e
E
E1
D
b
5
4
1
2
3
Symbol
Dimensions in
Millimeters
Min.
Max.
A
0.70
0.90
A1
0.00
0.10
A3
0.70
0.80
b
0.35
0.50
c
0.08
0.20
e
0.95 REF.
e1
1.90 REF.
D
2.80
3.02
E
2.60
2.95
E1
1.50
1.70
L
0.30
0.60 θ 0o
8o
4uA supply current low drop linear Regulator GS7118
Package Dimensions, TSOT-23-5
˙
Note
1.Min.: Minimum dimension specified.
2.Max.: Maximum dimension specified.
3.REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.22 18 Nov-14
Page 19
b
b1
L
E
H
c
D
D1
A
e
e1
1
2
3
Symbol
Dimensions in
Millimeters
Min.
Max.
A
1.40
1.60
b
0.40
0.58
b1
0.32
0.52
c
0.35
0.44
e
1.50 REF.
e1
3.00 REF.
D
4.40
4.60
D1
1.60 REF.
E
2.29
2.60
H
3.94
4.25
L
0.80
1.20
4uA supply current low drop linear Regulator GS7118
Package Dimensions, SOT-89-3
Note˙
1.Min.: Minimum dimension specified.
2.Max.: Maximum dimension specified.
3.REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.22 19 Nov-14
Page 20
E1
c
DETAIL A
L
E
H
D1
b
e
D
A
A1
A3
DETAIL A
1
4
5
8
Symbol
Dimensions in
Millimeters
Min.
Max.
A
1.30
1.80
A1 - 0.15
A3
1.25
-
b
0.31
0.51
c
0.17
0.25
e
1.27 REF.
D
4.70
5.10
E
3.80
4.00
D1
3.1 REF.
E1
2.3 REF.
H
5.80
6.20
L
0.40
1.27
θ
0o
8o
4uA supply current low drop linear Regulator GS7118
Package Dimensions, PSOP-8(B)
Note
1. Min.: Minimum dimension specified.
2. Max.: Maximum dimension specified.
3. REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.22 20 Nov-14
Page 21
Symbol
Dimensions in
Millimeters
Min.
Max. A -
1.80
A1
0.02
0.10
A2
1.60 REF.
b
0.60
0.81
b1
2.90
3.10
D
6.30
6.70
c
0.25
0.35
E
6.75
7.30
E1
3.30
3.70
e
2.30 REF.
e1
4.60 REF.
L
1.75 REF.
θ
0o
8o
4uA supply current low drop linear Regulator GS7118
Package Dimensions, SOT-223
Note
1. Min.: Minimum dimension specified.
2. Max.: Maximum dimension specified.
3. REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.22 21 Nov-14
Page 22
Symbol
Dimensions in
Millimeters
Min.
Max.
A
2.19
2.43
A1
0.89
1.50
b
0.50
0.90
b2
5.20
5.50
c
0.35
0.65
c1
0.35
0.65
D
5.40
6.20
E
6.35
6.80
D1
4.57
-
E1
3.80 - e
2.28 REF.
e1
3.96
5.18
H
8.90
10.40
L
0.50
-
L1
0.60
1.20
L2
1.35
2.03
4uA supply current low drop linear Regulator GS7118
Package Dimensions, TO-252
Note
1. Min.: Minimum dimension specified.
2. Max.: Maximum dimension specified.
3. REF.: Reference. Normal/Regular dimension specified for reference
Green Solution Technology Co.,LTD. Rev.:1.22 22 Nov-14
Page 23
E
D
Top View
Bottom View
b
e
L
Side View
A1
A3
pin 1 dot
A
Symbol
Dimensions in
Millimeters
Min.
Max.
A
0.70
0.80
A1
0.00
0.05
A3
0.195
0.205
D
0.95
1.05
E
1.15
1.25
b
0.20
0.30
e
0.50 REF.
L
0.35
0.45
1 2 3
4
4uA supply current low drop linear Regulator GS7118
Package Dimensions, TDFN4-1x1.2
Note
1. Min.: Minimum dimension specified.
2. Max.: Maximum dimension specified.
3. REF.: Reference. Normal/Regular dimension specified for reference.
Green Solution Technology Co.,LTD. Rev.:1.22 23 Nov-14
Page 24
4uA supply current low drop linear Regulator GS7118
DISCLAIMERS
Please read the notice stated in this preamble carefully before Admission e accessing any contents of the document attached. Admission of GStek’s statement therein is presumed once the document is released to the receiver.
Notice:
Firstly, GREEN SOLUTION CO., LTD. (GStek) reserves the right to make corrections, modifications, enhancements, improvements, and
other changes to its information herein without notice.. And the aforesaid information does not form any part or parts of any quotation or contract between GStek and the information receiver.
Further, no responsibility is assumed for the usage of the aforesaid information. GStek makes no representation that the interconnect of its circuits as described herein will not infringe on exiting or future patent rights and other intellectual property rights, nor do the descriptions contained herein express or imply that any licenses under any GStek patent right, copyright, mask work right, or other GStek intellectual property right relating to any combination, machine, or process in which GStek products or services are used.
Besides, the product in this document is not designed for use in life support appliances, devices, or systems where malfunction of this product can reasonably be expected to result in personal injury. GStek customers’ using or selling this product for use in such applications shall do so at their own risk and agree to fully indemnify GStek for any damage resulting from such improper use or sale.
At last, the information furnished in this document is the property of GStek and shall be treated as highly confidentiality; any kind of distribution, disclosure, copying, transformation or use of whole or parts of this document without duly authorization from GStek by prior written consent is strictly prohibited. The receiver shall fully compensate GStek without any reservation for any losses thereof due to its violation of GStek’s confidential request. The receiver is deemed to agree on GStek’s confidential request therein suppose that said receiver receives this document without making any expressly opposition. In the condition that aforesaid opposition is made, the receiver shall return this document to GStek immediately without any delay.
Green Solution Technology Co.,LTD. Rev.:1.22 24 Nov-14
Loading...
