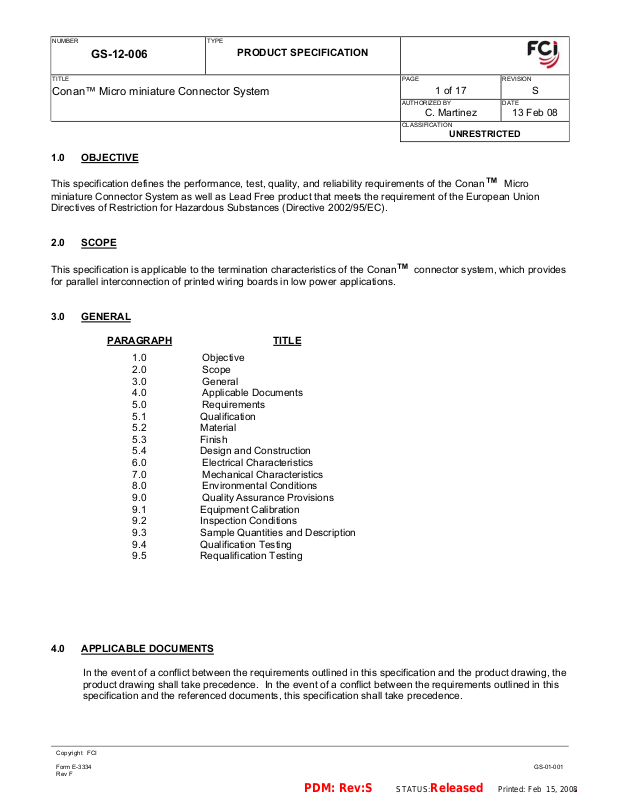

NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
AUTHORIZED BY DATE
1.0 OBJECTIVE
This specification defines the performance, test, quality, and reliability requirements of the Conan miniature Connector System as well as Lead Free product that meets the requirement of the European Union Directives of Restriction for Hazardous Substances (Directive 2002/95/EC).
2.0 SCOPE
This specification is applicable to the termination characteristics of the Conan for parallel interconnection of printed wiring boards in low power applications.
3.0 GENERAL
PARAGRAPH
TITLE
CLASSIFICATION
™ connector system, which provides
1 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
™ Micro
1.0 Objective
2.0 Scope
3.0 General
4.0 Applicable Documents
5.0 Requirements
5.1 Qualification
5.2 Material
5.3 Finish
5.4 Design and Construction
6.0 Electrical Characteristics
7.0 Mechanical Characteristics
8.0 Environmental Conditions
9.0 Quality Assurance Provisions
9.1 Equipment Calibration
9.2 Inspection Conditions
9.3 Sample Quantities and Description
9.4 Qualification Testing
9.5 Requalification Testing
4.0 APPLICABLE DOCUMENTS
In the event of a conflict between the requirements outlined in this specification and the product drawing, the product drawing shall take precedence. In the event of a conflict between the requirements outlined in this specification and the referenced documents, this specification shall take precedence.
Copyright FCI
Form E-3334 Rev F
GS-01-001
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
Page 2
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
4.1 SPECIFICATIONS
4.1.1 Engineering Drawings 91900 & 10086244
4.2 MILITARY STANDARDS
4.2.1 MIL-STD-202F: Test Methods for Electronic Component Parts
4.2.2 EIA-364: Test Methods for Electrical Connectors
4.2.3 MIL-C-45662: Equipment Calibration
4.3 FEDERAL SPECIFICATIONS
4.3.1 QQ-N-290: Nickel Plating (Electrodeposited)
4.3.2 QQ-N-533: Beryllium Copper Alloy Strip
4.3.3 QQ-B-750: Phosphor Bronze Alloy Strip
4.3.4 QQ-B-613: Cartridge Brass Alloy Strip
4.3.5 QQ-S-571: Solder
4.4 OTHER STANDARDS AND SPECIFICATIONS
4.4.1 UL-94: Flammability
4.4.2 ASTM B-19: Brass
4.4.3 ASTM B-36: Brass
4.4.3 ASTMB-194: Beryllium Copper
4.4.4 ASTM B-103: Phosphor Bronze
4.4.5 ISO 9000
4.5 FCI SPECIFICATIONS
4.5.1 BUS-03-114: Capacitance Measurement
4.5.2 BUS-03-404: Normal Force Measurement
4.5.3 BUS-16-007: Beryllium Copper Strip
4.5.4 BUS-16-010: Phosphor Bronze Strip
4.5.5 BUS-16-068: Liquid Crystal Polymer
4.5.6 BUS-19-002: Solderability
4.5.7 BUS-19-020: Porosity
4.5.8 BUS-19-040: Plating Adhesion
4.6 FCI LAB REPORTS - SUPPORTING DATA
4.6.1 EL-93-03-062: Qualification Testing
4.6.2 EL-93-03-062B: Qualification Testing
4.6.3 EL-92-08-051: Qualification Testing
4.6.4 EL-94-01-031: Qualification Testing
4.6.5 EL-2004-09-024: Qualification Testing
4.6.6 ZA5-2625 Lead-free plating investigation (DOE pure tin)
Copyright FCI
Form E-3334 Rev F
AUTHORIZED BY DATE
CLASSIFICATION
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
2 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
GS-01-001
Page 3
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
5.0 REQUIREMENTS
5.1 QUALIFICATION
Connectors furnished under this specification shall be products that are capable of meeting the qualification test requirements specified herein.
5.2 MATERIAL
The material for each part shall be as specified herein, or equivalent. Substitute material shall meet the performance requirements of this specification.
5.2.1 Receptacle Terminal. (TMO5).
5.2.2 Header Terminal.
5.2.3 Header and Receptacle Insulator Housing.
5.2.4 Hold-Down.
5.3 FINISH
5.3.1 The header and receptacle terminals shall be plated in the contact area with 15
5.3.2 The hold-down shall be plated with 100 microinches min. tin lead or pure tin over 50
5.4 DESIGN AND CONSTRUCTION
The connector shall be a multi-piece assembly having two rows of contacts with surface mount soldertail terminations and solderable surface mount retention devices for installation on surface mount printed wiring boards or flexible circuits.
5.4.1 Mating.
5.4.2 Workmanship.
Copyright FCI
Form E-3334 Rev F
The base material shall be 3/4 hard phosphor bronze strip C51000.
filled liquid crystal polymer that is rated 94V-0 or better in accordance with UL-94.
The base material shall be full hard, brass strip C26000. See Section 5.3.2
for plating requirements.
microinches min. GXT™ or 30 microinches min. GXT™ (dependent on finish specified by part number) over 50 microinches nickel. The terminal soldertail shall be plated with 100 microinches min. tin lead or pure tin over 50 microinches min. nickel. The terminal areas outside of the contact area and soldertail areas shall be plated with 50 microinches min. nickel.
microinches min. nickel.
The connector shall be capable of mating and unmating manually without the
use of special tools.
Connectors shall be uniform in quality and shall be free from burrs, scratches, cracks, voids, chips, blisters, pin holes, sharp edges, and other defects that will adversely affect life or serviceability. Open knit lines, which may appear as a crack, may be present in the housing but do not adversely affect the performance of the connector as per the requirements outlined in this specification.
AUTHORIZED BY DATE
CLASSIFICATION
The base material shall be beryllium copper strip C17200, SHM
The insulators shall be molded of 30% glass
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
3 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
GS-01-001
Page 4
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
6.0 ELECTRICAL CHARACTERISTICS
6.1 CURRENT RATING
The maximum current rating based upon a 30 degree C temperature rise over ambient is 1.0 amp DC per contact for a 69 position connector with all contacts carrying current. The maximum current carrying capacity for an individual contact is 2.0 amps D.C.
6.2 LOW LEVEL CONTACT RESISTANCE
The low level contact resistance of the 4.15mm, 4.5mm, 5mm and 5.5mm mated height connectors shall not exceed 20 milliohms initially and 30 milliohms after environmental exposure when measured in accordance with EIA-364 TP45. The low level contact resistance of the 6mm, 7mm and 7.5mm mated height connectors shall not exceed 25 milliohms initially and 35 milliohms after environmental exposure when measured in accordance with EIA-364 TP45. The following details shall apply:
A. Method of connection: Attach current and voltage leads as shown in Figure 1.0. The
resistance shall be measured from the solder tail of the header to the solder tail of the receptacle.
B. Test Voltage: 20 millivolts DC max open circuit.
C. Test Current: Not to exceed 100 milliamperes.
6.3 INSULATION RESISTANCE
The insulation resistance of the mated connectors shall not be less than 1 gigaohm after environmental exposure when measured in accordance with MIL-STD-202F, Method 302. The following details shall apply:
A. Test voltage: 500 volts DC
B. Preparation: The connectors shall be mated but not soldered to a P.C. board.
C. Measurement points: The insulation resistance shall be measured between a minimum
of 10 adjacent and 10 opposing contacts per connector.
6.4 DIELECTRIC WITHSTANDING VOLTAGE
There shall be no evidence of arc-over, insulation breakdown or leakage current in excess of 1 milliampere when the unmated connector is tested in accordance with MIL-STD-202F, Method 301. The following details shall apply:
A. Test voltage: 500 volts rms at 60 hz.
B. Test duration: 60 seconds
Copyright FCI
Form E-3334 Rev F
AUTHORIZED BY DATE
CLASSIFICATION
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
4 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
GS-01-001
Page 5
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
AUTHORIZED BY DATE
C. Preparation: The connectors shall be mounted but not soldered to a P.C. board.
D. Measurement points: The dielectric withstanding voltage shall be applied across a
minimum of 10 adjacent and 10 opposing contacts.
6.5 CAPACITANCE
The capacitance between adjacent and opposing contacts in a mated connector shall not exceed
2.0 picofarads when tested in accordance with Du Pont specification BUS-03-114. The following details shall apply:
A. Test frequency: 100 khz
B. Preparation: The connectors shall be mated but not soldered to a P.C. board.
C. Measurement points: The capacitance shall be measured across a minimum of 10
7.0 MECHANICAL CHARACTERISTICS
7.1 CONTACT RETENTION
Individual contacts in the unterminated header and receptacle portions of the connector shall withstand a load normal to the soldertail of 0.25 min. pounds. The force shall be measured on a minimum of 10 contacts per unmated header and receptacle connector. The crosshead speed shall be no greater than 0.2 inches per minute.
7.2 MATING FORCE
The force to mate header and receptacle connectors that are mounted on a P.C. board shall not exceed 125 grams per contact. The crosshead speed shall be no greater than 1.0 inches per minute.
7.3 UNMATING FORCE
The force to unmate header and receptacle connectors that are mounted on a P.C. board shall be no less than 45 grams per contact. The crosshead speed shall be no greater than 1.0 inch per minute.
7.4 NORMAL FORCE
The contact normal force shall not be less than 75 grams when tested in accordance with BUS-03­404 Section 3.2 (probe method). Refer to Figure 2.0. The following process shall be used:
Copyright FCI
Form E-3334 Rev F
adjacent and 10 opposing contacts.
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
CLASSIFICATION
5 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
GS-01-001
Page 6
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
7.4.1 Solder the receptacle and header connectors to a printed circuit board.
7.4.2 Select the receptacle terminal positions to be measured.
7.4.3 Measure the maximum terminal gap between the selected positions and the opposite row of terminals in the receptacle connector.
7.4.4 Measure the minimum width across the selected positions and the opposite row of terminals of the header connector.
7.4.5 Using an "L" shaped probe, Lab Fixture Number MF149, Figure 2, deflect the contact positions on the instron tester.
7.4.6 The minimum beam deflection occurs on the long row of terminals. Calculate the minimum beam deflection as follows:
V = Minimum width across the header terminals. W = Maximum gap between receptacle terminals. Z = Deflection of terminals in the long row. A = Number of terminals in the short row. B = Number of terminals in the long row.
A*(V-W)
Minimum deflection (Z) = ------------
7.4.7 Starting at the bottom of the force-deflection curve where the terminal begins to deflect, move up the curve a distance equal to the minimum deflection, Z, to find the minimum normal force. Measure a minimum of 5 contacts per connector.
7.5 BOARD RETENTION
The force to remove the header and receptacle connectors from a P.C. board shall be no less than 10 lbs. when both the hold-downs and the terminal leads are soldered in place. The crosshead speed shall be no greater than 0.2 inches per minute.
(A+B)
AUTHORIZED BY DATE
CLASSIFICATION
6 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
Copyright FCI
Form E-3334 Rev F
GS-01-001
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
Page 7
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
8.0 ENVIRONMENTAL CONDITIONS
After exposure to the following environmental conditions in accordance with the specified test procedures and/or details, the product shall show no physical damage and shall meet the electrical and mechanical requirements per paragraphs 6.0 and 7.0 as specified in the Table 1.0 test sequences. Unless specified otherwise, the assemblies shall be mated during exposure.
8.1 HUMIDITY, STEADY STATE - MIL-STD-202F, METHOD 103B
A. Relative humidity: 90% +/- 5% B. Temperature: 40 +/- 3 Deg. C C. Test Duration: 96 hours D. Samples: Groups 1 and 2 - unmated during exposure.
8.2 THERMAL SHOCK - MIL-STD-202F, METHOD 107G
A. Test condition: A - (25, 1 hour cycles). B. Temperature range: -55 +/- 5 to +130 +5/-0 Deg. C. C. Time at each temperature: 30 minutes D. Transfer time: 5 minutes max. E. Samples: Groups 1 and 2 - unmated during exposure.
8.3 ENVIRONMENTAL SEQUENCE
Phase 1 - Thermal shock, MIL-STD-202F, Method 107G.
A. Test duration - 36, 1-hour cycles B. Temperature range - between -20 and +80 deg. C. C. Time at temperature - 30 minutes D. Transfer time - 5 minutes, maximum
Phase 2 - Humidity, MIL-STD-202F, Method 103B.
A. Test duration - 10 days B. Relative humidity - 95% C. Temperature - 40 +/- 3 deg. C.
8.3.1 - High Tem Life MIL-STD-202F, Method 108A
A. Test Duration - 21 days B. Temperature - 105 deg. C.
AUTHORIZED BY DATE
CLASSIFICATION
7 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
Copyright FCI
Form E-3334 Rev F
GS-01-001
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
Page 8
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
8.4 SHOCK - MIL-STD-202F, METHOD 213B
A. Condition - A, (50G, 11 ms half-sine) contacts shall show no evidence of discontinuity
greater than one microsecond. The following details shall apply:
B. Shocks: 3 shocks in both directions along each of 3 orthogonal axes (18 total).
C. Mounting: See Figure 3.0.
D. No discontinuities greater than 1.0 microseconds.
8.5 VIBRATION - MIL-STD-202F, METHOD 204D
A. Condition: B
B. Vibration Amplitude: +/-15G or .06" da.
C. Frequency range: 10 to 2000 hz.
D. Sweep time and duration: 20 minutes per sweep, 4 hours along each of 3 orthogonal
axes (12 hours total).
E. Mounting: See Figure 3.0.
8.6 INDUSTRIAL MIXED FLOWING GAS - BATTELLE PROCEDURE
A. Class: II
B. Duration: 20 days, mated
8.7 SOLDERABILITY - MIL-STD-202F METHOD 208F
A. Contact tails shall be solderable over a minimum of .035 from the tip.
B. Steam aging: Suspended 2 inches above boiling, distilled water for 4 hours.
C. Acceptable coverage: 95% minimum.
D. Solder: 60/40 tin-lead in accordance with QQ-S-571, Type S.
E. Flux: Type RMA.
F. Flux immersion time: 10 seconds.
AUTHORIZED BY DATE
CLASSIFICATION
8 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
Copyright FCI
Form E-3334 Rev F
GS-01-001
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
Page 9
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
G. Solder dwell time: Terminal held immediately above solder for 10 seconds and then
immersed for 5 +/- 0.5 seconds. The solder tails shall be bent normal to the base of the connector to prevent the insulator from touching the solder bath.
H. Solder temperature: 245 +/- 5 deg. C.
I. Samples: Group 7 - unsoldered and unmated.
8.8 RESISTANCE TO IR SOLDERING HEAT
A. Temperature: 260oC +
B. Duration: 30 seconds.
8.9 DURABILITY - STANDARD LABORATORY PROCEDURES
A. Number of cycles: 30 cycles for 15u" GXT Contact Finish
B. Crosshead speed: 1 inch/minute max.
9.0 QUALITY ASSURANCE PROVISIONS
9.1 EQUIPMENT CALIBRATION
All test equipment and inspection facilities used in the performance of any test shall be maintained in a calibration system in accordance with MIL-C-45662 and ISO 9000.
9.2 INSPECTION CONDITIONS
Unless otherwise specified herein, all inspections shall be performed under the following ambient conditions:
A. Temperature: 25 +/- 5 deg. C.
B. Relative humidity: 30 to 60%
C. Barometric pressure: Local ambient.
AUTHORIZED BY DATE
CLASSIFICATION
5o C (peak temperature)
200 cycles for 30u" GXT Contact Finish
9 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
Copyright FCI
Form E-3334 Rev F
GS-01-001
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
Page 10
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
9.3 SAMPLE QUANTITIES
Sample quantities for the respective test groups are as follows:
Test
Size (number of
Group
1 69 4.15 3
2 69 4.15 3
3 21 & 69 4.15 & 7.0 3 ea. 3A 21 & 69 4.15 & 7.0 3 ea.
positions)
AUTHORIZED BY DATE
CLASSIFICATION
Connector
Height
10 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
Quantity
4 21 7.0 3
5 69 7.0 3 5A 69 7.0 3
6 69 4.15 & 7.0 3 ea.
7 69 7.0 3
8 9 & 21 & 69 7.0 3 ea.
9 69 N/A 3
10 21 & 69 4.15 & 7.0 3 ea.
11 69 7.0 1
11A 69 7.0 1
11B 69 7.0 1
12 69 4.15 & 7.0 1 ea.
13 69 4.15 3 13A 69 4.15 3
Copyright FCI
Form E-3334 Rev F
GS-01-001
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
Page 11
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
9.4 QUALIFICATION TESTING
Qualification testing shall be performed on sample units produced with equipment and procedures normally used in production. The test sequence shall be as shown in Table 1.
9.5 REQUALIFICATION TESTING
If either of the following conditions occurs, the responsible product engineer shall initiate requalification testing consisting of all applicable parts of the qualification test matrix, Table 1.
A. A significant design change is made to the existing product. A significant change shall
include, but is not limited to, changes in the contact material composition, contact material thickness, contact force, contact surface geometry, underlying material composition, underlying material thickness, insulator design, contact base material, or contact lubrication requirements.
B. A significant change is made to the manufacturing process which impacts the product
form, fit, or function.
C. A significant event occurs during production or end use requiring corrective action to be
taken relative to the product design or manufacturing process.
AUTHORIZED BY DATE
CLASSIFICATION
11 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
Copyright FCI
Form E-3334 Rev F
GS-01-001
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
Page 12
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
AUTHORIZED BY DATE
TABLE 1 - QUALIFICATION TESTING
TEST/OPERATION TEST GROUP
1 2 3 3A 4 5 5A 6 7 8 9 10 11 11A 11B 12 13 13
Product Examination 1
10 1 8 1 14 1 14 1 101 111 11151 4 1 4 1 4 1 7 1 5 1 5 1 4 1 - 1 121 12 Sample Preparation - 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 Plating Thkns. and/or Metal Exam. Porosity - - - - - - - - - - - - 4 4 3 - - ­Contact Resistance - - 5 5 5 5 5 - - - - 3 - - - - 5 5
- - 7 7 8 7 7 - - - - 5 - - - - 9 9
- - 9 9 - 9 9 - - - - - - - - - 11 11
- - 13 13 - - - - - - - - - - - - - ­Current Rating - - - - - - - - - 3 - - - - - - - ­Insulation Resistance 2 - - - - - - - - - - - - - - - - ­ 6 - - - - - - - - - - - - - - - - ­ 8 - - - - - - - - - - - - - - - - ­Dielectric Withstanding 3 - - - - - - - - - - - - - - - - ­Voltage 9 - - - - - - - - - - - - - - - - ­Capacitance 4 - - - - - - - - - - - - - - - - ­Mating Force - - 3 3 3 3 3 - - - - - - - - - 3 3
- - 11 11 - - - - - - - - - - - - 7 7 Unmating Force - - 4 4 4 4 4 - - - - - - - - - 4 4
- - 12 12 - - - - - - - - - - - - 8 8
- - - - - - - - - - - - - - - - - ­Contact Retention - 3 - - - - - 4 - - - - - - - - - -
- 5 - - - - - - - - - - - - - - - -
- 7 - - - - - - - - - - - - - - - ­Normal Force - - - - - - - - - - 3 6 - - - - - ­Board Retention - - - - 9 10 10 - - - - - - - - - - ­Humidity 5 4 - - - - - - - - - - - - - - - ­Thermal Shock 7 6 - - - - - - - - - - - - - - - ­Thermal Shock Phase 1 - - 6 6 - - - - - - - - - - - - - ­Temp. & Hum. Phase 2 - - 8 8 - - - - - - - - - - - - - ­Hi Temp. Life - - - - - - - - - - - 4 - - - - 10 10 Mechanical Shock - - - - 6 - - - - - - - - - - - - ­Vibration - - - - 7 - - - - - - - - - - - - ­Durability (30 cycles) - - 10 - - 6 - - - - - - 3 - - - 6 ­Durability (200 Cycles) - - - 10 - - 6 - - - - - - 3 - - - 6 Battelle Imfg - - - - - 8 8 - - - - - - - - - - ­Resistance to IR Heat - - - - - - - 3 - - - - - - - - - ­Solderability - - - - - - - - 3 - - - - - - - - -
Copyright FCI
Form E-3334 Rev F
- - - -
- - - - - - - - - - - 3 - -
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
CLASSIFICATION
12 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
A
GS-01-001
Page 13
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
FIGURE 1.0
AUTHORIZED BY DATE
CLASSIFICATION
13 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
Copyright FCI
Form E-3334 Rev F
GS-01-001
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
Page 14
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
FIGURE 2.0
AUTHORIZED BY DATE
CLASSIFICATION
14 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
Copyright FCI
Form E-3334 Rev F
GS-01-001
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
Page 15
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
FIGURE 3.0
AUTHORIZED BY DATE
CLASSIFICATION
15 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
Copyright FCI
Form E-3334 Rev F
GS-01-001
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
Page 16
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
AUTHORIZED BY DATE
CLASSIFICATION
16 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
Copyright FCI
Form E-3334 Rev F
GS-01-001
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
Page 17
NUMBER
GS-12-006
TYPE
PRODUCT SPECIFICATION
TITLE PAGE REVISION
AUTHORIZED BY DATE
REVISION RECORD
REV PAGE DESCRIPTION EC # DATE
1 All
Created new product spec.
A All Various changes
Released
B 15 Change dim. on drawing
.236 to .230 .082 to .064 .098 to .095
C All Rewrite the following sections:
Change title
1.0, 4.1, 4.6, 5.2, 5.4, 6.1, 7.2, 7.3, 8.6, 8.8, 9.3, Table 1
D All Correct spelling in header
2.0 - change "family of products" to "system"
9.3 - add Test group 13
E 2,3,4
5,6,7
8,9
12
15
F 2
10,12
G 3
9
10,12
Update 4.6, 5.3.2, 6.2, 7.2, 7.3
7.4.5, 8.3 Remove 8.9 Section and renumber Add Test Group 7 and delete 13 Update chart Change Connector to Receptacle on dwg. Add 4.6.4 Add Test Group #13 Update 5.3.1 and 6.1 Update 8.0 Add 3A, 5A and 13A
H 7 Sect. 8.3 - Change Phase II to read ‘Phase 2’; change Phase
III to read ‘8.3.1’.
J 4 Para. 6.2 - add 5.5mm and 7.5mm. V70778 05/08/97
K All Revised format to be consistent with GS-01-001, and change
BERG, Dupont, etc. references to FCI. Change document number prefix from GES to GS.
L 1,3 4.0 Add statement for document control precedence.
5.4.2 Add statement concerning allowance for open knit lines.
M
N
P
All
1,2,3,9
2
3
Change Logo Add Lead-Free information
MIL-STD-1344 was replaced by EIA-364
Remove “Tin Lead” information
R 3 Add “Trade Mark” at GXT . M08-0012 01/11/08
CLASSIFICATION
17 of 17 S
C. Martinez 13 Feb 08
UNRESTRICTED
10/14/91 V22342 04/16/92
V33470 07/09/92
V31757 09/29/93
V31770 10/07/93
V40605 01/26/94
V40450 03/21/94
V51216 10/16/95
V60740 03/18/97
V01949 08/15/00
V03-1033 09/12/03
M06-0295
M06-0326
M07-0357
08/01/06
08/25/06
08/09/07
S 2 & 3 Add “Tin Lead” information and new series M08-0042 02/13/08
Copyright FCI
Form E-3334 Rev F
PDM: Rev:S Released .STATUS: Printed: Feb 15, 2008
GS-01-001
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
