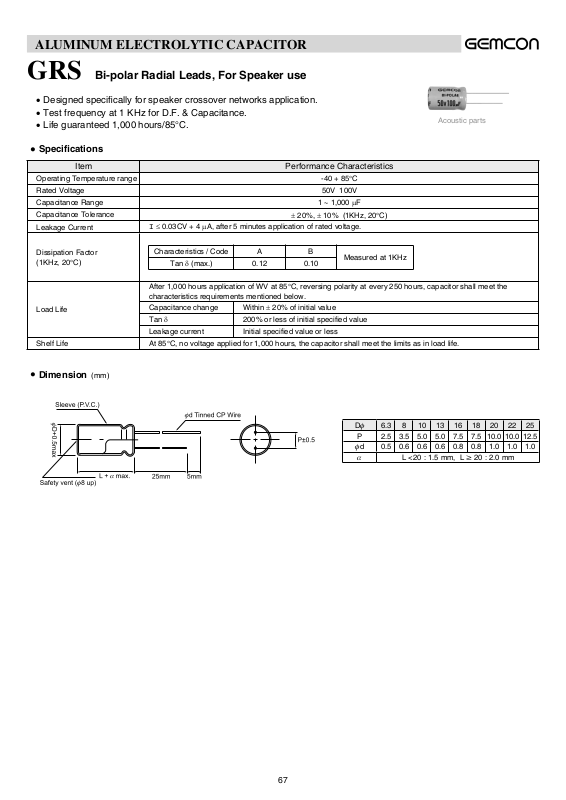

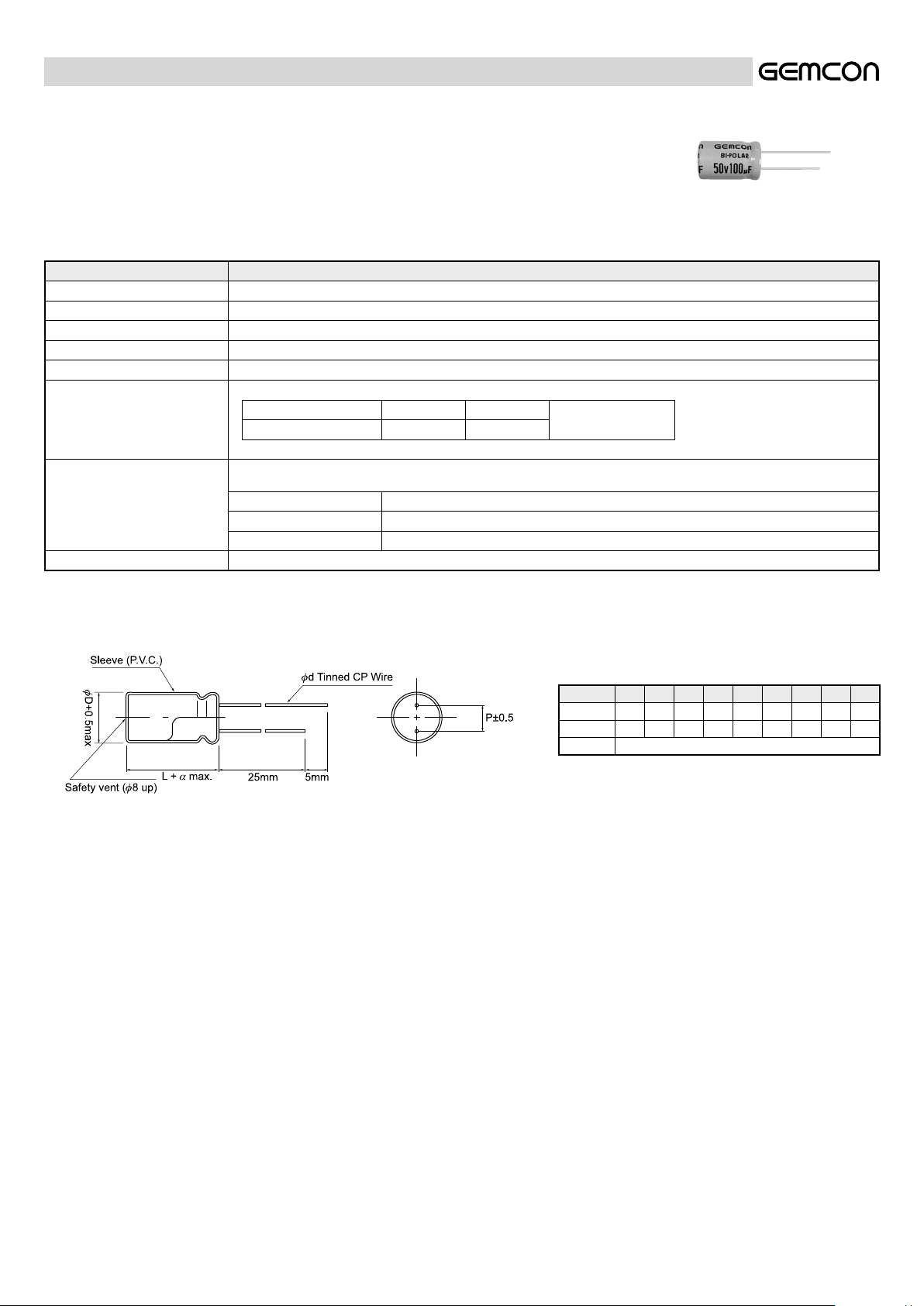

Datasheet GRS Datasheet

ALUMINUM ELECTROLYTIC CAPACITOR

GRS Bi-polar Radial Leads, For Speaker use

• Designed specically for speaker crossover networks application.

• Test frequency at 1 KHz for D.F. & Capacitance.

• Life guaranteed 1,000 hours/85°C.

●

Specications

Item Performance Characteristics

Operating Temperature range -40 + 85°C

Rated Voltage 50V 100V

Capacitance Range 1 ∼ 1,000 µF

Capacitance Tolerance

Leakage Current

I ≤ 0.03CV + 4 µA, after 5 minutes application of rated voltage.

± 20%, ± 10% (1KHz, 20°C)

Acoustic parts

Dissipation Factor
(1KHz, 20°C)

Load Life

Shelf Life At 85°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life.

●

Dimension (mm)

Characteristics / Code A B

Tan δ (max.) 0.12 0.10

After 1,000 hours application of WV at 85°C, reversing polarity at every 250 hours, capacitor shall meet the
characteristics requirements mentioned below.

Capacitance change Within ± 20% of initial value

Tan δ 200% or less of initial specied value

Leakage current Initial specied value or less

Measured at 1KHz

Df 6.3 8 10 13 16 18 20 22 25

P 2.5 3.5 5.0 5.0 7.5 7.5 10.0 10.0 12.5

fd

0.5 0.6 0.6 0.6 0.8 0.8 1.0 1.0 1.0

a

L < 20 : 1.5 mm, L ≥ 20 : 2.0 mm

67

ALUMINUM ELECTROLYTIC CAPACITOR

ALUMINUM ELECTROLYTIC CAPACITOR

69

●

Standard Products Table

WV

Cap (µF)

1 6.3 x 11 6.3 x 11 8 x 11 8 x 11

1.5 6.3 x 11 8 x 11 8 x 11 8 x 11

2.2 6.3 x 11 8 x 11 8 x 11 8 x 11

2.7 6.3 x 11 8 x 11 8 x 11 8 x 11

3.3 6.3 x 11 8 x 11 8 x 11 8 x 11

3.9 6.3 x 11 8 x 11 8 x 11 8 x 11

4.7 8 x 11 8 x 11 8 x 11 8 x 11

5.6 8 x 15 8 x 11 8 x 11 8 x 11

6.8 8 x 15 8 x 11 8 x 11 10 x 12

7.5 8 x 15 8 x 11 10 x 12 10 x 12

8.2 8 x 15 8 x 11 10 x 12 10 x 16
10 8 x 15 10 x 16 10 x 16 10 x 16
12 8 x 15 10 x 16 10 x 16 10 x 20
15 8 x 15 10 x 16 10 x 20 10 x 20
18 10 x 16 10 x 20 10 x 20 10 x 20
22 10 x 16 10 x 20 10 x 20 10 x 20
27 10 x 16 10 x 20 10 x 20 13 x 26
33 10 x 16 10 x 20 13 x 20 13 x 26
39 10 x 16 10 x 20 13 x 20 13 x 26
47 10 x 20 10 x 20 13 x 26 13 x 26
56 10 x 20 13 x 20 13 x 26 13 x 26
68 10 x 20 13 x 20 13 x 26 13 x 26
75 13 x 20 13 x 20 13 x 26 13 x 26
82 13 x 20 13 x 26 13 x 26 13 x 26

100 13 x 20 13 x 26 16 x 25 16 x 25
120 13 x 26 13 x 26 16 x 25 16 x 25
150 13 x 26 16 x 25 16 x 36 16 x 36
180 16 x 25 16 x 25 16 x 36 16 x 36
220 16 x 25 16 x 25 18 x 36 18 x 36
250 16 x 25 16 x 25 18 x 36 18 x 36
270 16 x 25 16 x 25 18 x 36 18 x 36
330 16 x 25 16 x 36 20 x 36 20 x 36
390 16 x 36 16 x 36 22 x 36 22 x 36
470 16 x 36 18 x 36 25 x 45 25 x 45
560 16 x 36 22 x 36 25 x 45 25 x 45
680 22 x 36 25 x 36 25 x 50 25 x 50
750 22 x 36 25 x 36 25 x 50 25 x 50
820 25 x 36 25 x 36 25 x 50 25 x 50

1000 25 x 45 25 x 45 25 x 55 25 x 55

A (DF: 12%) B (DF: 10%) A (DF: 12%) B (DF: 10%)

50V 100V

• Specic capacitance value or size may acceptable per request.

• Indicating the right P/N :
Example : GRS180M050-1625BB (The last digit stands for characteristic/DF code)

Df x L (mm)

68
