Page 1

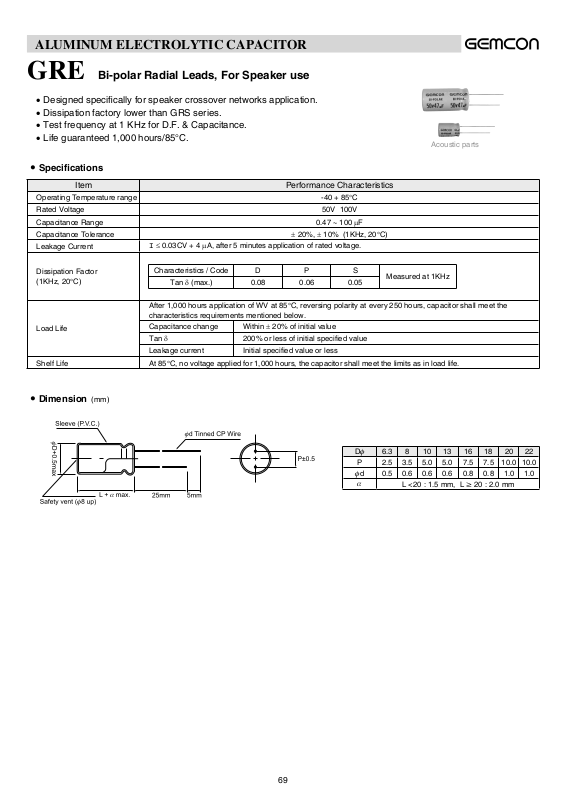

ALUMINUM ELECTROLYTIC CAPACITOR

GRE Bi-polar Radial Leads, For Speaker use

• Designed specically for speaker crossover networks application.

• Dissipation factory lower than GRS series.

• Test frequency at 1 KHz for D.F. & Capacitance.

• Life guaranteed 1,000 hours/85°C.

●

Specications

Item Performance Characteristics

Operating Temperature range -40 + 85°C

Rated Voltage 50V 100V

Capacitance Range 0.47 ∼ 100 µF

Capacitance Tolerance

Leakage Current

I ≤ 0.03CV + 4 µA, after 5 minutes application of rated voltage.

± 20%, ± 10% (1KHz, 20°C)

Acoustic parts

Dissipation Factor (1KHz, 20°C)

Load Life

Shelf Life At 85°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life.

●

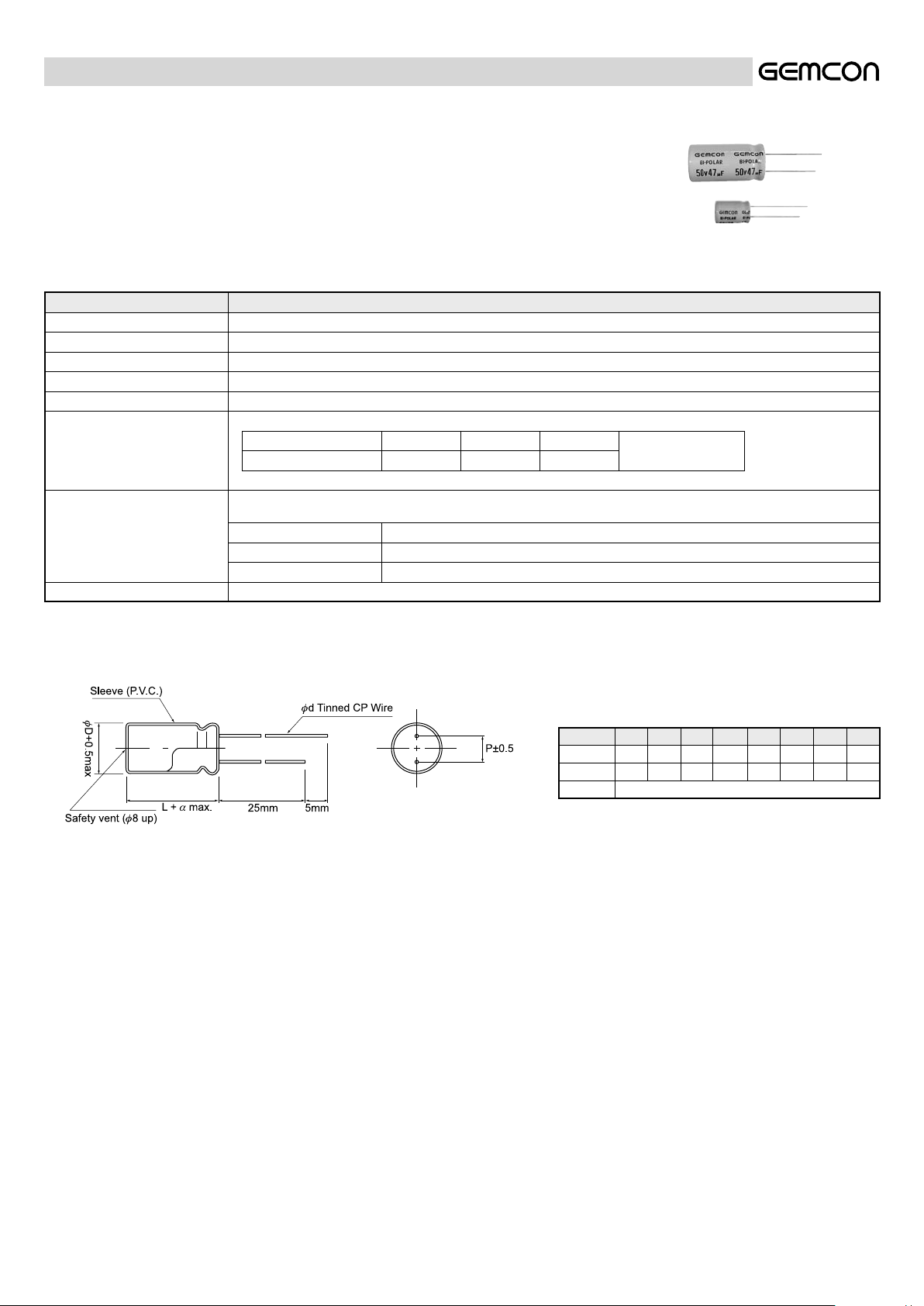

Dimension (mm)

Characteristics / Code D P S

Tan δ (max.) 0.08 0.06 0.05

After 1,000 hours application of WV at 85°C, reversing polarity at every 250 hours, capacitor shall meet the characteristics requirements mentioned below.

Capacitance change Within ± 20% of initial value

Tan δ 200% or less of initial specied value

Leakage current Initial specied value or less

Df 6.3 8 10 13 16 18 20 22

P 2.5 3.5 5.0 5.0 7.5 7.5 10.0 10.0

Measured at 1KHz

0.5 0.6 0.6 0.6 0.8 0.8 1.0 1.0 L < 20 : 1.5 mm, L ≥ 20 : 2.0 mm

Page 2

ALUMINUM ELECTROLYTIC CAPACITOR

●

Standard Products Table

Cap (µF)

0.47 6.3 x 11 8 x 11 10 x 16 8 x 11 8 x 11 10 x 20

0.68 6.3 x 11 8 x 11 10 x 16 8 x 11 8 x 11 10 x 20 1 6.3 x 11 8 x 11 10 x 20 8 x 11 10 x 16 13 x 25

1.2 6.3 x 11 8 x 11 10 x 20 8 x 11 10 x 16 13 x 25

1.5 6.3 x 11 8 x 11 13 x 20 8 x 11 10 x 16 13 x 25

1.8 6.3 x 11 8 x 11 13 x 20 8 x 11 10 x 20 13 x 25

2.2 8 x 11 10 x 12 13 x 20 10 x 12 10 x 20 13 x 25

2.7 8 x 11 10 x 12 13 x 20 10 x 12 10 x 20 13 x 25

3.3 8 x 11 10 x 16 16 x 25 10 x 12 13 x 20 16 x 25

3.9 8 x 11 10 x 16 16 x 25 10 x 12 13 x 20 16 x 25

4.7 10 x 12 10 x 20 16 x 25 10 x 16 13 x 25 16 x 25

5.6 10 x 12 10 x 20 16 x 25 10 x 16 13 x 25 16 x 25

6.8 10 x 16 13 x 20 16 x 32 10 x 16 13 x 25 16 x 36

7.5 10 x 16 13 x 20 16 x 32 10 x 16 13 x 25 16 x 36

8.2 10 x 16 13 x 20 16 x 32 10 x 16 13 x 25 16 x 36 10 10 x 16 13 x 25 18 x 36 10 x 20 16 x 25 18 x 36 12 10 x 16 13 x 25 18 x 36 10 x 20 16 x 25

15 10 x 16 13 x 25 22 x 40 10 x 20 16 x 25

18 10 x 16 13 x 25 22 x 40 10 x 20 16 x 25

22 13 x 25 16 x 25 22 x 40 13 x 25 16 x 36

27 13 x 25 16 x 25 22 x 40 13 x 25 16 x 36

33 13 x 25 16 x 32 25 x 40 13 x 25 18 x 36

39 13 x 25 16 x 32 25 x 40 13 x 25 18 x 36

47 16 x 31 18 x 36 25 x 40 16 x 36 22 x 36

56 16 x 31 18 x 36 25 x 40 16 x 36 22 x 36

68 18 x 36 18 x 40 25 x 40 18 x 36 22 x 36

75 18 x 36 18 x 40 25 x 40 18 x 36

82 18 x 36 18 x 40 25 x 40 18 x 36

100 18 x 40 18 x 40 25 x 40 18 x 40

D (8%) P (6%) S (5%) D (8%) P (6%) S (5%)

50V 100V

• Specic capacitance value or size may acceptable per request.

• Indicating the right P/N : Example : GRE3R3M050-1016BP (The last digit stands for characteristic/DF code)

Df x L (mm)
