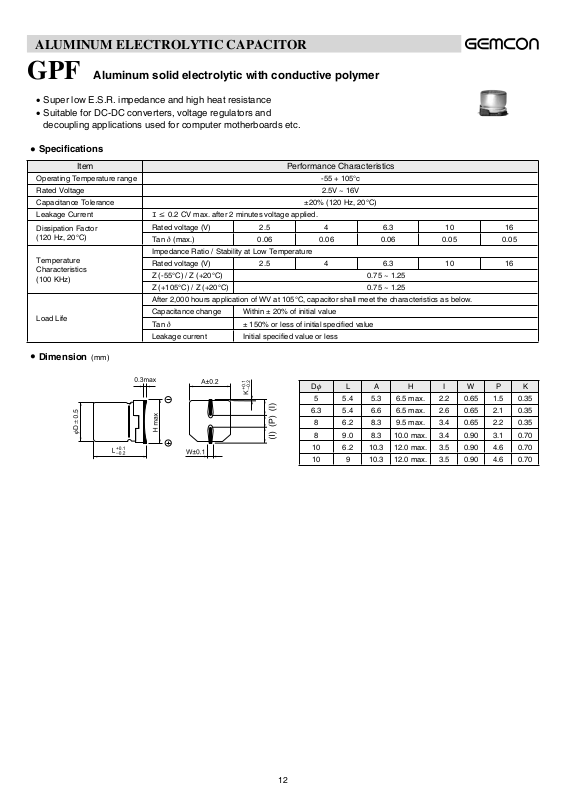

ALUMINUM ELECTROLYTIC CAPACITOR
ALUMINUM ELECTROLYTIC CAPACITOR
13
GPF Aluminum solid electrolytic with conductive polymer
• Super low E.S.R. impedance and high heat resistance
• Suitable for DC-DC converters, voltage regulators and
decoupling applications used for computer motherboards etc.
●
Specications
Item Performance Characteristics
Operating Temperature range -55 + 105°c
Rated Voltage 2.5V ~ 16V
Capacitance Tolerance ±20% (120 Hz, 20°C)
Leakage Current
Dissipation Factor
(120 Hz, 20°C)
Temperature
Characteristics
(100 KHz)
Load Life
I ≤ 0.2 CV max. after 2 minutes voltage applied.
Rated voltage (V) 2.5 4 6.3 10 16
Tan d (max.) 0.06 0.06 0.06 0.05 0.05
Impedance Ratio / Stability at Low Temperature
Rated voltage (V) 2.5 4 6.3 10 16
Z (-55°C) / Z (+20°C) 0.75 ~ 1.25
Z (+105°C) / Z (+20°C) 0.75 ~ 1.25
After 2,000 hours application of WV at 105°C, capacitor shall meet the characteristics as below.
Capacitance change Within ± 20% of initial value
Tan d ± 150% or less of initial specied value
Leakage current Initial specied value or less
●

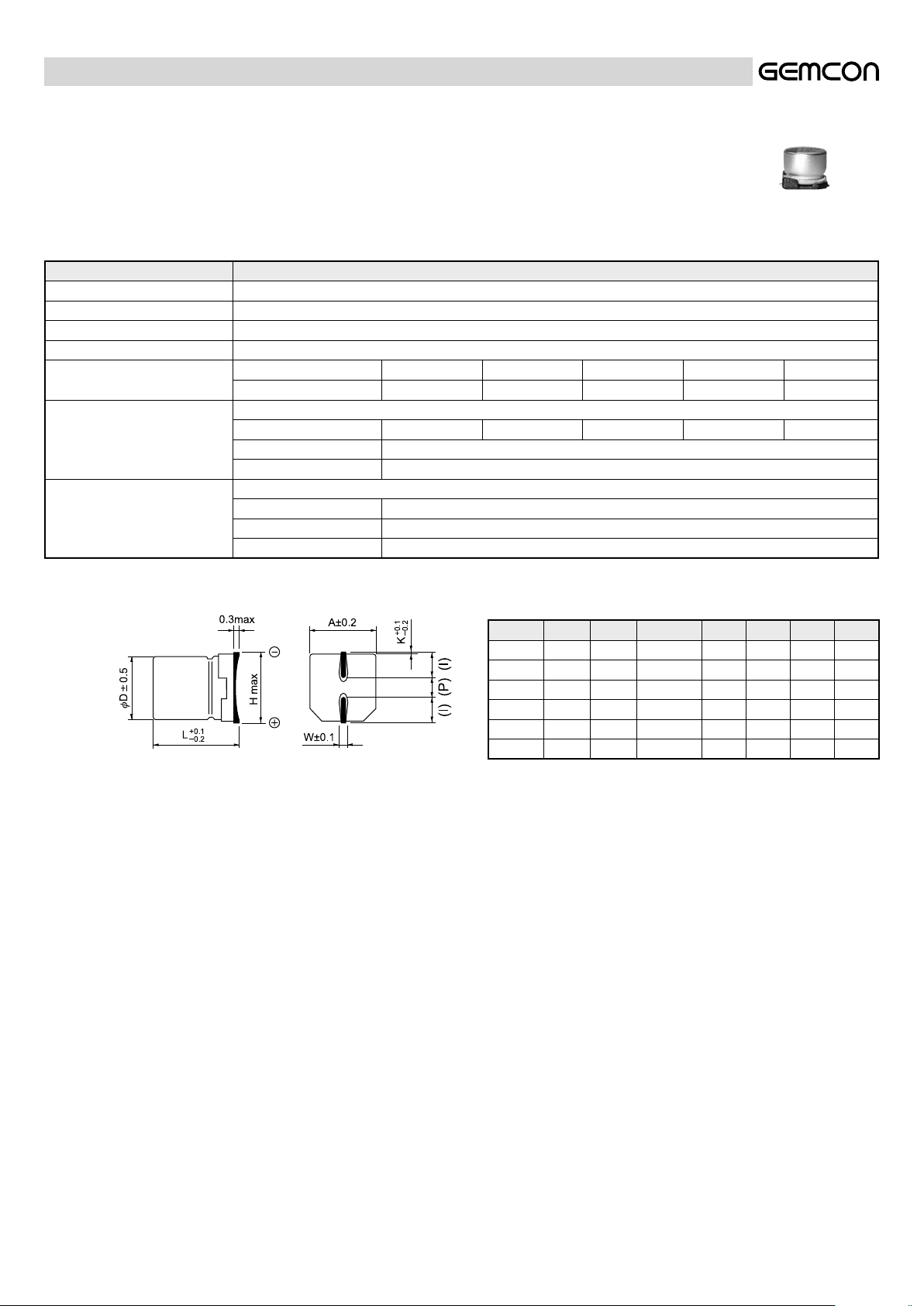

Dimension (mm)
Df L A H I W P K
5 5.4 5.3 6.5 max. 2.2 0.65 1.5 0.35
6.3 5.4 6.6 6.5 max. 2.6 0.65 2.1 0.35
8 6.2 8.3 9.5 max. 3.4 0.65 2.2 0.35
8 9.0 8.3 10.0 max. 3.4 0.90 3.1 0.70
10 6.2 10.3 12.0 max. 3.5 0.90 4.6 0.70
10 9 10.3 12.0 max. 3.5 0.90 4.6 0.70
12
Page 2
ALUMINUM ELECTROLYTIC CAPACITOR
●
Standard Products Table
Rated
voltage (V.DC)
2.5
4
6.3
10
16
Rated
Capacitance (µF)
56 5 x 5.4 28 0.06 40 1400 GPF056M2.5-0505B
120 6.3 x 5.4 60 0.06 35 1400 GPF120M2.5-0605B
220 8 x 6.2 110 0.06 25 2560 GPF220M2.5-0806B
390 10 x 6.2 195 0.06 15 3700 GPF390M2.5-1006B
470 8 x 9 235 0.06 10 4800 GPF470M2.5-0809B
560 8 x 9 280 0.06 8 5500 GPF560M2.5-0809B
680 8 x 9 340 0.06 8 5500 GPF680M2.5-0809B
820 8 x 9 410 0.06 8 5500 GPF820M2.5-0809B
1000 8 x 9 500 0.06 8 5500 GPF102M2.5-0809B
1200 8 x 9 600 0.06 8 5500 GPF122M2.5-0809B
1500 10 x 9 750 0.06 7 3300 GPF152M2.5-1009B
1800 10 x 9 900 0.06 7 6100 GPF182M2.5-1009B
2200 10 x 9 1100 0.06 7 6100 GPF222M2.5-1009B
47 5 x 5.4 38 0.06 40 1400 GPF047M004-0505B
100 6.3 x 5.4 80 0.06 35 1400 GPF100M004-0605B
180 8 x 6.2 144 0.06 25 2560 GPF180M004-0806B
330 10 x 6.2 264 0.06 15 3700 GPF330M004-1006B
390 8 x 9 312 0.06 8 5500 GPF390M004-0809B
560 8 x 9 448 0.06 8 5500 GPF560M004-0809B
680 8 x 9 544 0.06 8 5500 GPF680M004-0809B
820 8 x 9 656 0.06 8 5500 GPF820M004-0809B
1000 8 x 9 800 0.06 8 5500 GPF102M004-0809B
1200 10 x 9 960 0.06 7 6100 GPF122M004-1009B
1500 10 x 9 1200 0.06 7 6100 GPF152M004-1009B
39 5 x 5.4 49 0.06 45 1400 GPF039M6.3-0505B
82 6.3 x 5.4 103 0.06 40 1400 GPF082M6.3-0605B
150 8 x 6.2 189 0.06 30 2560 GPF150M6.3-0806B
270 10 x 6.2 340 0.06 17 3700 GPF270M6.3-1006B
330 8 x 9 416 0.06 13 4800 GPF330M6.3-0809B
560 8 x 9 706 0.06 8 5500 GPF560M6.3-0809B
680 8 x 9 857 0.06 8 5500 GPF680M6.3-0809B
820 10 x 9 1033 0.06 7 6100 GPF820M6.3-1009B
1000 10 x 9 1260 0.06 7 6100 GPF102M6.3-1009B
33 5 x 5.4 66 0.05 50 1200 GPF033M010-0505B
68 6.3 x 5.4 136 0.05 45 1200 GPF068M010-0605B
120 8 x 6.2 240 0.05 40 2300 GPF120M010-0806B
220 10 x 6.2 440 0.05 20 3300 GPF220M010-1006B
270 8 x 9 540 0.05 10 4500 GPF270M010-0809B
470 8 x 9 940 0.05 10 4800 GPF470M010-0809B
680 10 x 9 1360 0.05 8 5500 GPF680M010-1009B
1000 10 x 9 2000 0.05 8 5500 GPF102M010-1009B
18 5 x 5.4 58 0.05 55 1200 GPF018M016-0505B
47 6.3 x 5.4 150 0.05 50 1200 GPF047M016-0605B
82 8 x 6.2 262 0.05 40 2300 GPF082M016-0806B
150 10 x 6.2 480 0.05 25 3300 GPF150M016-1006B
180 8 x 9 576 0.05 15 4400 GPF180M016-0809B
330 10 x 9 1056 0.05 13 5100 GPF330M016-1009B
Case Size
D x L (mm)
Leakage
Current (µA)
Tangent of loss
angle (max.)
E.S.R. (mΩ)
at 100 KHz/20°C
• Allowable ripple current (mA rms) at 105°C/100 KHz
Allowable ripple
Current (mA rms)
Part number
