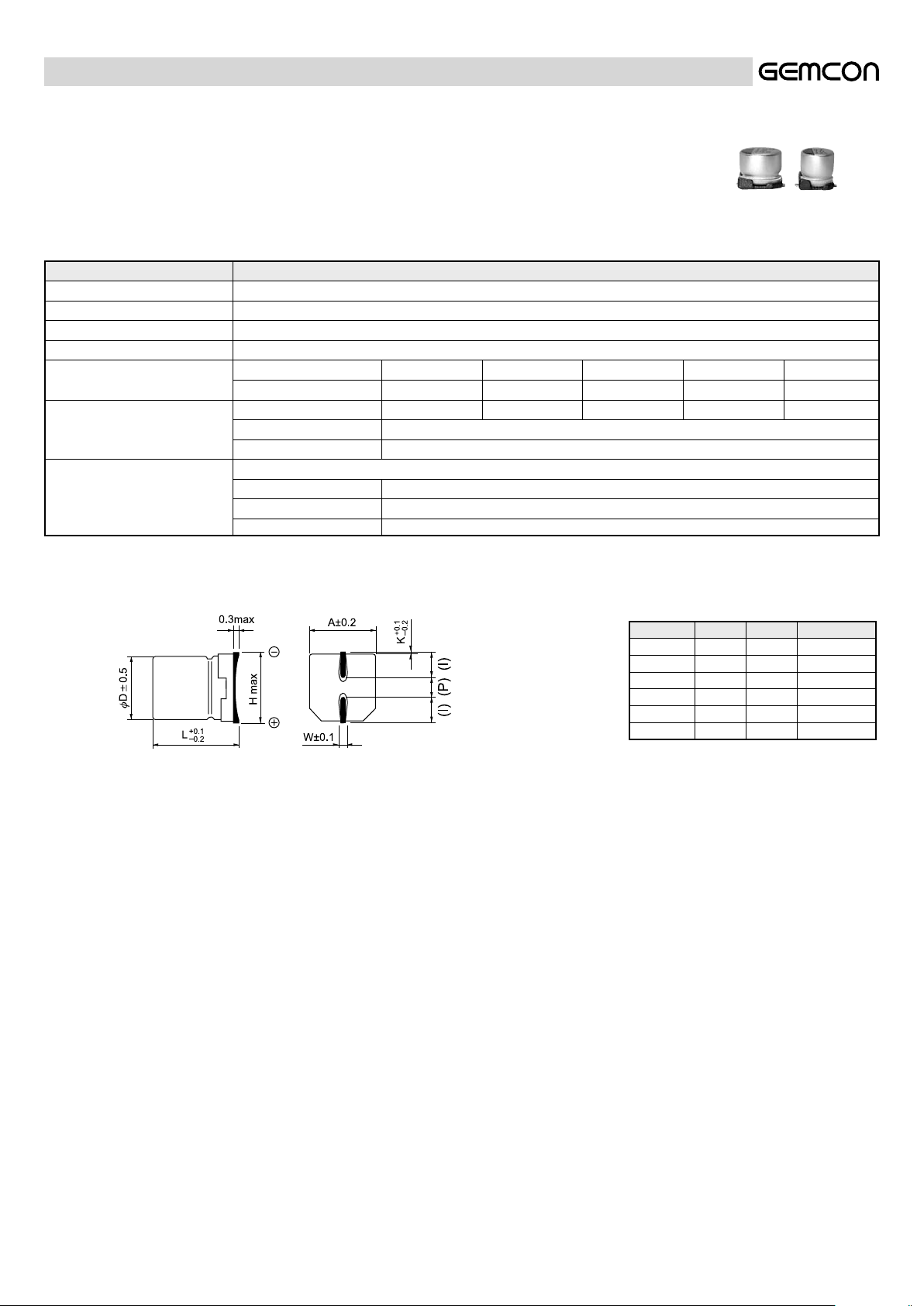

ALUMINUM ELECTROLYTIC CAPACITOR
ALUMINUM ELECTROLYTIC CAPACITOR
11

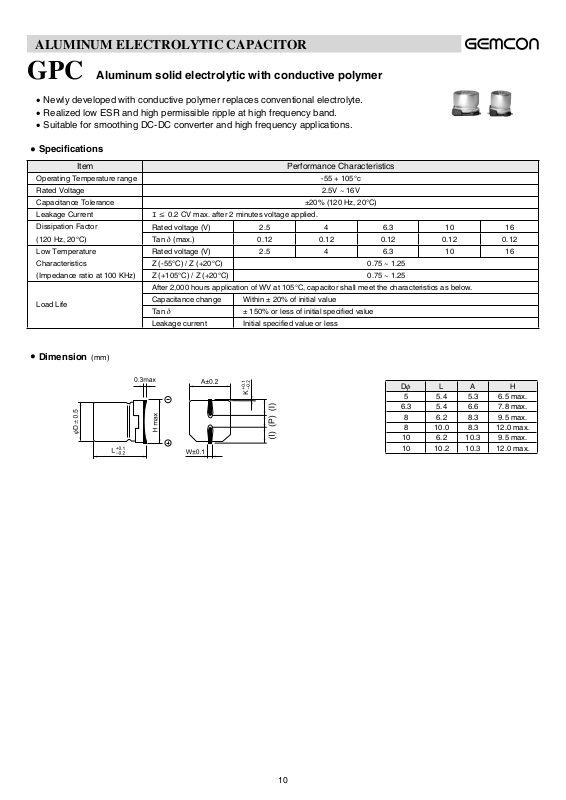

GPC Aluminum solid electrolytic with conductive polymer
• Newly developed with conductive polymer replaces conventional electrolyte.
• Realized low ESR and high permissible ripple at high frequency band.
• Suitable for smoothing DC-DC converter and high frequency applications.
●
Specications
Item Performance Characteristics
Operating Temperature range -55 + 105°c
Rated Voltage 2.5V ~ 16V
Capacitance Tolerance ±20% (120 Hz, 20°C)
Leakage Current
Dissipation Factor
(120 Hz, 20°C)
Low Temperature
Characteristics
(Impedance ratio at 100 KHz)
Load Life
I ≤ 0.2 CV max. after 2 minutes voltage applied.
Rated voltage (V) 2.5 4 6.3 10 16
Tan d (max.) 0.12 0.12 0.12 0.12 0.12
Rated voltage (V) 2.5 4 6.3 10 16
Z (-55°C) / Z (+20°C) 0.75 ~ 1.25
Z (+105°C) / Z (+20°C) 0.75 ~ 1.25
After 2,000 hours application of WV at 105°C, capacitor shall meet the characteristics as below.
Capacitance change Within ± 20% of initial value
Tan d ± 150% or less of initial specied value
Leakage current Initial specied value or less
●
Dimension (mm)
Df L A H
5 5.4 5.3 6.5 max.
6.3 5.4 6.6 7.8 max.
8 6.2 8.3 9.5 max.
8 10.0 8.3 12.0 max.
10 6.2 10.3 9.5 max.
10 10.2 10.3 12.0 max.
10
Page 2
ALUMINUM ELECTROLYTIC CAPACITOR
●
Standard Products Table
Rated
voltage (V.DC)
2.5
4
6.3
10
16
Rated
Capacitance (µF)
56 5 x 5.4 28 0.12 50 1400 GPC056M2.5-0505B
100 6.3 x 5.4 60 0.12 45 1800 GPC100M2.5-0605B
220 8 x 6.2 110 0.12 35 2560 GPC220M2.5-0806B
390 10 x 6.2 195 0.12 20 3700 GPC390M2.5-1006B
470 8 x 10 235 0.12 17 4800 GPC470M2.5-0810B
820 10 x 10.2 410 0.12 8 5500 GPC820M2.5-1010B
47 5 x 5.4 38 0.12 50 1400 GPC047M004-0505B
100 6.3 x 5.4 80 0.12 45 1800 GPC100M004-0605B
180 8 x 6.2 144 0.12 35 2560 GPC180M004-0806B
330 10 x 6.2 264 0.12 20 3700 GPC330M004-1006B
390 8 x 10 312 0.12 17 4800 GPC390M004-0810B
680 10 x 10.2 544 0.12 8 5500 GPC680M004-1010B
39 5 x 5.4 49 0.12 50 1400 GPC039M6.3-0505B
82 6.3 x 5.4 103 0.12 45 1800 GPC082M6.3-0605B
150 8 x 6.2 189 0.12 35 2560 GPC150M6.3-0806B
270 10 x 6.2 340 0.12 20 3700 GPC270M6.3-1006B
330 8 x 10 416 0.12 17 4800 GPC330M6.3-0810B
560 10 x 10.2 706 0.12 8 5500 GPC560M6.3-1010B
33 5 x 5.4 66 0.12 55 1200 GPC033M010-0505B
68 6.3 x 5.4 136 0.12 50 1600 GPC068M010-0605B
120 8 x 6.2 240 0.12 40 2300 GPC120M010-0806B
220 10 x 6.2 440 0.12 30 3300 GPC220M010-1006B
270 8 x 10 540 0.12 22 4500 GPC270M010-0810B
470 10 x 10.2 940 0.12 10 5300 GPC470M010-1010B
18 5 x 5.4 58 0.12 55 1200 GPC018M016-0505B
47 6.3 x 5.4 150 0.12 50 1600 GPC047M016-0605B
82 8 x 6.2 262 0.12 40 2300 GPC082M016-0806B
150 10 x 6.2 480 0.12 30 3300 GPC150M016-1006B
180 8 x 10 576 0.12 25 4500 GPC180M016-0810B
330 10 x 10.2 1056 0.12 12 5300 GPC330M016-1010B
Case Size
D x L (mm)
Leakage
Current (µA)
Tangent of loss
angle (max.)
E.S.R. (mΩ)
at 100 KHz
Allowable ripple
Current (mA rms)
Part number
