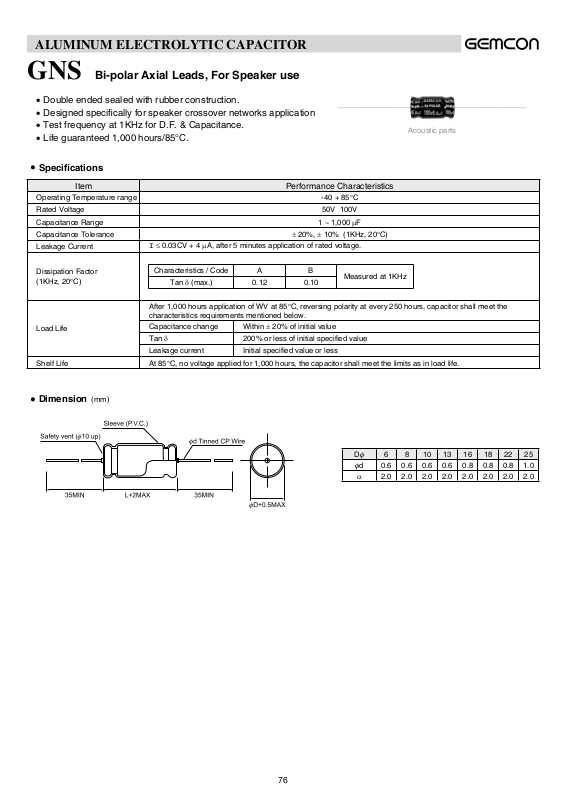

ALUMINUM ELECTROLYTIC CAPACITOR

ALUMINUM ELECTROLYTIC CAPACITOR

77

GNS Bi-polar Axial Leads, For Speaker use

• Double ended sealed with rubber construction.

• Designed specically for speaker crossover networks application

• Test frequency at 1KHz for D.F. & Capacitance.

• Life guaranteed 1,000 hours/85°C.

●

Specications

Item Performance Characteristics

Operating Temperature range -40 + 85°C

Rated Voltage 50V 100V

Capacitance Range 1 ∼ 1,000 µF

Capacitance Tolerance

Leakage Current

I ≤ 0.03CV + 4 µA, after 5 minutes application of rated voltage.

± 20%, ± 10% (1KHz, 20°C)

Acoustic parts

Dissipation Factor
(1KHz, 20°C)

Load Life

Shelf Life At 85°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life.

●

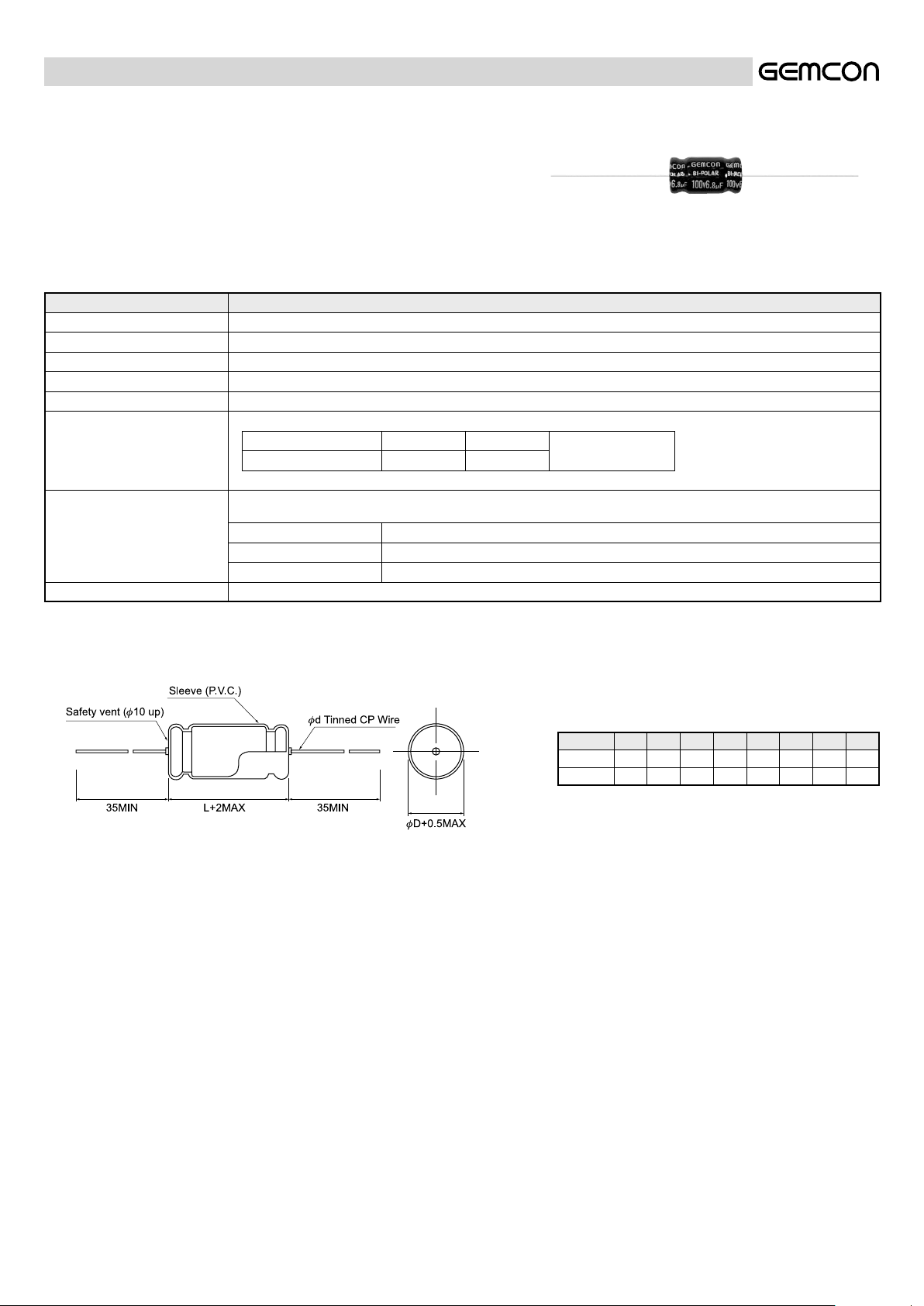

Dimension (mm)

Characteristics / Code A B

Tan δ (max.) 0.12 0.10

After 1,000 hours application of WV at 85°C, reversing polarity at every 250 hours, capacitor shall meet the
characteristics requirements mentioned below.

Capacitance change Within ± 20% of initial value

Tan δ 200% or less of initial specied value

Leakage current Initial specied value or less

Measured at 1KHz

Df 6 8 10 13 16 18 22 25
fd

0.6 0.6 0.6 0.6 0.8 0.8 0.8 1.0

2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0

α

76

ALUMINUM ELECTROLYTIC CAPACITOR

●

Standard Products Table

WV

Cap (µF)

1 6 x 16 8 x 17 8 x 17 8 x 17

1.5 6 x 16 8 x 17 8 x 17 8 x 17

2.2 6 x 16 8 x 17 8 x 17 8 x 17

2.7 6 x 16 8 x 17 8 x 17 8 x 17

3.3 6 x 16 8 x 17 8 x 17 10 x 19

3.9 6 x 16 8 x 17 8 x 17 10 x 19

4.7 8 x 17 8 x 17 8 x 17 10 x 19

5.6 8 x 17 8 x 17 10 x 19 10 x 19

6.8 8 x 17 10 x 19 10 x 19 10 x 19

7.5 8 x 17 10 x 19 10 x 19 10 x 19

8.2 8 x 17 10 x 19 10 x 19 10 x 19
10 10 x 19 10 x 19 10 x 19 10 x 19
12 10 x 19 10 x 19 10 x 19 10 x 19
15 10 x 19 10 x 19 10 x 19 13 x 26
18 10 x 19 10 x 19 13 x 26 13 x 26
22 10 x 19 10 x 19 13 x 26 13 x 26
27 10 x 19 13 x 26 13 x 26 13 x 26
33 10 x 19 13 x 26 13 x 26 13 x 26
39 10 x 19 13 x 26 13 x 26 13 x 31
47 13 x 26 13 x 31 13 x 31 13 x 31
56 13 x 26 13 x 31 13 x 31 13 x 31
68 13 x 26 13 x 31 13 x 31 13 x 31
75 13 x 31 13 x 31 13 x 31 13 x 31
82 13 x 31 13 x 31 13 x 31 16 x 34

100 13 x 31 13 x 31 16 x 34 16 x 34
120 13 x 31 13 x 31 16 x 34 16 x 34
150 13 x 31 16 x 34 16 x 42 16 x 42
180 16 x 34 16 x 34 16 x 42 16 x 42
220 16 x 34 16 x 34 18 x 42 18 x 42
250 16 x 34 16 x 34 18 x 42 18 x 42
270 16 x 34 16 x 34 18 x 42 18 x 42
330 16 x 34 16 x 42 22 x 44 22 x 44
390 16 x 42 16 x 42 22 x 44 22 x 44
470 18 x 42 16 x 42 25 x 52 25 x 52
560 18 x 42 22 x 44 25 x 52 25 x 52
680 22 x 44 25 x 46 25 x 56 25 x 56
750 22 x 44 25 x 46 25 x 56 25 x 56
820 25 x 46 25 x 46 25 x 56 25 x 56

1000 25 x 52 25 x 52 25 x 60 25 x 60

A (DF: 12%) B (DF: 10%) A (DF: 12%) B (DF: 10%)

• Specic capacitance value or size may acceptable per request.

• Indicating the right P/N :
Example : GNS100M050-1331BA (The last digit stands for characteristic/DF code)

50V 100V

Df x L (mm)
