GM6486
1
GM6486
33 OUTPUT LED DRIVER

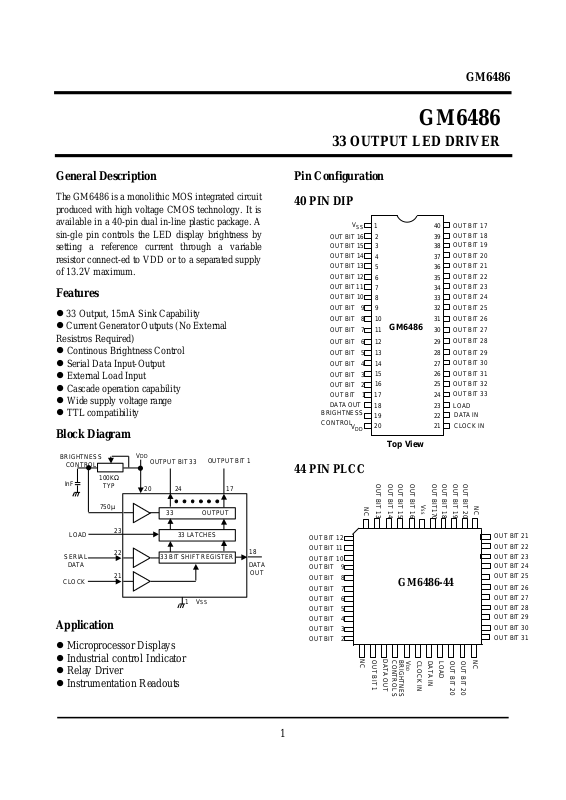

General Description
The GM6486 is a monolithic MOS integrated circuit
produced with high voltage CMOS technology. It is
available in a 40-pin dual in-line plastic package. A
sin-gle pin controls the LED display brightness by
setting a reference current through a variable
resistor connect-ed to VDD or to a separated supply
of 13.2V maximum.
Features
l 33 Output, 15mA Sink Capability
l Current Generator Outputs (No External
Resistros Required)
l Continous Brightness Control
l Serial Data Input-Output
l External Load Input
l Cascade operation capability
l Wide supply voltage range
l TTL compatibility
Block Diagram
Application
l Microprocessor Displays
l Industrial control Indicator
l Relay Driver
l Instrumentation Readouts
Pin Configuration
40 PIN DIP
44 PIN PLCC
SS
V
OUT BIT 16
OUT BIT 15
OUT BIT 14
OUT BIT 13
OUT BIT 12
OUT BIT 11
OUT BIT 10
OUT BIT 9
OUT BIT 8
OUT BIT 7
OUT BIT 6
OUT BIT 5
OUT BIT 4
OUT BIT 3
OUT BIT 2
DATA OUT
BRIGHTNESS
CONTROL
OUT BIT 17
OUT BIT 18
OUT BIT 19
OUT BIT 20
OUT BIT 21
OUT BIT 22
OUT BIT 23
OUT BIT 24
OUT BIT 25
OUT BIT 26
OUT BIT 27
OUT BIT 28
OUT BIT 29
OUT BIT 30
OUT BIT 31
OUT BIT 32
OUT BIT 33
LOAD
DATA IN
CLOCK IN
DD
V
1
2 3
4
5
6
7
8 9 10 11
12
17
18
19
20 13 14
15
16
40
39 38
37
36
35
34
33 32 31 30
29
24
23
22
21 28 27
26
25
GM6486
Top View
OUT BIT 1
33 OUTPUT
33 LATCHES
33 BIT SHIFT REGISTER
BRIGHTNESS
CONTROL
OUTPUT BIT 33
OUTPUT BIT 1
SERIAL
DATA
LOAD
CLOCK
DATA
OUT
InF
VDD
750µ
100KΩ
TYP
1 VSS
20
24 17
18
23 22 21
OUT BIT 12
OUT BIT 11
OUT BIT 10
OUT BIT 9
OUT BIT 8
OUT BIT 7
OUT BIT 6
OUT BIT 5
OUT BIT 4
OUT BIT 3
OUT BIT 2
OUT BIT 21
OUT BIT 22
OUT BIT 23
OUT BIT 24
OUT BIT 25
OUT BIT 26
OUT BIT 27
OUT BIT 28
OUT BIT 29
OUT BIT 30
OUT BIT 31
OUT BIT 20
OUT BIT 19
OUT BIT 18
OUT BIT170
OUT BIT 16
OUT BIT 15
OUT BIT 14
OUT BIT 13
OUT BIT 20
OUT BIT 20
NC
NC
NC
NC
OUT BIT 1
LOAD
DATA OUT
BRIGHTNES
CONTROL S
DATA IN
CLOCK IN
VDD
VSS
GM6486-44
Page 2
GM6486
2
Absolute Maximum Rating
SYMBOL PARAMETER RATINGS UNIT
DD
V Supply Voltage -0.3 to 15 V
IN
V Input Voltage -0.3 to 15 V
)off(V
O
Off State Output Voltage 15 V
O
I Output Sink Current 40 mA
1 (at 25 C° ) W
tot
P
Total Package Power Dissipation
560 (at 85C°) mW
j
T
Junction Temperature 150 C°
op
T
Operating Temperature Range -25 to 85 C°
stg
T
Storage Temperature Range -65 to 150 C°
Electrical Characteristics
(
amb
T within operating range, DDV =4.75V to 13.2V SSV =0, unless otherwise specified)
SYMBOL
PARAMETER TEST CONDITION MIN TYP MAX UNIT
DD
V Supply Voltage 4.75
13.2 V
DD
I
Supply Current
DD
V =13.2V
All Control Inputs at
SS
V =0V
50 1000
A
µ
IL
V
IH
V
Input Voltage
Logical “0” Level
Logical “1” Level
A10
µ
±
Input Bias
25.5V75.4
DD
≤≤
DD
V >5.25
-0.3
2.2
DD
V -2
0.8
DD
V
DD
V
V
V
V
b
I
Brightness input current
(Note 1)
0.75 mA
b
V
Brightness input voltage
(Pin 19)
Input Current=750 Aµ 3 4.3 V
)off(V
O
Off State out. Voltage 13.2 V
OH
I
OL
I
Output sink current
(Note 2)
Segment off
Segment on
V3Vo=
V1Vo= (Note 3)
Bright in =0 Aµ
Bright in =100 Aµ
Bright in =750 Aµ
0
2
12
2.7
15
10
10
4
25
A
µ
A
µ
mA
mA
O
I
Maximum Segment
Current
40 mA
Page 3
GM6486
3
SYMBOL
PARAMETER TEST CONDITION MIN TYP MAX UNIT
M
O
Output Matching
(Note 4)
20
±
%
OL
V
OH
V
Data Output
Logical “0” Level
Logical “1” Level
mA5.0I
OUT
=
A100I
OUT
µ=
SS
V
2.4
0.4
DD
V
V
V
C
f
th
l
t
Clock Input
Frequency
High Time
Low Time
(notes 5 and 6)
950
950
500 KHz
ns
ns
DS
t
DH
t
Data Input
Set-up time
Hold time
300
300
ns
ns
DES
t
Data Enable Input
Set-up time
100
ns
Note: 1. With a fixed resistor on the brightness input, some variation in brightness will occur from one device
to another.
2. Absolute maximum for each output should be limited to 40 mA.
3. The
o
V voltage should be regulated by the user. See figures 6 and 7 for allowable oV versus oI
operation.
4. Output matching is calculated as the percent variation (lmax+lmin)/2.
5. AC input waveform specification for test prupose: ns20t
r
≤
. ns20t
f
≤
.
f=500kHz±10% duty cycle
6. Clock Input rise and fall times must not exceed 300ns.
Functional Description
The GM6486 is specifically designed to operate 4 digit displays with minimal interface with the display and the
data source. Serial data transfer from the data source to the display driver is accomplished with 3 signals, serial
data, clock and load.
The 33 data bits are latched by a positive pulse, thus providing non-multiplexed direct drive to the display.
Outputs change only if the serial data bits differ from the previous time. Display brightness is determined by control of the output current of LED drivers. A 1nF capacitor should be connected to brightness control, pin 19, to
prevent possible oscillation. A block diagram is shown in figure 1.
The output current is typically 20 times greater than the current into pin 19, which is set by an external variable resistor.
There is an internal limiting resistor of 400 Ω nominal value.
Figure 2 and 3 show the input data format. Bit “1” is the first bit into the data input pin and it will appear on pin
17. A logical “1” at the input will turn on the appropriate LED. The LOAD signal latches the 33 bit of the shift
registers into the latches. The data out pin allows for cascading the shift registers for more than 33 output drivers.
When power is first applied to the chip an internal power ON reset signal is generated which resets all registers
and all latches.
The first clock return the chip to its normal operation.
Figure 4 shows the timing relationship between data, clock and load.
A max clock frequency of 0.5MHz is assumed.
For applications where less number of outputs are used, it is possible to either increase the current per output or
operate the part at higher than 1V
o
V .
The following equation can be used for calculation.
••= )I()V[(T
LEDoj
(No. of segments)+(Vdd×7mA)](124
C
°
/W)+Tamb
where
=jT junction temperature (+150 C° max) 124 C° /W=thermal coefficient of package
o
V =the voltage at the LED driver outputs Temb=ambient temperature
LED
I =the LED current
The above equation was used to plot figure 5, 6 and 7.
Page 4
GM6486
4
• leading clock is necessary after power on and load signal high.
• reset pulse 1: internal pulse that comes after power on—effective on both shift register and latches
• reset pulse 2: internal pulse that comes load pulse—effective on shift register only.

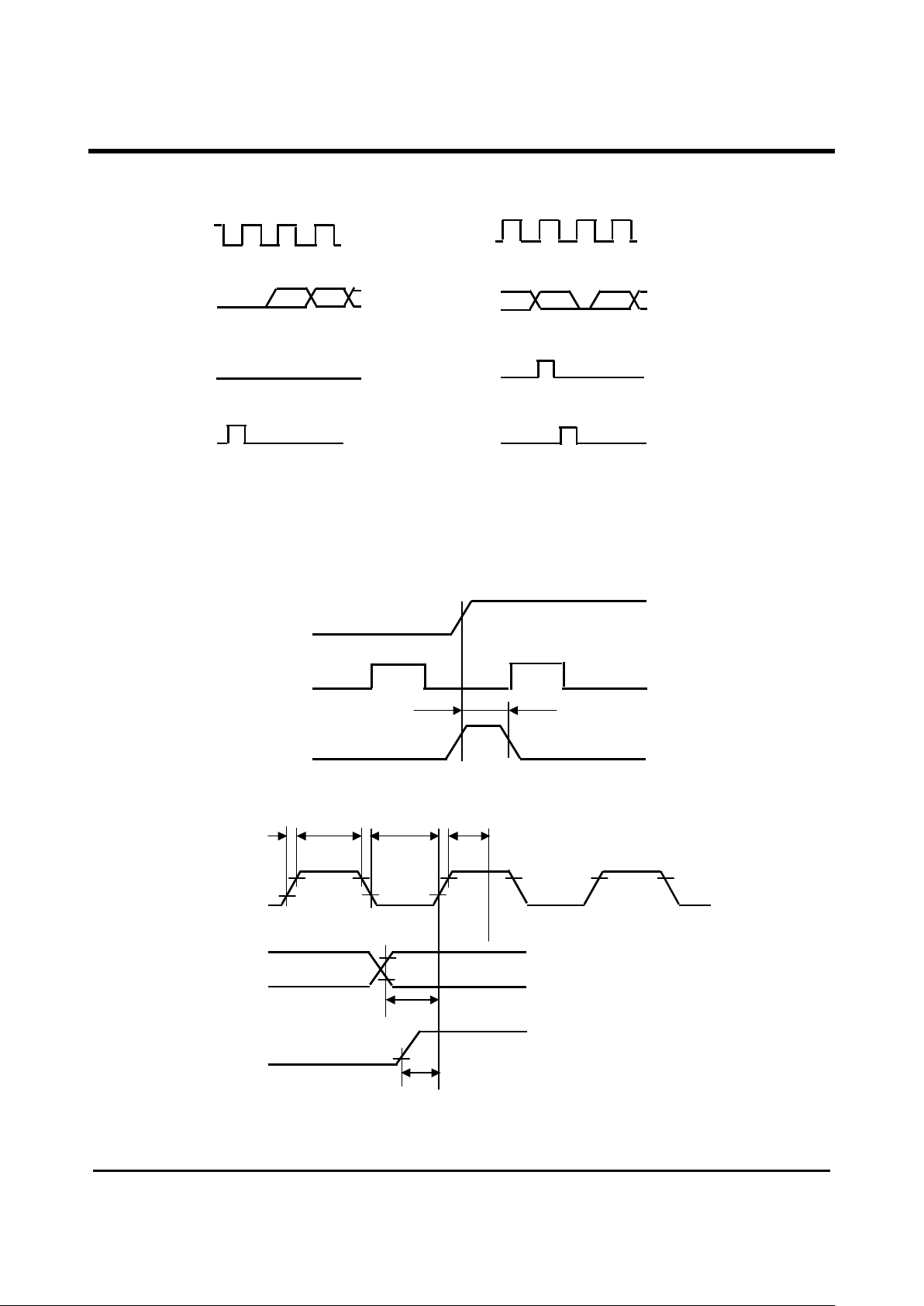

Fig. 2. Data Input Format
Fig. 3. Power On Reset
Fig. 4. Timing Diagram
CLOCK
LEADING
CLOCK
LEADING
CLOCK
DATA
LOAD
RESET
(INTERNAL)
BIT 1 BIT 2
BIT 32 BIT 33 BIT 1
reset
Pulse 1
reset
Pulse 2
VDD
CLOCK
RESET
(INTERNAL)
300ns MIN
CLOCK
DATA
LOAD
r
t
th
f
tltdhtdst
des
t
1 2
1 32 33
Page 5
GM6486
5

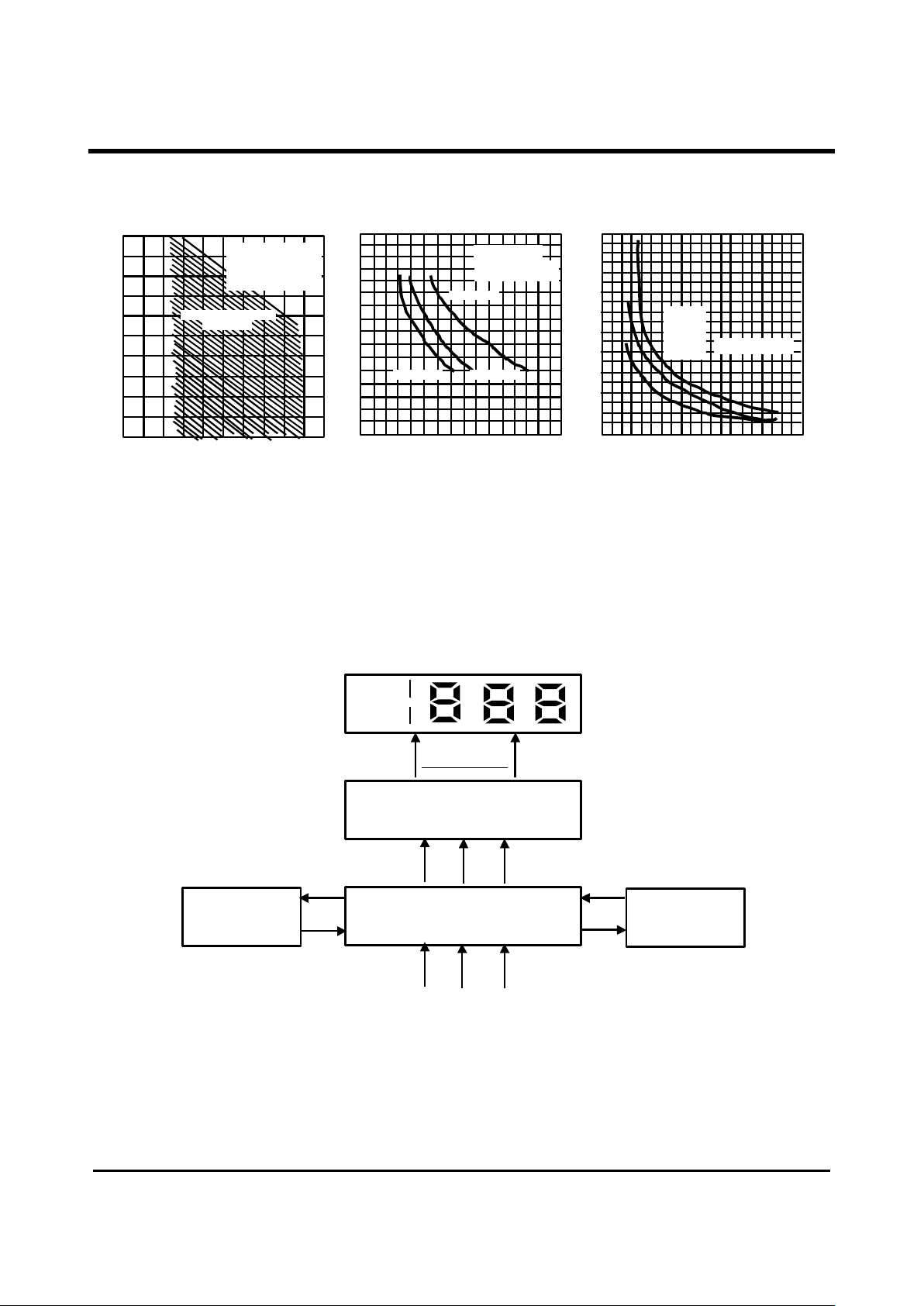

Fig. 5 Fig. 6 Fig. 7
Typical Applications
Basic electronically turned Ratio or TV system
AM
FM
GM6486
DISPLAY
DRIVER
ELECTRONIG
UNIGNG
CONTROLLER
KEY BOARD
PLL SYNTHESIZER
33 SEGMENT
STATION
DETECT ETC.
Plot
(W)
0.8
0.6
0.4
0.2 0 20
40
60 0 4 8 12
16
20
0.6
1.2
1.8
2.4
24 0 4 8 12
16
20
24
28
32 5 15
25
35
45
55
65
75
85
o
VoI
(mA)
Tamb
(C°)
LED
I
°N
(mA)
Se
SAFE OPERATING
AREA
20SEGM
33SEGM
30SEGM
C°85
=
Tamb)MAX(C°150
=
T
j
V5.1=V
o
V1=V
o
V2=V
o
33 SEGMENTS
V0=1V
15mA/SEGMEN
MAXIo=40mA
Page 6
GM6486
6
Typical Applications (Continued)

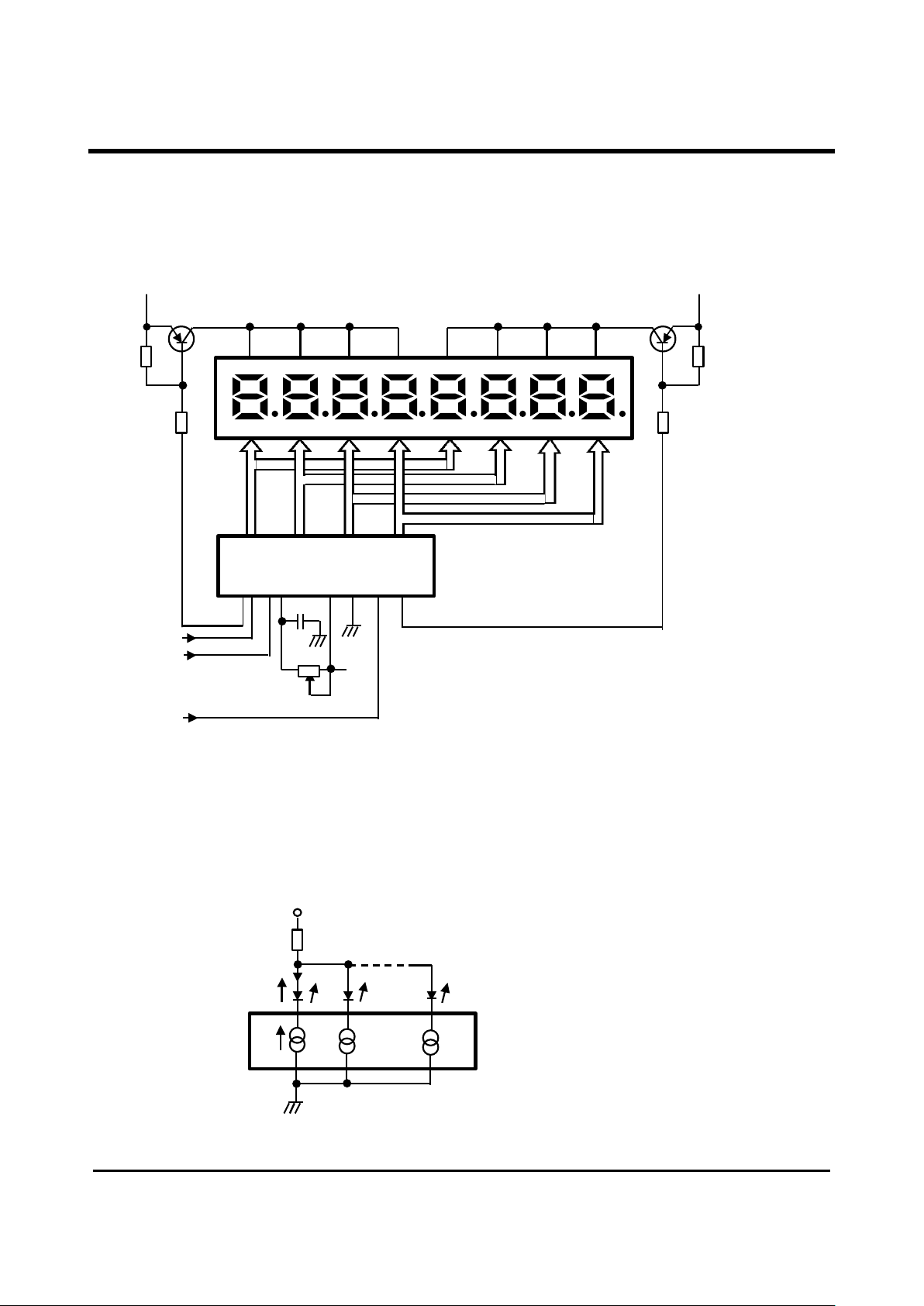

Duplexing 8 Digits with one GM6486
Power Dissipations of the IC
The power dissipation of the IC can be limited by using different configulation.
a)
9-15 2-8, 40 32-39 24-31
GM6486
16 21 22 19 20 1 23 17
VCC
VLED
VLED
VDD
VDD
LOAD
DATA IN
CLOCK IN
BRIGHTNESS
CONTROL
VC
VOUT
VD
ID
Page 7
GM6486
7
In this application R must be chosen taking into account the worst operating conditions. R is determined by the
maximum number of segment activated.
DMax
OMINDMAXC
I•N
VVV
=R
The worst case condition for the device is when roughly half of the maximum number of segments are activated.
It must be checked that the total power dissipation does not exceed the absolute maximum ratings.
In critical cases more resistors can be used in conjuction with groups of segments. In this case the current
variation in the single resistor is reduced and plot limited.

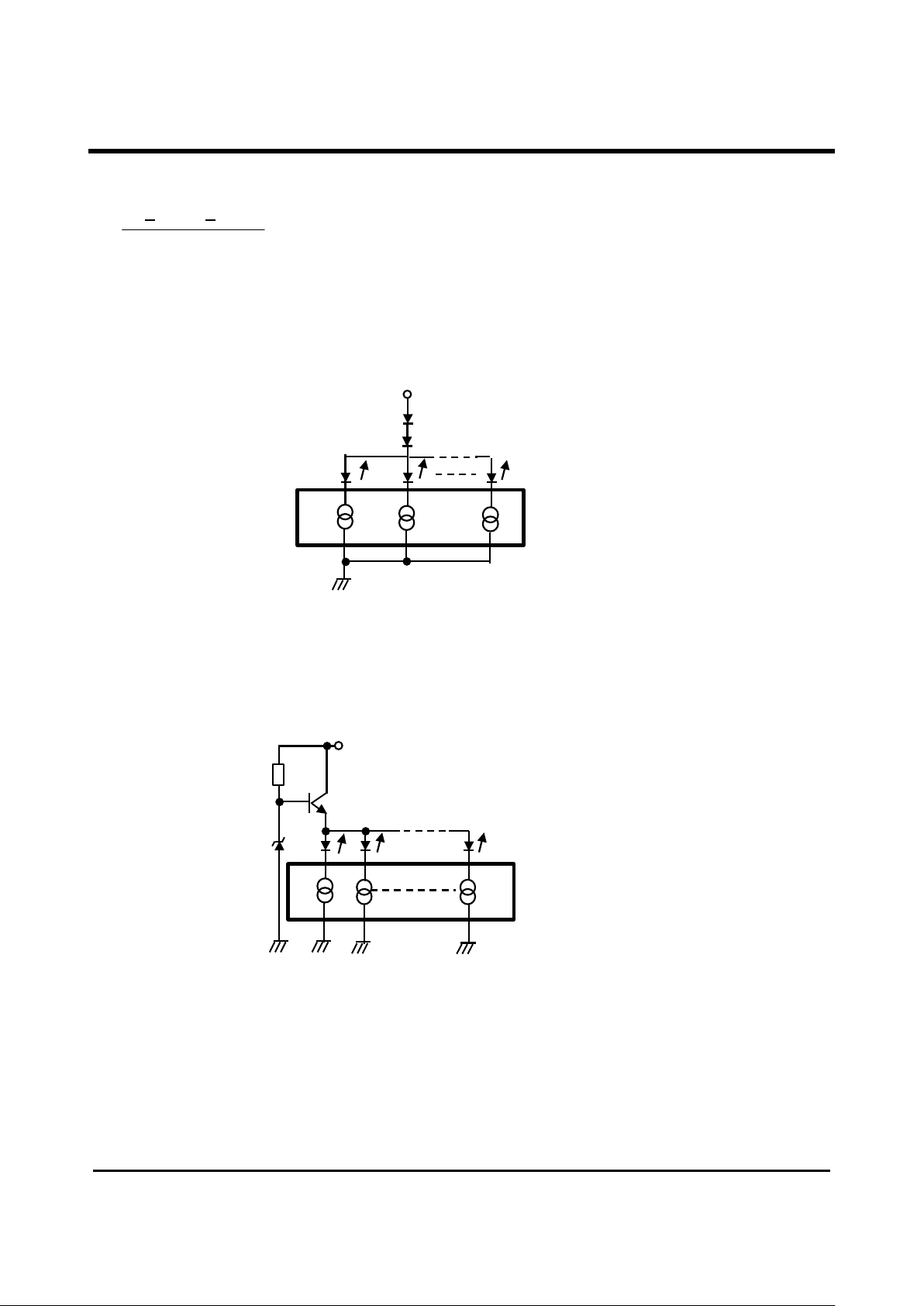

b)
In this configuration the drop on the serial connected diodes is quite stable if the diodes are properly chosen.
The total power dissipation of the ICs is, in first approximation, depending only on the number of segments
activated.
c)
In this configuration VOUT+VD is constant. The total power dissipation of the IC depends only the number of
segments activated.
VC
VC
VOUT+VD
