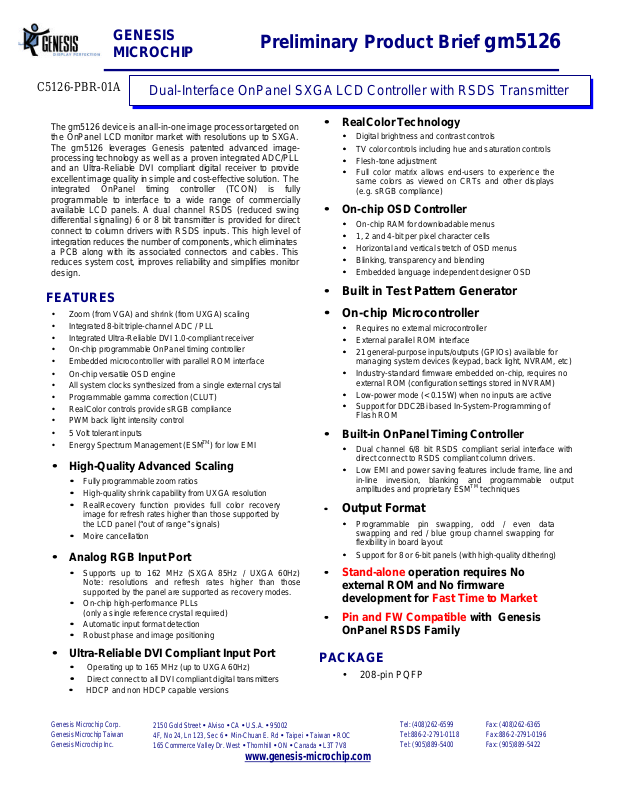

Preliminary Product Brief gm5126

C5126-PBR-01A

the OnPanel LCD monitor market with resolutions up to SXGA.

processing technology as well as a proven integrated ADC/PLL

and an Ultra-Reliable DVI compliant digital receiver to provide

integrated OnPanel timing controller (TCON) is fully

programmable to interface to a wide range of commercially

available LCD panels. A dual channel RSDS (reduced swing

differential signaling) 6 or 8 bit transmitter is provided for direct

connect to column drivers with RSDS inputs. This high level of

a PCB along with its associated connectors and cables. This

reduces system cost, improves reliability and simplifies monitor

Note: resolutions and refresh rates higher than those

in-line inversion, blanking and programmable output

Dual-Interface OnPanel SXGA LCD Controller with RSDS Transmitter

The gm5126 device is an all-in-one image processor targeted on
The gm5126 leverages Genesis patented advanced image-

excellent image quality in simple and cost-effective solution. The

integration reduces the number of components, which eliminates

design.

FEATURES

• Zoom (from VGA) and shrink (from UXGA) scaling

• Integrated 8-bit triple-channel ADC / PLL

• Integrated Ultra-Reliable DVI 1.0-compliant receiver

• On-chip programmable OnPanel timing controller

• Embedded microcontroller with parallel ROM interface

• On-chip versatile OSD engine

• All system clocks synthesized from a single external crystal

• Programmable gamma correction (CLUT)

• RealColor controls provide sRGB compliance

• PWM back light intensity control

• 5 Volt tolerant inputs

• Energy Spectrum Management (ESMTM) for low EMI

•• High-Quality Advanced Scaling

•• Fully programmable zoom ratios

•• High-quality shrink capability from UXGA resolution

•• RealRecovery function provides full color recovery

image for refresh rates higher than those supported by
the LCD panel (“out of range” signals)

•• Moire cancellation

•• Analog RGB Input Port

•• Supports up to 162 MHz (SXGA 85Hz / UXGA 60Hz)

supported by the panel are supported as recovery modes.

•• On-chip high-performance PLLs
(only a single reference crystal required)

•• Automatic input format detection

•• Robust phase and image positioning

•• RealColor Technology

•• Digital brightness and contrast controls

•• TV color controls including hue and saturation controls

•• Flesh-tone adjustment

•• Full color matrix allows end-users to experience the

same colors as viewed on CRTs and other displays
(e.g. sRGB compliance)

•• On-chip OSD Controller

•• On-chip RAM for downloadable menus

•• 1, 2 and 4-bit per pixel character cells

•• Horizontal and vertical stretch of OSD menus

•• Blinking, transparency and blending

•• Embedded language independent designer OSD

•• Built in Test Pattern Generator

•• On-chip Microcontroller

•• Requires no external microcontroller

•• External parallel ROM interface

•• 21 general-purpose inputs/outputs (GPIOs) available for

managing system devices (keypad, back light, NVRAM, etc)

•• Industry-standard firmware embedded on-chip, requires no
external ROM (configuration settings stored in NVRAM)

•• Low-power mode (< 0.15W) when no inputs are active

•• Support for DDC2Bi based In-System-Programming of

Flash ROM

•• Built-in OnPanel Timing Controller

•• Dual channel 6/8 bit RSDS compliant serial interface with

direct connect to RSDS compliant column drivers.

•• Low EMI and power saving features include frame, line and
amplitudes and proprietary ESMTM techniques

•• Output Format

•• Programmable pin swapping, odd / even data

swapping and red / blue group channel swapping for
flexibility in board layout

•• Support for 8 or 6-bit panels (with high-quality dithering)

•• Stand-alone operation requires No

external ROM and No firmware
development for Fast Time to Market

•• Pin and FW Compatible with Genesis

OnPanel RSDS Family

•• Ultra-Reliable DVI Compliant Input Port

•• Operating up to 165 MHz (up to UXGA 60Hz)

•• Direct connect to all DVI compliant digital transmitters

•• HDCP and non HDCP capable versions

Genesis Microchip Corp.
Genesis Microchip Taiwan
Genesis Microchip Inc.

165 Commerce Valley Dr. West • Thornhill • ON • Canada • L3T 7V8

PACKAGE

• 208-pin PQFP

Tel: [phone] Fax: [phone]
Tel:[phone] Fax:[phone]
Tel: [phone] Fax: [phone]

www.genesis-microchip.com

GENESIS
MICROCHIP

Preliminary Product Brief gm5126

C5126-PBR-01A

Analog

Triple

PLL

Parallel

8051-style

External


YUV to RGB

Clock

Internal

Ultra-

MCU

DVI-Compliant

OnPanel Timing

OSD

OSD

EEPROM

Host

Test

Generator

RSDS

Row &

Energy

gm5126 Functional Block Diagram

TMDS Input

RGB

Serial I/F

Reliable

TMDS Rx

HDCP

ADC &

Pattern

Serial I/F

Interface

TM

GPIO

Micro-

controller

RAM

Capture /
Measure-

ment

ROM IF

ROM I/F

ROM

Conversion /

Brightness /

Contrast /

Hue / Sat /

RealColor /

Moire

Zoom /

Shrink /

Filter

Controller

RAMs

Gamma

Control

Clock

Generation

Display
Control

Spectrum

Management

Controller

RSDS

Tx

Column

Driver IC

Timing

Control

Panel

Data

Note: ESM, RealColor, Real Recovery and Ultra-Reliable DVI are trademarks of Genesis Microchip Inc.
Note: RSDS is a trademark of National Semiconductor Corporation

Analog

RGB

DVI

gm5126 OnPanel Design Example

RSDS

EDID

gm5126

Row

Driver ICs

EDID

EEPROM

Keypad/LED

ROM

(optional)

Genesis Microchip

Column

Driver ICs

LCD

Panel

Back light
